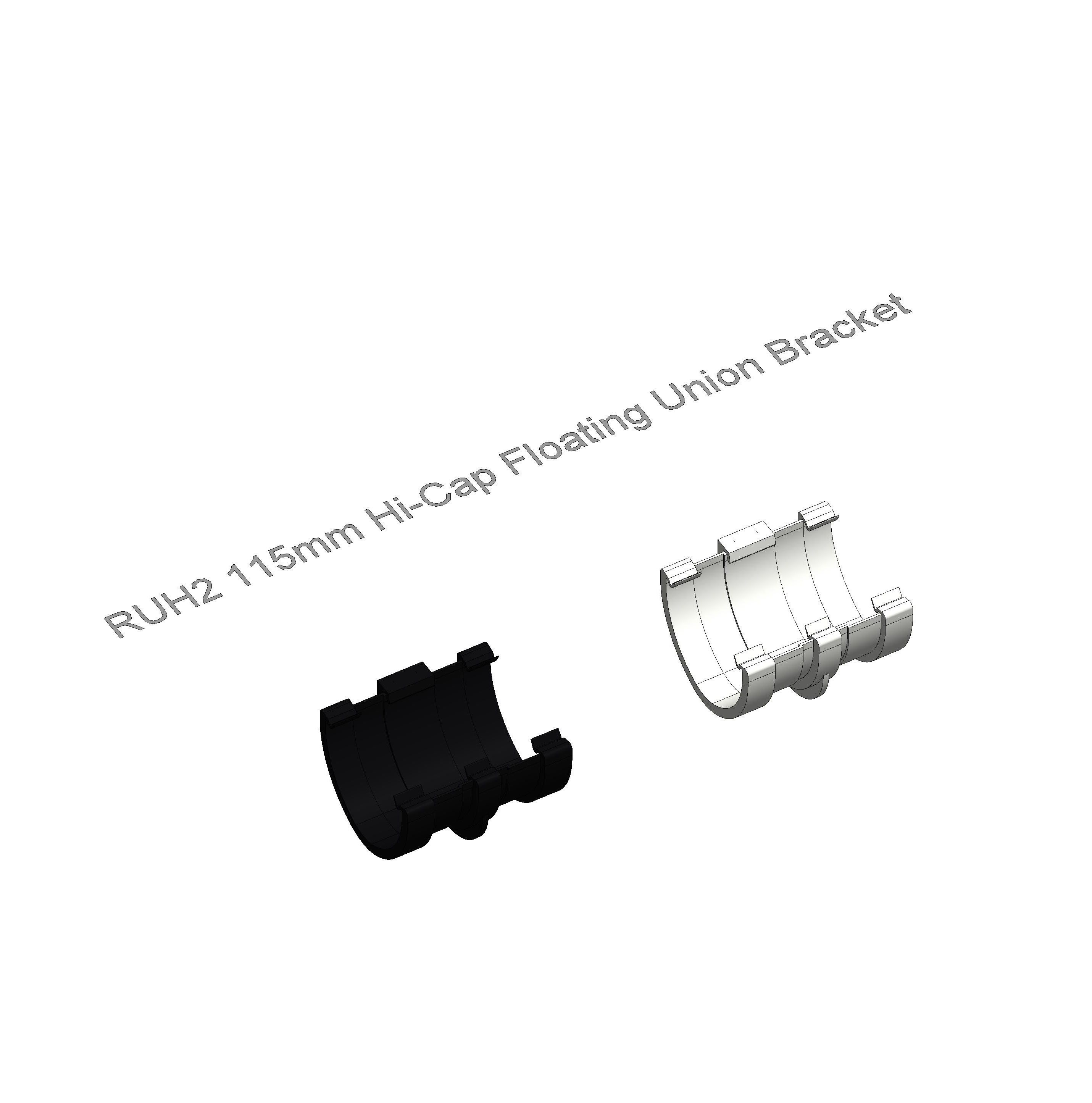

FloPlast RUH2 115mm Hi-Cap Floating Union Bracket

114
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

19/09/2024

Download BIM

Add to collection

Available for:

A semi-elliptical profile with high capacity flow.

System Features

FloPlast recommend the use of lubricant on all gutter seals for ease of fitting and improved performance.

A semi-elliptical profile.
High capacity-ideal for large roof areas.
Pre-fitted gutter seal retaining clip system for fast user friendly installation.
High flow rate means less outlets and less drainage runs.
Both 68mm & 80mm Round Line downpipes can be connected to the gutter system.
System is covered by a BSI Kitemark – no. KM501316.

Please see related documents for installation guidelines.

Specifications

BSI Kitemark number: KM 501316 – BS EN 607, BS EN 12200 and BS EN 1462 Plastic rainwater, piping and guttering systems for above ground use – Unplasticized poly vinyl chloride (PVC-U).

BS EN 607 – Eaves gutters and fittings made of PVC-U.

BS EN 1462 – Brackets for eaves gutters.

BS EN 12200-1 – Plastics rainwater piping systems for above ground external use. Unplasticized poly (vinyl chloride) (PVC-U).

BS EN 681 – Elastomeric seals. Material requirements for pipe joint seals used in water and drainage applications. Thermoplastic elastomers.

_AuthorMM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.wienerberger.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guiden/a
Accessibility Performancen/a
Assembly CodeD2040100
Asset TypeFixed
BIM Object NameFloPlast_SpecialtyEquipment_RUH2_115mmHiCapFloatingUnionBracket
Classification NameUniclass2015
Classification ValuePr_65_52_03_88
Code Performancen/a
ColorBlack
ConstituentsMoulded PVC Body, Moulded PVC Clips, EDPM Rubber Seals
Created Bywbukdesignservices@wienerberger.co.uk
Created On2024-01-17T09:00:00
Default Elevation0 mm
DescriptionHi-Cap Floating Union Bracket
Documentation Certificateswww.floplast.co.uk/rainwater
Documentation Installation Guidewww.floplast.co.uk/rainwater
Documentation Literaturewww.floplast.co.uk/rainwater
Documentation Maintenancewww.floplast.co.uk/rainwater
Documentation Technicalwww.floplast.co.uk/rainwater
Duration UnitYears
Expected Life0
Featuresn/a
FinishHigh Gloss
Flo Plast MaterialFloPlast_BlackPVC-U
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingTypeEnum.CONNECTOR
KeynoteR10/350
ManufacturerFloPlast LTD
Manufacturer NameFloPlast LTD
MaterialPVC-U, EDPM Rubber
ModelRUH2 115mm Hi-Cap Floating Union Bracket
Model Numbern/a
Model Referencen/a
NBS DescriptionUnplasticized polyvinyl chloride (PVC-U) rainwater pipes and fittings
NBS Noten/a
NBS Object NameFloPlast - Unplasticized polyvinyl chloride (PVC-U) rainwater pipes and fittings
NBS Office Master Tagn/a
NBS Reference90-10-30/318
Nominal Depth136 mm
Nominal Height96 mm
Nominal Length145 mm
NoteTo be used in conjunction with: 68mm Round or 80mm Round
Production Year2024
Referenced Standardn/a
Replacement Costn/a
ShapeHi-Cap
Size145 x 136 x 96mm
Spare Partsn/a
Type CommentsRUH2 Black 115mm Hi-Cap Floating Union Bracket
Type NameRUH2 Black 115mm Hi-Cap Floating Union Bracket
URLwww.floplast.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Labortechnical@floplast.co.uk
Warranty Guarantor Partstechnical@floplast.co.uk
