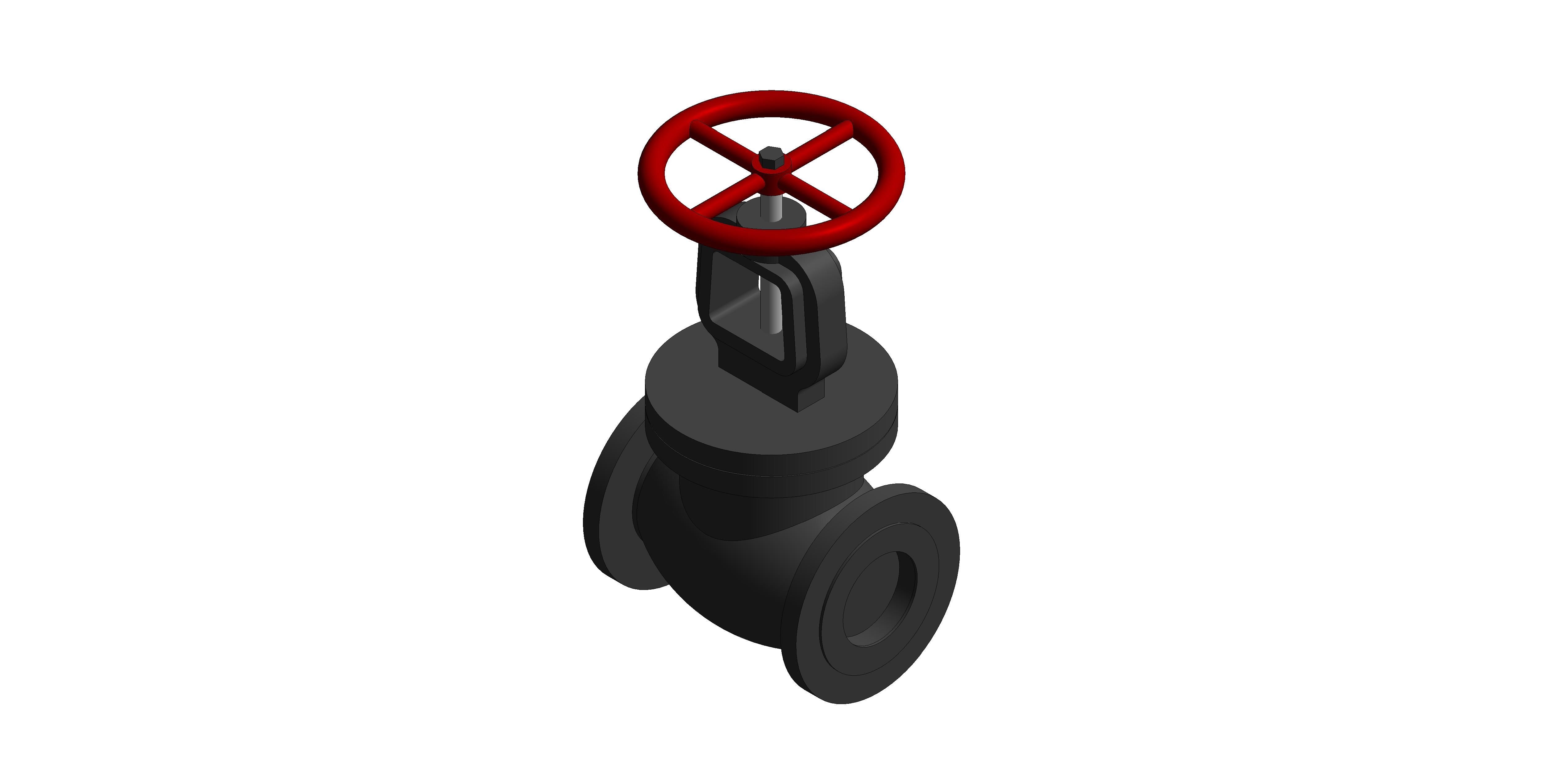

FM369 - Globe Valve - PN16 - Cast Iron

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/fm369-globe-valve-pn16-cast-iron/document/object-user-guide
• a30.00 mm
• A292.00 mm
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• Available OptionsFlanges Undrilled
• b65.00 mm
• B24.00 mm
• BIM Object NameCraneFS_GlobeValve_FM369
• BodyCast Iron BS EN 1561 GJL-250
• Body Rad215.00 mm
• Body Seat RingBronze BS EN 1982 CC491K
• BonnetCast Iron BS EN 1561 GJL-250
• c175.00 mm
• C220.00 mm
• Classification NameUniclass 2015
• Classification ValuePr_65_54_95_13
• Code Performancen/a
• Colorn/a
• Connection Radius50.00 mm
• Connection Size100.00 mm
• Constituentsn/a
• Created Byenquiries@cranefs.com
• Created On2022-02-01 T:09:00:00
• d130.00 mm
• D254.00 mm
• DescriptionCrane cast iron globe valves are highly efficient for throttling because seat and disc designs provide flow characteristics with proportionate relationships between valve lift and flow rate
• DiscBronze BS EN 1982 CC491K
• Disc Guide Pinn/a
• Disc Stem RingBrass BS EN 12164 CW721R
• Documentation Certificateswww.bimstore.co/products/fm369-globe-valve-pn16-cast-iron/document/product-certificates

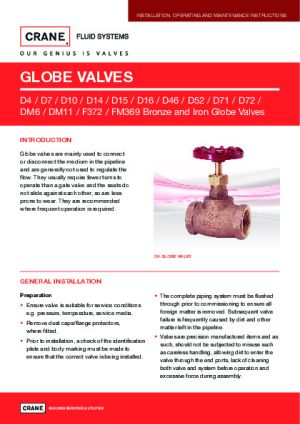

• Documentation Installation Guidewww.bimstore.co/products/fm369-globe-valve-pn16-cast-iron/document/installation-guide

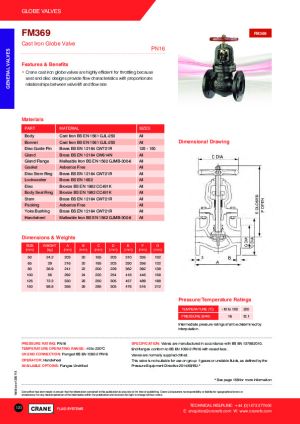

• Documentation Literaturewww.bimstore.co/products/fm369-globe-valve-pn16-cast-iron/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/fm369-globe-valve-pn16-cast-iron/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/fm369-globe-valve-pn16-cast-iron/document/technical-data-sheet
• Duration UnitYear
• e50.00 mm
• E416.00 mm
• End Connection(UK)Flanged BS EN 1092-2 PN16
• Expected Life0
• f240.00 mm
• F446.00 mm
• Featuresn/a
• Finishn/a
• g10.50 mm
• G158.00 mm
• GasketAsbestos Free
• GlandBrass BS EN 12164 CW614N
• Gland FlangeMalleable Iron BS EN 1562 GJMB-300-6
• Graden/a
• HandwheelMalleable Iron BS EN 1562 GJMB-300-6
• Handwheel Height35.98 mm
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.ISOLATING
• K Coefficient0
• KeynoteS
• LockwasherBrass BS EN 1652
• Loss MethodK Coefficient
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• Materialn/a
• ModelFM369
• Model NumberFM369
• Model ReferenceFM369 - Cast Iron Globe Valve
• NBS DescriptionCast iron globe valves
• NBS Noten/a
• NBS Object NameCraneFS - Cast iron globe valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/340
• Nominal Depth254.00 mm
• Nominal Height556.00 mm
• Nominal Length292.00 mm
• OperatorHandwheel
• PackingAsbestos Free
• Pressure RatingPN16
• Production Year2022
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size4"
• Spare Partsn/a
• Specification NotesValves are manufactured in accordance with BS EN 13789:2010. End flanges conform to BS EN 1092-2 PN16 with raised face. Valves are normally supplied drilled. This valve is not suitable for use on group 1 gases or unstable fluids, as defined by the Pressure Equipment Directive 2014/68/EU.
• StemBrass BS EN 12164 CW721R
• Temperature Operating Range-10 to 220°C
• Top Section4
• Type CommentsFM369 - Cast Iron Globe Valve
• Type NameFM369 - Cast Iron Globe Valve
• URLwww.cranefs.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborenquiries@cranefs.com
• Warranty Guarantor Partsenquiries@cranefs.com
• Weight56.00 kg
• Yoke BushingBrass BS EN 12164 CW721R
