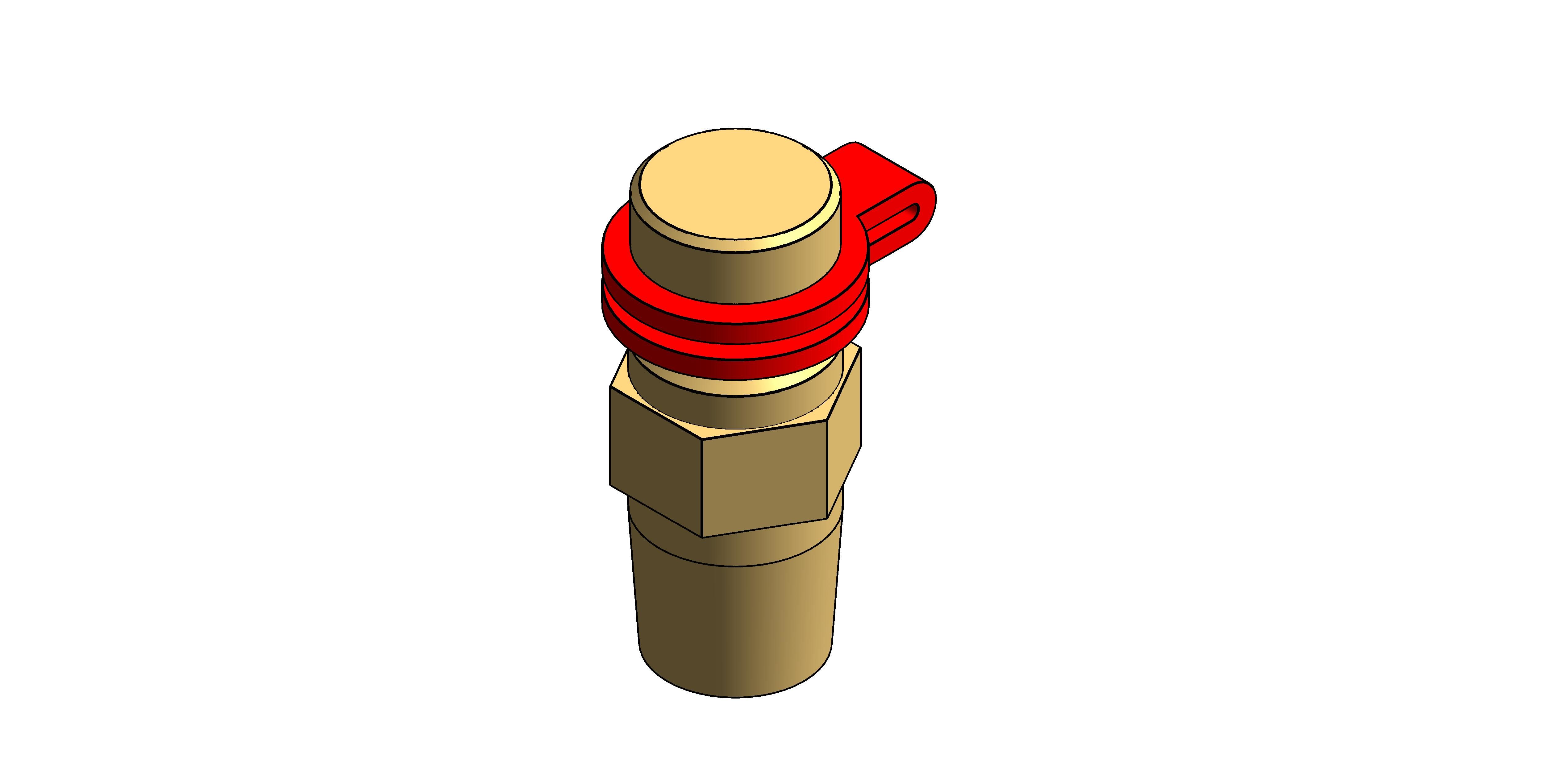

Standard Pressure Test Points

Fig. 631

When fitted to measuring devices and strainers, test points are supplied with cap retainers in red and blue for upstream and downstream port identification. This meets the requirements of BS 73.

Hattersley Figure 631 test points are WRAS Approved products and are listed in the water fittings and materials directory.

Pressure Rating	PN25
Temperature Rating	10 - 120°C
End Connections	Please see Datasheet for details

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-631/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_StandardPressureTestPoint_Fig631
Cap MaterialHattersley - PVC - Red
Classification NameUniclass 2015
Classification ValuePr_65_54_93_87
Code Performancen/a
Colorn/a
Connection Size0.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
Default Elevation0.00 mm
DescriptionFig. 631 - Standard Pressure Test Points
Diameter14.00 mm
Documentation Certificateswww.bimstore.co/products/hattersley-fig-631/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-631/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-631/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-631/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-631/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Height35.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 631 - Standard Pressure Test Points
Model NumberFig. 631
Model ReferenceFig. 631 - Standard Pressure Test Points
NBS DescriptionTest points
NBS Noten/a
NBS Object NameHattersley - Test points
NBS Office Master Tagn/a
NBS Reference90-10-90/360
Nominal Depth14.00 mm
Nominal Height35.00 mm
Nominal Length14.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeFig 631
Spare Partsn/a
Test Point MaterialHattersley - Metal - DZR Copper Alloy
Type CommentsFig. 631 - Standard Pressure Test Points
Type NameFig. 631 - Standard Pressure Test Points
URLwww.hattersley.com/
