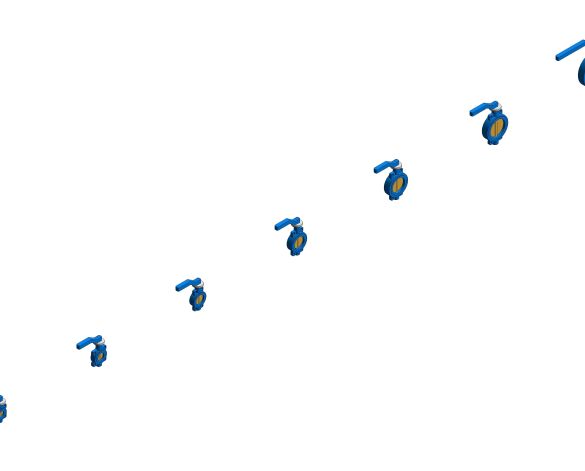

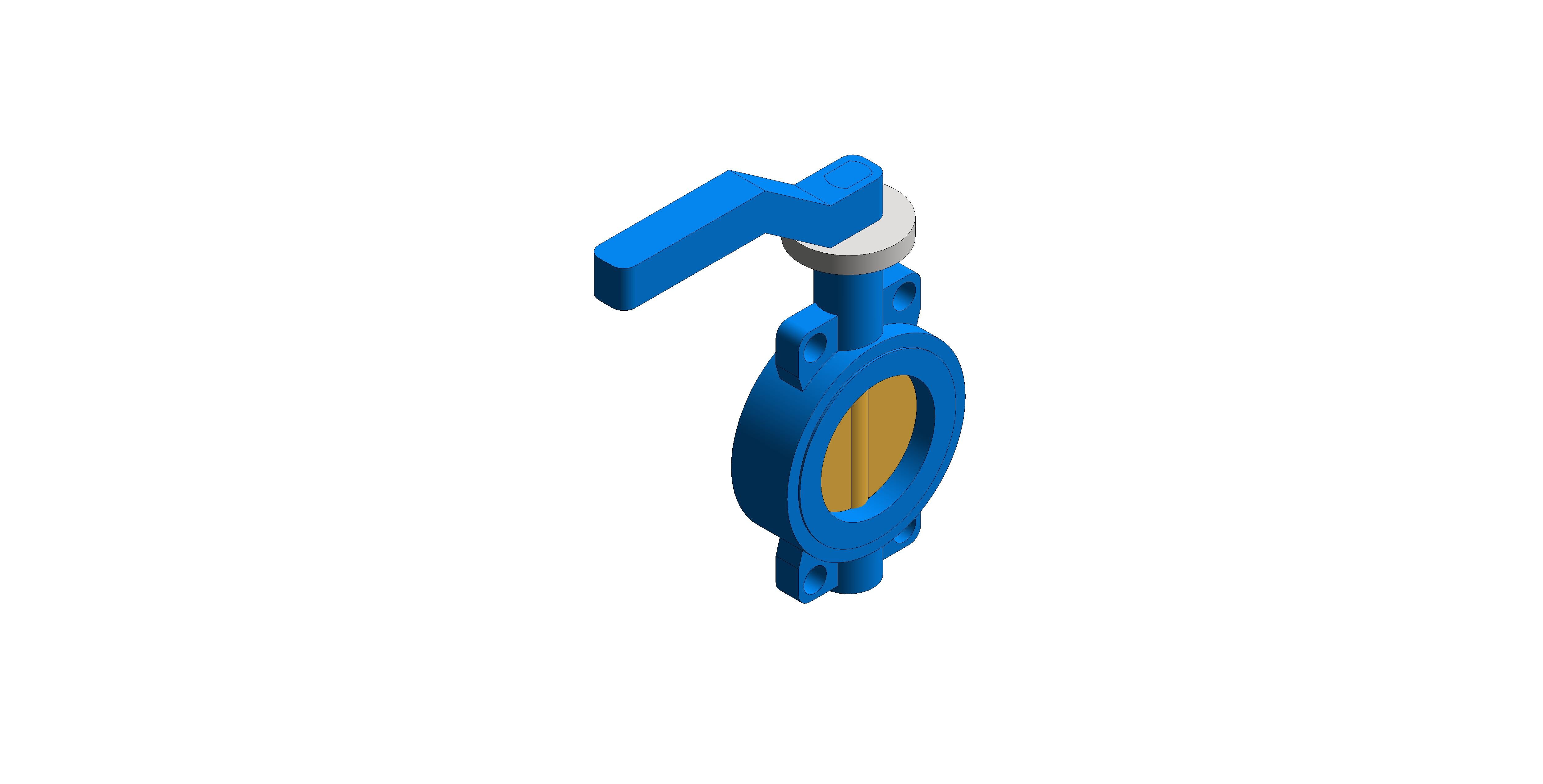

Fig. 950 - Semi-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron

17.3k
0
4 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

12/08/2021

Download BIM

Add to collection

Available for:

Semi-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron

Fig. 950

Features & Benefits

Ductile Iron Body
Aluminium Bronze Disc
Liner bonded to steel backing ring
High strength, low friction bearings for upper and lower shafts, to restrain shaft deflection and ensure effective stem sealing
Long neck for insulation
Maintenance free

Size	50mm to 200mm
Pressure Rating	PN16
Product Material	Ductile Iron
End Connections	To suit flange connections BS EN 1092-2 PN16
Test Pressure	Hydrostatic Body: 24 bar Seat: 17.6 bar

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/

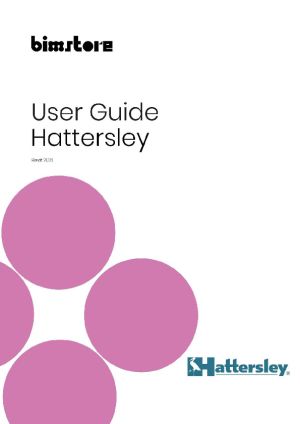

_Object User Guidewww.bimstore.co/products/hattersley-fig-950/document/object-user-guide
272.00 mm
383.00 mm
443.00 mm
525.00 mm
657.10 mm
7205.00 mm
8107.00 mm
964.20 mm
A163.00 mm
A1343.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B108.00 mm
BIM Object NameHattersley_ButterflyValve_SemiLuggedLeverOperated_Fig950
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-10T:09:00:00
D32.00 mm
DescriptionFig. 950 - Semi-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
Disc MaterialHattersley - Metal - Bronze
Documentation Certificateswww.bimstore.co/products/hattersley-fig-950/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-950/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-950/document/product-literature

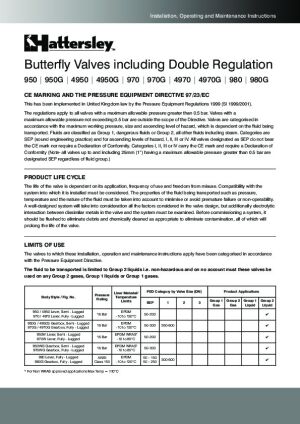

Documentation Maintenancewww.bimstore.co/products/hattersley-fig-950/document/maintenance-information

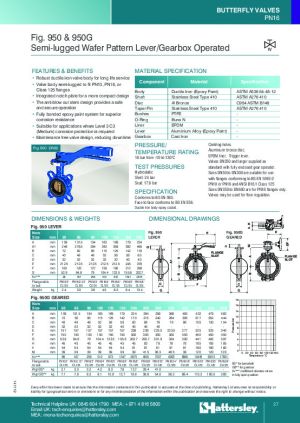

Documentation Technicalwww.bimstore.co/products/hattersley-fig-950/document/technical-data-sheet
Duration UnitYear
E212.50 mm
Expected Life0
F156.00 mm
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
H157.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K Coefficient512
KeynoteS
Lever MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
Mid Radius68.25 mm
ModelFig. 950 - Semi-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
Model NumberFig. 950
Model ReferenceFig. 950 - Semi-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height343.00 mm
Nominal Length291.00 mm
Outer Radius78.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Length60.00 mm
Type CommentsFig. 950 - Semi-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
Type NameFig. 950 - Semi-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
