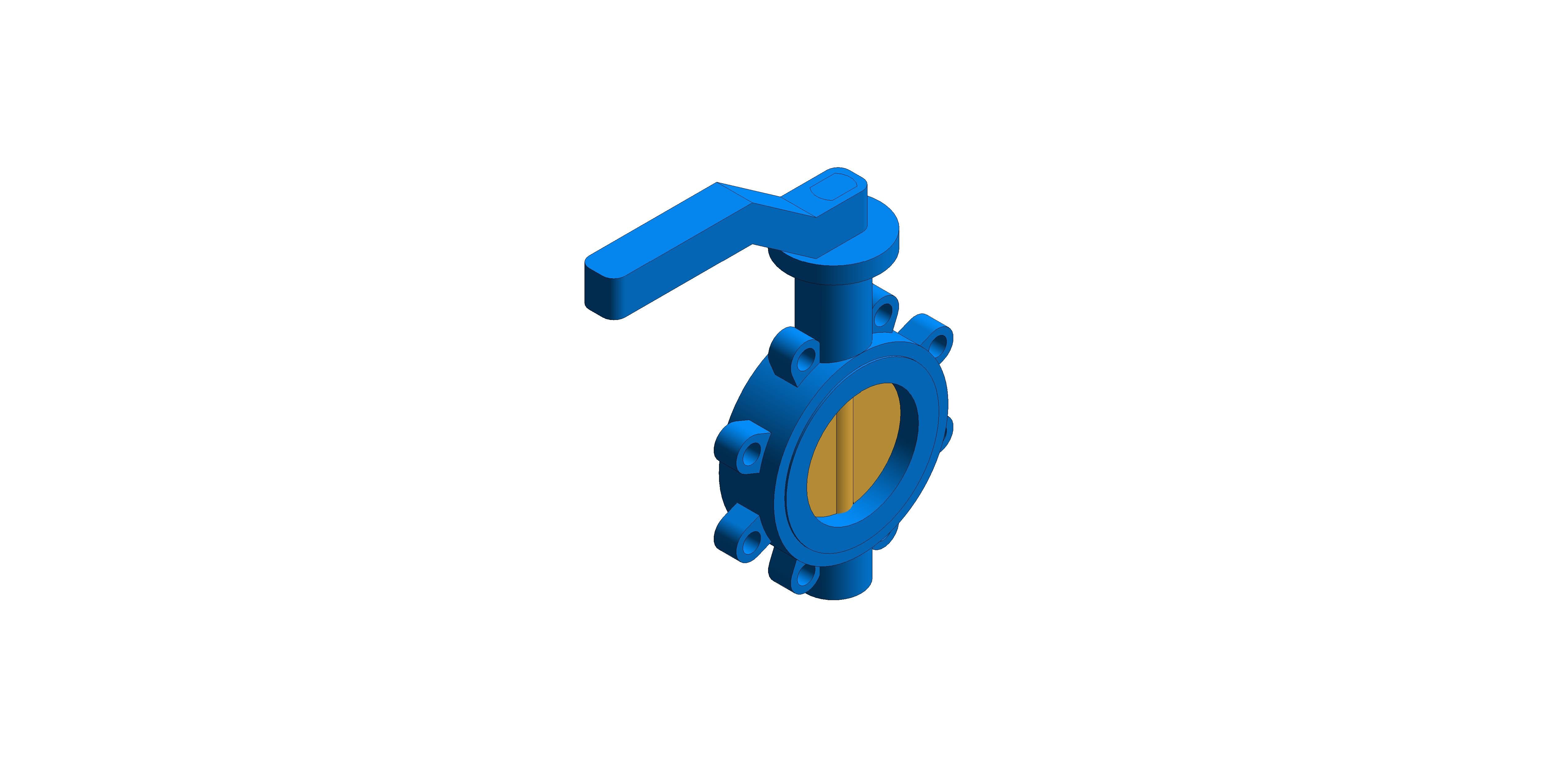

Fig. 970 - Fully-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron

by Hattersley

Download Add to collection

Description

Fully-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron

Fig. 970

Features & Benefits

Ductile Iron Body
Aluminium Bronze Disc
Liner bonded to steel backing ring
High strength, low friction bearings for upper and lower shafts, to restrain shaft deflection and ensure effective stem sealing
Long neck for insulation
Maintenance free

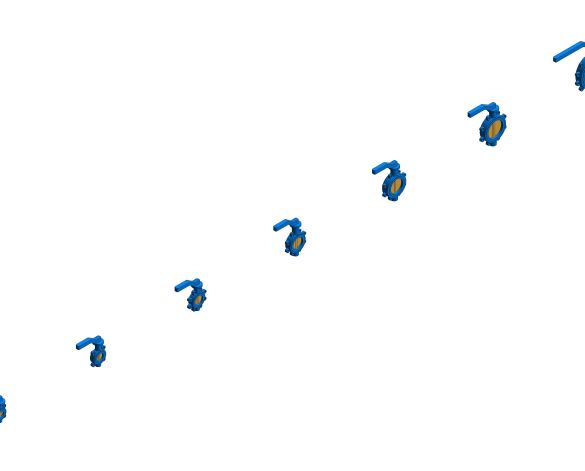

Size	50mm to 200mm
Pressure Rating	PN16
Product Material	Ductile Iron
Test Pressure	Shell: 24 bar Each valve is individually hydrostatically tested to BS6755 Part 1 at the following test pressures: Seat: 17.6 bar

Object Data

1 Revision

Last Updated

12/08/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

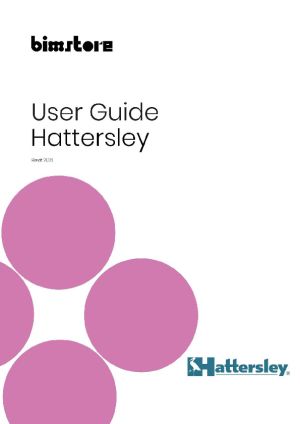

Object User Guide

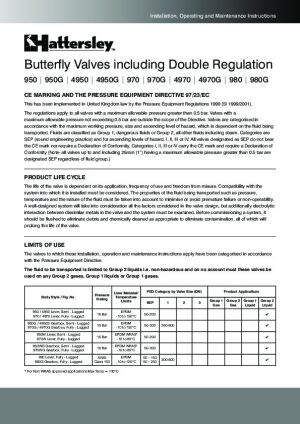

Installation Guide

Maintenance Information

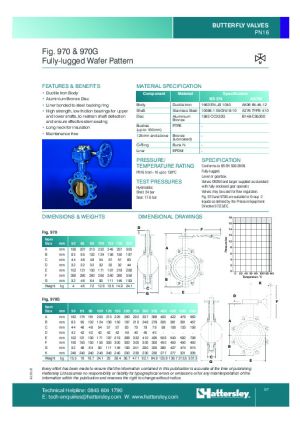

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-970/document/object-user-guide
1148.00 mm
272.00 mm
383.00 mm
449.00 mm
525.00 mm
657.10 mm
A202.00 mm
A1343.00 mm
Accessibility Performancen/a
Angle 122.50 °
Angle 222.50 °
Angle 322.50 °
Assembly CodeD20
Asset TypeFixed
B108.00 mm
BIM Object NameHattersley_ButterflyValve_FullyLuggedLeverOperated_Fig970
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-10T:09:00:00
D32.00 mm
DescriptionFig. 970 - Fully-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
Disc MaterialHattersley - Metal - Bronze
Documentation Certificateswww.bimstore.co/products/hattersley-fig-970/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-970/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-970/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-970/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-970/document/technical-data-sheet
Duration UnitYear
E212.50 mm
Expected Life0
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
H157.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K180.00 mm
K Coefficient512
KeynoteS
Lever MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
Loss MethodK Coefficient
Lug Hole Offset90.00 mm
Lug Hole Radius8.00 mm
Lug Inner Radius78.00 mm
Lug Outer Radius14.00 mm
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
Mid Radius68.25 mm
ModelFig. 970 - Fully-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
Model NumberFig. 970
Model ReferenceFig. 970 - Fully-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height343.00 mm
Nominal Length303.00 mm
Outer Radius78.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Length60.00 mm
Type CommentsFig. 970 - Fully-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
Type NameFig. 970 - Fully-Lugged Lever Operated Wafer Pattern Butterfly Valve - Ductile Iron
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Iron - Ductile Epoxy Paint - Blue
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
