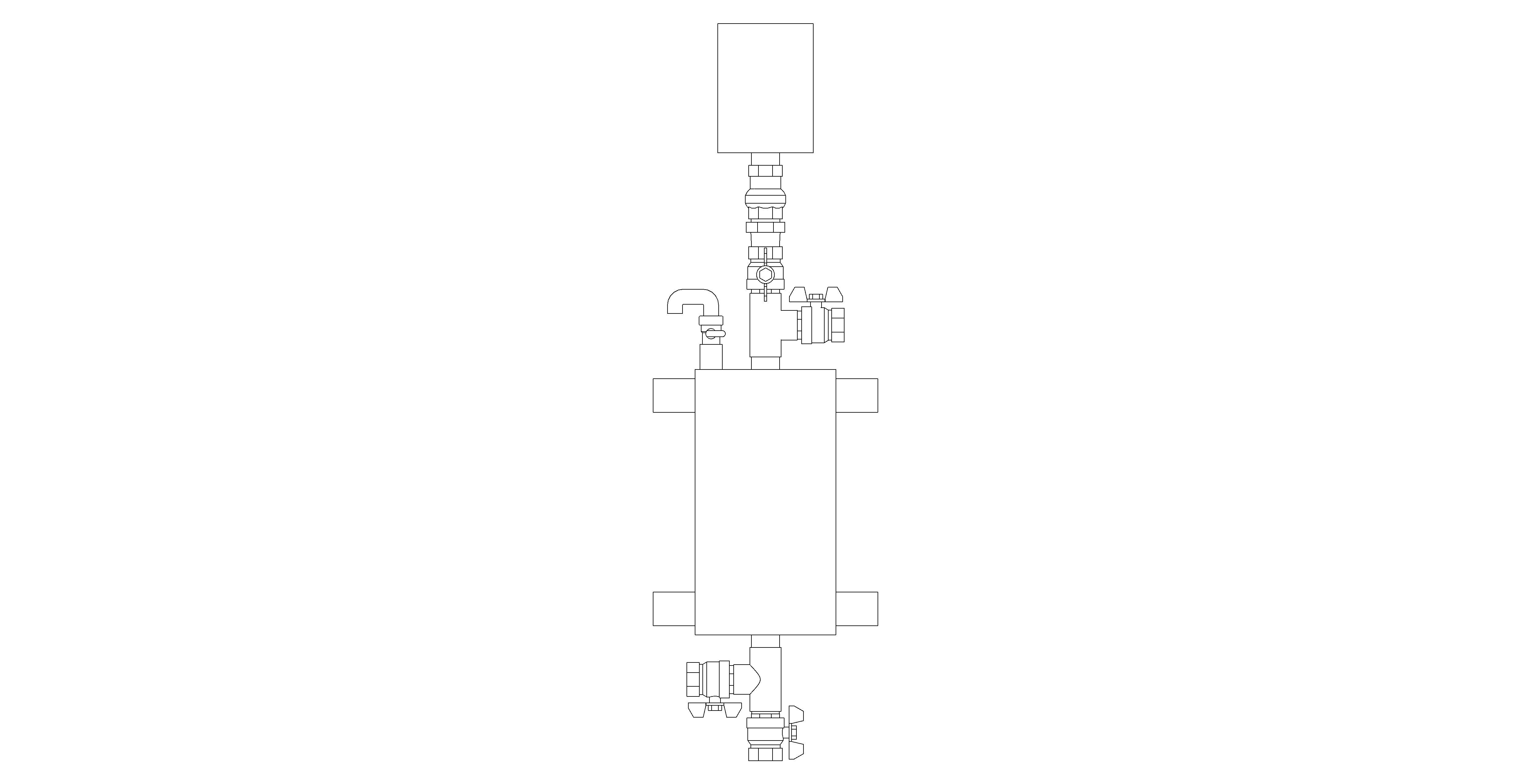

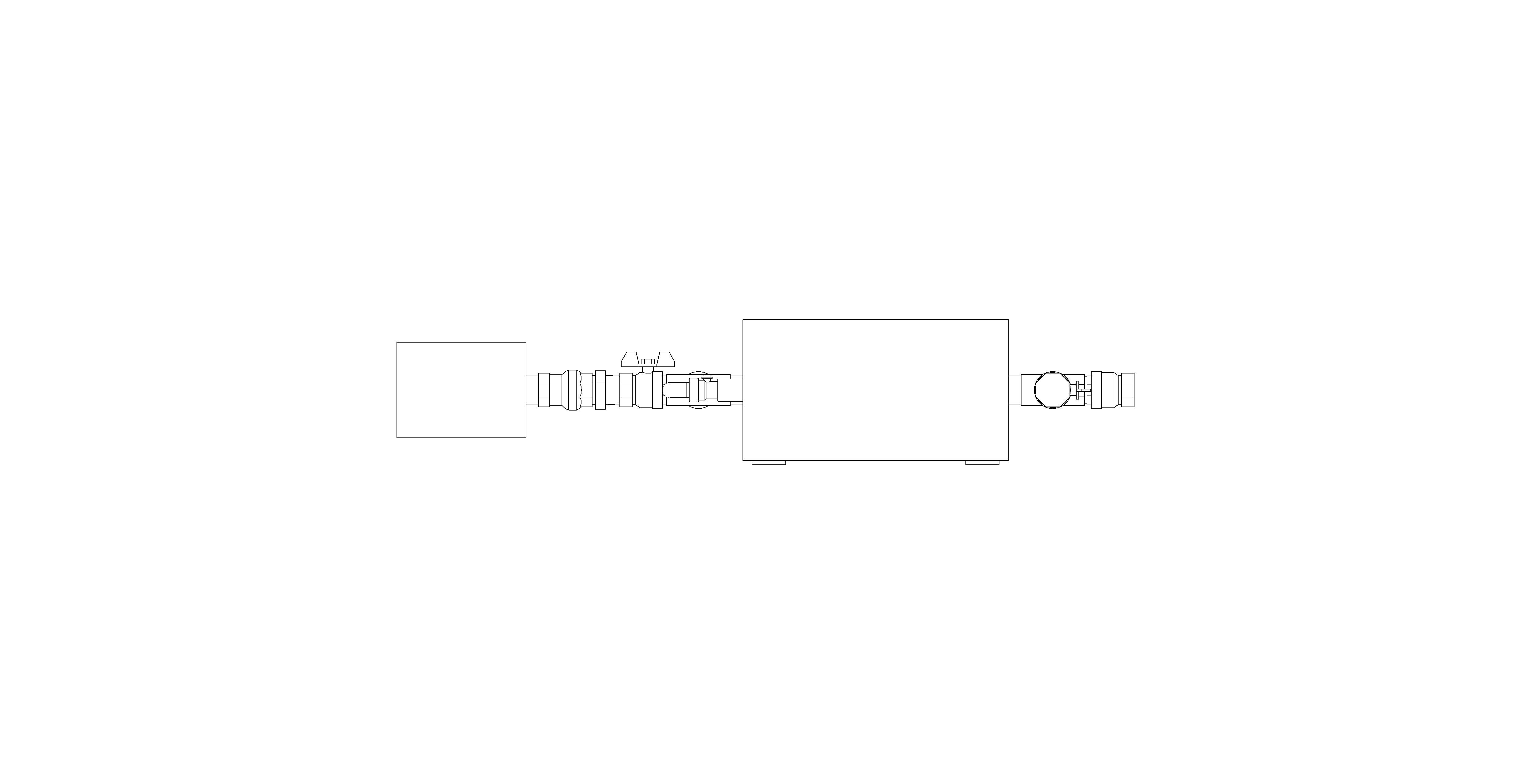

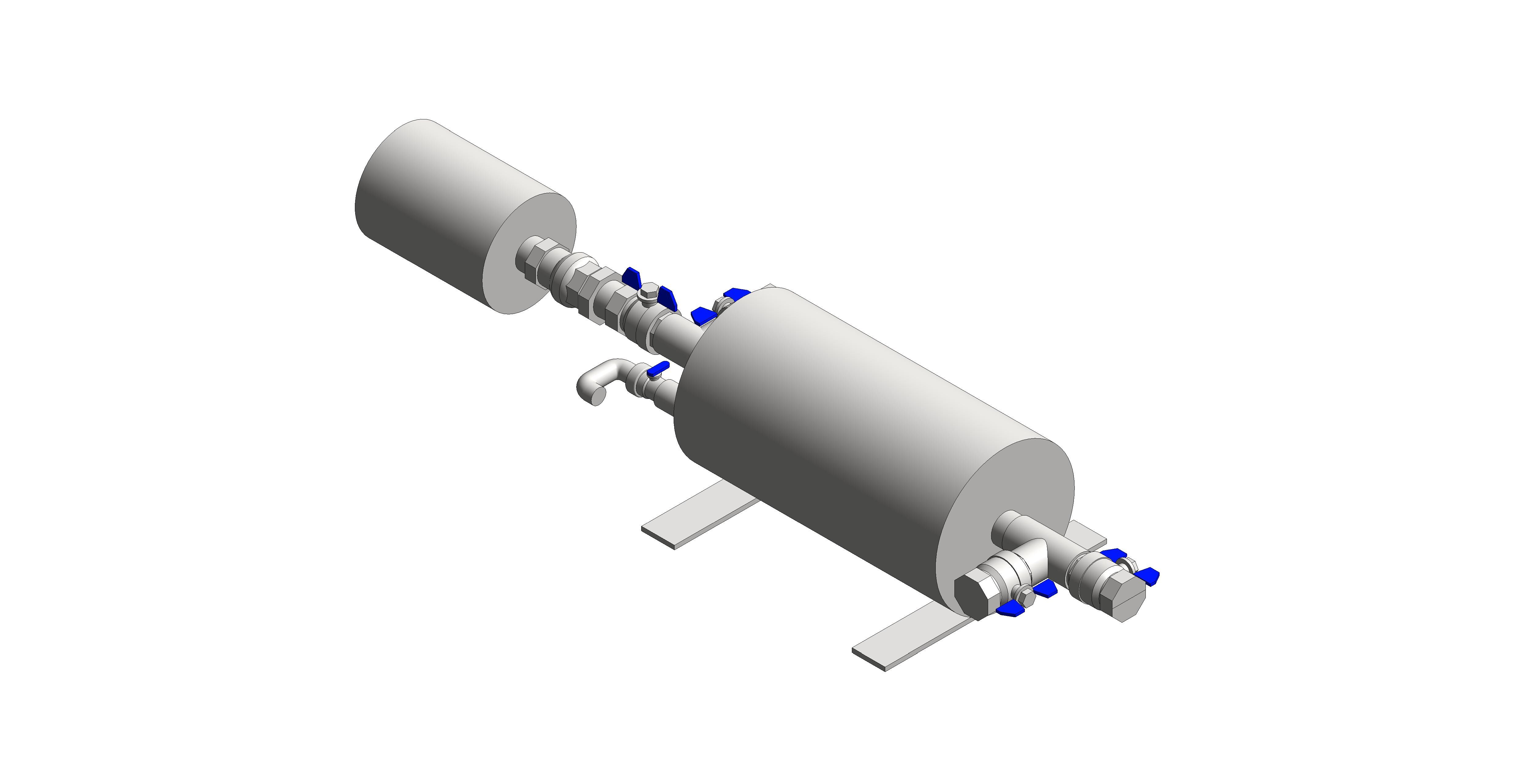

JP750 Dosing Pots

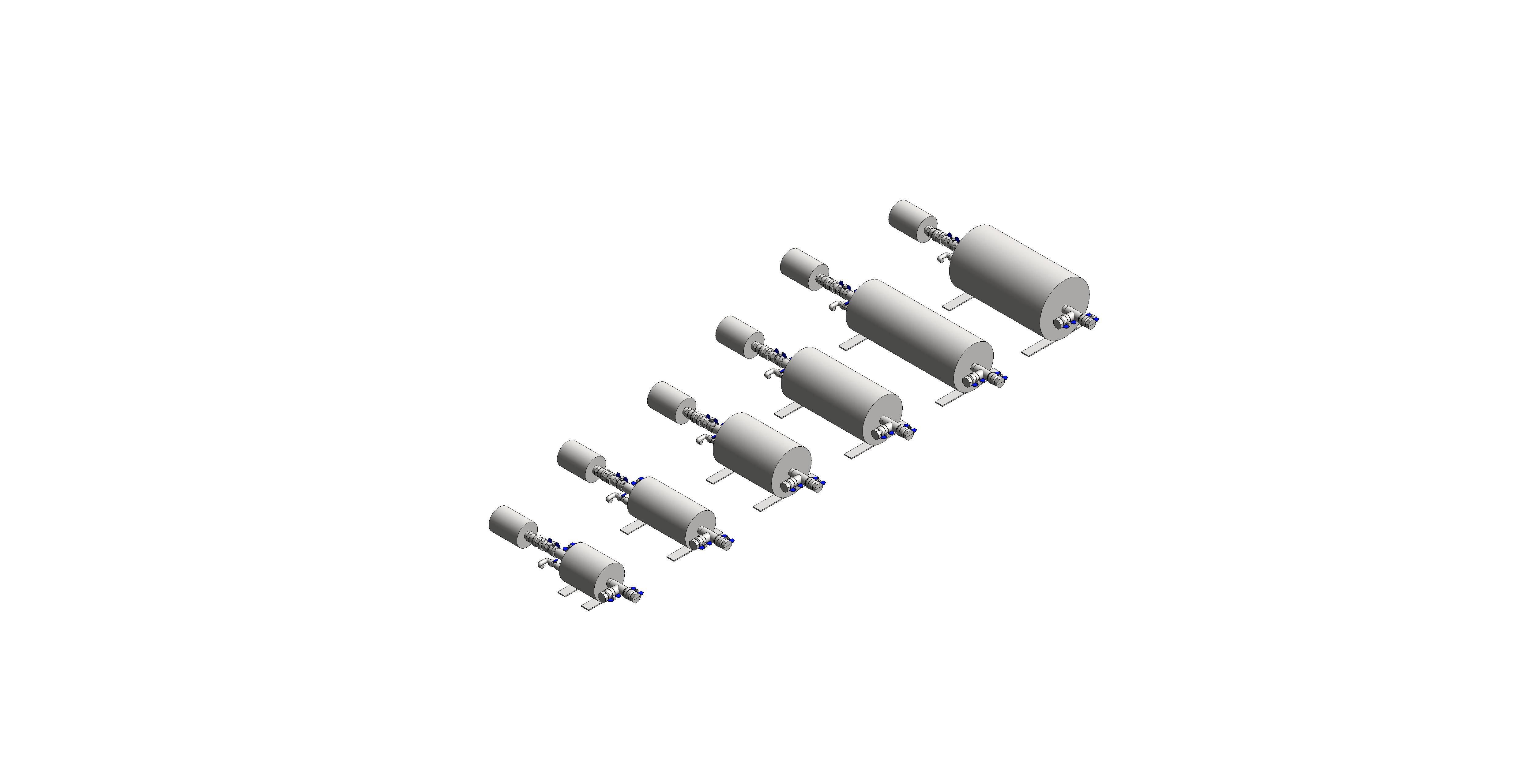

The Stourflex range of dosing pots provides a safe, controlled method of dosing chemicals into heating and chilled water systems with no interruption to the system operation.

Stourflex dosing pots are supplied as a complete package with all valves and tundish fitted to minimise time on site for installation. These cost effective, easy to install units facilitate simple, regular on-going maintenance of your heating or chilled water system. Stourflex chemical dosing pots feature a top-mounted, manual air vent that can be opened during the filling operation to minimise air ingress into the system.

Specification

Carbon Steel Dosing Pot assembly, with Malleable Iron Fittings and Brass Valves. Brass Non Return Valves fitted as standard to prevent splash back in operation. Dosing Pot and Tundish welded to EN 287-1 and manufactured from EN 10255 and EN 10217-1.

RAL 9006 White Aluminium Paint Finish.

Application

Stourflex Dosing Pots provide the means of adding chemical solutions such as corrosion inhibitors into closed heating and chilled water systems.

See below for maximum working and test pressures.

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/jp750-dosing-pots/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameStourflex_DosingPots_JP750
Classification NameUniclass2015
Classification ValuePr_60_55_97_12
Code Performancen/a
ColorGrey
Constituentsn/a
Created Byinfo@stourflex.co.uk
Created On2024-09-13T:09:00:00
D1322 mm
D2154 mm
Default Elevation0 mm
DescriptionJP750 Chemical Dosing Pot
Dia Btm219 mm
Dia Top114 mm
Documentation Certificateswww.bimstore.co/products/jp750-dosing-pots/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/jp750-dosing-pots/document/installation-guide
Documentation Literaturewww.bimstore.co/products/jp750-dosing-pots/document/product-literature
Documentation Maintenancewww.bimstore.co/products/jp750-dosing-pots/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/jp750-dosing-pots/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
ManufacturerStourflex
Manufacturer NameStourflex
MaterialCarbon Steel
ModelJP750 Chemical Dosing Pot
Model NumberJP750
Model Reference11L
NBS DescriptionChemical dosing pots
NBS Noten/a
NBS Object NameStourflex - Chemical dosing pots
NBS Office Master Tagn/a
NBS Reference90-15-95/350
Nominal Depth220 mm
Nominal Height310 mm
Nominal Length220 mm
Offset CL115 mm
Primary MaterialStourflex - Carbon Steel
Production Year2024
Rad Btm110 mm
Rad Top57 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size180 x165mm
Spare Partsinfo@stourflex.co.uk
Support Length319 mm
Type Comments11L
Type NameJP750 Chemical Dosing Pot
URLstourflex.co.uk/products/jp750-2/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@stourflex.co.uk
Warranty Guarantor Partsinfo@stourflex.co.uk
