Lightweight Cleated Anchor [33/0664]

by Valves Instruments Plus

Download Add to collection

Description

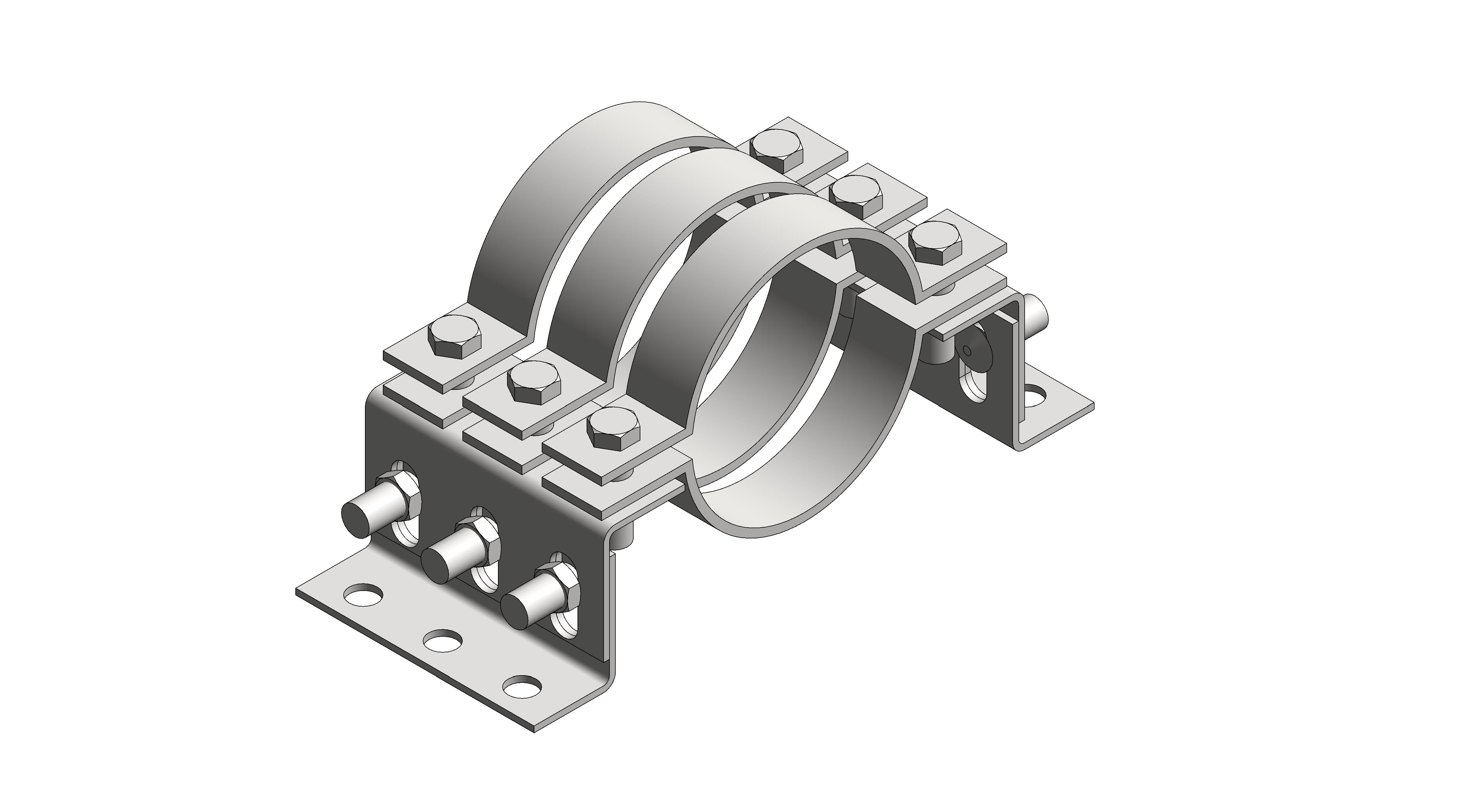

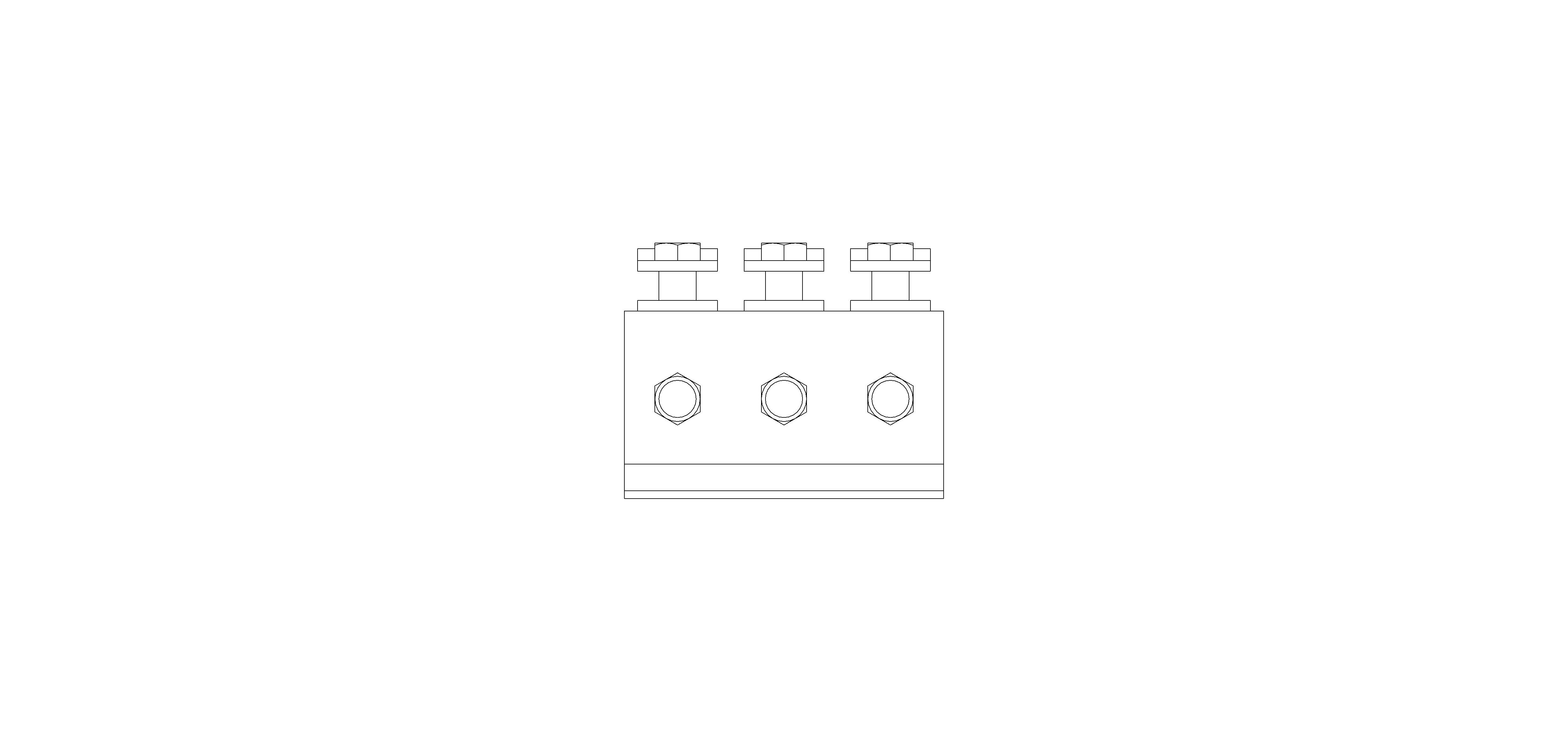

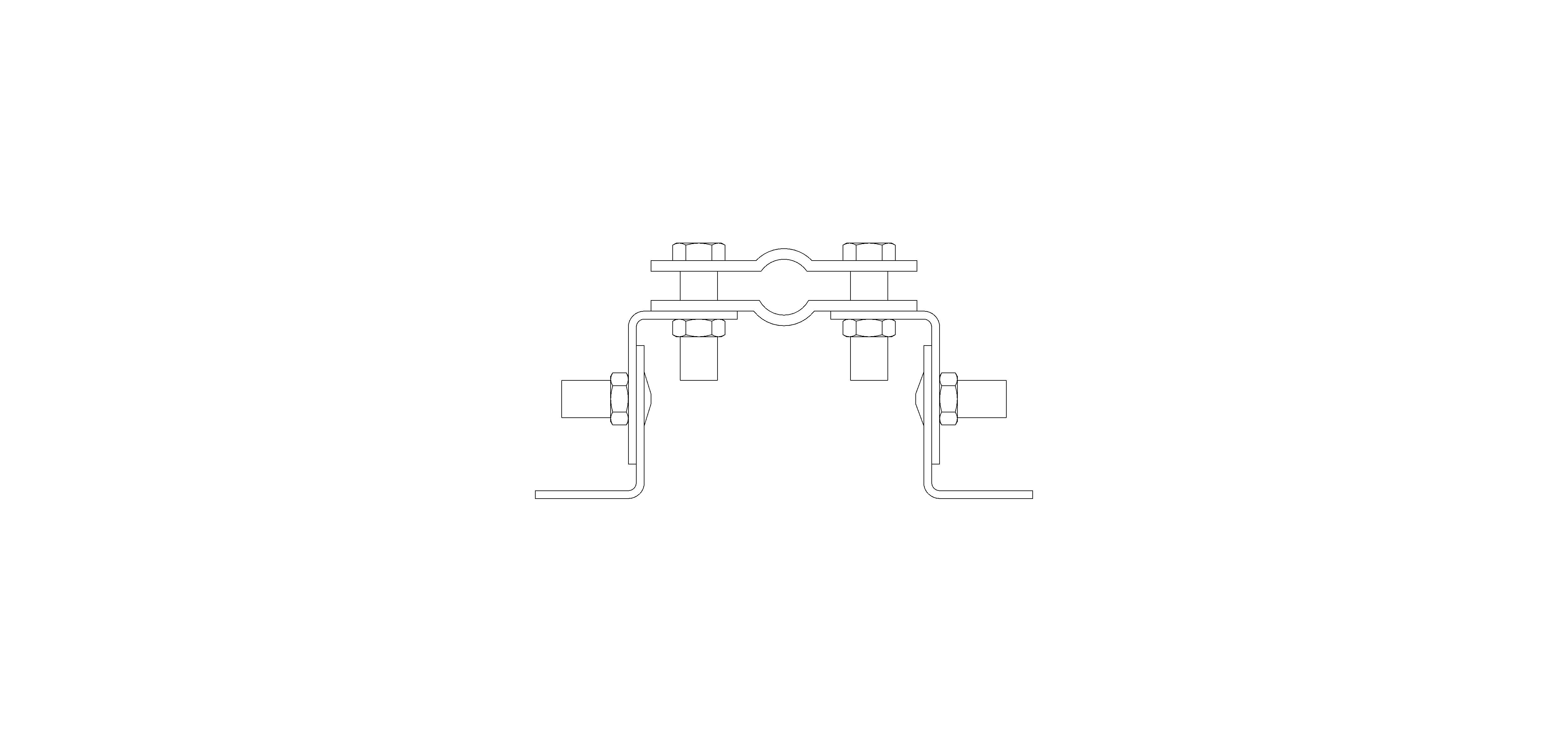

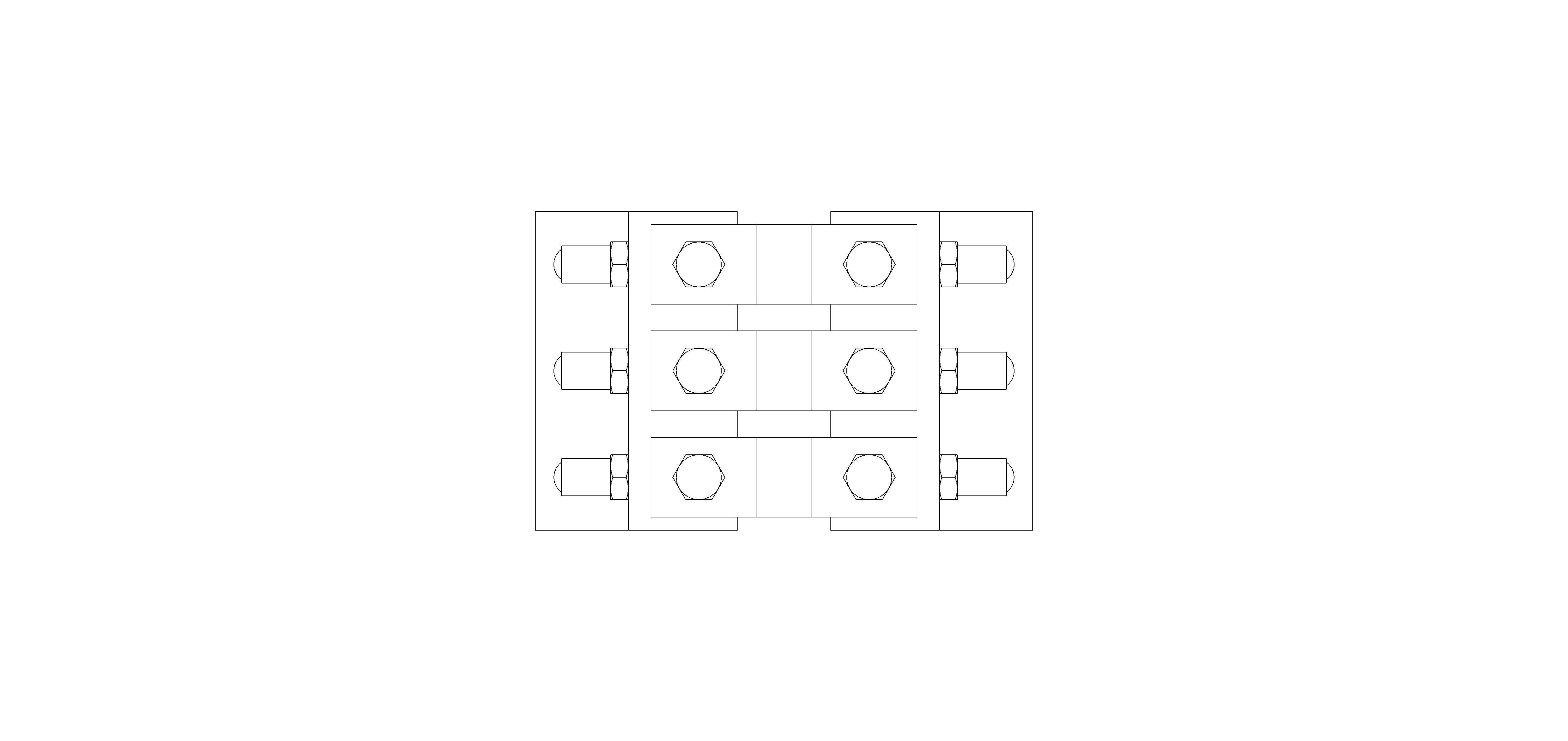

Lightweight Cleated Anchor Points (3mm Plate) BZP Steel Pipe Clamps

VIP lightweight cleated anchor points, manufactured in plated carbon steel (BZP), with nylon coated black clamps for non-ferrous pipework.
Anchor points can be adjusted in height and fall, and come in banks of 2 or 3 split bands. They are to be used predominantly in conjuction with our axial bellows and twin slide guide sets.

Object Data

1 Revision

Last Updated

27/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

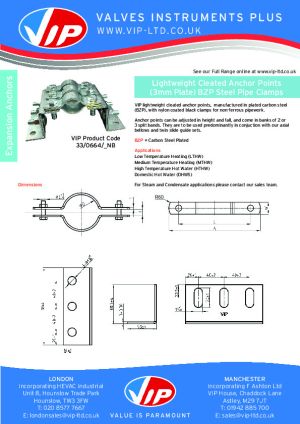

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAG / AA
_Authorized Bybimstore
_Created Bysales@vip-ltd.co.uk
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/6c57611d-4d60-4441-8242-18ee7a0dba87/document/object-user-guide
A100 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameVIP_CleatedAnchor_(33-0664)
Bracket Height58 mm
Bracket MaterialStainless Steel
Bracket Width41 mm
Clamp MaterialCopper Epoxy Coating
Classification NameUniclass 2024
Classification ValuePr_20_29_03
ColorGrey & Black
Created Bysales@vip-ltd.co.uk
Created On2025-1-22T16:00:00
D21 mm
Default Elevation0 mm
DescriptionCleated Anchor
Distance35 mm
Documentation Certificateswww.bimstore.co/products/6c57611d-4d60-4441-8242-18ee7a0dba87/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/6c57611d-4d60-4441-8242-18ee7a0dba87/document/installation-guide
Documentation Literaturewww.bimstore.co/products/6c57611d-4d60-4441-8242-18ee7a0dba87/document/product-literature
Documentation Maintenancewww.bimstore.co/products/6c57611d-4d60-4441-8242-18ee7a0dba87/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/6c57611d-4d60-4441-8242-18ee7a0dba87/document/technical-data-sheet
Duration UnitYears
E14 mm
Expected Life0
H10 mm
Hole Radius7 mm
Hole Spacing 225 mm
Hole Spacing 325 mm
Hole Spacing120 mm
Hole Width14 mm
KeynoteS
L64 mm
L2120 mm
ManufacturerVIP
Manufacturer NameVIP
ModelCleated Anchor
Model Number33-0664-015
Model ReferenceCleated Anchor
NBS DescriptionNylon Coated Cleated Anchor
NBS Object NameVIP - Nylon Coated Cleated Anchor
Offset10 mm
Production Year2025
Radius End30 mm
Radius Start7 mm
Size15mm
Spare Partssales@vip-ltd.co.uk
T3 mm
T24 mm
Type Comments33-0664-015
Type Name15mm
URLwww.vip-ltd.co.uk
W215 mm
W142 mm
W269 mm
W330 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
