MagnaClean Atom®

Object metadata

• _AuthorIan Holmes
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• Accessibility Performancen/a
• Asset TypeFixed
• BIM Object NameAdey_PipeAccessories_MagnaClean_Atom_BSP
• BlackPlastic, Black
• BrassBrass, Soft Yellow
• Classification NameUniclass2015
• Classification ValuePr_60_55_97
• Code Performancen/a
• ColorBrass & Black
• Connection Size20 mm
• Constituentsn/a
• Created Byinfo@adey.com
• Created On2020-04-21T09:00:00
• DescriptionMagnaClean Atom® protects the central heating system against the damaging effects of black iron oxide sludge. The super-compact design provides an opportunity to fit a filter into previously inaccessible spaces
• Documentation Certificateswww.bimstore.co/products/magnaclean-atom/document/product-certificates

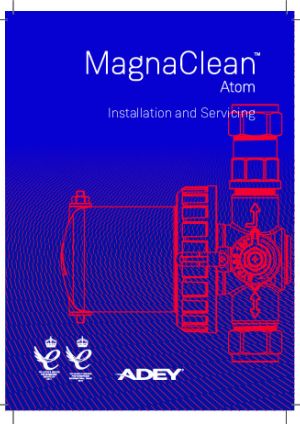

• Documentation Installation Guidewww.bimstore.co/products/magnaclean-atom/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/magnaclean-atom/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/magnaclean-atom/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/magnaclean-atom/document/technical-data-sheet
• Duration UnitYears
• Expected Life0
• FeaturesSuper compact, space saving filter. Fits vertical and horizontal pipework. Filter can be switched to bypass when servicing. Supplied fully assembled and ready for installation. Fits into even the tightest of spaces. No need to turn off the heating system when servicing. Installation can be completed in just two minutes. Quick and easy chemical dosing using ADEY Rapide®
• FinishNatural
• Graden/a
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.MIXING
• KeynoteS12
• ManufacturerAdey
• Manufacturer NameAdey
• MaterialBrass / Glass Reinforced Polymer
• ModelMagnaClean Atom
• Model NumberMagnaClean Atom
• Model ReferenceBSP
• NBS DescriptionWater treatment products
• NBS Object NameAdey - Water treatment products
• NBS Office Master Tagn/a
• NBS Referencen/a
• Nominal Depth148 mm
• Nominal Height121 mm
• Nominal Length98 mm
• Production Year2020
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size121(H) x 98(L) x 148(D)mm
• Spare Partsn/a
• Type CommentsBSP
• Type NameBSP
• URLwww.adey.com
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsinfo@adey.com
