MagnaClean CMX Nano™ Pumped Sidestream

2.2k
0
5 / 5
Rate this product

Object Data

1 Revision

Last Updated

01/10/2021

Download BIM

Add to collection

Available for:

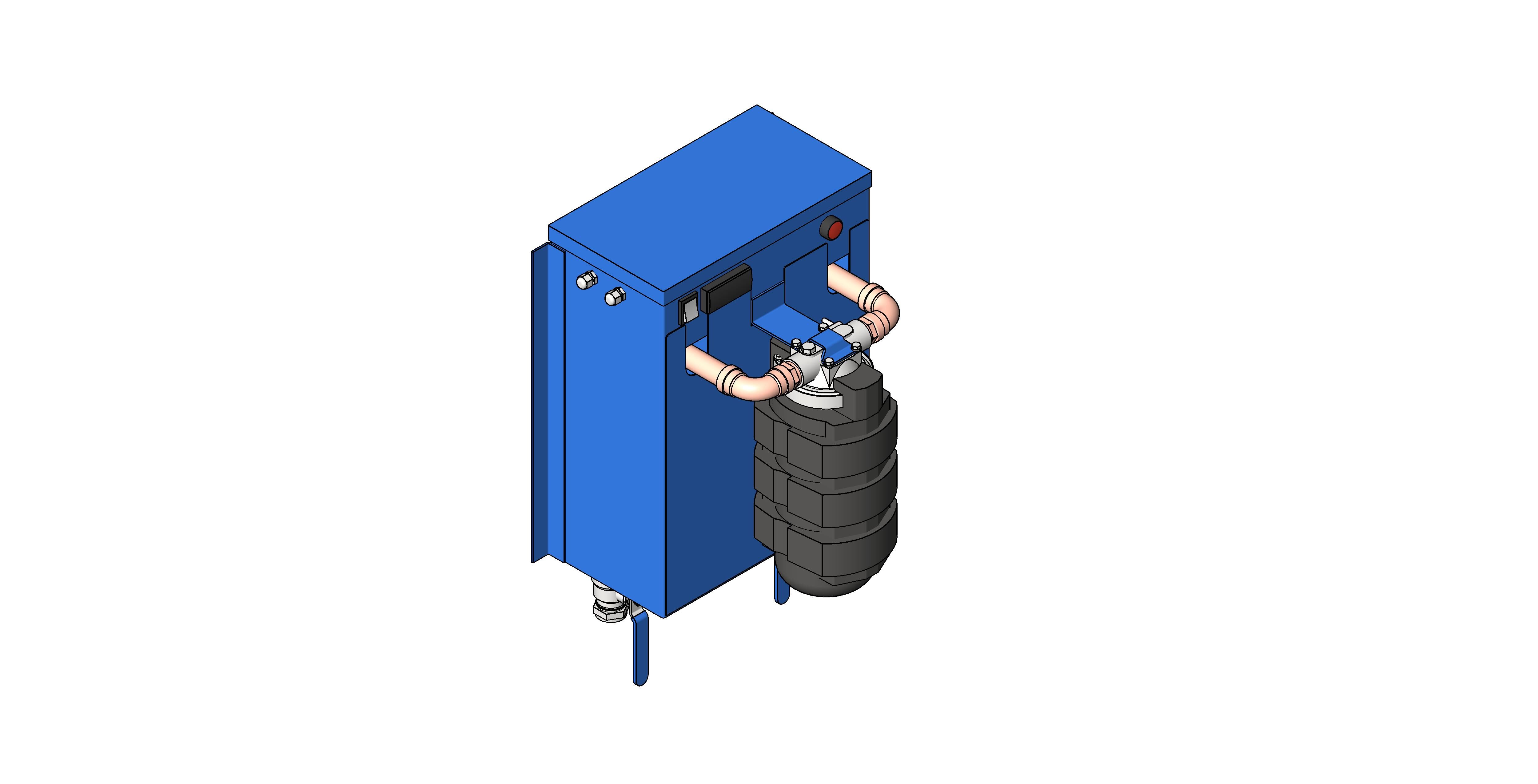

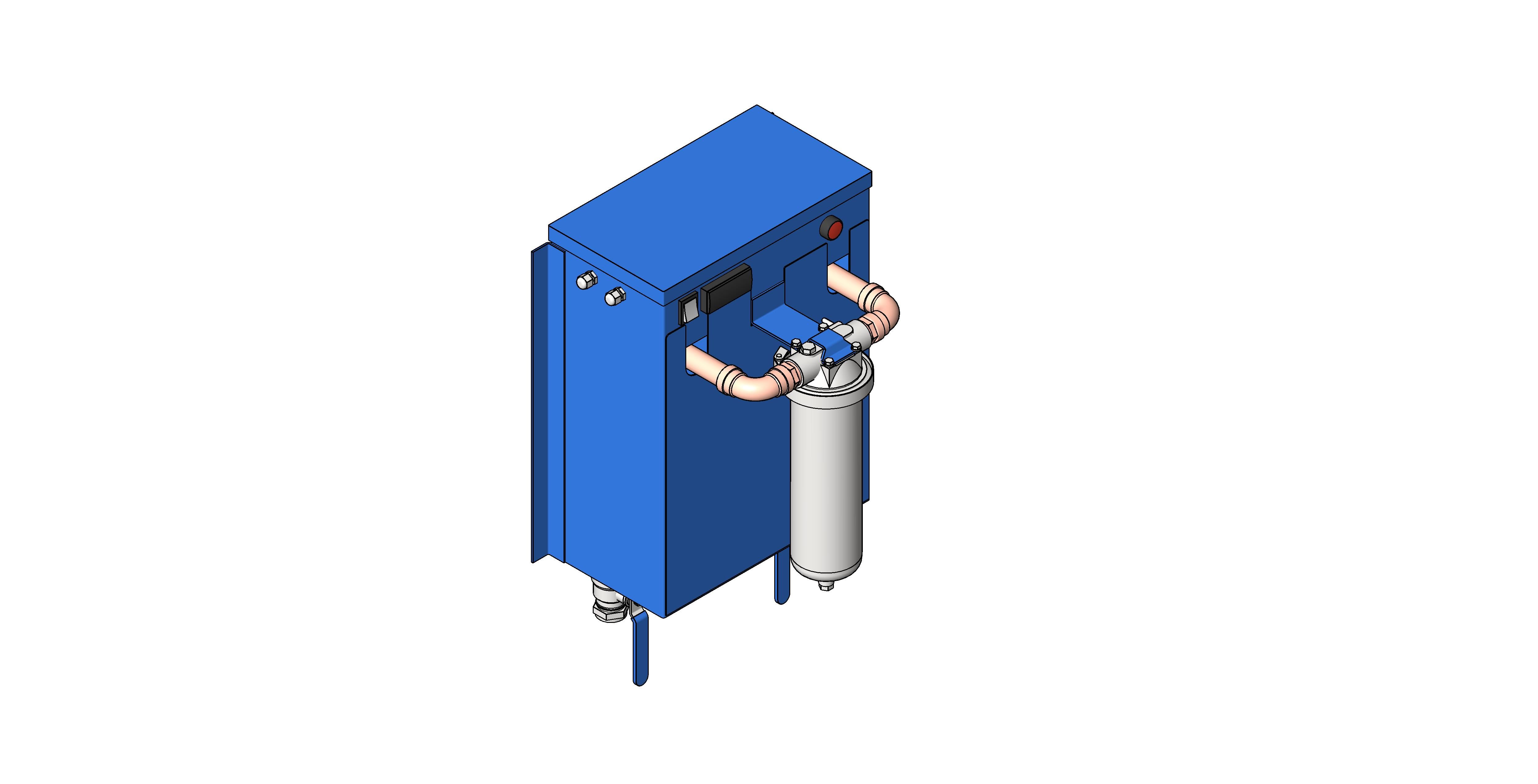

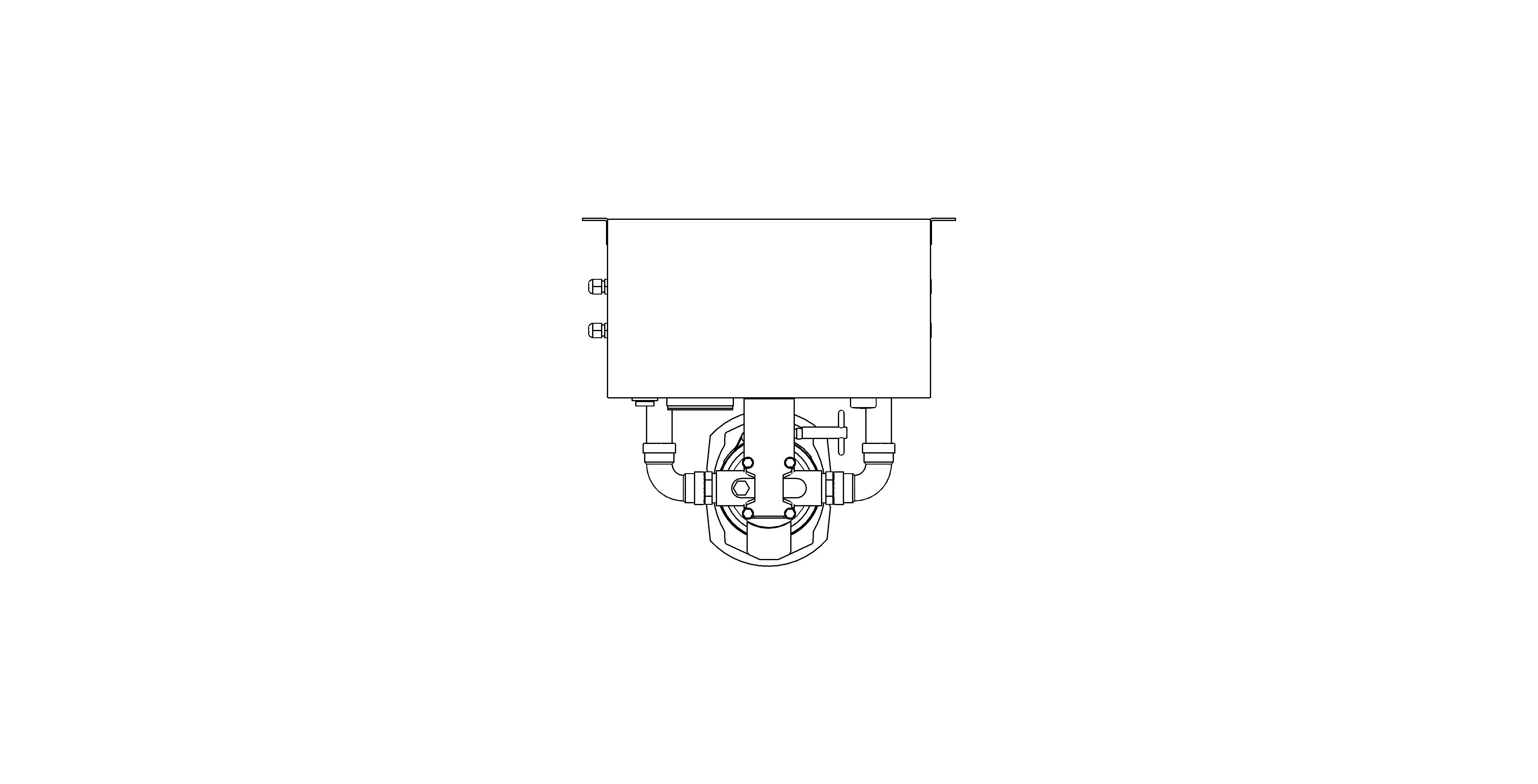

The MagnaClean CMX Nano Pumped Sidestream is designed to deliver complete flexibility across plant room environments, offering the ability to place a system filter exactly where it’s needed, whether that’s onto a specific area within a small plant room or into a multi-storey building environment, offering the facility to move it from floor-to-floor in order to systematically clean an entire system.

ADEY’s high performance filtration solution features our MagnaClean CMX Nano filter, delivering powerful magnetic and non-magnetic dual-filtration, an integrated Grundfos UPM3 Flex circulation pump and the security of integrated pressure differential monitoring, system temperature sensing and full BMS alarm connectivity.

This intelligent, connected system filter is designed to actively filter and monitor the filtration of commercial heating and chilled systems in a sidestream configuration for up to 24 hours a day.

Benefits

Compact plant room solution offering adaptive magnetic and non-magnetic filtration
Designed for use with our external magnetic jacket to deliver vastly accelerated and augmented magnetite capture
Can be placed anywhere across a heating or chilled system via connections onto the main system flow or return
Compact, lightweight solution promising single-person installation & servicing
Full BMS connectivity & monitoring capability with programmable alarm functions
Can operate 24 hours a day
Pressure differential warning alarms to warn of potential filter blockage & servicing requirements
System water temperature sensing with programmable high/low temperature warning alarms
Turned on or off at the flick of a switch or electronically via BMS connection
Supplied with three high-quality, spun-bonded 50-micron cartridge filters
Automatic air vent assembly included as standard

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameAdey_PipeAccessories_MagnaClean_CMXNano_PumpedSidestreamFilter
Classification NameUniclass2015
Classification ValuePr_60_55_97
Code Performancen/a
ColorBlue, Stainless Steel
Connection Size25.00 mm
Constituentsn/a
Created Byinfo@adey.com
Created On2021-08-24 T09:00:00
DescriptionHeating and chilled system sidestream filtration unit with integrated MagnaClean CMX NanoR filter and electric, motor-driven circulation pump; automated control system with BMS connectivity providing system filtration monitoring, pressure differential and temperature sensing.
Documentation Certificateswww.bimstore.co/products/magnaclean-cmx-nano-pumped-sidestream-filter/document/product-certificates

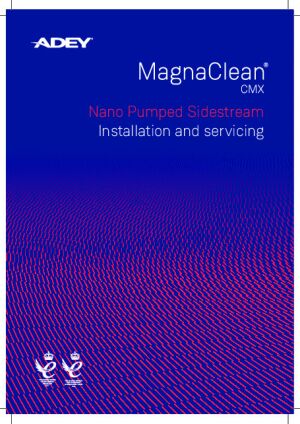

Documentation Installation Guidewww.bimstore.co/products/magnaclean-cmx-nano-pumped-sidestream-filter/document/installation-guide
Documentation Literaturewww.bimstore.co/products/magnaclean-cmx-nano-pumped-sidestream-filter/document/product-literature
Documentation Maintenancewww.bimstore.co/products/magnaclean-cmx-nano-pumped-sidestream-filter/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/magnaclean-cmx-nano-pumped-sidestream-filter/document/technical-data-sheet
Duration UnitYear
Expected Life0
External Magnetic Jacket ColourBlack
External Magnetic Jacket FeaturesAccelerated magnetite capture accessory for the CMX Nano. Powerful protection, compact and lightweight, doubling the capture capacity. Dual purpose solution - accelerated magnetite capture and thermal insulation. Temperature range -10°C to 110°C.
External Magnetic Jacket FinishNatural
External Magnetic Jacket MaterialExpanded Polypropylene (EPP) with 24 powerful magnets
FeaturesCompact plant room solution, magnetic and non-magnetic filtration. Can be used on heating or chilled system on the return or flow. Lightweight solution with single person installation and servicing. Turn on or off at the flick of a switch or electronically. Full BMS connectivity & monitoring capability with programmable alarm functions. Can operate 24 hours a day. Supplied with three 50 micron cartridge filters. Pressure differential warnings to monitor capacity & service requirements. System water temperature sensing with programmable high/low temperature warning alarms. Helps to improve system performance, efficiency, reduce maintenance and running costs. Maximum working pressure 10 bar. Temperature range 2°C to 100°C. Designed for use with MagnaClean CMX Nano External Magnetic Jacket to deliver focussed, powerful filtration and vastly accelerated magnetite capture performance.
FinishPowder coated/Polished
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerAdey
Manufacturer NameAdey
MaterialCabinet: Powder coated mild steel; Filter: 316L Stainless steel
ModelMagnaClean CMX Nano
Model NumberMagnaClean CMX Nano
Model ReferencePumped Sidestream Filter
NBS DescriptionWater treatment products
NBS Object NameAdey - Water treatment products
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth397.00 mm
Nominal Height680.00 mm
Nominal Length425.00 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size615(H) x 425(L) x 367(D)mm
Spare Partsn/a
Stainless SteelAdey - Metal - Stainless Steel - Polished
Type CommentsPumped Sidestream Filter
Type NamePumped Sidestream Filter
URLwww.adey.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@adey.com
