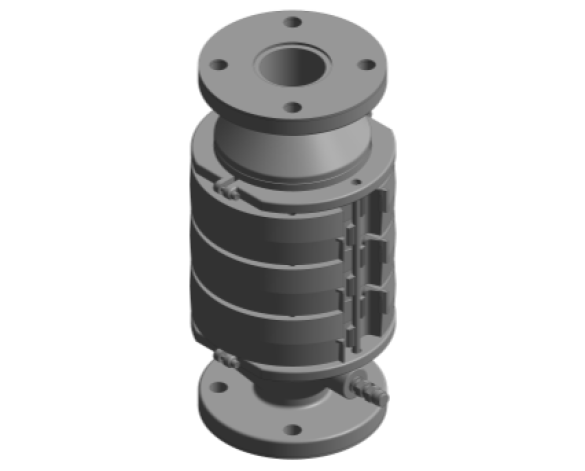

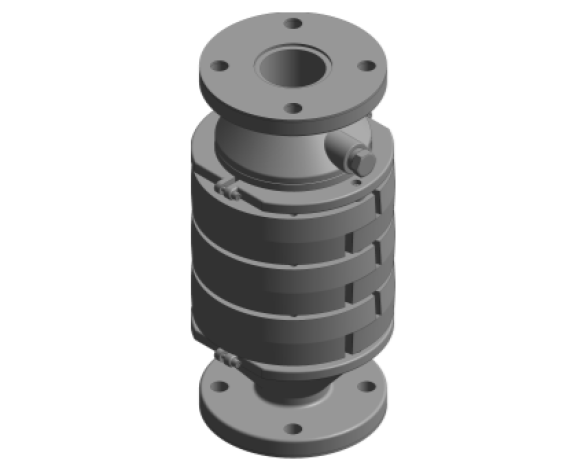

MagnaClean - DRX

by ADEY

Download Add to collection

Description

MagnaClean DRX is the latest addition to ADEY’s range of water treatment solutions for commercial plant rooms. It is designed to protect and maintain commercial heating systems, by removing debris and black iron oxide sludge from the system.

This download include all size variations of the MagnaClean - DRX Valve by Adey.

Object Data

1 Revision

Last Updated

28/08/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorinfo@adey.com
_Authorized ByIan Holmes
_Bim Spec Guid0
_BS Bible Version15
_Created Byinfo@adey.com
_Current Revision2
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameAdey_PipeAccessories_MagnaClean_DRX_(2-5)Inch
ClassificationTABLE 4, SEP
Classification NameUniclass2015
Classification ValuePr_60_55_97
Code Performancen/a
ColorBlack
Connection Diameter65 mm
Constituentsn/a
ContentsLIQUID
Corrosion ResistanceNIL
Created Byinfo@adey.com
Created On2018-08-21T00:00:00
DescriptionMagnaClean DRX is the latest addition to ADEY’s range of water treatment solutions for commercial plant rooms. It is designed to protect and maintain commercial heating systems, by removing debris and black iron oxide sludge from the system.
Design CodeEN 13445: 2014
Design Pressure16.0 bar
Design Temp105 °C
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2694
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2694
Dry Weight13.20 kg
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow Flange Bolt Size And QtyM16 x 4 off
Flow Flange Gasket Material And ThicknessPN16 FLANGE GASKET EPDM 70 SHORE, 4mm THK
Flow Flange Pcd145 mm
Fluid Density1000.00 kg/m³
Graden/a
Hydrotest24.6 bar
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerAdey
Manufacturer NameAdey
MaterialStainless steel
Max Operating Temperature100 °C
Max Working Pressure16.0 bar
ModelMagna Clean DRX
Model NumberMagna Clean DRX
Model Reference2.5"
NBS DescriptionWater treatment products
NBS Object NameAdey - Water treatment products
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth205 mm
Nominal Height230 mm
Nominal Length403 mm
Production Year2018
P Sx V81.9 BAR LITRES
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size2.5"
Spare Partsn/a
Surface Finish ExternalNATURAL
Surface Finish InternalNATURAL
To Suit Pipe SizeDN65
Type Comments2.5"
Type Name2.5"
URLwww.adey.com
Vessel DutyWATER
Vessel Volume5.1 L
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@adey.com
