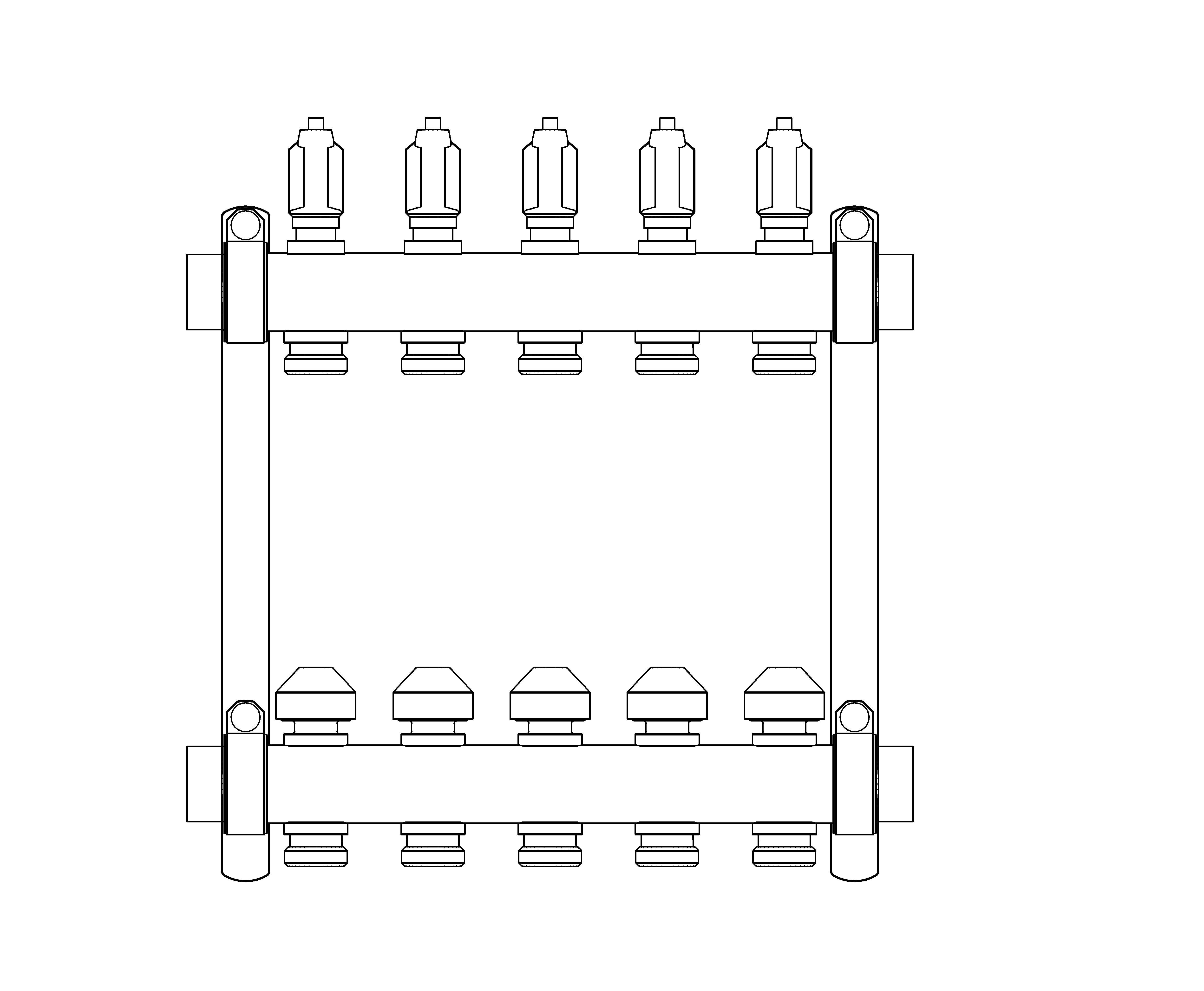

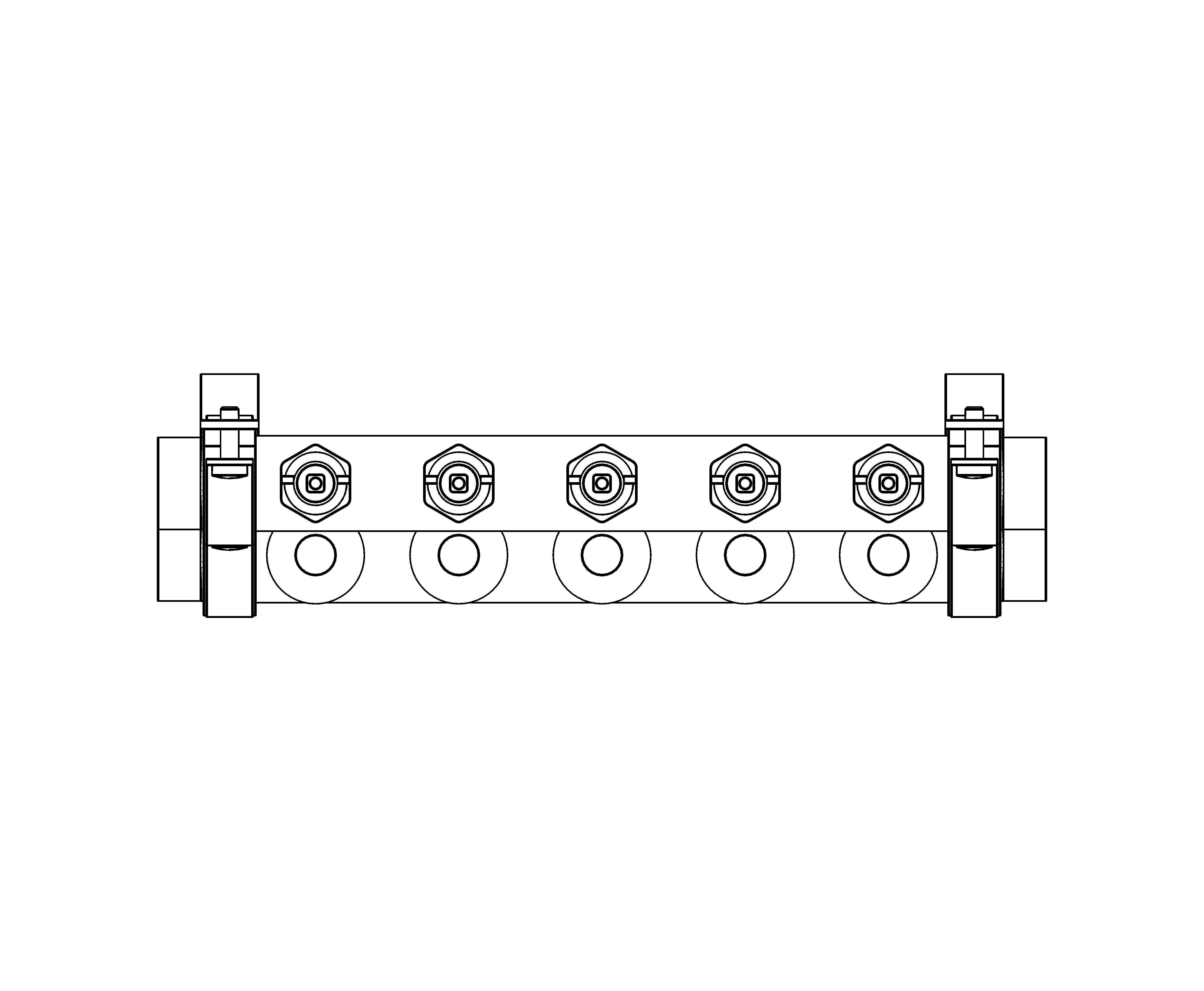

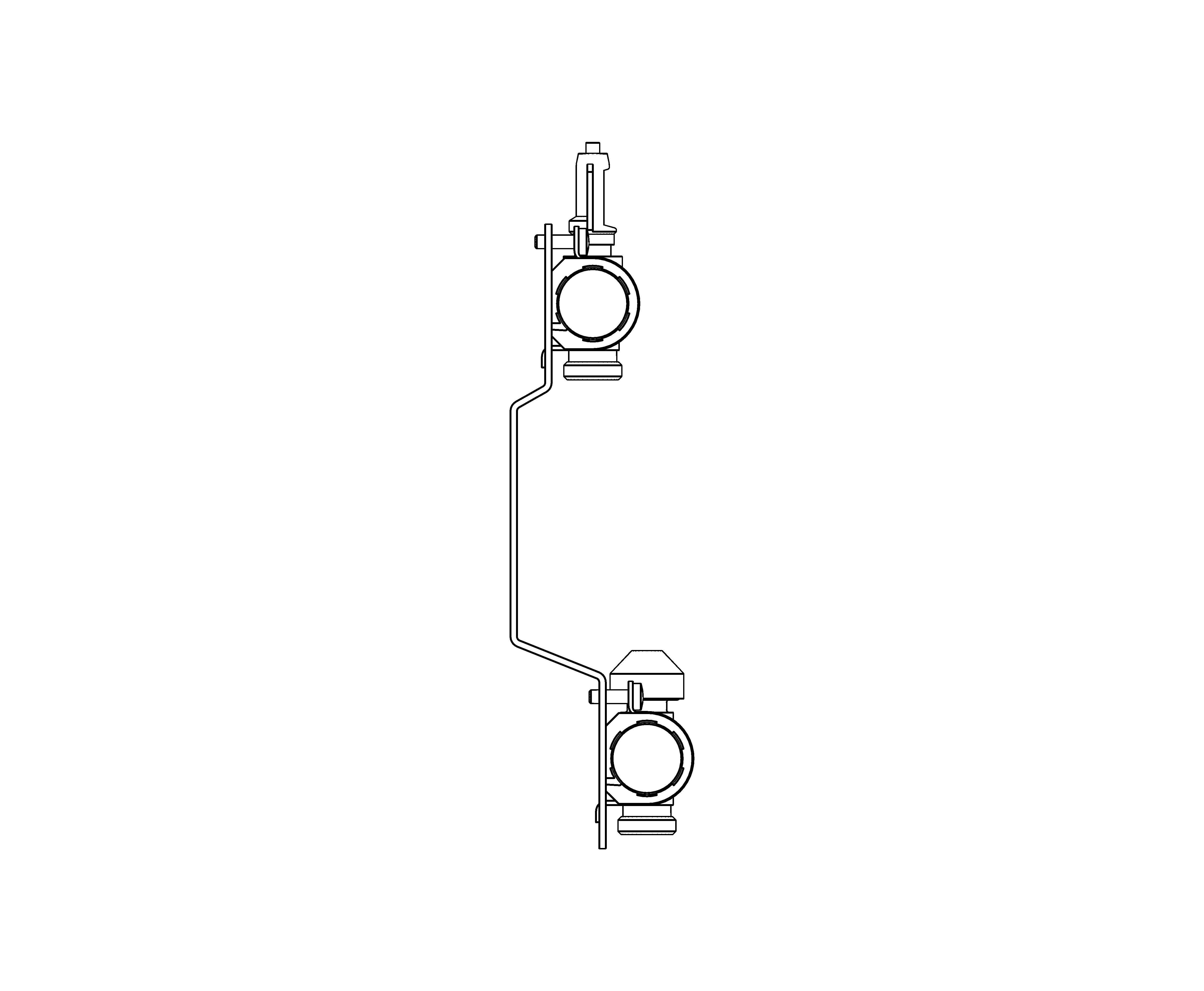

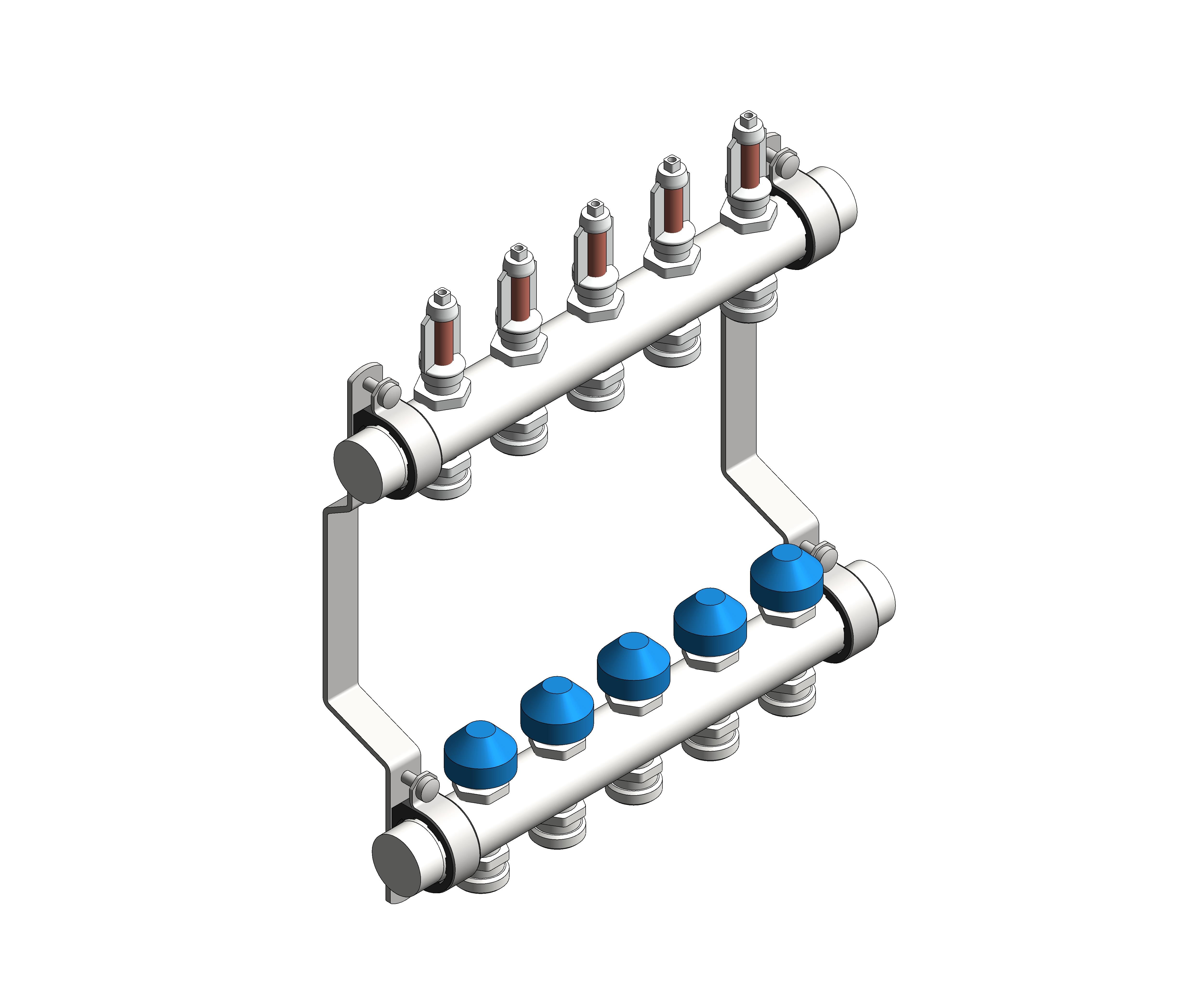

Manifold Stainless Steel HKV2013A (0-4L)

by Watts Water Technologies EMEA B.V.

Download Add to collection

Description

Stainless steel round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1”M. Low installation depth. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested.

SUPPLY: Flowmeter 0 - 4 l/min with low pressure drop and shut-off function.
RETURN: Control and shut-off valve with adaption M30 x 1,5.

Technical Features:

Max. admissible operation temperature: +90 °C
Min. admissible operation temperature: -10 °C
Max. admissible operation pressure: 10 bar
Valves and fittings: Stainless steel
Manifold Pipe: Stainless steel
O-Rings: EPDM Elastomers
Washers: EPDM Elastomers or Aramid AFM34
Ball seat: PTFE
Polymers: Impact- and temperature resistant
Brackets: Steel, galvanized

Products: HKV2013A VA02 / HKV2013A VA03 / HKV2013A VA04 / HKV2013A VA05 / HKV2013A VA06 / HKV2013A VA07 / HKV2013A VA08 / HKV2013A VA09 / HKV2013A VA10 / HKV2013A VA11 / HKV2013A VA12

Object Data

1 Revision

Last Updated

24/02/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
1 Valve Offset55 mm
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
BIM Object NameWATTS_PipeAccessories_Valve_Manifold_NL_StainlessSteel_HKV2013A_(0-4L)
Bracket Offset25 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_92
Code Performancen/a
ColorStainless Steel
Connection TypeBSP Connection
Constituentsn/a
Created Bywide@wattswater.com
Created On2020-05-26T09:00:00
D132 mm
D233 mm
Default Elevation0 mm
DescriptionStainless steel round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1”M. Low installation depth. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested.
Documentation Certificateswattswater.eu
Documentation Installation Guidewww.bimstore.co/products/manifold-nl-stainless-steel-hkv2013a-0-4l/document/product-literature
Documentation Literaturewattswater.eu
Documentation Maintenancewattswater.eu
Documentation Technicalwattswater.eu
Duration UnitYears
Expected Life0
Featuresn/a
FinishPrime Paint
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
L1160 mm
L2110 mm
ManufacturerWATTS
Manufacturer NameWATTS
MaterialManifold Pipe: Stainless steel. Brackets: Steel, galvanized
Maximum Flow Rate8 l/min
Maximum Operating Pressure10 bar
Maximum Operation Temperature+80 °C
Minimum Operation Temperature+2°C
ModelHeating Manifold HKV2013A 50mm with flow meters for underfloor.
Model NumberHKV2013A VA02
Model ReferenceHeating Manifold HKV2013A 50mm with flow meters for underfloor.
NBS DescriptionManifold for underfloor heating and cooling
NBS Object NameWATTS - Manifold for underfloor heating and cooling
NBS Office Master Tagn/a
NBS Reference90-10-60/390
Nominal Depth86 mm
Nominal Diameter25 mm
Nominal Diameter 220 mm
Nominal Height326 mm
Nominal Length160 mm
Number Of Valve2
Production Year2020
Product Page URLwattswater.eu/
Referenced StandardEN 1264-4
Replacement Costn/a
ShapeRectangular
SizeHKV2013A VA02
Spare Partsn/a
Threaded ConnectionsMale - Male
Type CommentsHKV2013A VA02
Type NameHeating Manifold HKV2013A 50mm with flow meters for underfloor.
URLwattswater.eu/
Valve Gap50 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partswide@wattswater.com
