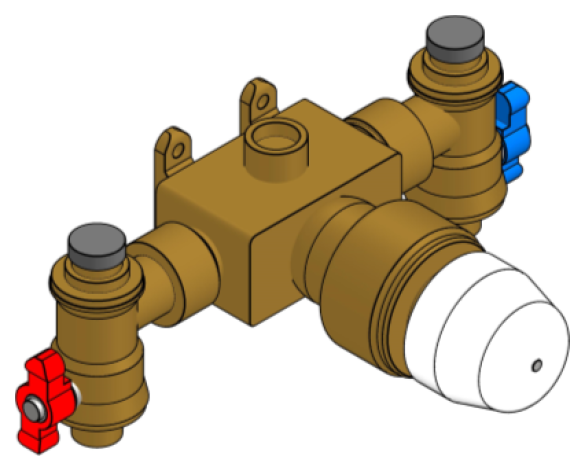

Masterguard Tempering Valve

by Reliance Valves

Download Add to collection

Description

Masterguard® Thermostatic Tempering Valves are designed for very high flow rates, with extremely stable outlet. An adjustable set temperature mechanism with locking feature, allows installer flexibility and the integrated fixing point allows easy wall or floor fixing. There are minimal moving parts and a simple construction to reduce maintenance service intervals. A 4-in-1 installation fitting provides easy orientation of the valve to match the inlet pipes, and includes cross-flow prevention, isolation and filtration protection.

MIX83004MIX84004MIX85004MIX86004

Object Data

1 Revision

Last Updated

22/08/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID1
_created byElisabeth Matuki
_current revision1
_distributed bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2020300
Asset TypeFixed
C_Outlet Spacing254 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_87
Code Performancen/a
Coldwate LeverRWC Blue
ColorBrass
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On2016
D_Nominal Length229 mm
DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
Diameter_A25 mm
Diameter_B32 mm
Documentation Certificatesspecifi.bimstore.co.uk/document/share/1727
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1727
Documentation Literaturespecifi.bimstore.co.uk/document/share/1727
Documentation Maintenancespecifi.bimstore.co.uk/document/share/1727
Documentation Technicalspecifi.bimstore.co.uk/document/share/1727
Duration UnitYears
E_Nominal Height48 mm
Expected Life1
F_Nominal Heigth70 mm
Factory Temperature Setting43 °C max
FeaturesMasterguard® Thermostatic Tempering Valves are designed for very high flow rates, with extremely stable outlet. An adjustable set temperature mechanism with locking feature, allows installer flexibility and the integrated fixing point allows easy wall or floor fixing. There are minimal moving parts and a simple construction to reduce maintenance service intervals. A 4-in-1 installation fitting provides easy orientation of the valve to match the inlet pipes, and includes cross-flow prevention, isolation and filtration protection.
FinishBrass
G_Nominal Distance45 mm
Graden/a
Hotwater LeverRWC Red
InletfittingDZR Brass Nickel plated
KeynoteS12
ManufacturerReliance Worldwide Corporation
Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
Manufacturer Fax+44 (0) 1386 712401
Manufacturer Tel+44 (0) 1386 712400
MaterialDRZ Brass
Maximum Supply Pressure Variation10 %
metalStainless Steel
Minimum Hot To Mix Differential Temp10 °C
MIX83004 1”Yes
MIX84004 1¼”No
MIX85004 1½”No
ModelMIX84004 - 1 FBSP Masterguard 830 4in1
NBS DescriptionTempering valves;
NBS Object Name90-10-90/368 Tempering valves;
NBS Reference90-10-90/368;
Outlet Temperature Range35-65 °C
PrintedknobRWC ABS Plastic
Production Year2016
Referenced StandardWRAS Approved
Replacement Costn/a
ShapeMulti-port
Size254 x 229 x 118mm
Spare Partsn/a
spring<By Category>
Temperature Cold Supply5-25 °C
Temperature Hot Supply90 °C
topknobRubber, Nitrile
Type NameMIX84004 - 1 FBSP Masterguard 830 4in1
URLwww.rwc.co.uk
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Working Pressure Dynamic0.2-6 bar
Working Pressure Static10 bar max
