SharkBite Stopcocks

8.3k
0
- / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

09/08/2018

Add to collection

Add to collection

Add to collection

Available for:

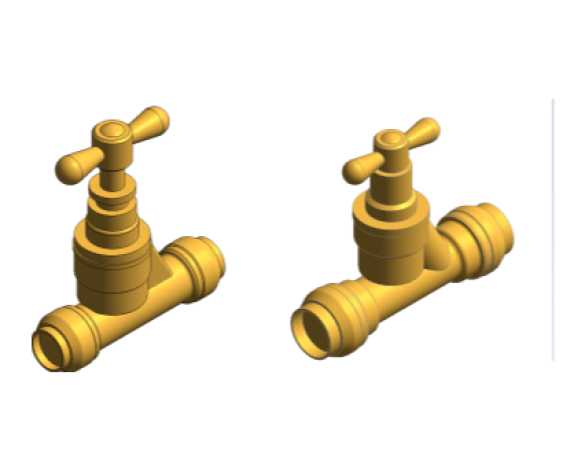

A quick and easy to install stopcock to control water flow. The stopcock has SharkBite metal push-fit ends for simple, heat-free connection compatible with all types of commonly used metal and plastic pipe: copper, chromed copper, PEX, carbon steel and polybutylene.

The stopcock can be easily disconnected and is immediately reusable.

WRAS approved.

Available in two connection sizes: for 15mm or 22mm pipe.

SB1715SB1722

Object metadata

_AuthorWilliam Hutton
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.rwc.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD5090900
Asset TypeFixed
BIM Object NameRWC_PipeAccessory_StopCock_(SB1715-SB1722)
Classification NameUniclass2015
Classification ValuePr_65_54_40_44
Code Performancen/a
Colorn/a
Connector Description15mm Sharkbite Fitting
Connector Diameter15 mm
Connector Height 10 mm
Connector Left Right39 mm
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On2018-03-22T09:00:00
DescriptionThe Sharkbite® range offers easy installation, removal and reusability of fittings for maximum flexibility.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a

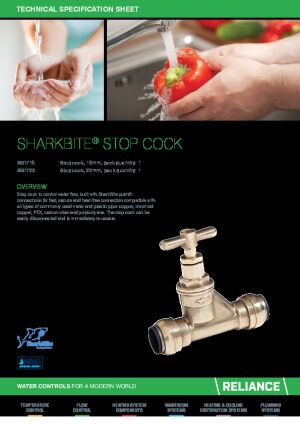

Documentation Technicalwww.rwc.co.uk/rwcuk/wp-content/uploads/SharkBite-Stop-Cock-Spec-Sheet-02.pdf
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow0.0 L/s
Graden/a
Ifc Export AsPipeFitting
Ifc Export TypePipeFittingType
KeynotePlease Find ---->
ManufacturerReliance Worldwide Corporation (UK) Ltd.
Manufacturer NameReliance Worldwide Corporation (UK) Ltd.
Materialn/a
ModelSharkbite® Stop Cocks
Model NumberSB1715
Model ReferenceSharkbite® Stop Cocks
NBS DescriptionSharkbite® Stop Cocks
NBS Object NameRWC - Sharkbite® Stop Cocks
NBS Office Master Tagn/a
NBS Reference90-15-40/325 Pr_65_54_95_88 Pr_65_54_95_88
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Pressure Drop0.0 Pa
Production Year2018
Referenced Standardn/a
Replacement Costn/a
SB1715Yes
SB1722No
Shapen/a
Size96x84x55
Spare Partsn/a
Type CommentsSB1715
Type NameSharkbite® Stop Cocks
URLwww.rwc.co.uk/product/sharkbite-stop-cocks/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnical@rwc.co.uk
