SharkBite Washing Machine Valve

7k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

09/08/2018

Download BIM

Add to collection

Available for:

A quick and easy to install isolator and double check valve for the control of water supply to washing machines. The valve has SharkBite metal push-fit ends for simple, heat-free connection compatible with all types of commonly used metal and plastic pipe: copper, chromed copper, PEX, carbon steel and polybutylene. The push-fit ends also allow easy disconnection and immediate reuse.

WRAS approved.

Supplied with red and blue handles, so either can be used to denote hot or cold supply pipe.

SB241520

_AuthorWilliam Hutton
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.rwc.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2020100
Asset TypeFixed

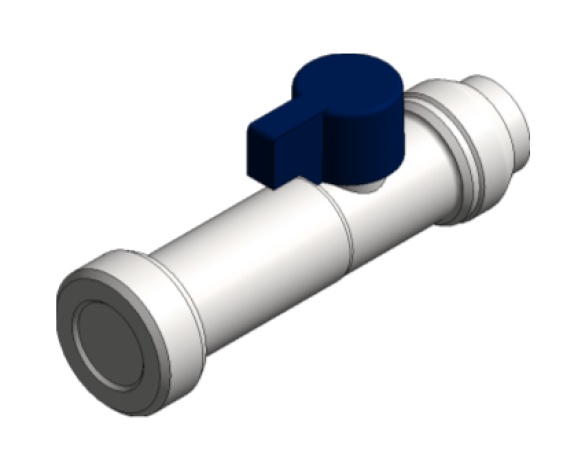

BIM Object NameRWC_PipeAccessory_WashingMachineValve_SB241520
Classification NameUniclass2015
Classification ValuePr_65_54_40_44
Code Performancen/a
Colorn/a
Connector Description15mm Sharkbite Fitting
Connector Description 2G 3/4" MBSP Pipe Thread
Connector Diameter15 mm
Connector Diamter 215 mm
Connector Height 10 mm
Connector Left Right0 mm
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On2018-03-22T09:00:00
DescriptionThe Sharkbite® range offers easy installation, removal and reusability of fittings for maximum flexibility.", "The Sharkbite® range offers easy installation, removal and reusability of fittings for maximum flexibility. Thw washing machine valve connects directly to the inlet of either a waching machine or a dishwasher with an isolating ball valve to allow easy removal and application of appliances.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturen/a
Documentation Maintenancen/a

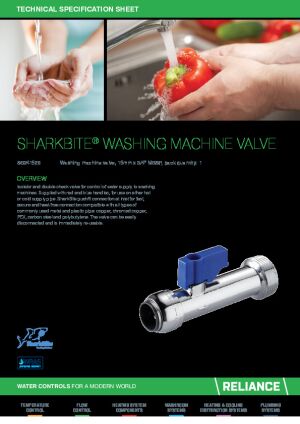

Documentation Technicalwww.rwc.co.uk/rwcuk/wp-content/uploads/SharkBite-Washing-Machine-Valve-Spec-Sheet-02.pdf
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flow0.0 L/s
Graden/a
Ifc Export AsPipeAccessory
Ifc Export TypePipeAccessoryType
KeynoteS
ManufacturerReliance Worldwide Corporation (UK) Ltd.
Manufacturer NameReliance Worldwide Corporation (UK) Ltd.
Materialn/a
ModelSharkbite® Washing Machine Valve
Model NumberSB241520
Model ReferenceSharkbite® Washing Machine Valve
NBS DescriptionSharkbite® Washing Machine Valve
NBS Object NameRWC - Sharkbite® Washing Machine Valve
NBS Office Master Tagn/a
NBS Reference90-15-40/325
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Pressure Drop0.0 Pa
Production Year2018
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size37x89x29
Spare Partsn/a
Type CommentsSB241520
Type NameSharkbite® Washing Machine Valve
URLwww.rwc.co.uk/product/sharkbite-washing-machine-valve/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnical@rwc.co.uk
