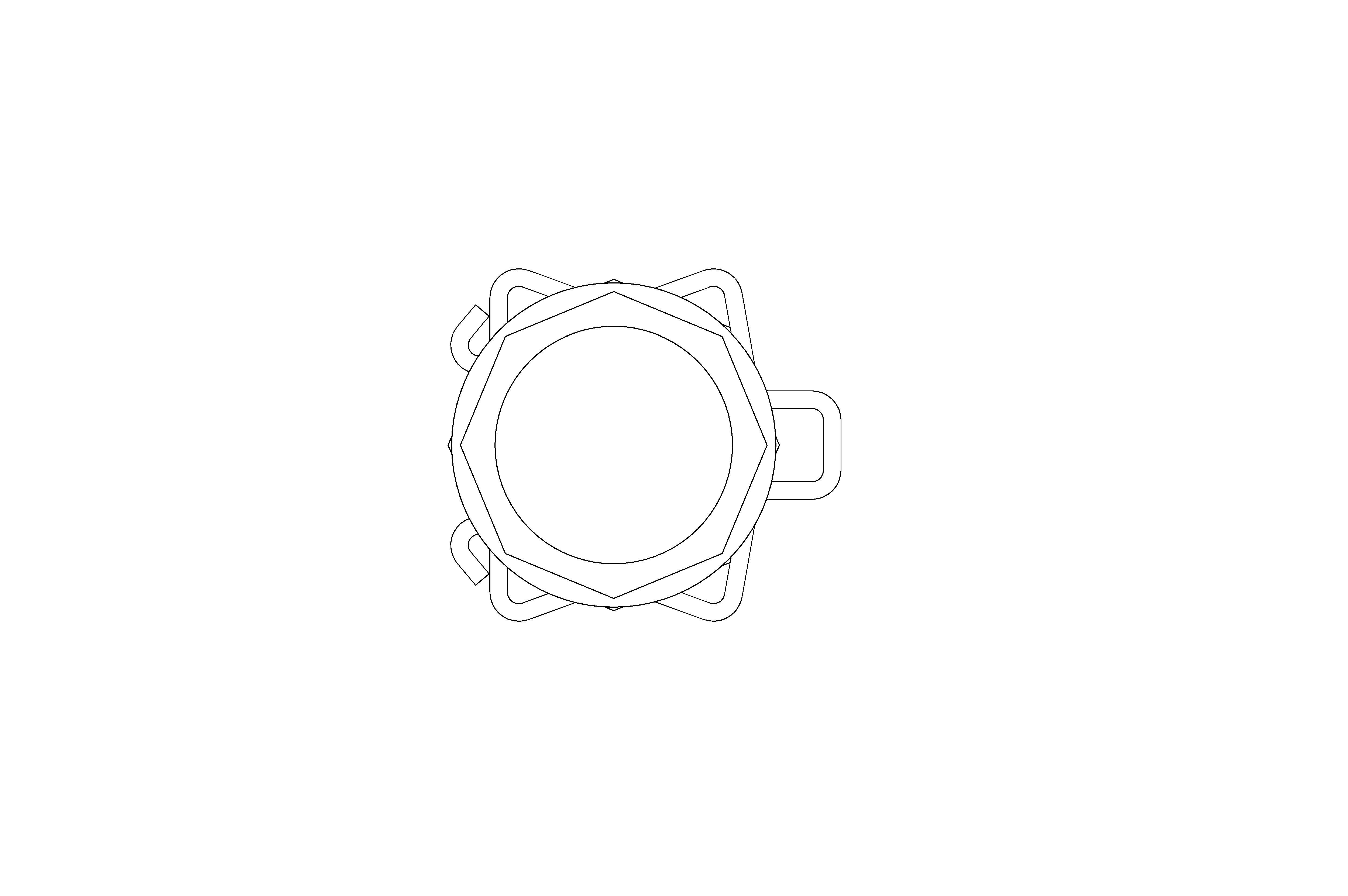

JP113 Axial Expansion Joint Screwed
97
0
- / 5Rate this product
Available for:
JP113 Axial Expansion Joint Screwed
Now Available With Precision Fit Flexible Lagging Jackets To Suit JP113.
Specification

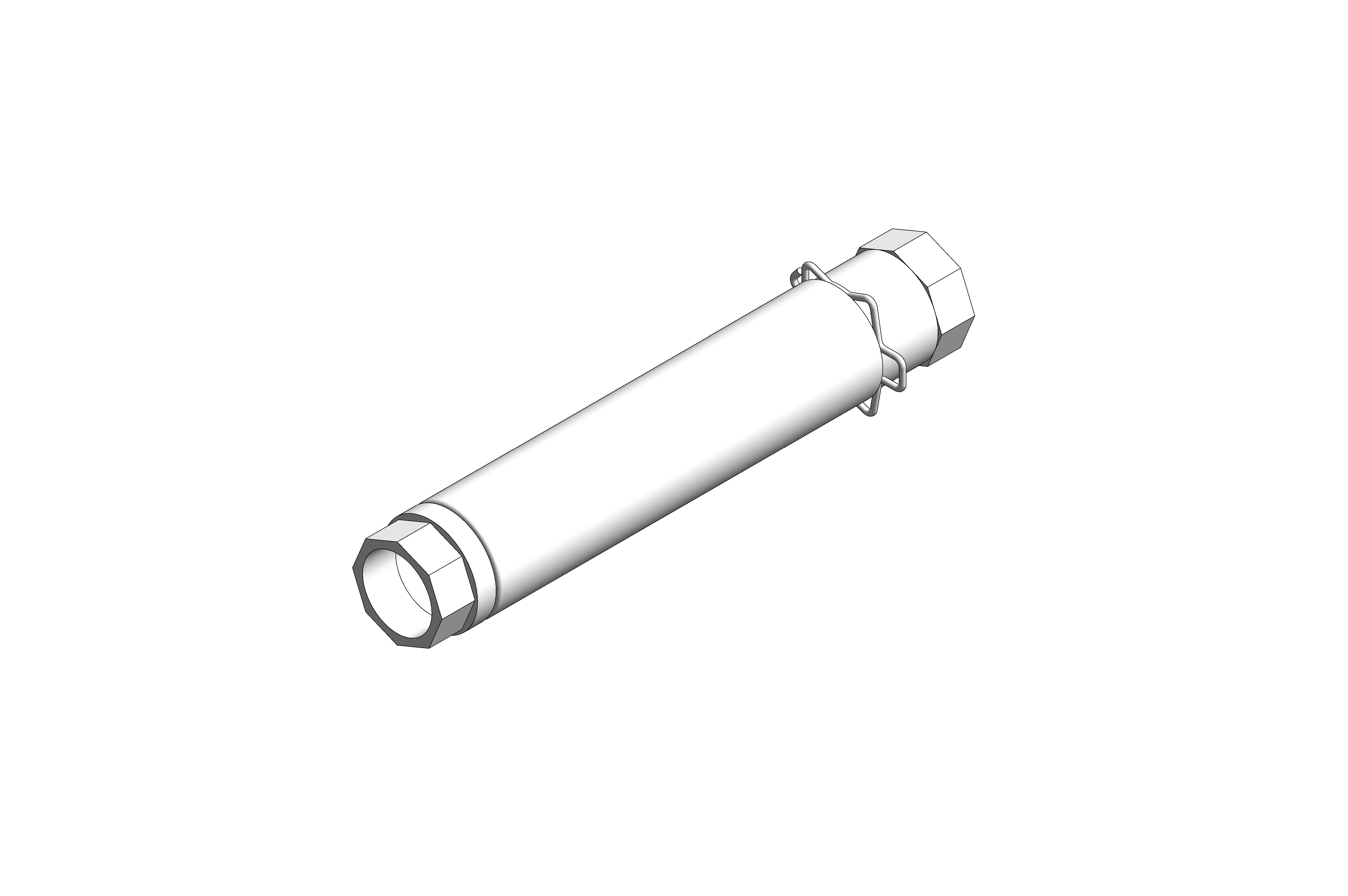

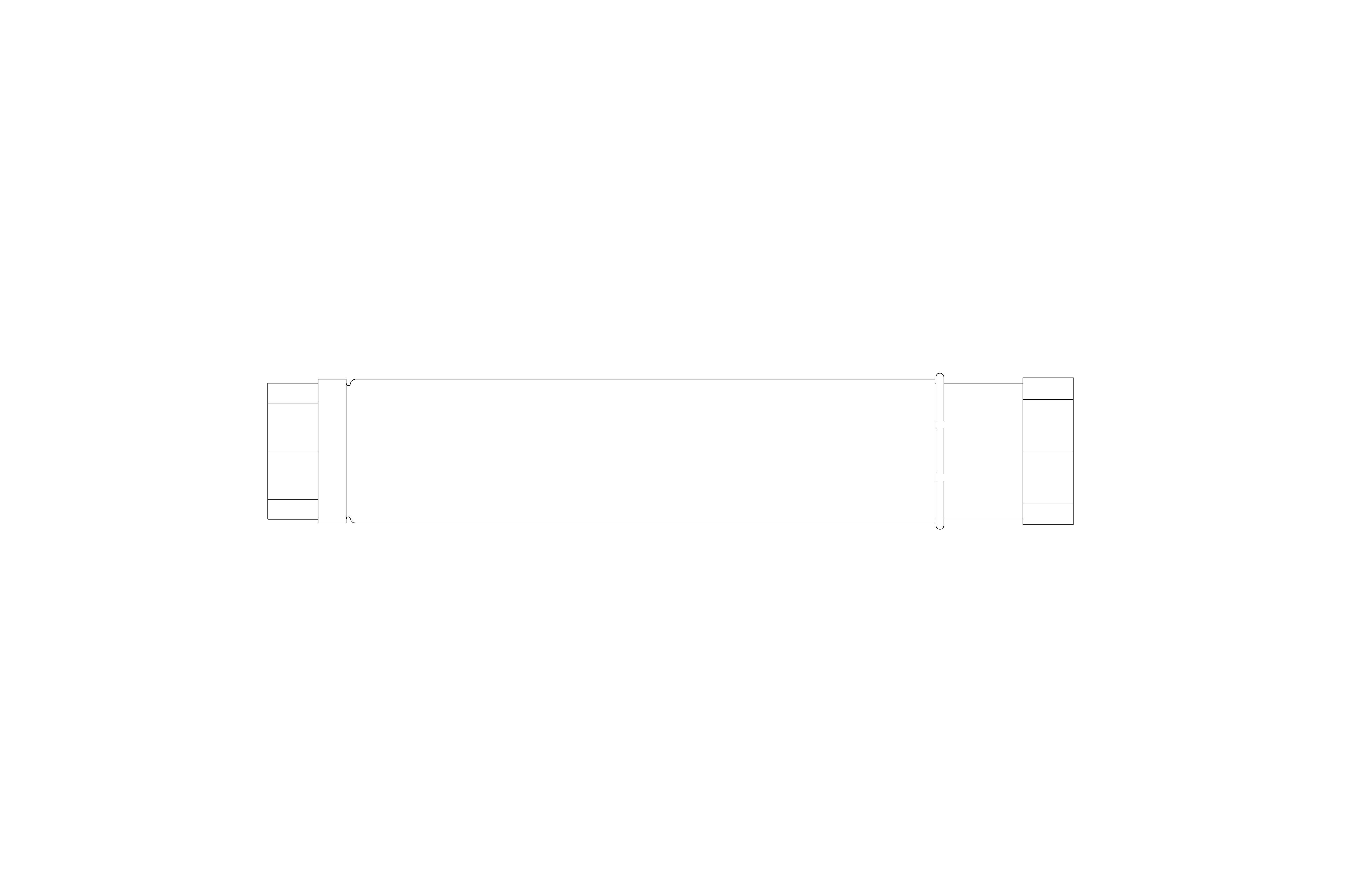

Axial expansion joint consisting of stainless steel grade 321 bellows assembly fitted with carbon steel female B.S.P. end connections. Complete with internal flow sleeve and white aluminium external protective sleeve. Fitted with movement indicator and limit clip.
Application
Stourflex axial expansion joints are designed to accommodate pipe movements in an axial plane (straight runs) due to thermal expansion. They are suitable for L.T.H.W, M.T.H.W, steam and other hot liquids and gases.
The white aluminium external protective sleeve makes the Type JP113 particularly suitable for use where pipework is visible inside occupied buildings.
- Maximum working temperature 250ºC.
- Maximum working pressure 10 bar at 200ºC.
- Stourflex axial expansion joints should not be used at both their maximum working temperature and pressure respectively.
- Maximum test pressure =1.5 x working pressure or 1.5 x end connection rating, whichever the lower.
Lagging
Stourflex are now able to offer a tailor made flexible lagging jacket to help reduce heat losses on LTHW systems and heat gains & condensation on CHW systems.
Read more
