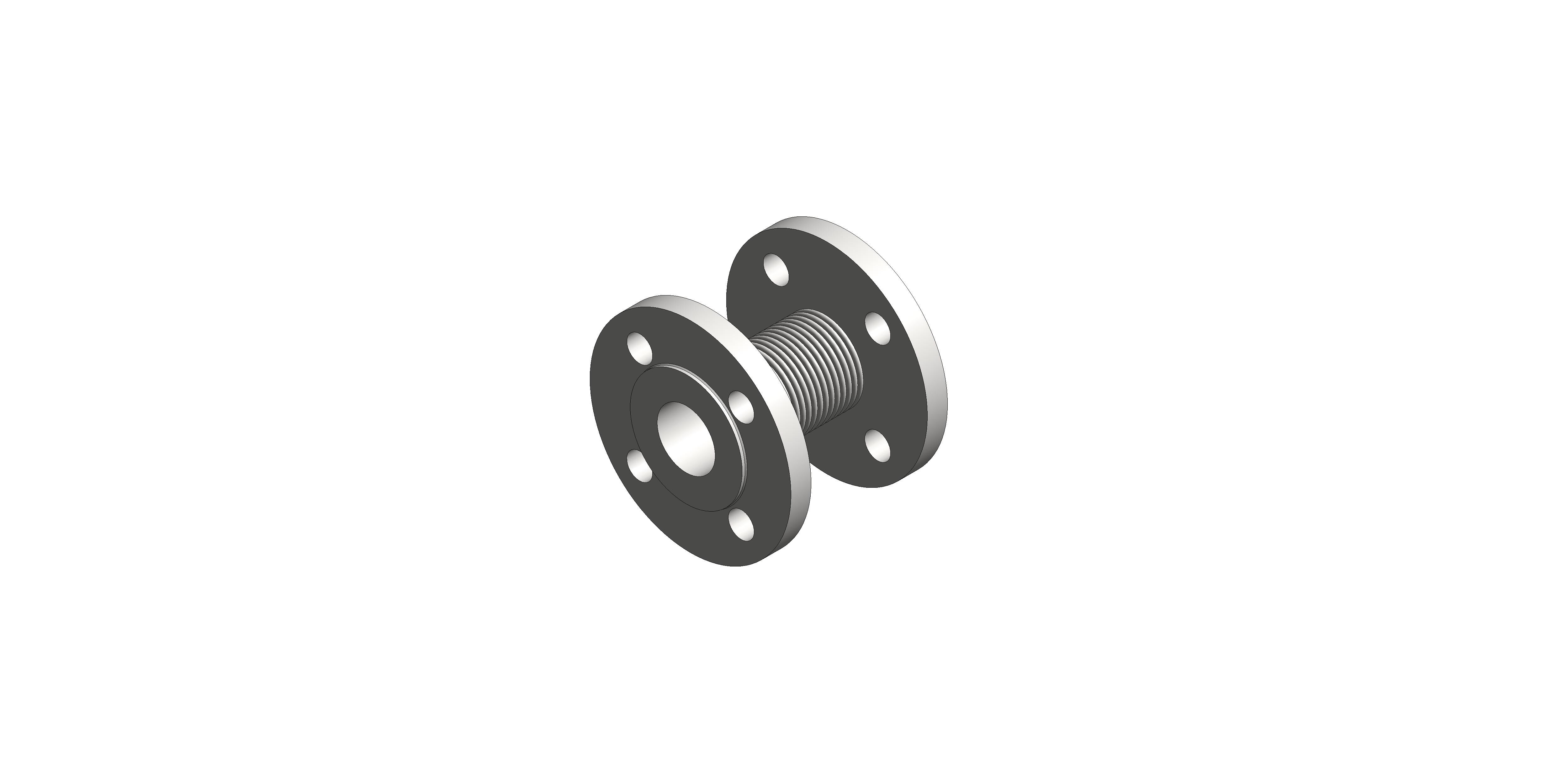

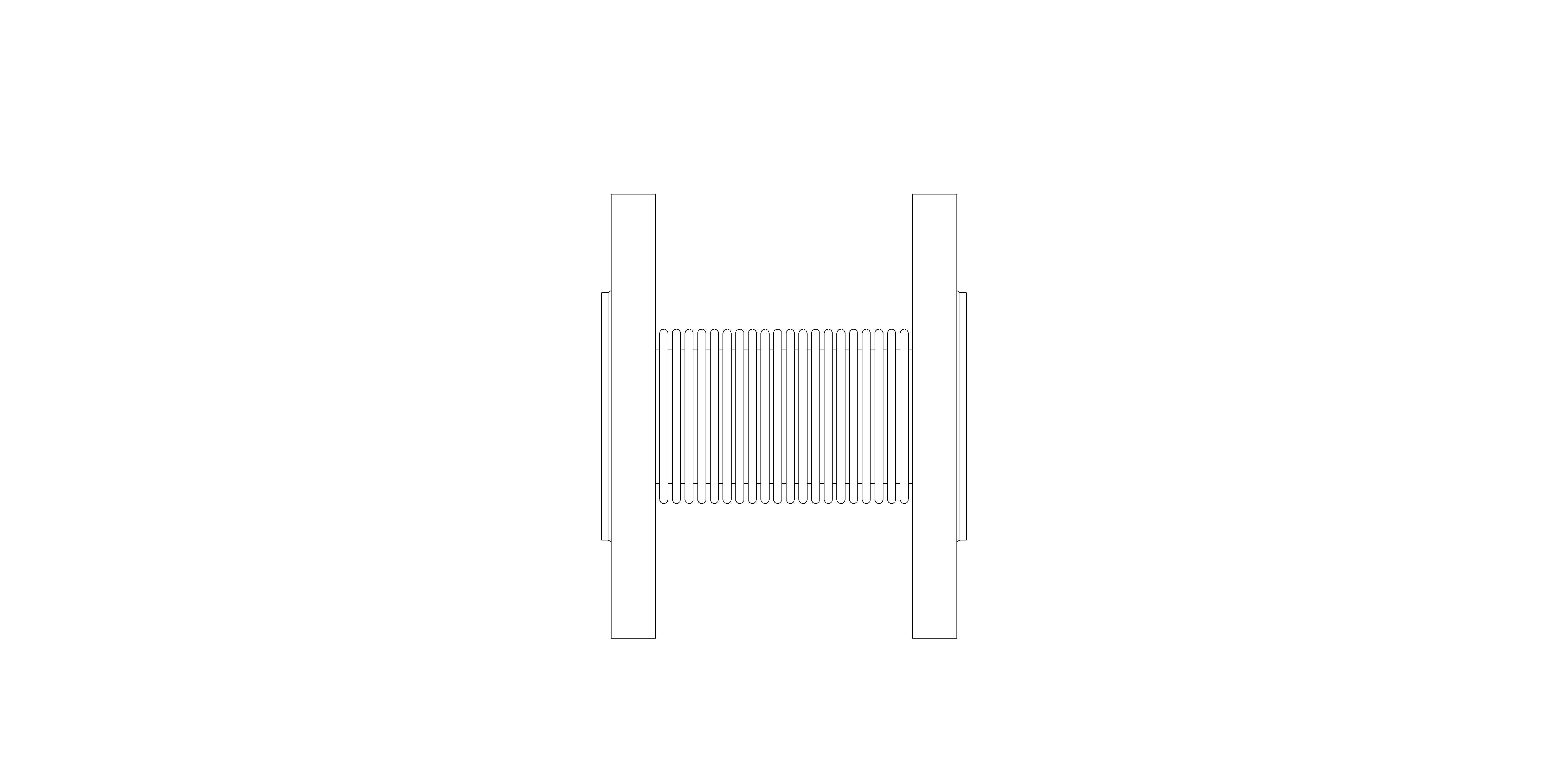

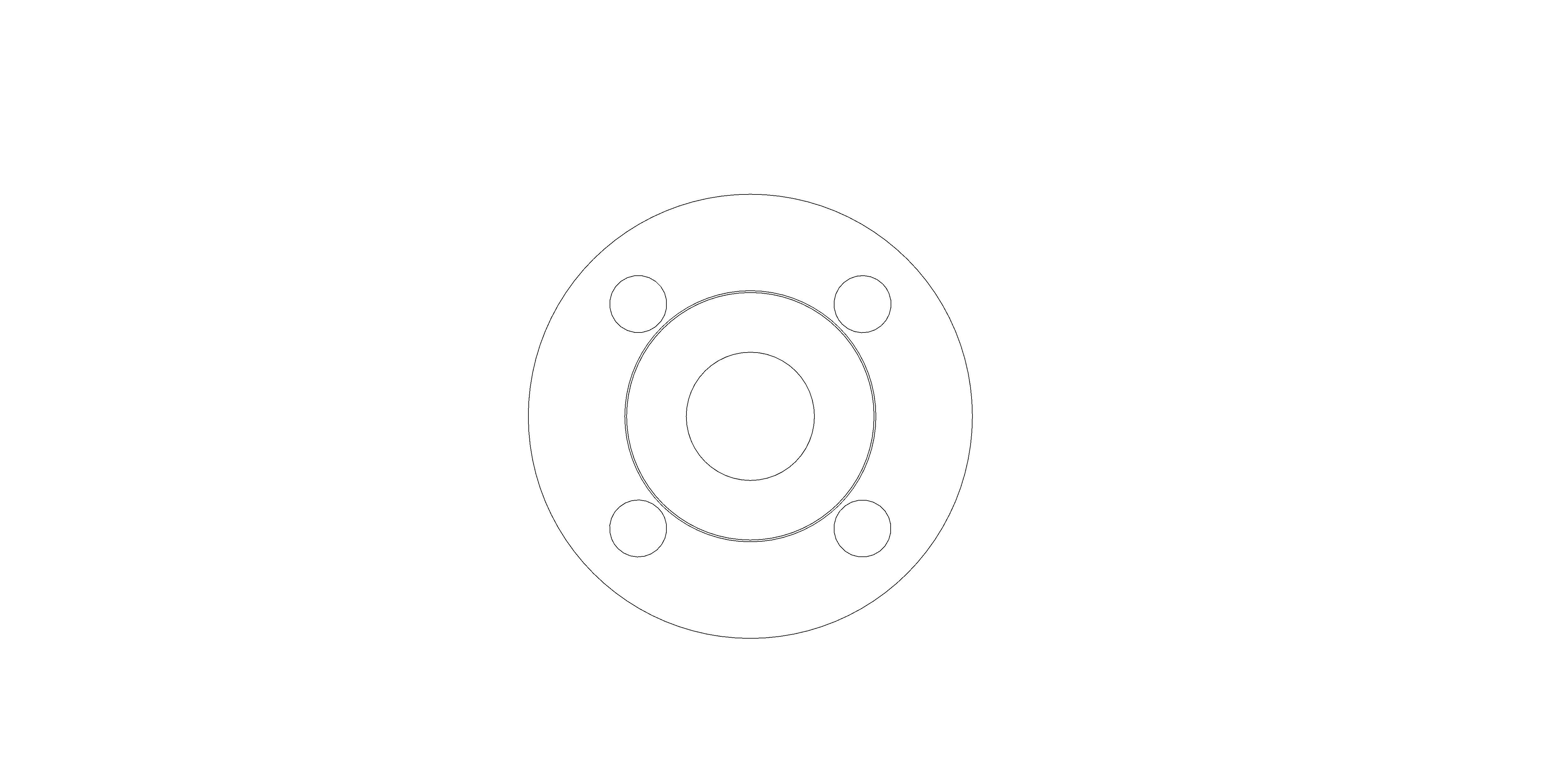

JP116VS Axial Expansion Joint Flanged
42
0
- / 5Rate this product
Available for:
JP116VS Axial Expansion Joint Flanged
Now Available With Precision Fit Flexible Lagging Jackets To Suit JP116.
Specification
Axial expansion joint consisting of stainless steel grade 321 bellows assembly and mating surfaces (stainless steel wetted parts) fitted with carbon steel zinc plated van stone swivel flanges drilled to BS4504 NP16.
Application
- Stourflex axial expansion joints are designed to accommodate pipe movements in an axial plane ( straight runs ) due to thermal expansion. They are suitable for use on H.W.S.,L.T.H.W.,M.T.H.W.,H.T.H.W., Steam, gases and other non ferrous applications.
- Maximum working temperature 300ºC.
- Maximum working pressure 12.5 bar at 120ºC. Bellows to work in conjunction with PED Category SEP.
- Stourflex axial expansion joints should not be used at both their maximum working temperature and pressure respectively.
- Maximum test pressure = 1.5 x working pressure or 1.5 x flange rating, whichever the lower.
Lagging
Stourflex are now able to offer a tailor made flexible lagging jacket to help reduce heat losses on LTHW systems and heat gains & condensation on CHW systems.
Read more
