Flanged Tied Rubber Flexible Connectors [00/0601]

139
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

12/11/2024

Download BIM

Add to collection

Available for:

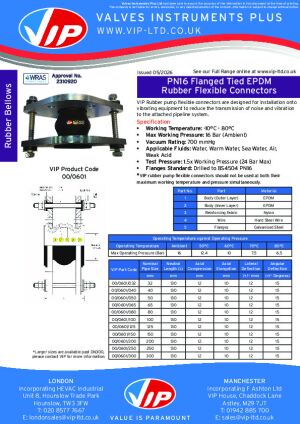

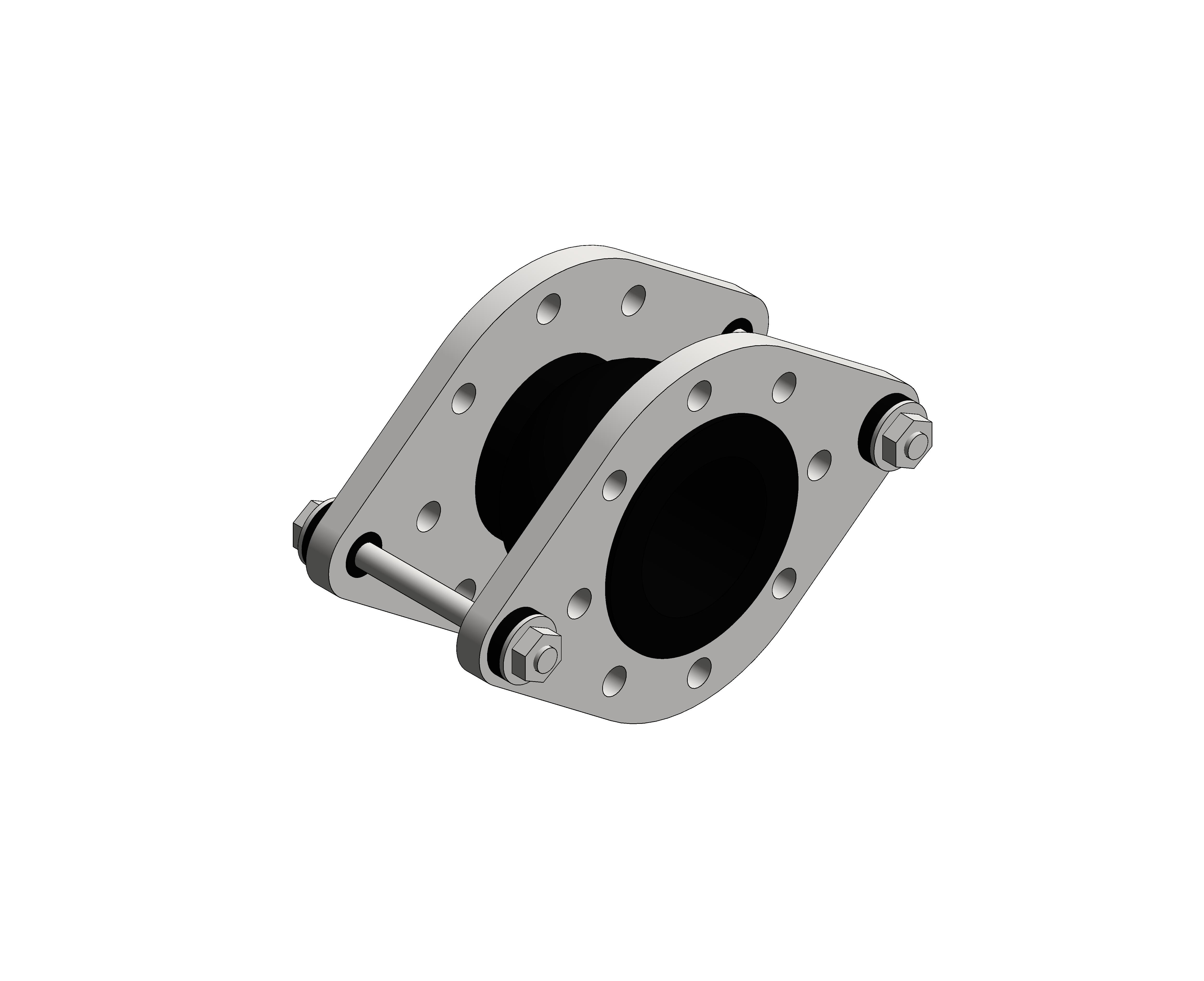

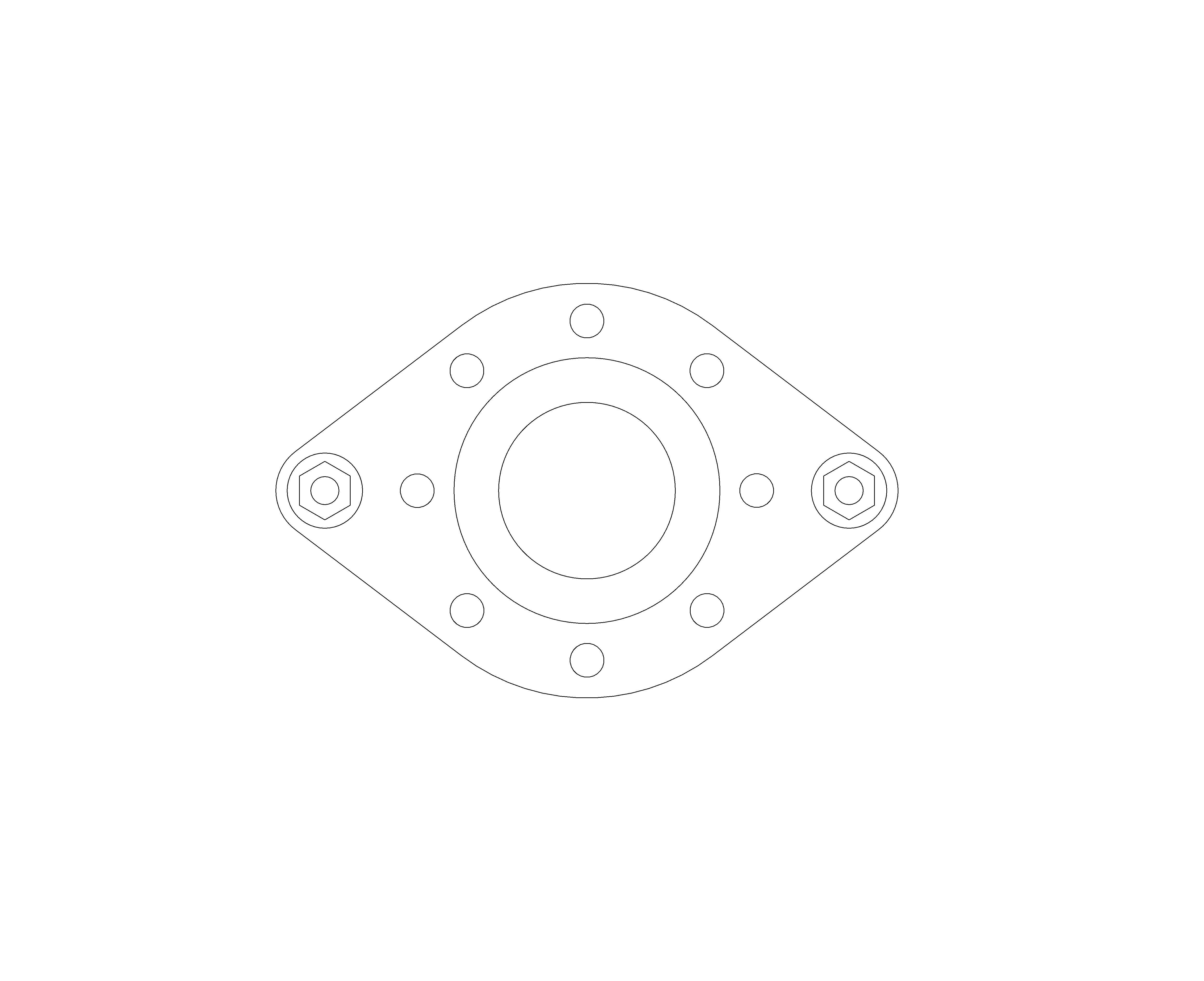

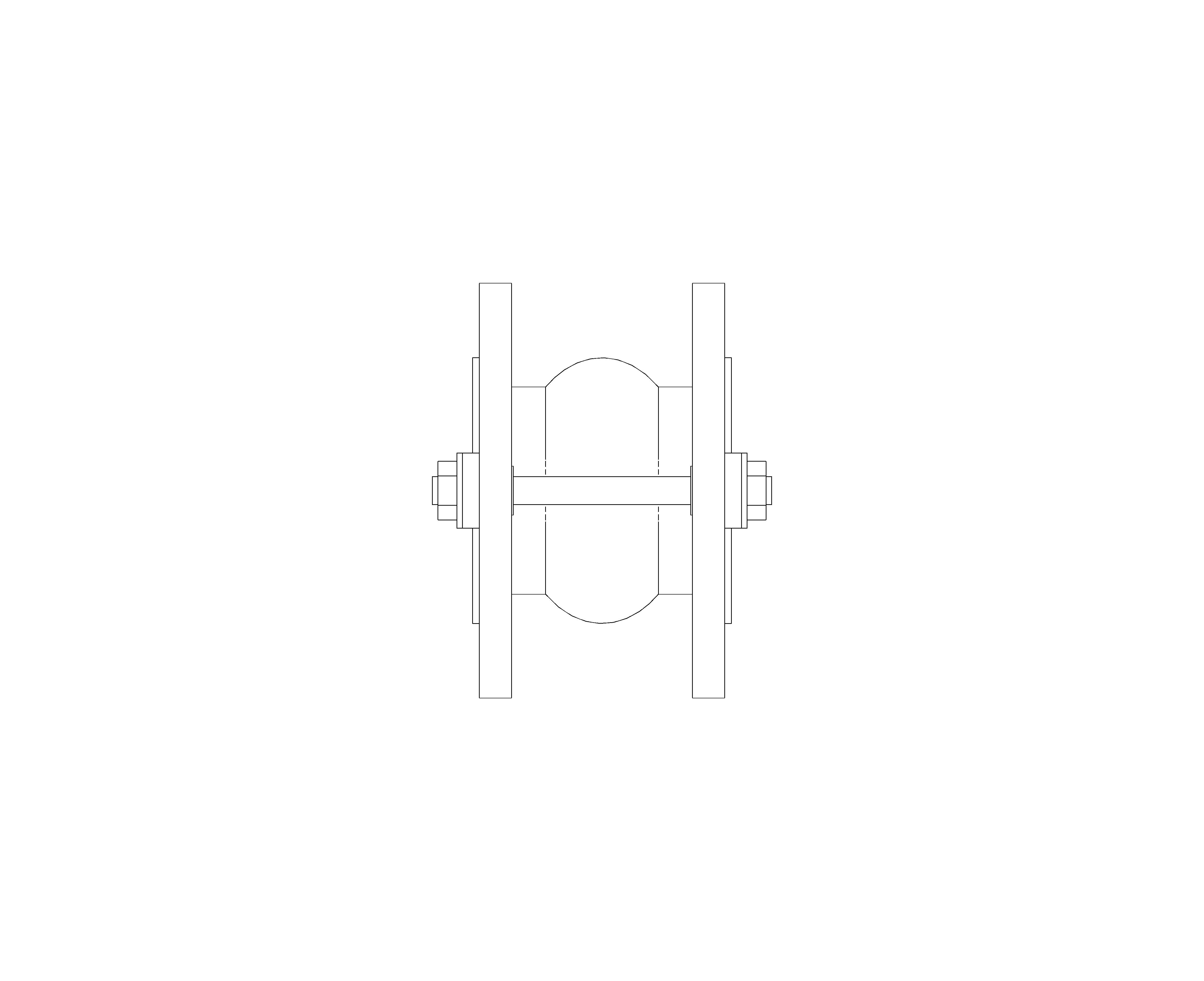

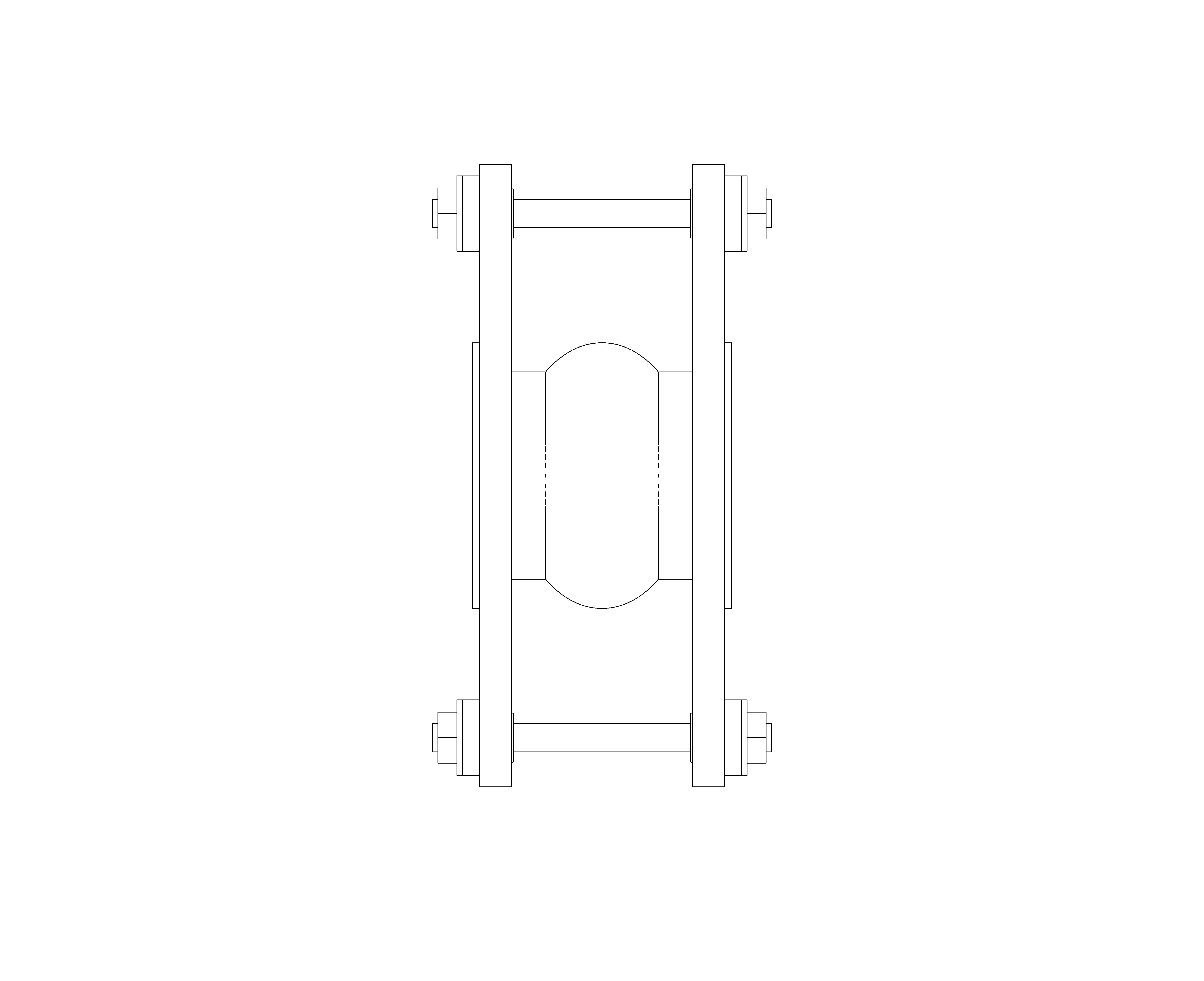

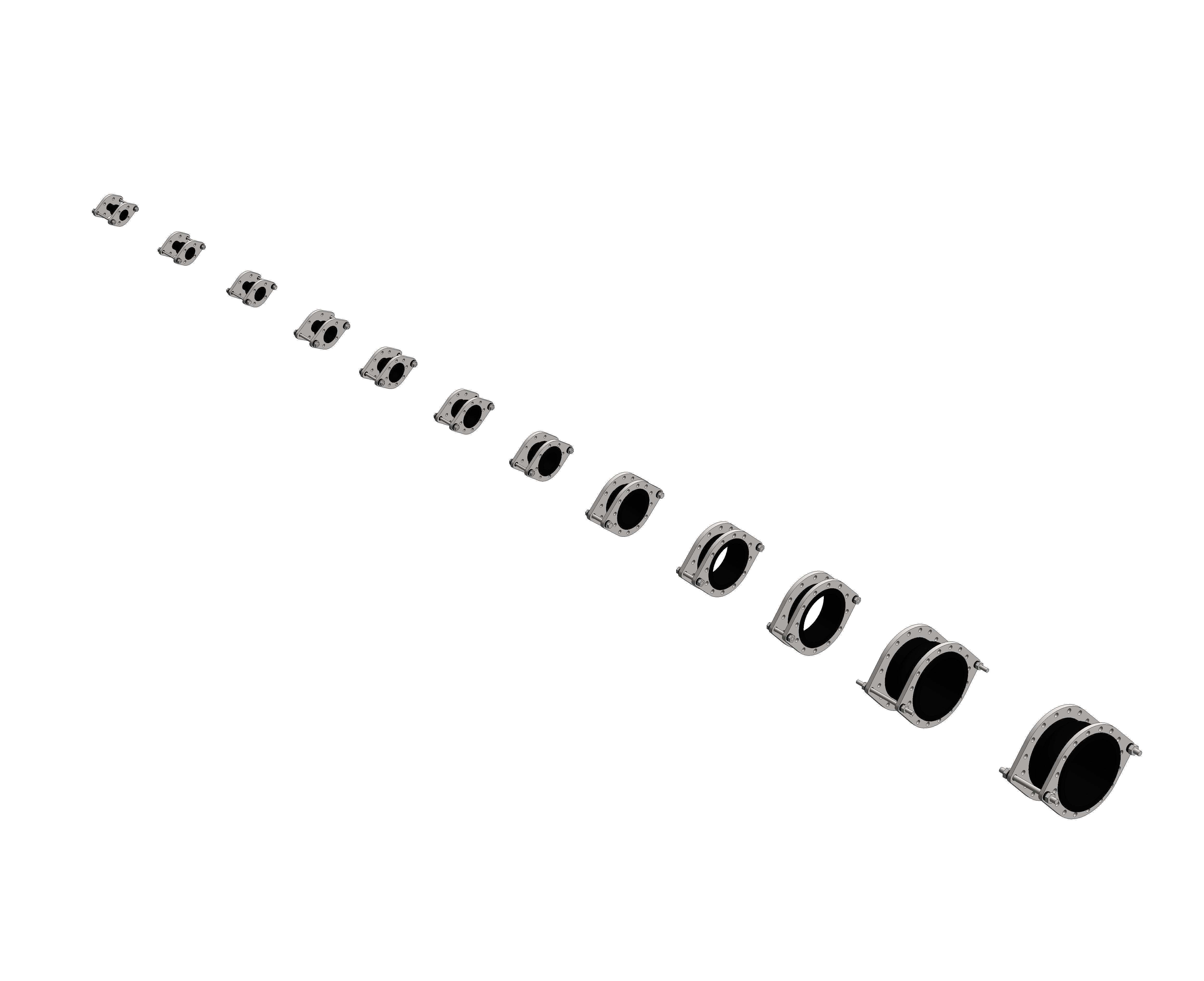

VIP rubber pump flexible connectors are designed for installation onto vibrating equipment to reduce the transmission of noise and vibration to the attached pipeline system. They are suitable for use with potable water, warm water, sea water, air and weak acid. VIP rubber pump flexible connectors should not be used at both their maximum working temperature and pressure simultaneously.

Specification:

Working Temperature: -10 to 90°C.
Max. Working Pressure: 16 Bar at Ambient Temperature. 10 Bar rated 350mm and 400mm ND (contact us for larger sizes and ratings)
Vacuum Rating: 700mm HG.
Applicable Fluids: Water, Warm Water, Sea, Water, Air, Weak Acid.
Test Pressure: 1.5 x Working Pressure (24 Bar Max.)
Flanges Standard: EN1092-1, PN10 and PN16 as standard.

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vip-00-0601/document/object-user-guide
Accessibility Performancen/a
Applicable FluidsWater, warm water, Sea Water, air, weak acid
Assembly CodeC1030
Asset TypeFixed
BIM Object NameVIP_RubberBellow_PN16_(00-0601)
Classification NameUniclass 2015
Classification ValuePr_80_77_94_74
Code Performancen/a
ColorGrey
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2024-11-04T09:00:00
Default Elevation0 mm
DescriptionVIP rubber pump flexible connectors are designed for installation onto vibrating equipment to reduce the transmission of noise and vibration to the attached pipeline system. They are suitable for use with potable water, warm water, sea water, air and weak acid. VIP rubber pump flexible connectors should not be used at both their maximum working temperature and pressure simultaneously.
Distance Between Top Hat130 mm
DN100 mm
Documentation Certificateswww.bimstore.co/products/vip-00-0601/document/product-certificates

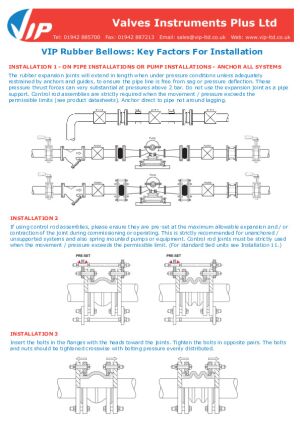

Documentation Installation Guidewww.bimstore.co/products/vip-00-0601/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vip-00-0601/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vip-00-0601/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vip-00-0601/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flange End Radius71 mm
Flange Length17 mm
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
L14 mm
Length137 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Max Working PressureBar at Ambient, 350-400mm sizes: 10 bar
Max Working Temperature90.00 °C
Model00/0601 PN16 EPDM Flanged Tied Rubber Flexible Connectors (WRAS Approved)
Model Number00-0601-100
Model ReferenceRubber Bellows
NBS DescriptionRubber bellows
NBS Noten/a
NBS Object NameVIP - Rubber bellows
NBS Office Master Tagn/a
NBS Reference90-90-95/390
Nominal Depth330 mm
Nominal Height220 mm
Nominal Length137 mm
Operating TemperatureMax Operating Pressure (Bar)
Outer Holes Centre Diameter278 mm
Pipe Inside Diameter94 mm
Pipe Inside Radius47 mm
Pipe Outside Diameter110 mm
Pipe Outside Radius55 mm
Primary MaterialVIP - Stainless Steel
Production Year2024
R26 mm
Radius R148 mm
Referenced Standardn/a
Replacement Costn/a
Rubber MaterialVIP - EPDM
Shapen/a
SizeDN100
Spare Partssales@vip-ltd.co.uk
Test Pressure1.5 x working pressure (24 Bar Max)
Type Comments00-0601-100
Type NameDN100
URLwww.vip-ltd.co.uk/Expansion/Rubber_Bellows/00_0601/
Vacuum Rating700mm HG
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Width330 mm
WRAS ApprovalYes
