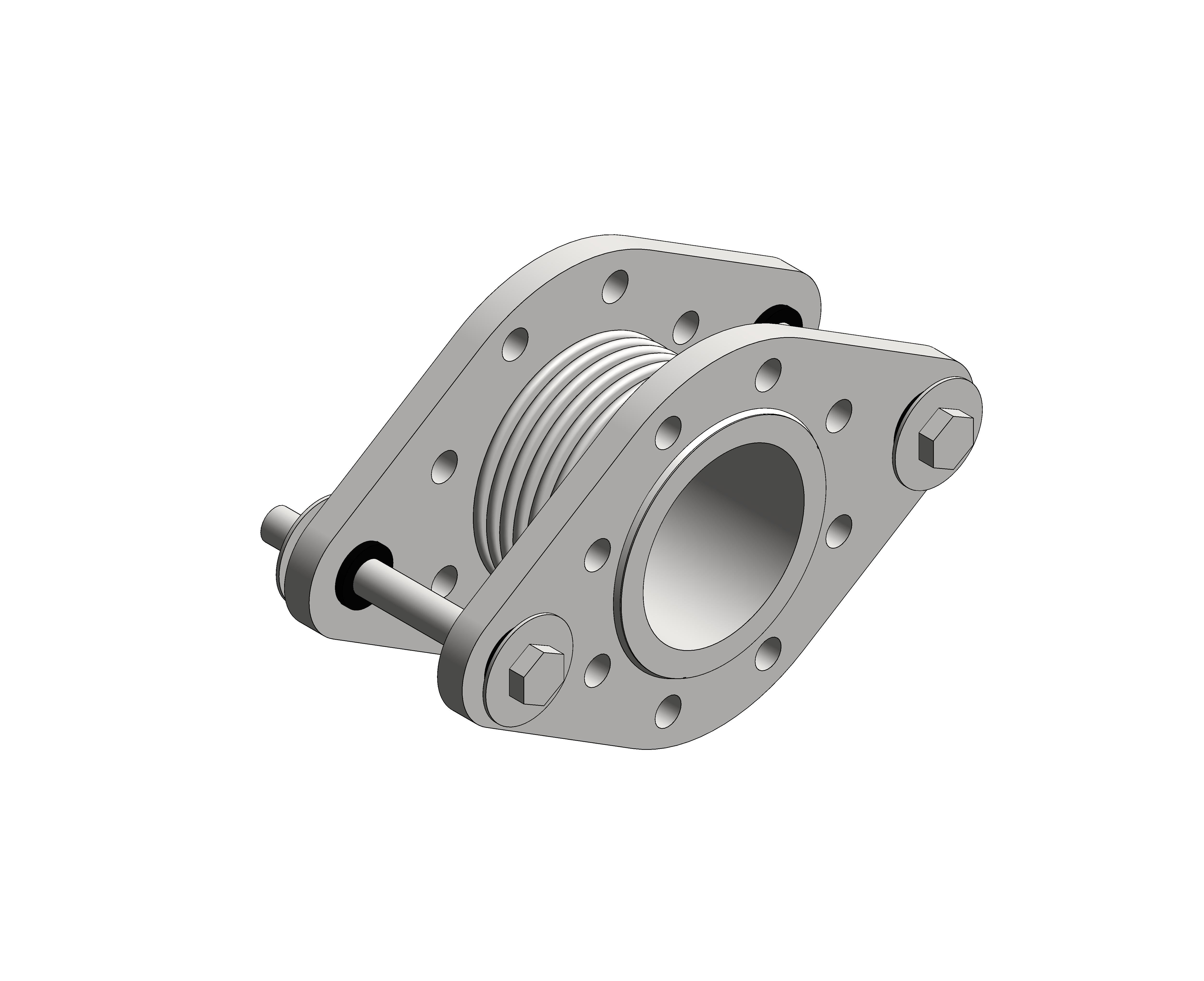

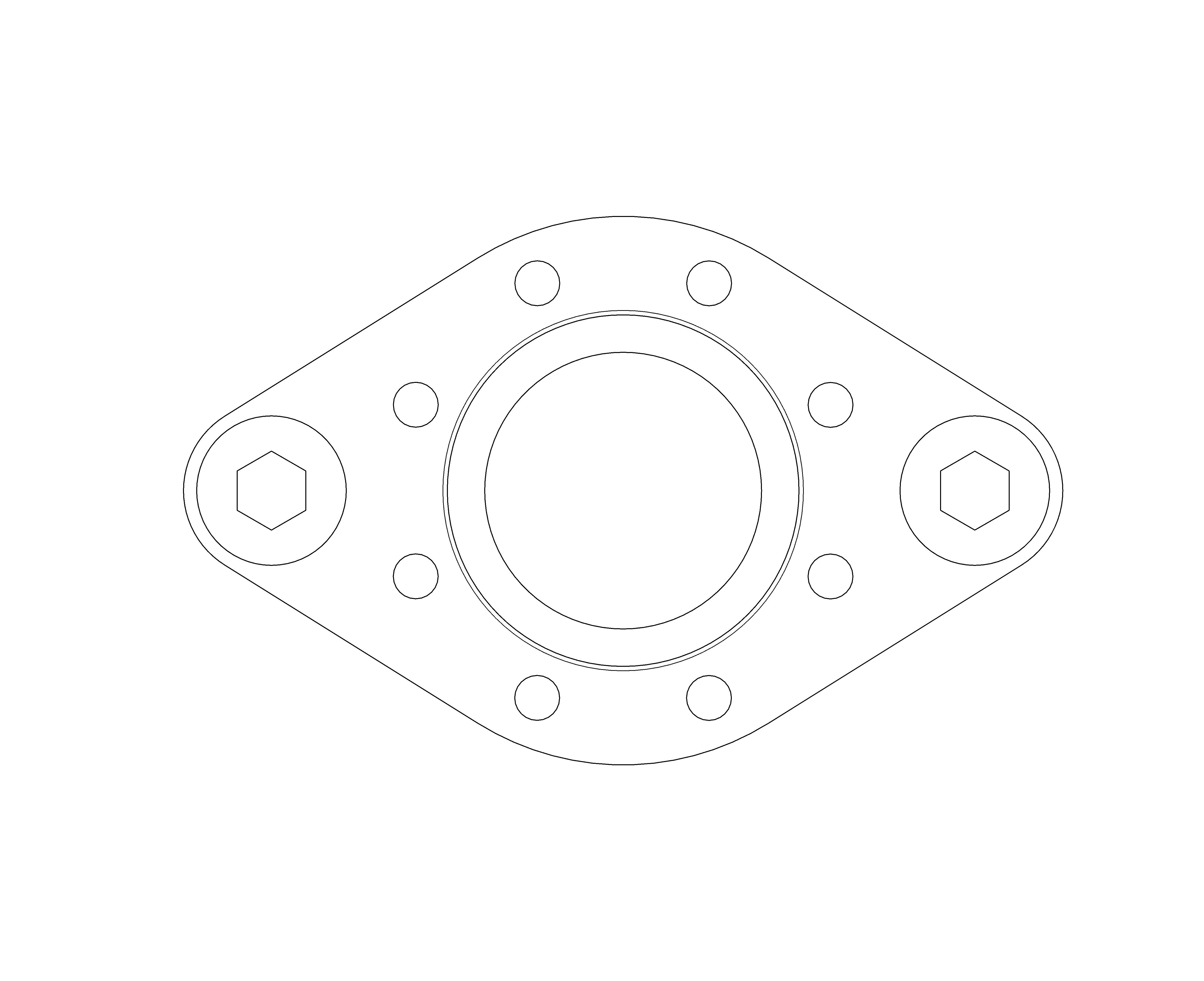

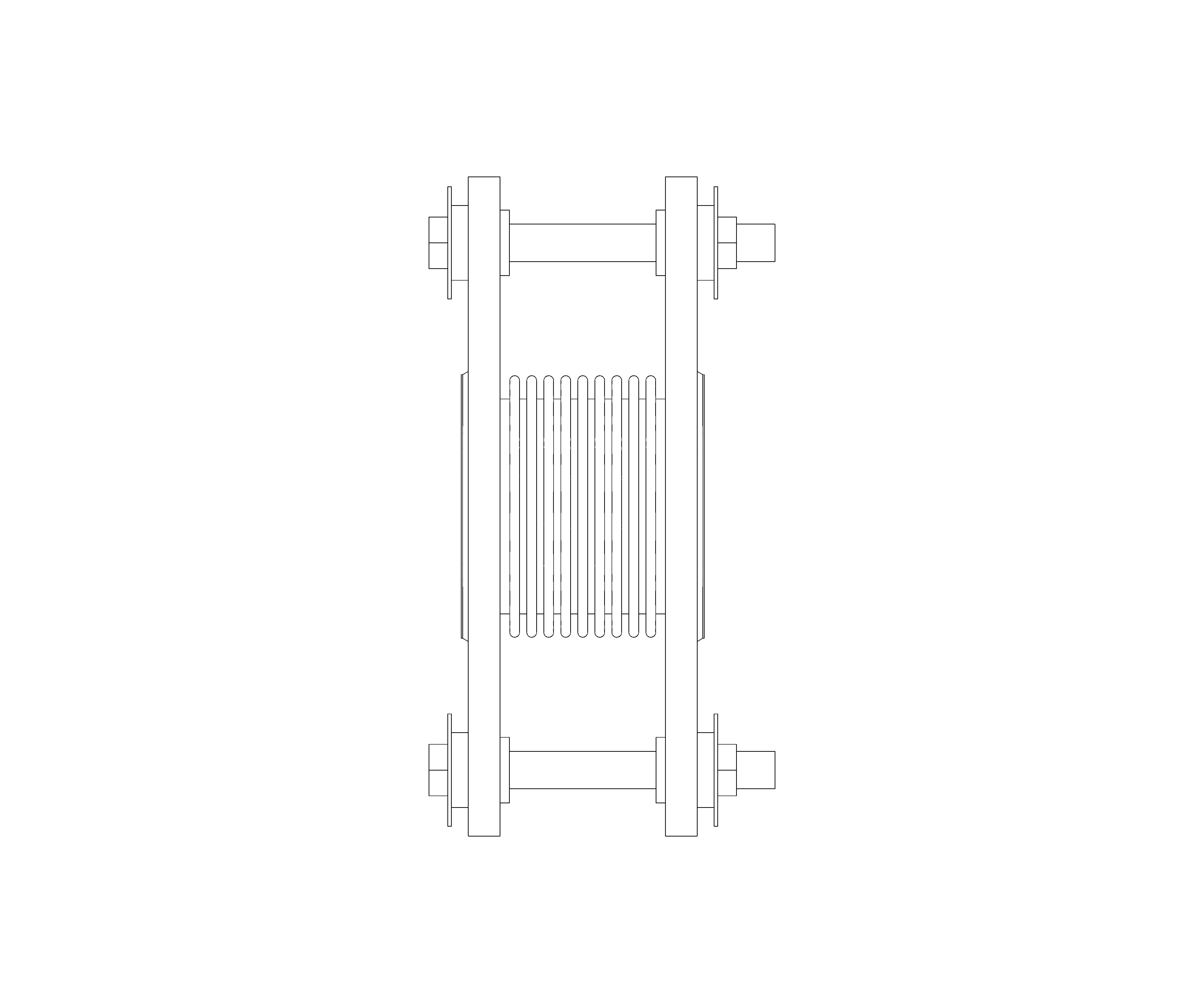

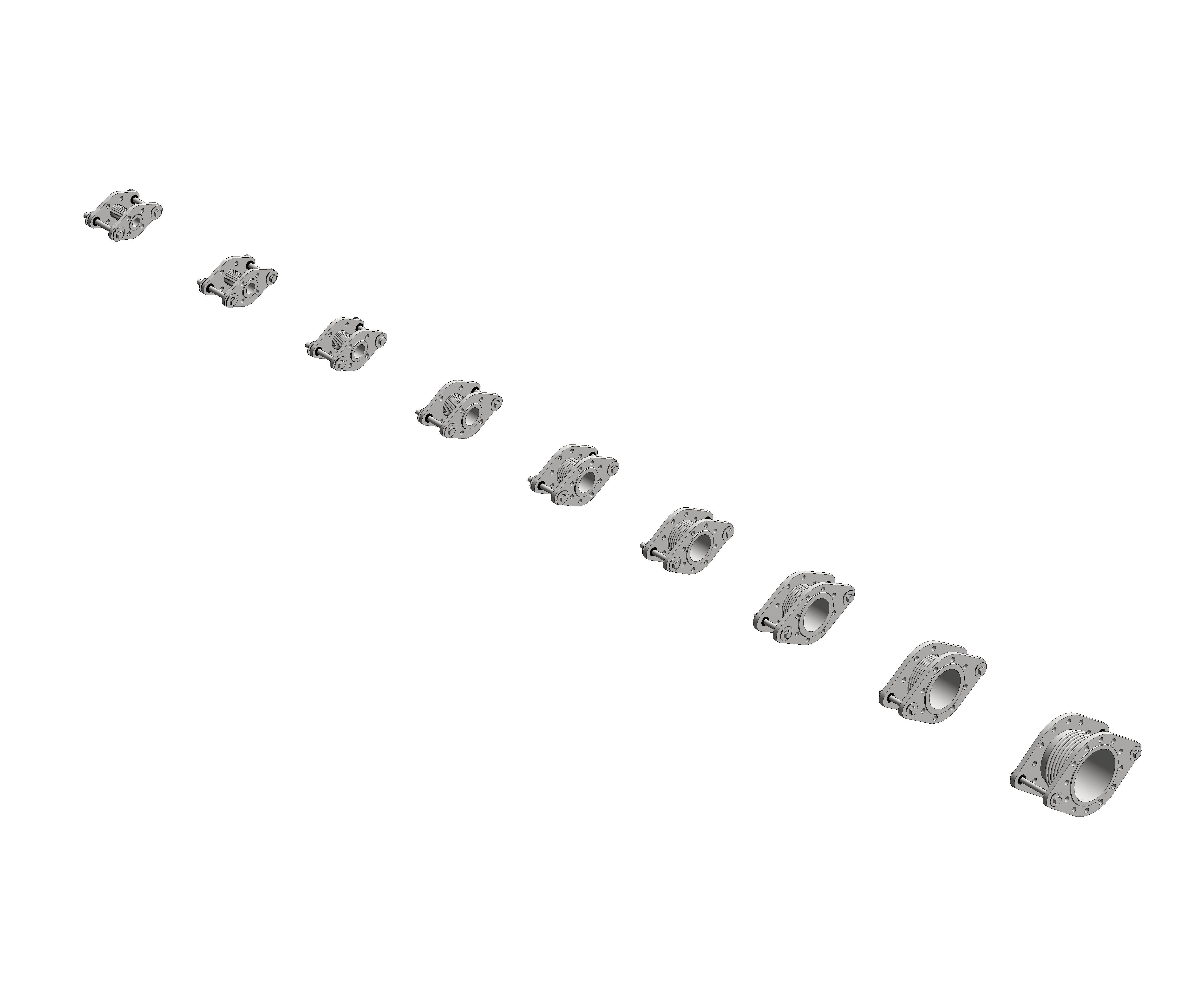

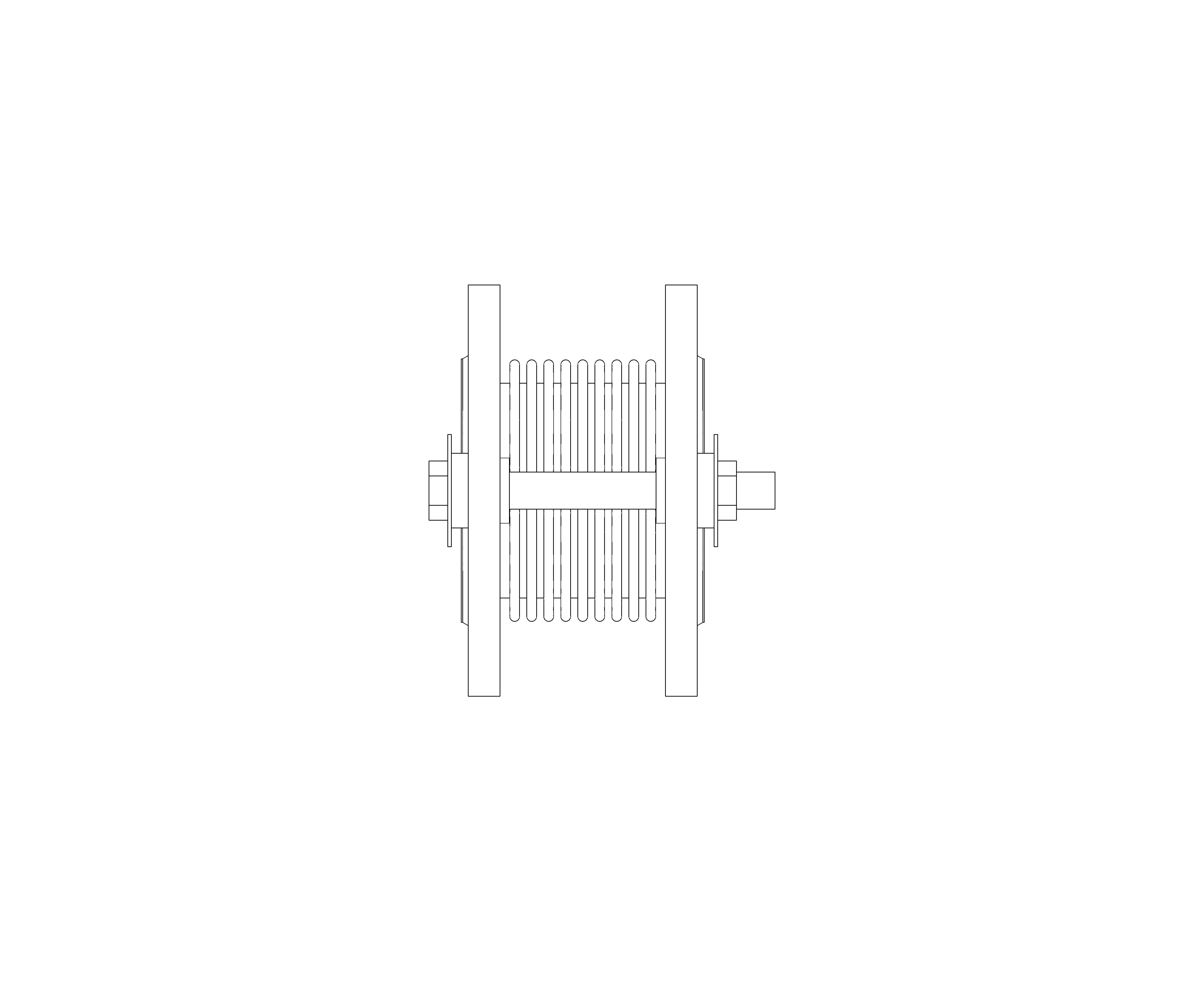

Flanged Stainless Steel Tied Pump Flexible Connectors [33/0595]

by Valves Instruments Plus

Download Add to collection

Description

VIP stainless steel pump flexible connectors are designed for installation onto vibrating equipment to reduce the transmission of noise and vibration to the attached pipeline system.

They are designed for use when the system pressure, temperature or flow media is unsuitable for the use of rubber pump flexible connectors. All stainless steel to wetted parts with loose swivel plated carbon steel PN16 flanges.

Specification:

Maximum Working Temperature:
120°C with Rubber Washers (standard supply)
300°C with Steel Washers (non-standard POA)
Maximum Working Pressure: 16 Bar
Test Pressure: 1.5x Working Pressure (24 Bar Max)

Application areas for the VIP PN16 Flanged Stainless Steel Tied Pump Flexible Connectors are as follows: HVAC Systems, Air Compressors, Plumbing Systems, Pumps, Hot Air Pipelines, Chemical Factories, Industrial Factories, Marine Applications.

Object Data

1 Revision

Last Updated

12/11/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vip-33-0595/document/object-user-guide
Accessibility Performancen/a
Assembly CodeC1030
Asset TypeFixed
Bellow Inside Diameter115 mm
Bellow Offset5 mm
Bellow Outside Diameter140 mm
Bellow Width5 mm
BIM Object NameVIP_StainlessSteelTiedPumpFlexibleConnectors_PN16_(33-0595)
Classification NameUniclass 2015
Classification ValuePr_65_52_62_30
Code Performancen/a
ColorGrey
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2024-11-04T09:00:00
Default Elevation0 mm
DescriptionVIP stainless steel pump flexible connectors are designed for installation onto vibrating equipment to reduce the transmission of noise and vibration to the attached pipeline system. They are designed for use when the system pressure, temperature or flow media is unsuitable for the use of rubber pump flexible connectors. All stainless steel to wetted parts with loose swivel plated carbon steel PN16 flanges.
Distance Between Top Hat122 mm
DN100 mm
Documentation Certificateswww.bimstore.co/products/vip-33-0595/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vip-33-0595/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vip-33-0595/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vip-33-0595/document/maintenance-information

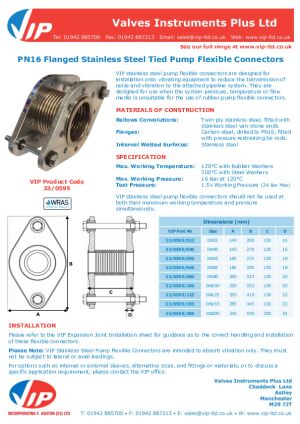

Documentation Technicalwww.bimstore.co/products/vip-33-0595/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Flange End Radius71 mm
Flange Length17 mm
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
L14 mm
L23 mm
Length130 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Max Working Pressure120°C with Rubber Washers and 300°C with Steel Washers
Max Working Temperature16 Bar at 120°C
Model33/0595 PN16 Flanged Stainless Steel Tied Pump Flexible Connectors (WRAS Approved)
Model Number33-0595-100
Model ReferenceStainless Steel Tied Pump Flexible Connectors
NBS DescriptionFlange jointing rings for stainless steel flanges
NBS Noten/a
NBS Object NameVIP - Flange jointing rings for stainless steel flanges
NBS Office Master Tagn/a
NBS Referencen/a
No Bellow9
Nominal Depth352 mm
Nominal Height220 mm
Nominal Length130 mm
Outer Holes Centre Diameter282 mm
Pipe Inside Diameter111 mm
Pipe Inside Radius56 mm
Pipe Outside Diameter115 mm
Pipe Outside Radius58 mm
Primary MaterialVIP - Stainless Steel
Production Year2024
R35 mm
Referenced Standardn/a
Replacement Costn/a
Rubber MaterialVIP - EPDM
Shapen/a
SizeDN100
Spare Partssales@vip-ltd.co.uk
Test Pressure1.5x Working Pressure (24 Bar Max)
Type Comments33-0595-100
Type NameDN100
URLwww.vip-ltd.co.uk/Expansion/Metallic_Pump_Connectors_&_Hoses/33_0595/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
Width352 mm
