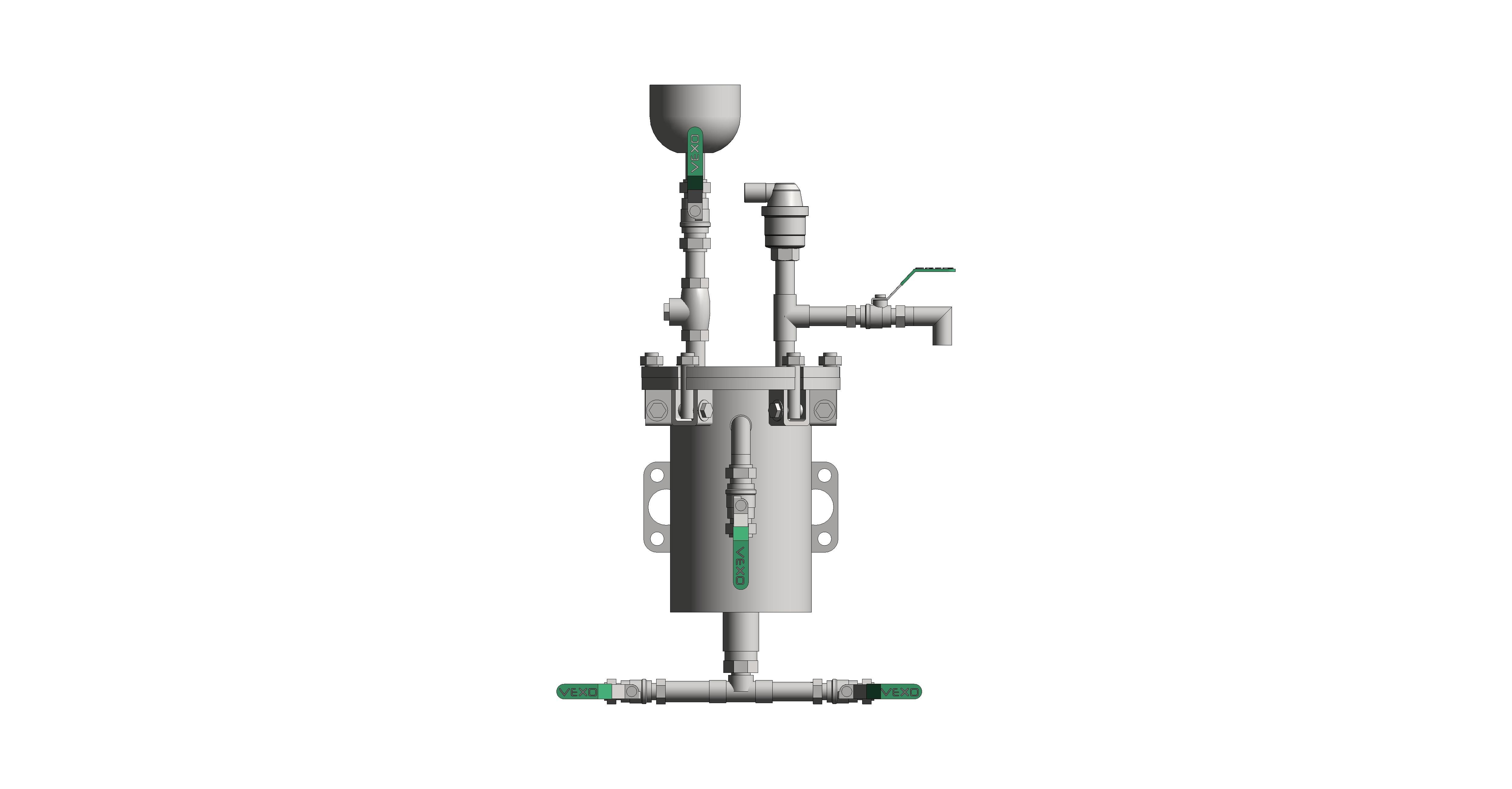

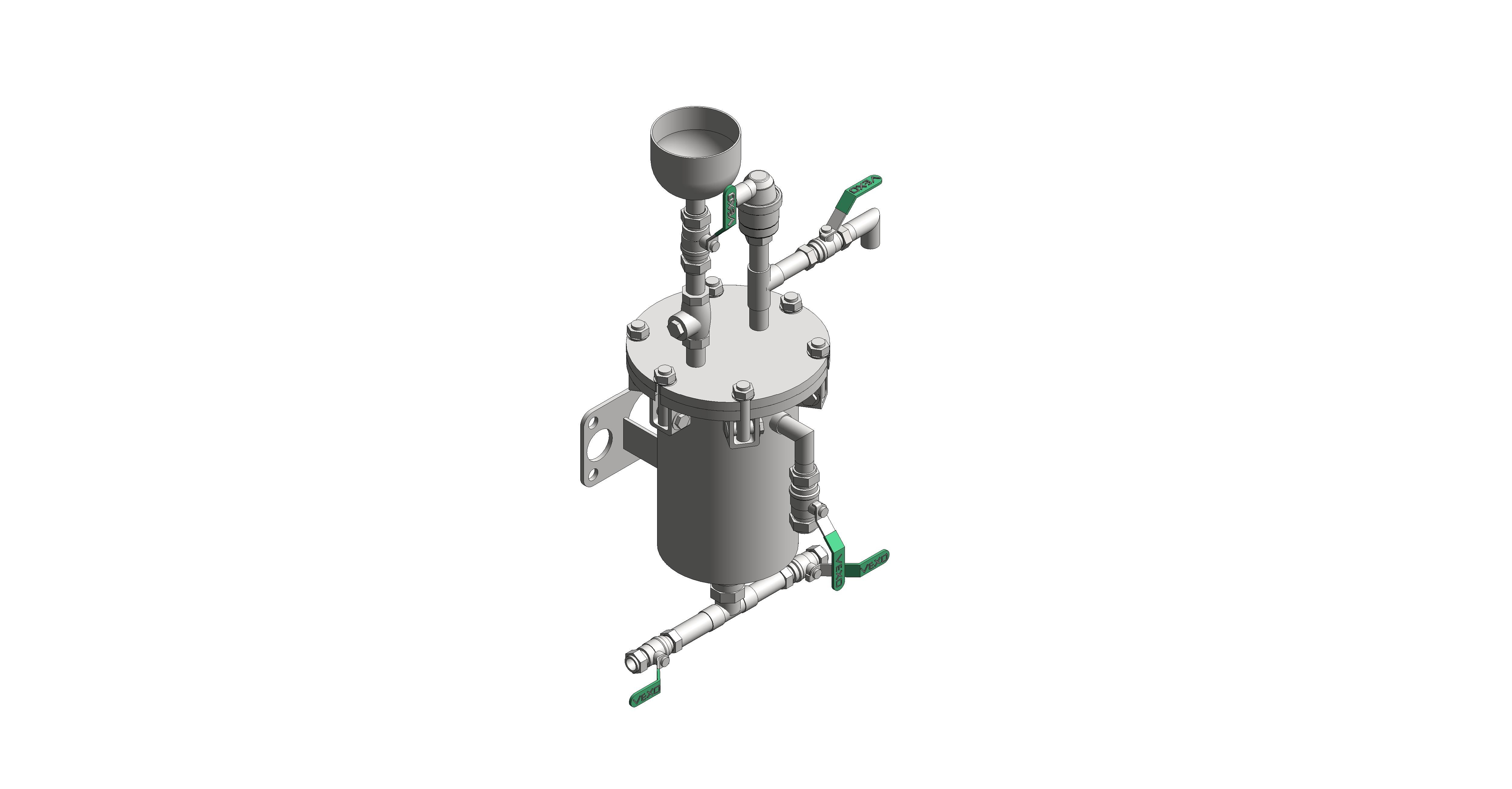

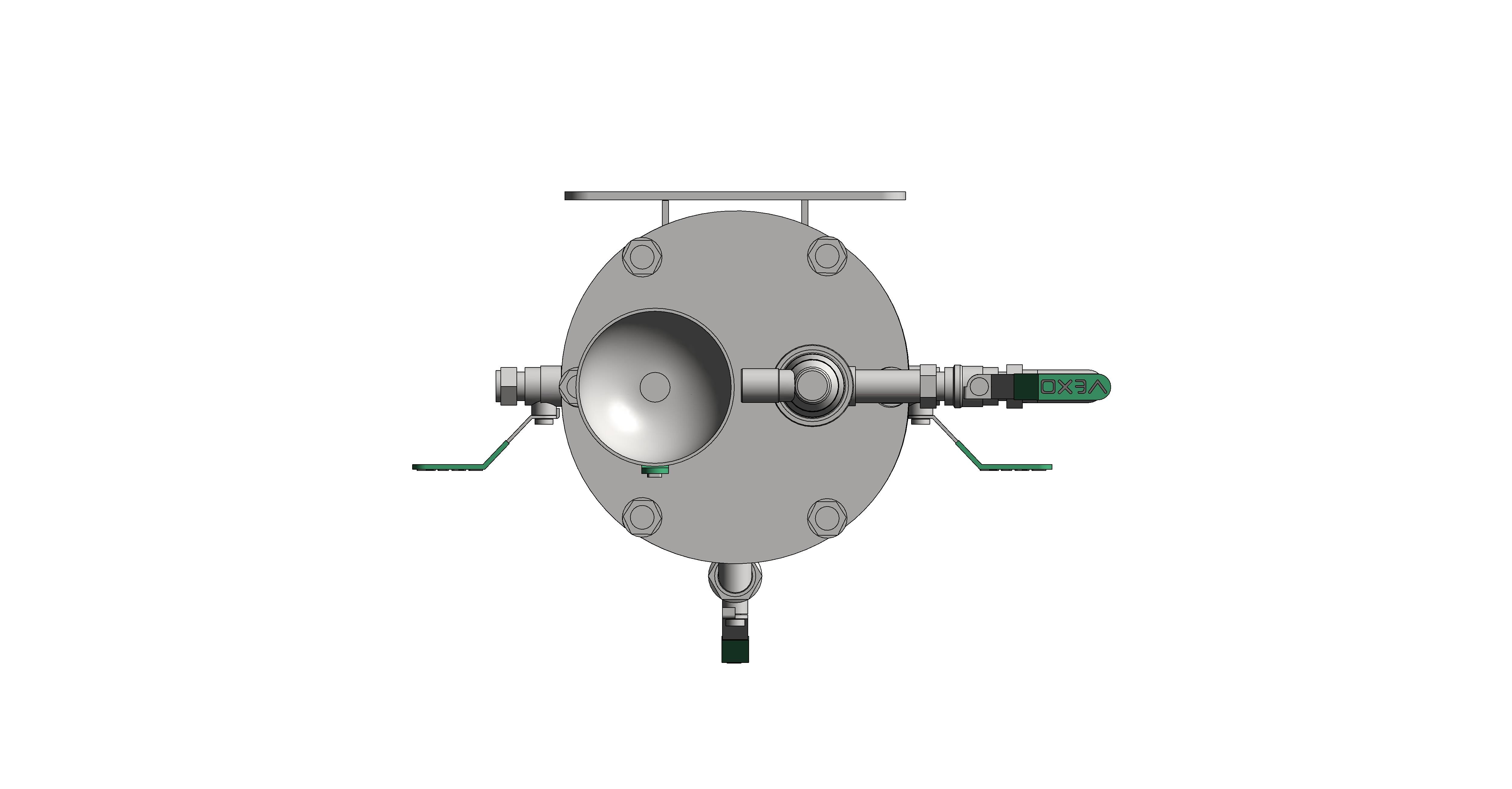

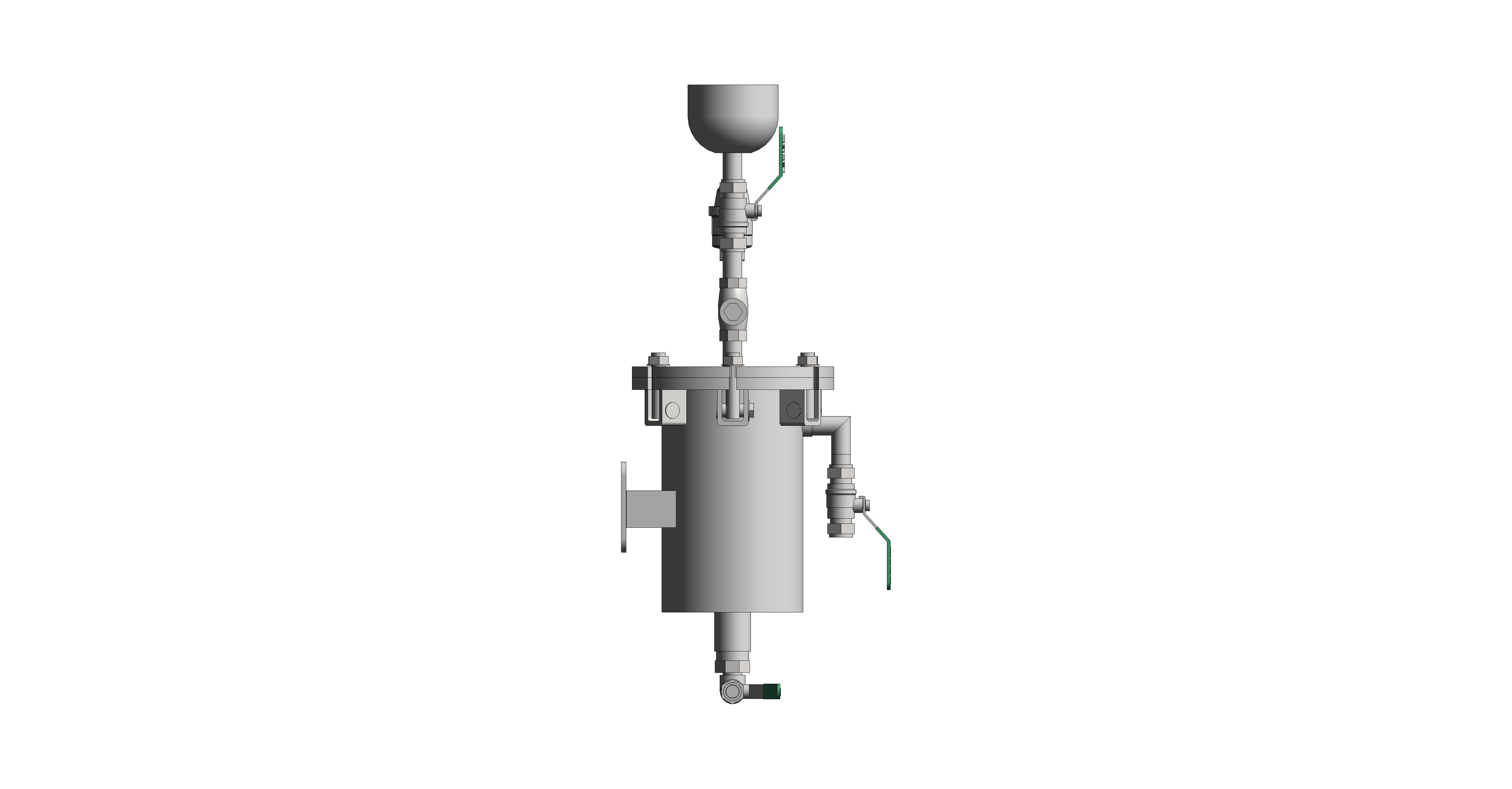

X-POT Compact

Object metadata

• _AuthorCH
• _Authorized ByVexo Int
• _Bim Spec Guid0
• _BS Bible Version16
• _Created ByVexo Int
• _Current Revision1
• _Distributed ByVexo Int
• 4.5L Dosing Pot CapacityEnables installers and maintenance personnel to quickly dose the system with water treatment chemicals.
• 4No 8,500 Gauss Neodymium MagnetsEach magnet is fully encased in 304SS shell, easily removable from the 316SS Magnet Grate for cleaning and fully submerged in the system flow for increased filtration.
• Accessibility PerformanceN/A
• ApplicationSide Stream Filtration & Dosing Unit
• Assembly CodeD20
• AssetIdentifier (default)Please record on commissioning
• Asset TypeFixed
• Automatic Air SeparatorEnsures the system micro-bubbles and air are emitted from the system and helps to reduce corrosion rates and decreases stress on system components.
• Automatic Air VentBrass
• Baffle Plate316 Stainless Steel
• BarCode (default)Please record on commissioning
• Bespoke Insulation JacketSupplied as part of the Starter Pack. The bespoke insulation jacket ensures heat losses are minimised.
• BIM Object NameVexo_PipeAccessories_XPotCompact
• Cartridge FilterPolypropylene Spun Bonded Fibre
• Classification NameUniclass2015
• Classification ValuePr_75_51_17_78
• Code PerformanceN/A
• ColorGrey & Green
• ComplianceFully compliant with BSRIA Guidelines BG29 and BG50 for Chemical Dosing, Magnetic Filtration, Fine Filtration, Passive Deaeration and Side Stream Filtration.
• Connections 1/2” BSPSuitable for all types of closed loop LTHW Heating and Cooling Water Systems up to 86,400Litres in volume.
• ConstituentsN/A
• Created ByCain Harbut
• Created On05/10/2020 T10:00:00
• Default Elevation1200 mm
• DescriptionX-Pot 6 Side Stream Filter                        ​         ​                                         ​
• Documentation Certificateswww.vexoint.com/

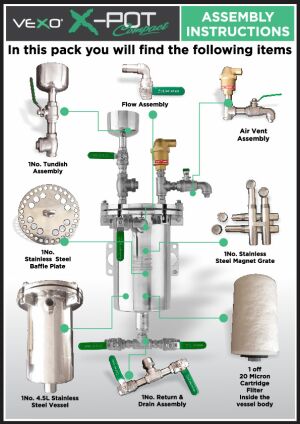

• Documentation Installation Guidewww.bimstore.co/products/x-pot-compact/document/installation-guide
• Documentation Maintenancewww.vexoint.com/

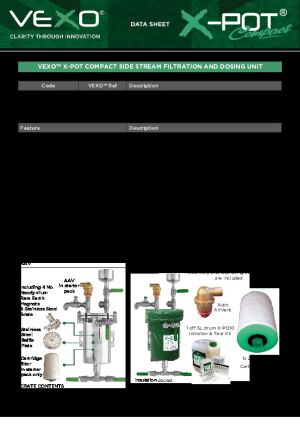

• Documentation Technicalwww.bimstore.co/products/x-pot-compact/document/technical-data-sheet
• Dosing Capacity4.5L
• Duration UnitN/A
• Enhanced PerformanceThe ingenious design ensures that the filter will continue to perform should regular maintenance not be carried out. filter will not inhibit system performance.
• Expected LifeN/A
• FeaturesN/A
• Filter Body MountingWall or Floor Standing (Unistrut)
• Filtration RateDown to 0.5 Micron
• FinishStainless Steel
• Fittings304 Stainless Steel
• Full Bore Ball Valve isolation ValvesThe 304SS isolation valves do not restrict system flow and increases ease of installation.
• General DescriptionSide stream filtration including magnet filter, cartridge filter, air and dirt separator and dosing unit for small to medium commercial systems. magnet filter, cartridge filter, air and dirt separator and dosing unit for medium to large commercial systems.
• GradeN/A
• IFC Export AsN/A
• IFC Export TypeN/A
• Installation BracketComplete with backing plate for simple installation to wall or frame.
• InstallationDate (default)Please record on commissioning
• Isolation Valve Connections1/2” BSP Female
• Isolation Valves304 Stainless Steel
• Keynote​S                                  ​                                ​         ​                                         ​
• Magnet Grate316 Stainless Steel
• Magnetic FilterRemoves magnetic system debris, increases the lifespan of the boiler, chiller and cooling system components, reduces carbon emissions, increases fuel efficiency and increases the lifespan of the Cartridge Filter.
• MagnetsNeodymium Rare Earth
• ManufacturerVexo Int
• Manufacturer NameVexo Int
• Material304 Stainless Steel
• Max Flow Rate24L/min
• Max System Volume34560 Litres
• Max Working Pressure4Bar
• Max Working Temperature95oC
• Min Flow Rate4.98L/min
• Min Working Temperature0oC
• ModelX-Pot 6 Side Stream Filter
• Model NumberX-Pot 6 Side Stream Filter
• Model ReferenceX-Pot 6 Side Stream Filter                                   ​         ​                                         ​
• NBS DescriptionSide Stream Filtration & Dosing Unit Side Stream Filtration & Dosing Unit Side Stream Filtration & Dosing Unit
• NBS Object NameVexo Products - Side Stream Filtration & Dosing Unit
• NBS Office Master TagN/A
• NBS ReferenceN/A
• Nominal Depth325 mm
• Nominal Height630 mm
• Nominal Length285 mm
• Nominal Width285 mm
• Non Return Valve304 Stainless Steel
• Polypropylene Cartridge FilterRemoves non-magnetic system debris, available in 50, 20, 5 & 0.5 micron filtration rates, ensures coalescence micro-bubble formation on the surface of the filter & surpasses BSRIA Guidance for filtration rates.
• Product CodeV-XPOTCOMPACT
• Production Year2020
• Referenced StandardN/A
• SerialNumber (default)Please record on commissioning
• ServicingThe cleaning of the filters can simply be achieved without the need to shut the main system down and the dosing of water treatment chemicals is achieved simply and safely, again without the need to shut the system down.
• ShapeCylindrical
• SizeN/A
• Stainless Steel ComponentsAll major components are manufactured from 304SS or 316SS for improved lifecycle and reliability.
• Starter Pack Product CodeV-XCOMP(CONT)PACK
• Type CommentsX-Pot 6 Side Stream Filter                                   ​         ​                                         ​
• Type NameN/A
• URLwww.vexoint.com/
• Vessel Body304 Stainless Steel – complies with PED 2014/68/EU SEP
• Warranty DescriptionN/A
• Warranty Duration LaborN/A
• Warranty Duration PartsN/A
• Warranty Duration Unit5 Years Standard (6 Years if VEXOTM X-PO10 Inhibitor is used)
• Warranty Guarantor PartsN/A
• WarrantyStartDate (default)Please record on commissioning
• Weight (Empty)17kg
• Weight (Full)23kg
• X-PO10 Inhibitor 10LVX-XPO10-10LTR
• X-PO20 De-Scaler 10LVX-XPO20-10LTR
• X-PO35 Non-Flush Cleanser 10LVX-XPO35-10LTR
• X-PO40 De-Sludger 10LVX-XPO40-10LTR
• X-PO45 New System 10LVX-XPO45-10LTR
• X-PO50 Anti-Freeze 20LVX-XPO50-20LTR
• X-PO55 Anti-Freeze 20LVX-XPO55-20LTR
• X-PO80 Biocide 5LVX-XPO80-5LTR
