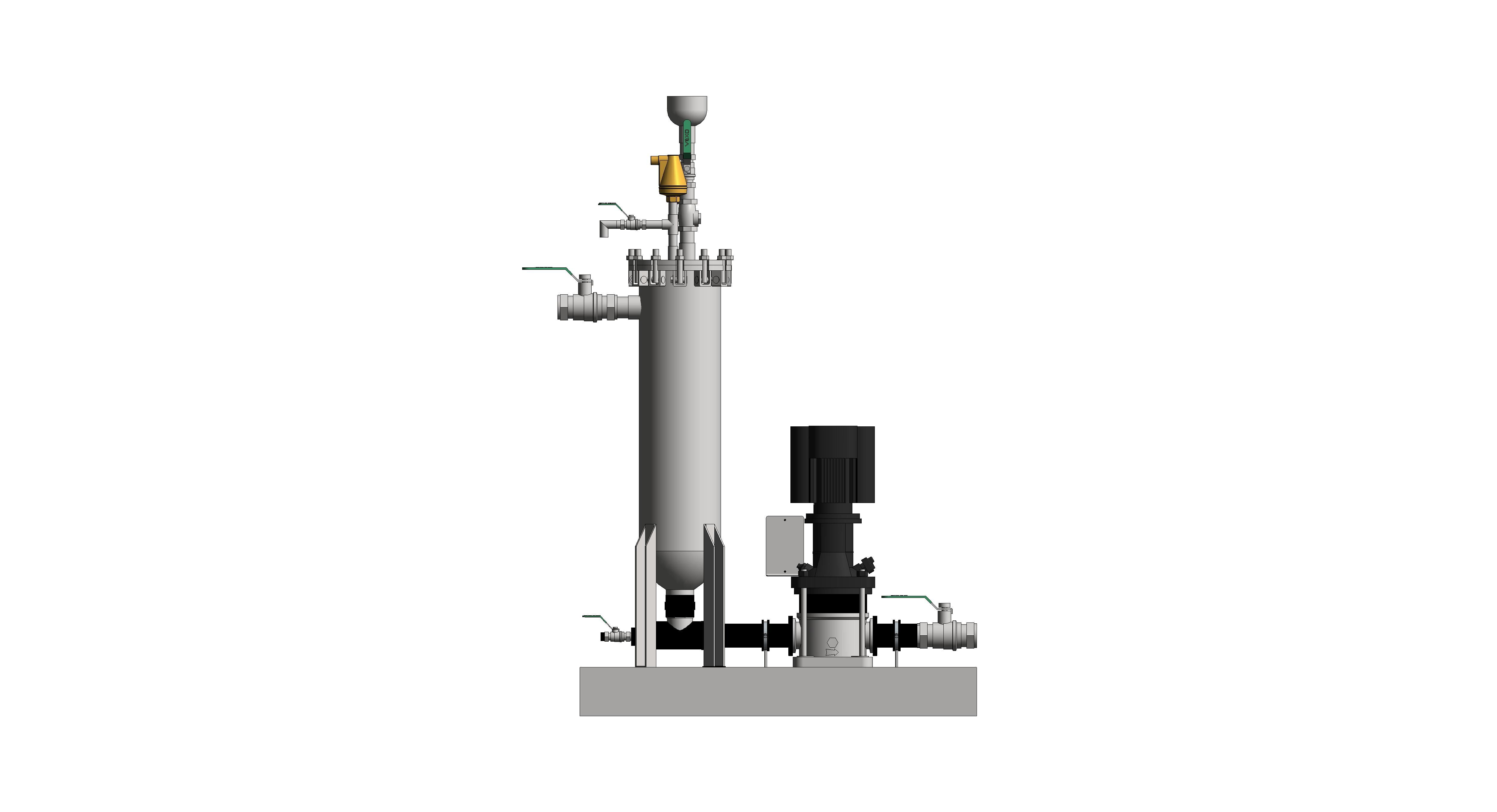

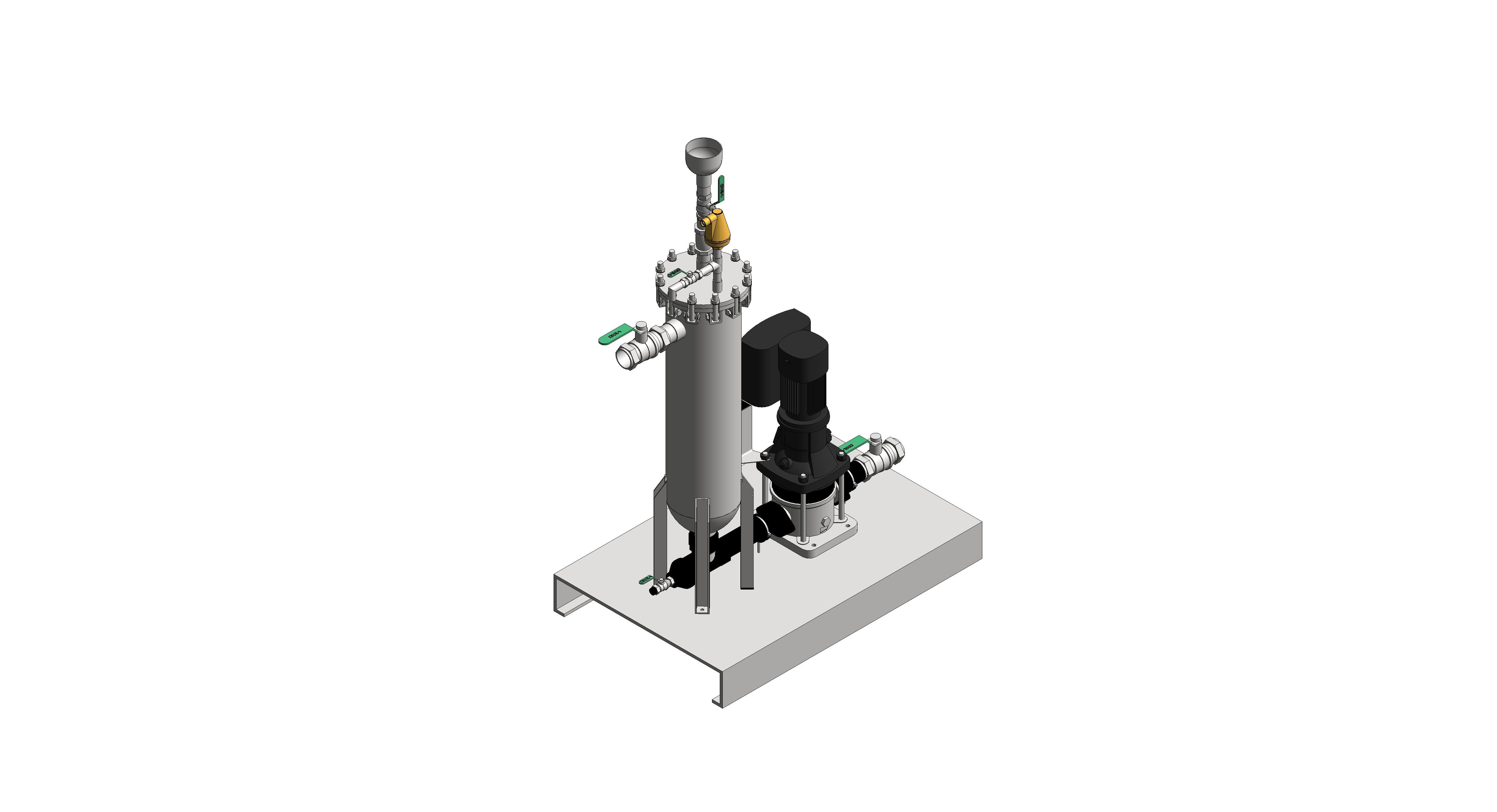

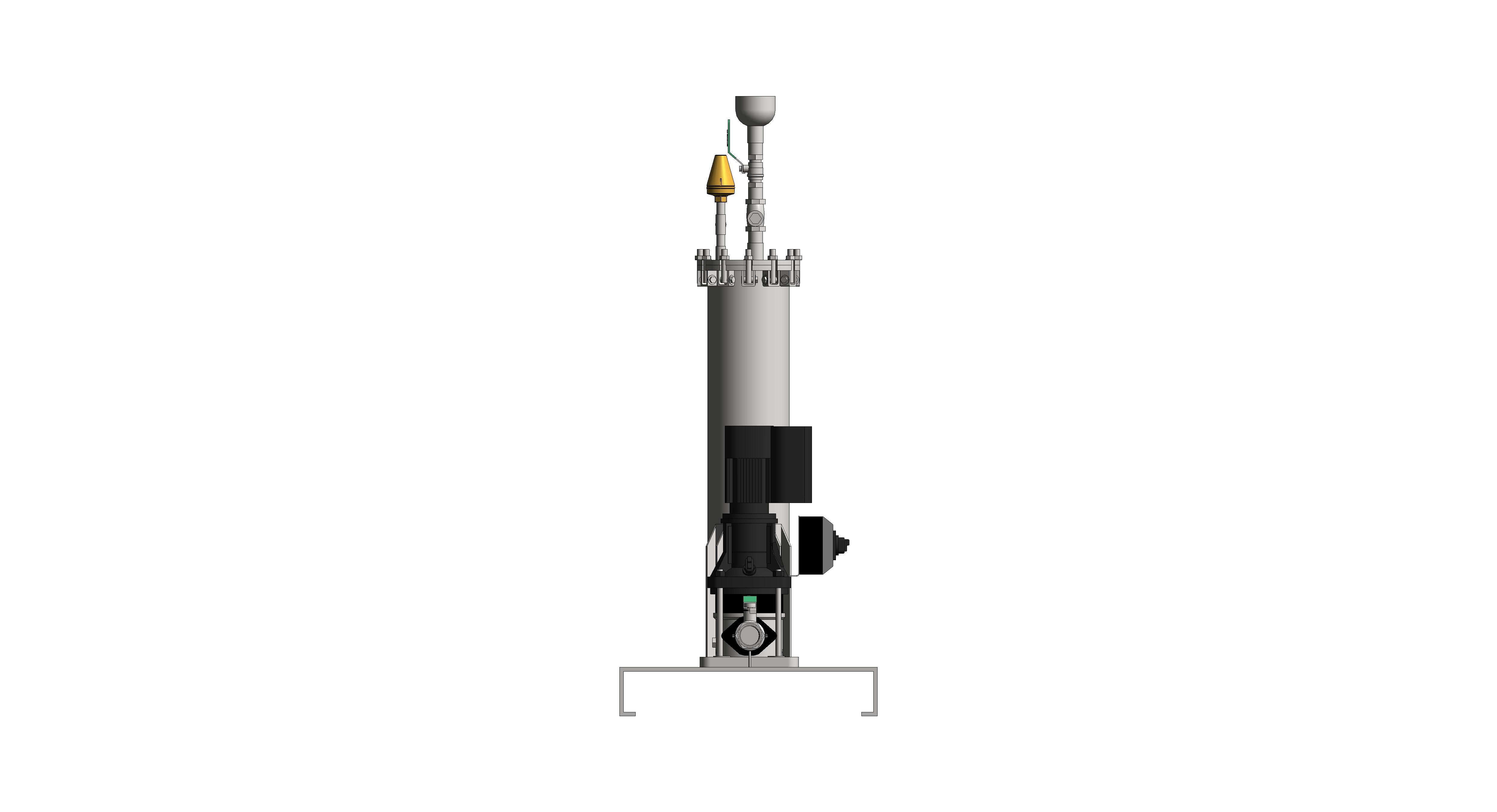

X-POT XP + 2.50l/s

Object metadata

• _AuthorCH
• _Authorized ByVexo Int
• _Bim Spec Guid0
• _BS Bible Version16
• _Created ByVexo Int
• _Current Revision1
• _Distributed ByVexo Int
• 13Off 8,500 Gauss Neodymium MagnetsEach magnet is fully encased in 304SS shell, easily removable from the 316SS Magnet Grate for cleaning and fully submerged in the system flow for increased filtration.
• 25L Dosing Pot CapacityEnables installers and maintenance personnel to quickly dose the system with water treatment additives. with water treatment chemicals.
• Accessibility PerformanceN/A
• ApplicationSide Stream Filtration & Dosing Unit
• Assembly CodeD20
• AssetIdentifier (default)Please record on commissioning
• Asset TypeFixed
• Automatic Air SeparatorEnsures the system micro-bubbles and air are emitted from the system and helps to reduce corrosion rates and decreases stress on system components.
• Automatic Air VentBrass
• Baffle Plate316 Stainless Steel
• Bag FilterPolypropylene Needlefelt Bags
• BarCode (default)Please record on commissioning
• Bespoke Insulation JacketThe bespoke insulation jacket ensures heat losses are minimised. heat losses are minimised.
• BIM Object NameVexo_PipeAccessories_XPotXP+
• BMS Signal5-amp Common Alarm Relay used to contact BMS System N/O
• CE / EMC CompatibilityIEC 61010-1: 2010 + A1: 2019 and EN 61010-1: 2010 + A1:2019
• Classification NameUniclass2015
• Classification ValuePr_75_51_17_78
• Code PerformanceN/A
• ColorGrey & Green
• ComplianceEngineered for BSRIA BG29 and BG50 Guidance for Chemical Dosing, Magnetic Filtration, Fine Filtration, Passive Deaeration and Side Stream Filtration. Fully compliant with PED 2014/68/EU 'CE' Marked. Dosing, Magnetic Filtration, Fine Filtration, Passive Deaeration and Side Stream Filtration.
• Connections 2” BSPSuitable for all types of closed loop LTHW Heating and Cooling Water Systems up to 302,400 Litres in volume.
• ConstituentsN/A
• Created ByCain Harbut
• Created On28/01/2021 T10:00:00
• Default Elevation1200 mm
• DescriptionX-Pot XP+ Side Stream Filter with integrated pump and BMS Compatibility                                       ​
• Dosing Capacity25L
• Electrical Requirement1.5kW / 9.10-7.60 A / 230V / 1 Phase / 50/60 Hz
• Enhanced PerformanceThe ingenious design ensures that the filter will continue to perform should regular maintenance not be carried out.
• Filter Body MountingFloor Standing
• Filtration RateDown to 1 Micron
• FinishStainless Steel
• Fittings304 Stainless Steel
• Floor Mounting PlateCompact Floor Mounting plate for easy installation. Void located under unit can be used for positioning via Lifting apparatus.
• Full Bore Ball Valve isolation ValvesThe Nickel Plated Brass isolation valves do not restrict system flow and increases ease of installation.
• General DescriptionSide stream filtration including magnet filter, bag filter, air and dirt separator and dosing unit with integrated pump and BMS Compatibility for large to very large commercial systems.
• IFC Export AsN/A
• IFC Export TypeN/A
• Insulation Jacket VisibleNo
• Isolation Valve Connections2” BSP Female
• Isolation ValvesNickel Plated Brass
• Keynote​S                                  ​                                ​         ​                                         ​
• Magnet Grate316 Stainless Steel
• Magnetic FilterRemoves magnetic system debris, increases the lifespan of the boiler, chiller and cooling system components, reduces carbon emissions, increases fuel efficiency and increases the lifespan of the Bag Filter.
• MagnetsNeodymium Rare Earth
• ManufacturerVexo Int
• Material304 Stainless Steel
• Max Flow Rate210L/min
• Max System Volume302,400 Litres
• Max Working Pressure16Bar
• Max Working Temperature95oC
• Min Flow Rate60L/min
• Min Working Temperature0oC
• ModelX-Pot XP+ Side Stream Filter with integrated pump and BMS Compatibility
• NBS DescriptionSide Stream Filtration & Dosing Unit with integrated pump and BMS Compatibility Side Stream Filtration & Dosing Unit Side Stream Filtration & Dosing Unit with integrated pump and BMS Compatibility
• NBS Object NameVexo Products - Side Stream Filtration & Dosing Unit
• NBS Office Master TagN/A
• NBS ReferenceN/A
• Nominal Depth650 mm
• Nominal Height1630 mm
• Nominal Length1000 mm
• Nominal Width1000 mm
• Non Return Valve304 Stainless Steel
• Polypropylene Needlefelt Bag FilterRemoves non-magnetic system debris, avalible in 100, 50, 25, 5 & 1 micron filtration rates, ensures coalescence micro-bubble formation on the surface of the filter & surpasses BSRIA Guidance for filtration rates.
• Product CodeV-XPOTXP+
• Production Year2020
• Pump ModelGrundfos IND-0-X-1-CRIE 10-2
• SerialNumber (default)Please record on commissioning
• ServicingThe replacement of bag filters, cleaning of the magnet grate and dosing of the system can be safely and simply achieved without the need to shut the main system down.
• ShapeCylindrical
• SizeN/A
• Stainless Steel ComponentsAll major components are manufactured from 304SS or 316SS for improved lifecycle and reliability.
• Type CommentsX-Pot XP+ Side Stream Filter with integrated pump and BMS Compatibility                                ​         ​                                         ​
• URLwww.vexoint.com/
• Vessel Body304 Stainless Steel – complies with PED 2014/68/EU CE Marked
• Warranty Duration Unit2 Years Standard (3 Years if VEXOTM X-PO10 Inhibitor is used)
• WarrantyStartDate (default)Please record on commissioning
• Weight (Empty)0kg
• Weight (Full)0kg
• X-PO10 Inhibitor 10LVX-XPO10-10LTR
• X-PO20 De-Scaler 10LVX-XPO20-10LTR
• X-PO35 Non-Flush Cleanser 10LVX-XPO35-10LTR
• X-PO40 De-Sludger 10LVX-XPO40-10LTR
• X-PO45 New System 10LVX-XPO45-10LTR
• X-PO50 Anti-Freeze 20LVX-XPO50-20LTR
• X-PO55 Anti-Freeze 20LVX-XPO55-20LTR
• X-PO80 Biocide 5LVX-XPO80-5LTR
