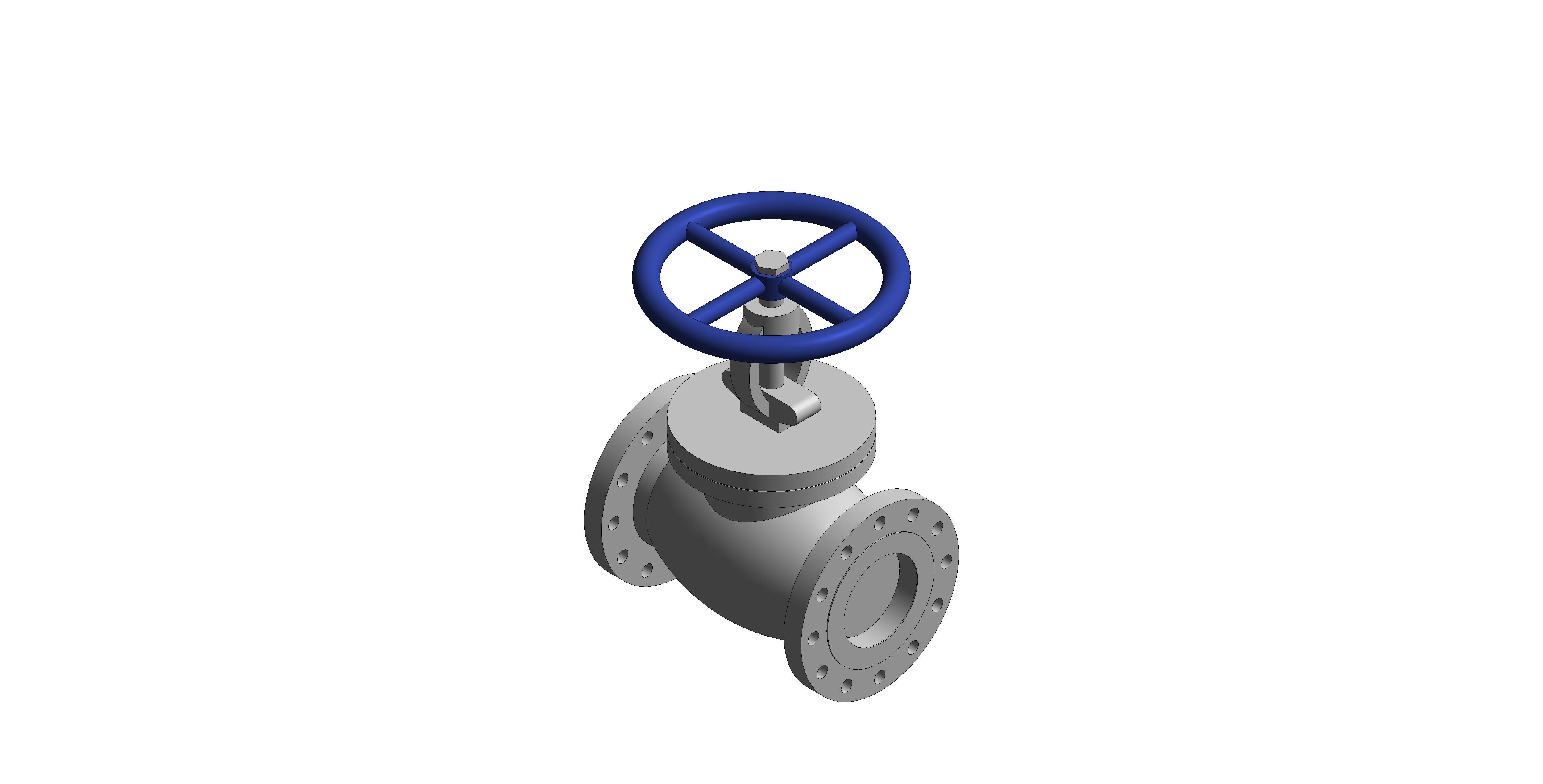

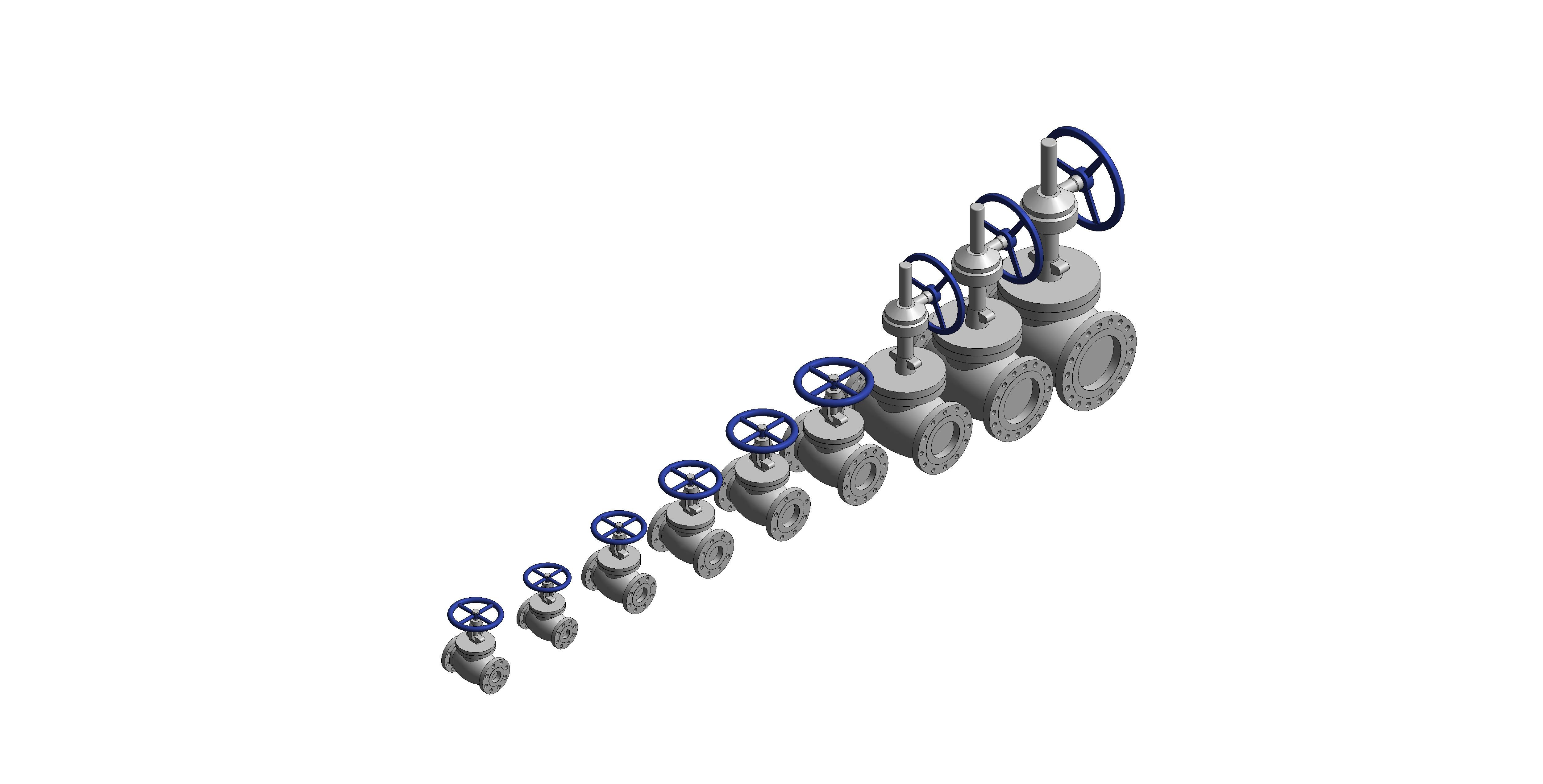

151XU - Globe Valve - Class 300

by Crane Fluid Systems

Download Add to collection

Description

Class 300 Cast Steel Globe Valve

Features & Benefits:

Ideal for throttling service
Flow characteristics permit accurate and repeatable flow control
Seat ring is seal welded to eliminate leak paths
Outside screw & yoke
Bolted Bonnet

Object Data

1 Revision

Last Updated

22/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

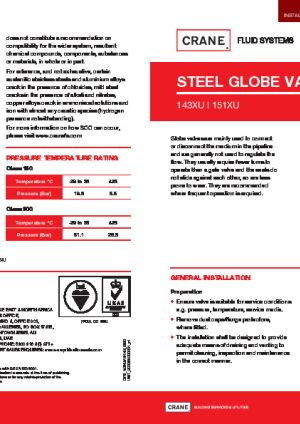

Installation Guide

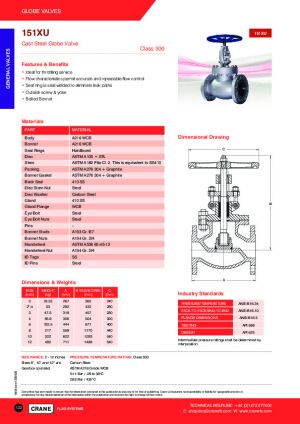

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/151xu-globe-valve-class-300/document/object-user-guide
0dia540.00 mm
a15.75 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b152.00 mm
B46.10 mm
BIM Object NameCraneFS_GlobeValve_Class300_151XU
BodyASTM A216 WCB+13Cr
BonnetASTM A216 WCB
Bonnet GasketASTM A276 304+Graphite
c630.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_13
Code Performancen/a
Colorn/a
Connection Radius125.00 mm
Connection Size250.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-02-01 T:09:00:00
d161.00 mm
D445.00 mm
D1387.40 mm
D2323.80 mm
DescriptionIdeal for throttling service. Flow characteristics permit accurate and repeatable flow control. Seat ring is seal welded to eliminate leak paths. Outside screw & yoke. Bolted Bonnet.
DiscASTM A105+STL
Disc GlandASTM A29 1020
Documentation Certificateswww.bimstore.co/products/151xu-globe-valve-class-300/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/151xu-globe-valve-class-300/document/installation-guide
Documentation Literaturewww.bimstore.co/products/151xu-globe-valve-class-300/document/product-literature
Documentation Maintenancewww.bimstore.co/products/151xu-globe-valve-class-300/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/151xu-globe-valve-class-300/document/technical-data-sheet
Duration UnitYear
e223.38 mm
Expected Life0
Eye BoltASTM A29 1035
f226.01 mm
Featuresn/a
Finishn/a
Flange Thickness48.10 mm
g92.02 mm
GlandASTM A276 410
Graden/a
h69.19 mm
HandwheelASTM A536 65-45-12
Handwheel VisibilityNo
Hinge PinASTM A29 1035
Hmax1283.00 mm
Hmin1283.00 mm
Hole Diameter28.60 mm
Hole Offset Radius193.70 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
j0.00 mm
K Coefficient0
KeynoteS
L622.00 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
Model151XU
Model Number151XU
Model Reference151XU - Cast Steel Globe Valve - Class 300
NBS DescriptionCast iron globe valves
NBS Noten/a
NBS Object NameCraneFS - Cast iron globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/340
Nominal Depth447.00 mm
Nominal Height1225.00 mm
Nominal Length622.00 mm
Number Of Holes16
NutASTM A194 2H
PackingASTM A276 304+Graphite
Packing GlandASTM A216 WCB
Picker8
Pressure Temperature RatingClass 300 Carbon Steel; ASTM A216 Grade WCB; 51.1 Bar / -29 to 38°C; 28.8 Bar / 425°C
Production Year2022
Referenced StandardPressure/Temperature: ANSI B16.34; Face-to-face/End-to-end: ANSI B16.10; Flange dimensions: ANSI B16.5; Testing: API 598; Design: API 623.
Replacement Costn/a
Set ScrewASTM A29 1035
Shapen/a
Size6"
Spare Partsn/a
StemASTM A182 F6a Cl.2
Stem NutASTM A439 D-2
StudASTM A193 B7
Type Comments151XU - Cast Steel Globe Valve - Class 300
Type Name151XU - Cast Steel Globe Valve - Class 300
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
WasherASTM A29 1020
Weight233.00 kg
