ACT992TH - Thermic Actuator

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/act992th-thermic-actuator/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• BIM Object NameCraneFS_ThermicActuator_ACT992TH
• Classification NameUniclass2015
• Classification ValuePr_75_50_02_94
• Code Performancen/a
• Colorn/a
• Constituentsn/a
• Created Byenquiries@cranefs.com
• Created On2023-08-21 T:09:00:00
• Default Elevation0.00 mm
• DescriptionThe ACT992TH provides on/off control. They are small and light making them a good choice for confined spaces. The ACT992TH is compatible with normally closed zone valves including D102B, D103B and D104B.
• Documentation Certificateswww.bimstore.co/products/act992th-thermic-actuator/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/act992th-thermic-actuator/document/installation-guide

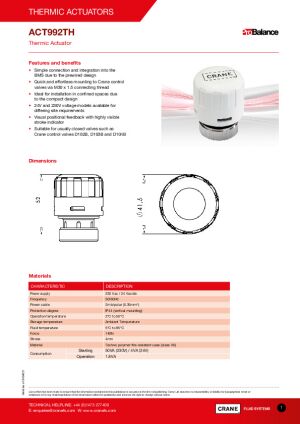

• Documentation Literaturewww.bimstore.co/products/act992th-thermic-actuator/document/product-literature

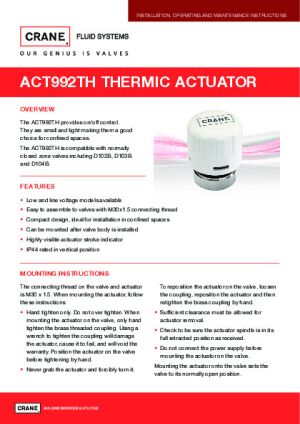

• Documentation Maintenancewww.bimstore.co/products/act992th-thermic-actuator/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/act992th-thermic-actuator/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• Features• Simple connection and integration into the BMS due to the prewired design • Quick and effortless mounting to Crane control valves via M30 x 1.5 connecting thread • Ideal for installation in confined spaces due to the compact design • 24V and 230V voltage models available for differing site requirements • Visual positional feedback with highly visible stroke indicator • Suitable for usually closed valves such as Crane control valves D102B, D103B and D104B
• Finishn/a
• Fluid Temperature5°C to 95°C
• Force140N
• Frequency50/60Hz
• Graden/a
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.NOTDEFINED
• KeynoteS
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• MaterialTechno polymer fire-resistant case (class V0)
• ModelACT992TH
• Model NumberACT992TH
• Model ReferenceThermic Actuator
• NBS DescriptionValve actuators
• NBS Noten/a
• NBS Object NameCrane FS - Valve actuators
• NBS Office Master Tagn/a
• NBS Reference90-65-50/310
• Nominal Depth41.50 mm
• Nominal Height57.00 mm
• Nominal Length41.50 mm
• Operation Consumption1.8VA
• Operation Temperature2°C to 50°C
• Power Cable2m bipolar (0.35mm2)
• Power Supply230 Vac / 24 Vac/dc
• Production Year2023
• Protection DegreeIP44 (vertical mounting)
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsn/a
• Starting Consumption50VA (230V) / 4VA (24V)
• Storage TemperatureAmbient temperature
• Stroke4mm
• Type CommentsThermic Actuator
• Type NameThermic Actuator
• URLwww.cranefs.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsenquiries@cranefs.com
