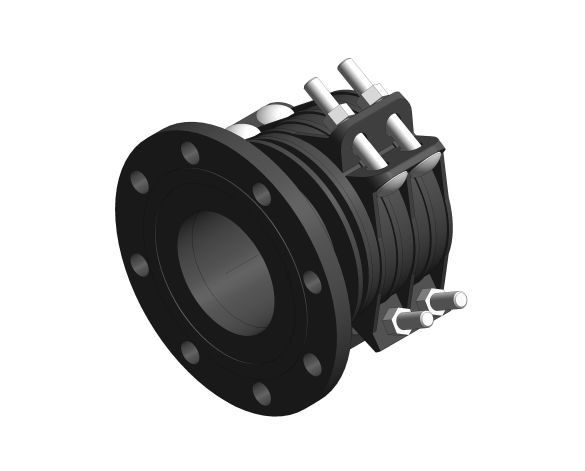

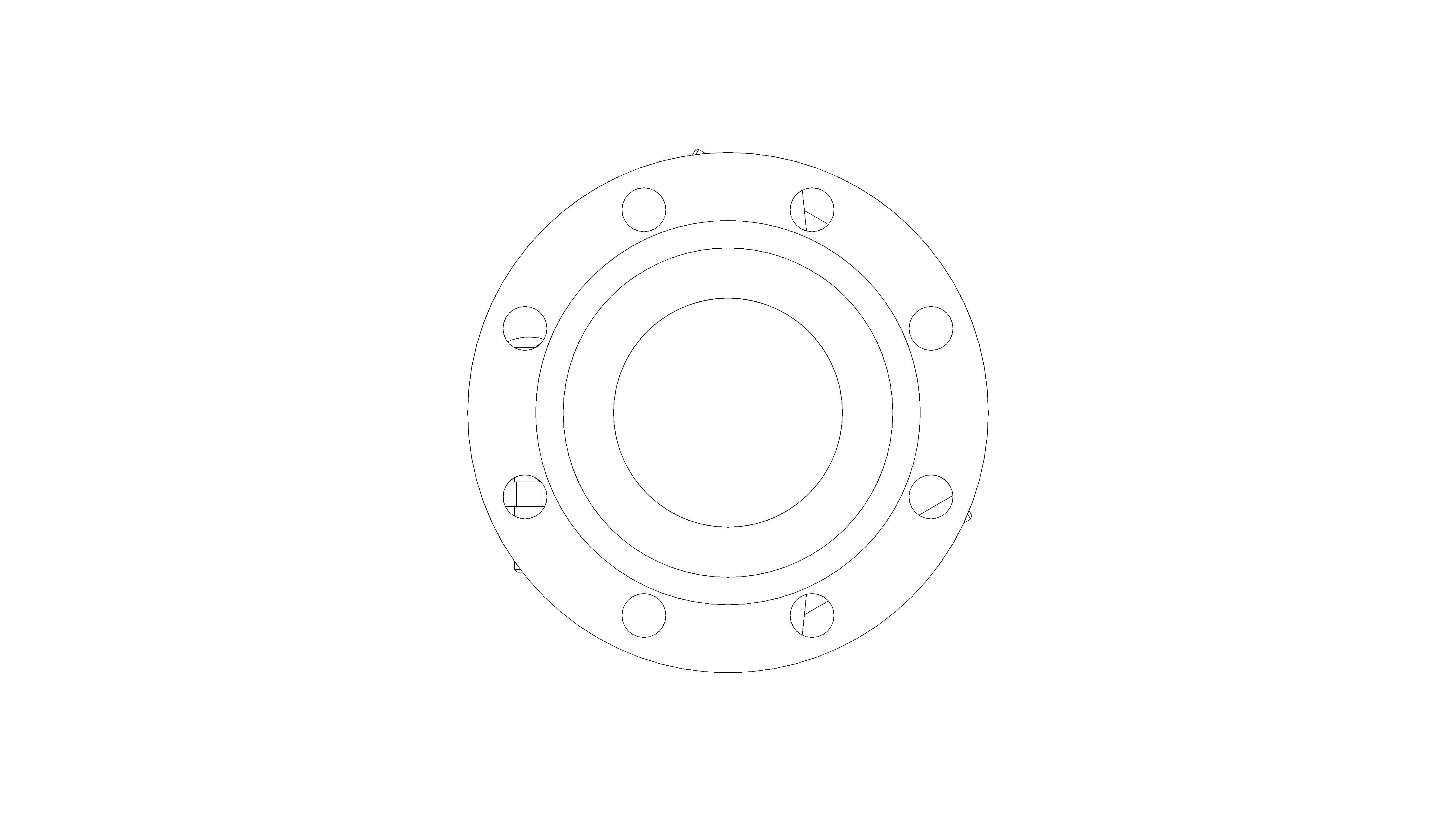

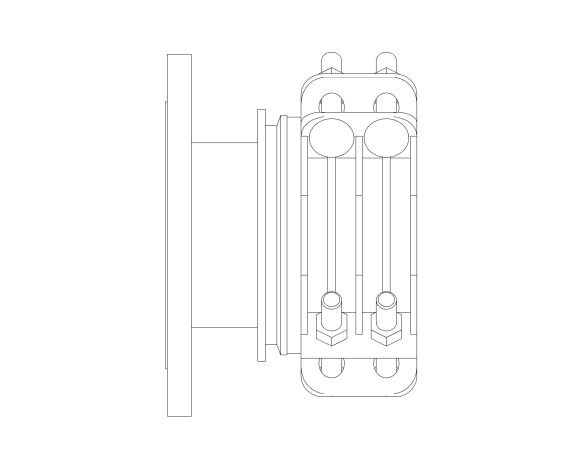

AquaShield Flange Adaptor [DN180]

by Viking Johnson

Download Add to collection

Description

The AquaShield® Solution

AquaShield® is a non-permeable universal fitting, available as a coupling or a flange adaptor to be used on new installations and repairs to connect different barrier pipe systems reliably.

These fittings prevent contaminants entering water networks by sealing the barrier pipe from within while keeping the outer layer of the barrier pipe intact. It can also be used as a transition to a standard PE water network.

AquaShield® is rated to 16 bar working pressure and has a unique gripping mechanism offering WIS 4-24-01 type-1 end load restraint which means the pipe will fail before the fitting.

Unique Gripping Technology

AquaShield® forms a leak-tight seal without the need for a gasket simply by torquing up the bolts. The spigot profile design ensures a firm and secure connection is made from inside the pipe.

Object Data

1 Revision

Last Updated

04/09/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/aquashield-flange-adaptor-dn180/document/object-user-guide
Accessibility Performancen/a
Angularityn/a
ApprovalsThe following water contact materials used in AquaShield® are approved for use with potable water: Rilsan Nylon 11: - WRAS, AS/NZS 4020, DVGW, W270, ACS & KIWA Permeation test in accordance with BS 8588:2017 (section 7.7) conducted and independently verified by RINA test laboratory. Verification of compliance with BS 8561:2021 and BS 8588:2017 (section 7.7) by Water Research Centre (WRc). KIWA UK Reg4 Approval (Pending).
Assembly CodeD2040100
Asset Typen/a
BIM Object NameVikingJohnson_Coupling_Aquashield_FlangeAdaptor_DN180
BoltsStainless Steel grade A2-70
Bolt Torque/SpannerTorque 200-210Nm on every bolt. Spanner size A/F 24mm.
Clamp BandsSG Iron to BS EN 1563 Symbol EN-GJS-450-10
Classification NameUniclass2015
Classification ValuePr_20_29_14_15
CoatingsCast/Metal Components: Rilsan Nylon 11 (Black); Bolts and Nuts: Delta Seal Silver GZ
Code Performancen/a
Colorn/a
Connection Radius90.0 mm
Connection Size180.0 mm
Constituentsn/a
CouplingSG Iron to BS EN 1563 Symbol EN-GJS-450-10
Created Bywww.vikingjohnson.com/en/page/contact-us
Created On2023-08-24 T09:00:00
Default Elevation0.0 mm
DescriptionAquaShield® is a non-permeable universal fitting, available as a coupling or a flange adaptor to be used on new installations and repairs to connect different barrier pipe systems reliably. These fittings prevent contaminants entering water networks by sealing the barrier pipe from within while keeping the outer layer of the barrier pipe intact. It can also be used as a transition to a standard PE water network. AquaShield® is rated to 16 bar working pressure and has a unique gripping mechanism offering WIS 4-24-01 type-1 end load restraint which means the pipe will fail before the fitting. AquaShield® forms a leak-tight seal without the need for a gasket simply by torquing up the bolts. The spigot profile design ensures a firm and secure connection is made from inside the pipe.
Documentation Certificateswww.bimstore.co/products/aquashield-flange-adaptor-dn180/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/aquashield-flange-adaptor-dn180/document/installation-guide
Documentation Literaturewww.bimstore.co/products/aquashield-flange-adaptor-dn180/document/product-literature
Documentation Maintenancewww.bimstore.co/products/aquashield-flange-adaptor-dn180/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/aquashield-flange-adaptor-dn180/document/technical-data-sheet
Duration UnitYear
End Load Due To Internal PressureAquaShield® fully restrained fitting, designed to meet the performance requirements of WIS 4-24-01 Type 1 and BS 8561:2021.
Expected Life0
Featuresn/a
Finishn/a
Flange AdaptorSG Iron to BS EN 1563 Symbol EN-GJS-450-10
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
ManufacturerViking Johnson
Manufacturer NameViking Johnson
MaterialCompatible with following barrier pipe materials: GPS Protecta-Line, Radius Puriton, Egeplast SLA. In addition, works on standard PE 100 Pipe to BS EN 12001:2011/2012. In all cases the SDR rating must be either 11 or 17.
ModelAquaShield Flange Adaptor DN180 SDR11
Model NumberAquaShield Flange Adaptor DN180 SDR11
Model ReferenceCoupler
NBS DescriptionCoupler connections
NBS Noten/a
NBS Object NameViking Johnson - Coupler connections
NBS Office Master Tagn/a
NBS Reference45-50-70/352
Nominal Depth285.0 mm
Nominal Height285.0 mm
Nominal Length197.0 mm
NutsStainless Steel grade A4-80
Pipe MaterialCompatible with following barrier pipe materials: GPS Protecta-Line, Radius Puriton, Egeplast SLA. In addition, works on standard PE 100 Pipe to BS EN 12001:2011/2012. In all cases the SDR rating must be either 11 or 17.
Production Year2023
Referenced StandardIndependently tested and approved to BS 8561:2021 and certified by WRc and RINA for permeation against contaminants as per BS 8588:2017 (section 7.7).
Replacement Costn/a
SDR Rating11
Shapen/a
Site Test Pressure1.5 times working pressure for short duration (2 hours)
Size197mm (L) x 285mm (H) x 285mm (D)
Spare Partswww.vikingjohnson.com/en/page/contact-us
Temperature Rating-20°C to +40°C For optimal installation temperature, please refer to the installation manual.
Type CommentsFlange Adaptor
Type NameFlange Adaptor
URLwww.vikingjohnson.com/en
Vaccuum PressureCapable of accommodating a vacuum pressure of -0.8 bar
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partswww.vikingjohnson.com/en/page/contact-us
Working Pressure RatingWater: 16 bar; Gas: not approved
