ART 237 - Check Valve

by Albion Valves

Download Add to collection

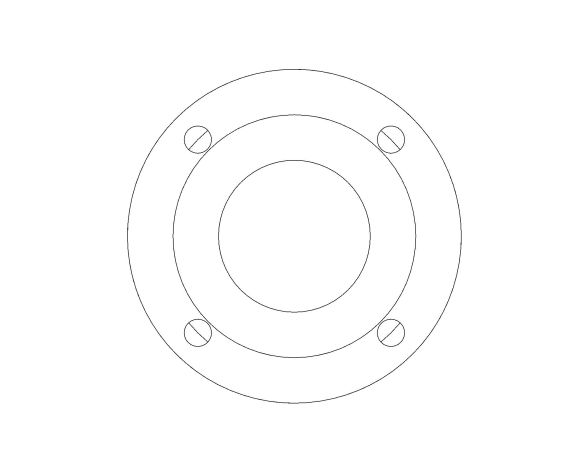

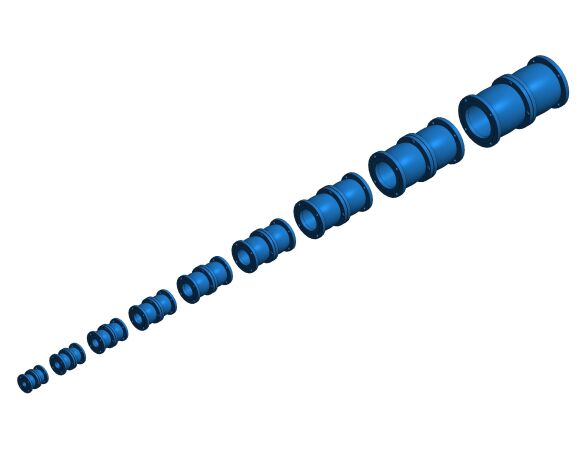

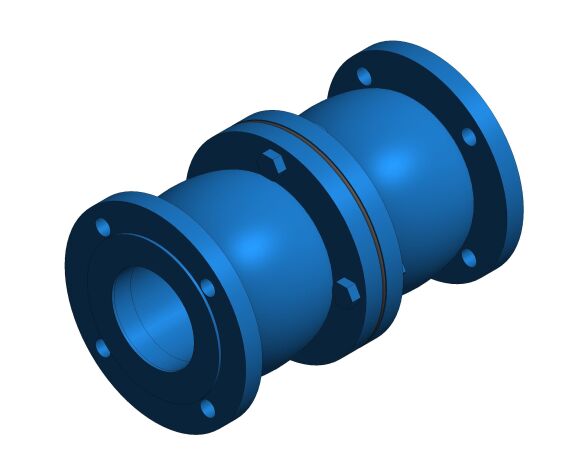

Description

WRAS Approved Double Check Valve. Operates in any position. WRAS Approved as a non-return valve.

Connection

PN16 Flanged

Pressure

16 Bar

Temperature

-10°C to +85°C

Object Data

1 Revision

Last Updated

26/02/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

Object User Guide

Product Literature

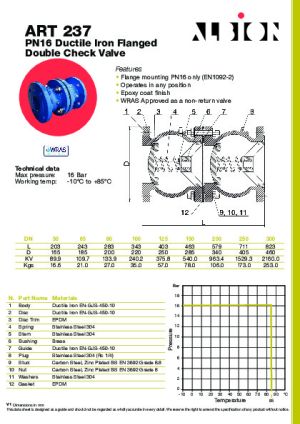

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-237-check-valve/document/object-user-guide
A100.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameAlbionValves_PipeAccessories_CheckValves_ART237
BodyDuctile Iron EN-GJS-450-10
BushingBrass
C/2171.50 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorBlue
Connection Radius50.00 mm
Connection Size100.00 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2024-02-26 T09:00:00
D220.00 mm
Default Elevation0.00 mm
DescriptionART 237 Ductile Iron PN16 Flanged Double Check Valve
DiscDuctile Iron EN-GJS-450-10
Disc TrimEPDM
Documentation Certificateswww.bimstore.co/products/art-237-check-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-237-check-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-237-check-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-237-check-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-237-check-valve/document/technical-data-sheet
Duration UnitYear
Expected Life0
Features• Flange mounting PN16 only (EN1092-2) • Operates in any position • Epoxy coat finish • WRAS Approved as a non-return valve
FinishDuctile Iron
Flange Thickness20.00 mm
GasketEPDM
Graden/a
GuideDuctile Iron EN-GJS-450-10
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Kv240.2
L343.00 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Maximum Pressure16 Bar
ModelART 237 Double Check Valve
Model NumberDN100
Model ReferenceART 237 Double Check Valve
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameAlbion Valves - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth220.00 mm
Nominal Height220.00 mm
Nominal Length343.00 mm
NutCarbon Steel, Zinc Plated BS EN 3692 Grade 8
Nut Thickness10.00 mm
Nut Width23.00 mm
PlugStainless Steel 304 (Rc 1/4)
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Size DN100
Spare Partsn/a
SpringStainless Steel 304
StemStainless Steel 304
StudCarbon Steel, Zinc Plated BS EN 3692 Grade 8.8
Stud Bore Radius9.00 mm
Type CommentsDN100
Type NameART 237 Double Check Valve
URLwww.albionvalvesuk.com/
Valve FinishDuctile Iron - Blue Epoxy
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
WashersStainless Steel 304
Weight35 kg
Working Temperature-10°C to +85°C
