ART 24 - Differential Pressure Control Valve

by Albion Valves

Download Add to collection

Description

Description

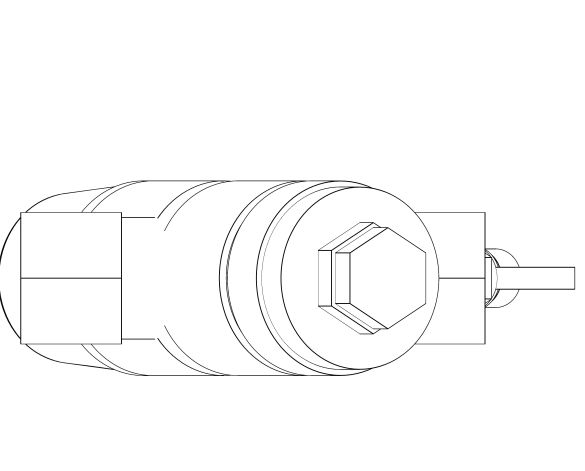

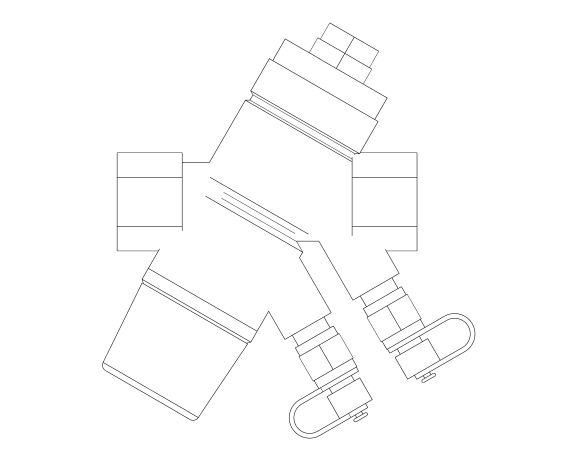

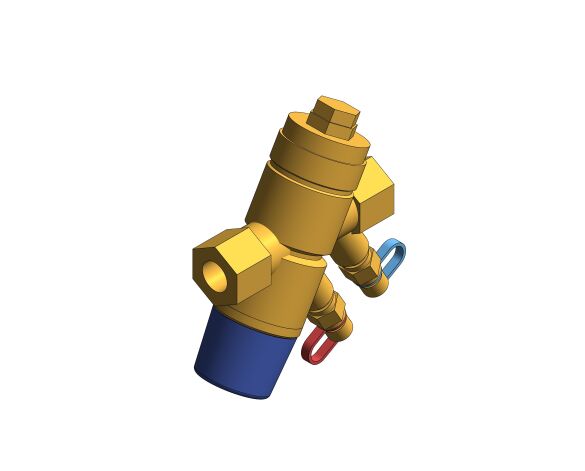

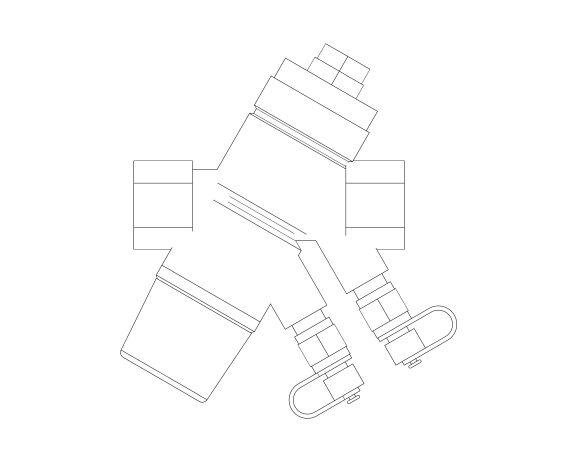

DZR Differential Pressure Control Valve (DPCV)

Connection
BSP Parallel Ends (ISO 228/1)

Approvals/ other
5 Year Guarantee

Pressure
16 Bar Rated

Temperature
-10°C to +120°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

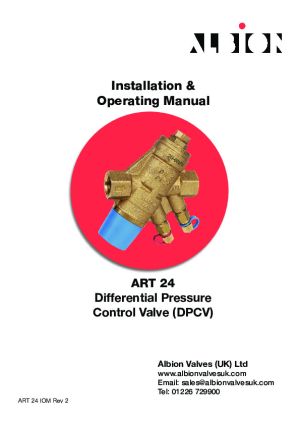

Installation Guide

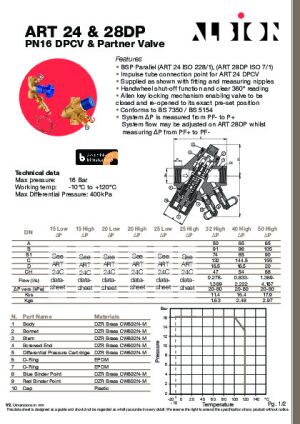

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-24/document/object-user-guide
A40.0 mm
a20.7 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b27.0 mm
B70.0 mm
B157.0 mm
BIM Object NameAlbionValves_PipeAccessories_DifferentialPressureControlValves_ART24
Body Offset2.5 mm
Bottom Nut Height5.5 mm
Bottom Nut Offset0.9 mm
Bottom Nut VisibilityYes
c25.0 mm
C95.5 mm
Cap MaterialNylon 6 - Blue
CH27.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_25
Code Performancen/a
ColorYellow
Connection Radius7.5 mm
Connection Size15.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
D11.0 mm
Delta P Vers20-60 (kPa)
DescriptionART24 PN16 Differential Pressure Control Valve (DPCV)
DN15.0 mm
DN Rad7.5 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-24/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishDZR Brass
Flow Range0.028-0.333 (l/s)
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Kvs3.6
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure16 Bar
ModelART24 Differential Pressure Control Valve
Model NumberDN15HP
Model ReferenceART24 Differential Pressure Control Valve
NBS DescriptionDifferential Pressure Control Valves
NBS Object NameAlbion Valves - Differential Pressure Control Valves
NBS Office Master Tagn/a
NBS Reference90-10-90/425
Nut Vertical Offset0.0 mm
Nut Width18.0 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15HP
Size DN15
Spare Partsn/a
Symbol Calc2.5 mm
Symbol Calc/21.3 mm
Tap Height76.0 mm
Tap Offset52.4 mm
Tap Width25.0 mm
Thread Inch1/2
Thread Millimetre12.7 mm
Top Nut Height11.5 mm
Type CommentsDN15HP
Type NameART24 Differential Pressure Control Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.825kg
Working Temperature-10°C to +120°C
