ART 24IT - Impulse Tubing

  • Product: ART 24IT
  • Views 5.9k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

20/02/2020

DownloadDownload Download BIM Add to collectionAdd to collection Add to collection
Available for:
  • Logo: Autodesk Revit

Description

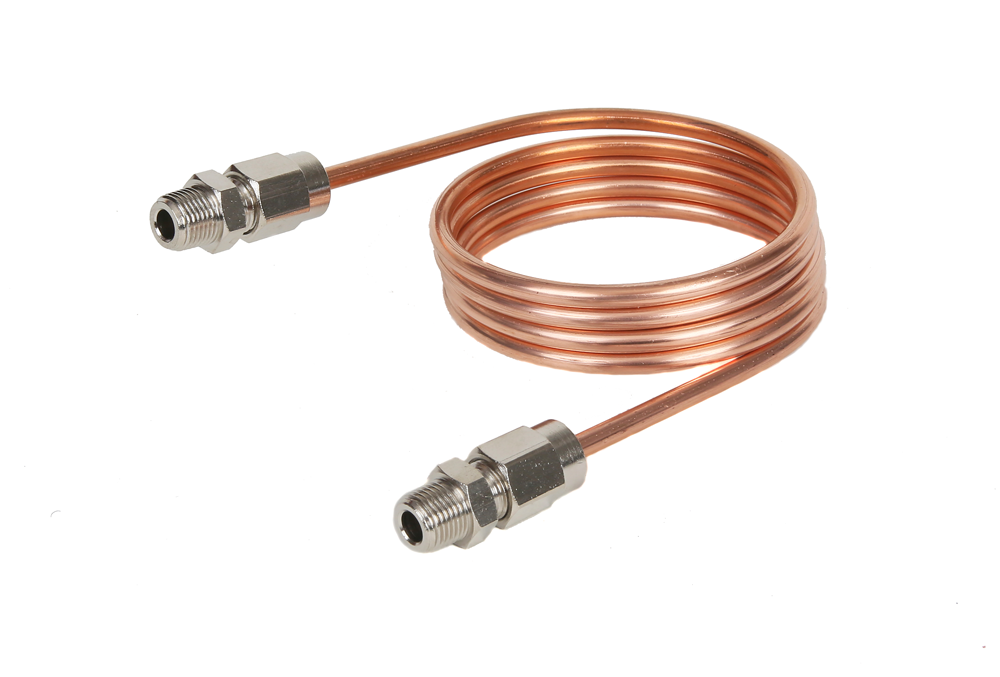

Copper Impulse capillary tube for Differential Pressure Control Valve ART 24.

Connection
Thread incl. 2 x ART 24VF

Approvals/ other
Available in 1 or 2m lengths, G 1⁄8"

Object metadata

  • Metadata coming soon.
