ART 270 - Metering Station

Object metadata

• _AuthorRL
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/art-270/document/object-user-guide
• A20 mm
• Accessibility Performancen/a
• Angle45.00 °
• Assembly CodeD20
• Asset TypeFixed
• B164 mm
• BIM Object NameAlbionValves_PipeAccessories_MeteringStation_ART270
• C164 mm
• Classification NameUniclass2015
• Classification ValuePr_65_54_95_30
• Code Performancen/a
• ColorSilver & Yellow
• Connection Size100 mm
• Constituentsn/a
• Created Bysales@albionvalvesuk.com
• Created On2019-07-01T09:00:00
• D284 mm
• D2 Thickness5 mm
• DescriptionPN16 Stainless Steel Metering Station
• Documentation Certificateswww.albionvalvesuk.com/

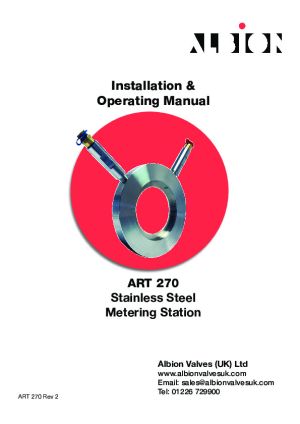

• Documentation Installation Guidewww.albionvalvesuk.com/
• Documentation Literaturewww.albionvalvesuk.com/
• Documentation Maintenancewww.albionvalvesuk.com/

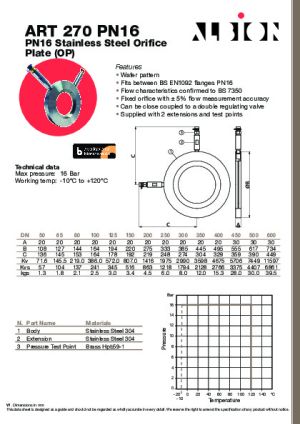

• Documentation Technicalwww.bimstore.co/products/art-270/document/technical-data-sheet
• Duration UnitYears
• Expected Life0
• Featuresn/a
• Finish304 Stainless Steel & Brass
• Graden/a
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.CHECK
• KeynoteS
• ManufacturerAlbion Valves
• Manufacturer NameAlbion Valves
• Material304 Stainless Steel & Brass
• Max Pressure16 Bar
• ModelPN16 Stainless Steel Metering Station
• Model NumberDN100 - DN4"
• Model ReferencePN16 Stainless Steel Metering Station
• NBS DescriptionFlow measuring valves
• NBS Object NameAlbion Valves - Flow measuring valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/358
• Nominal Depth20 mm
• Nominal Height164 mm
• Nominal Length164 mm
• Production Year2019
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• SizeDN100 - DN4"
• Size DN100
• Spare Partsn/a
• Tap Length82 mm
• Thread Inch4
• Thread Millimetre102 mm
• Type CommentsDN100 - DN4"
• Type NamePN16 Stainless Steel Metering Station
• URLwww.albionvalvesuk.com/
• Valve FinishStainless Steel AISI 304
• Valve Finish 2Brass
• Warranty DescriptionAgainst manufacturing defects.
• Warranty Duration Labor1
• Warranty Duration Parts1
• Warranty Duration UnitYears
• Warranty Guarantor Laborsales@albionvalvesuk.com
• Warranty Guarantor Partssales@albionvalvesuk.com
• Weight2.0 kg
• Working Temperature-10°C to +120°C
