ART 28DP - Differential Pressure Control Valve

by Albion Valves

Download Add to collection

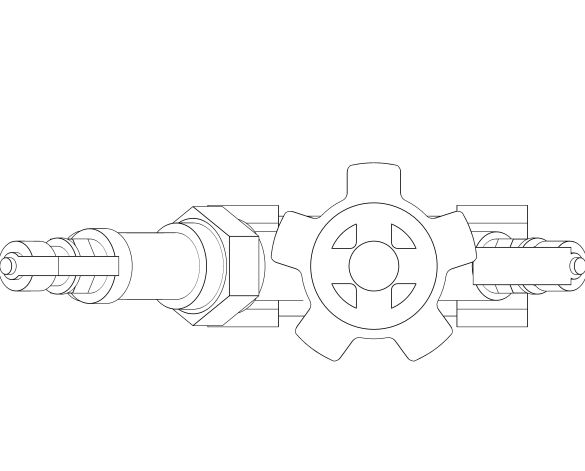

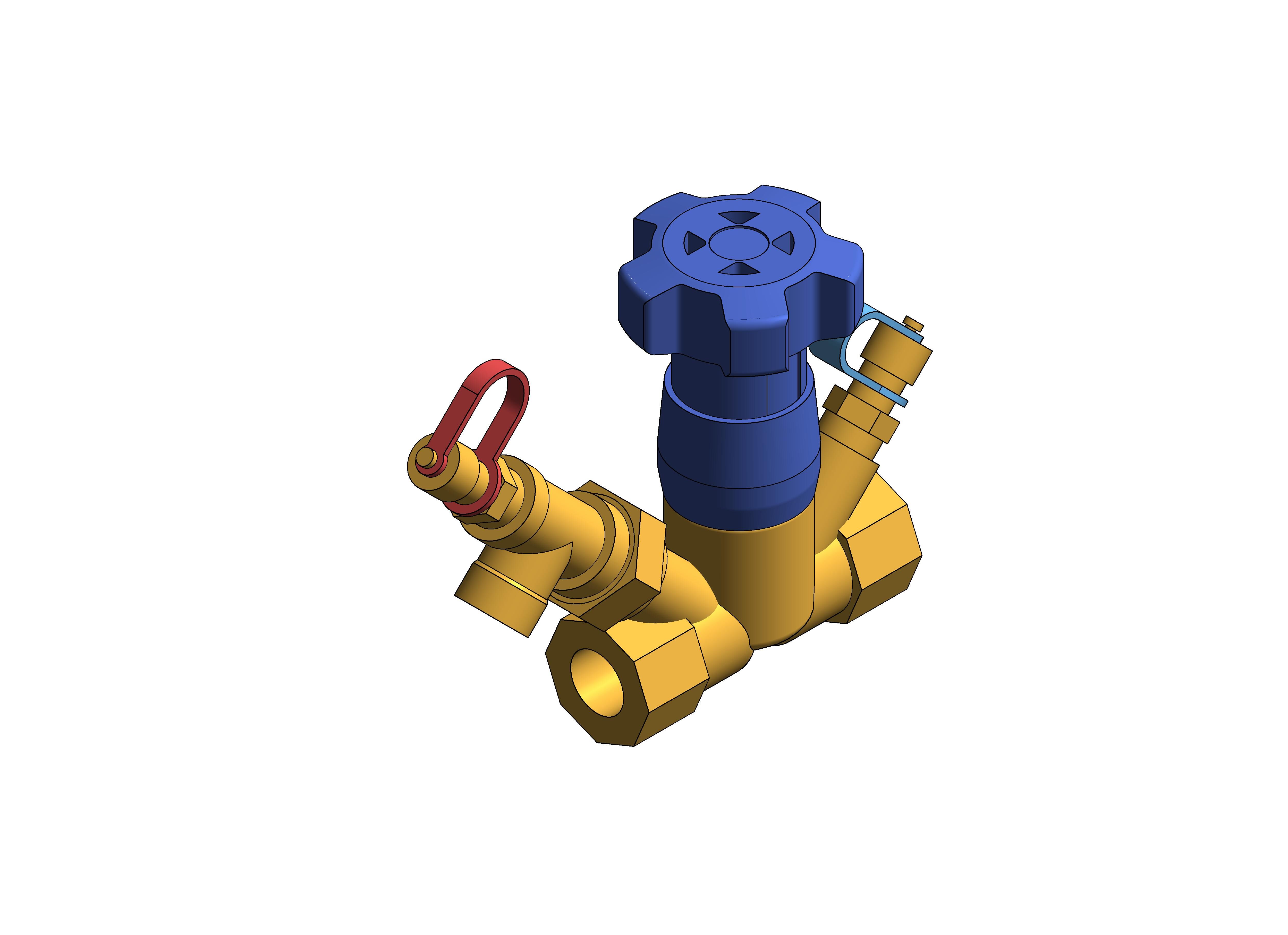

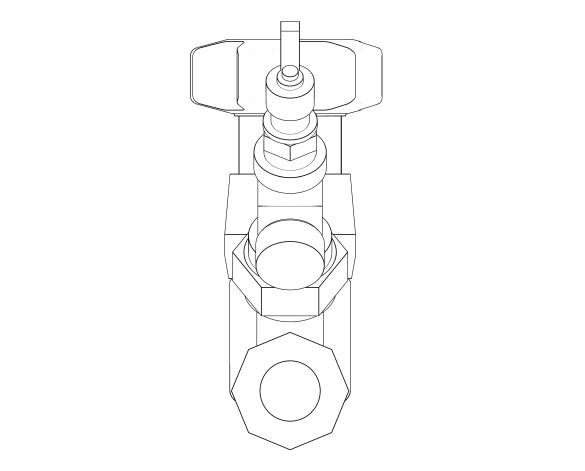

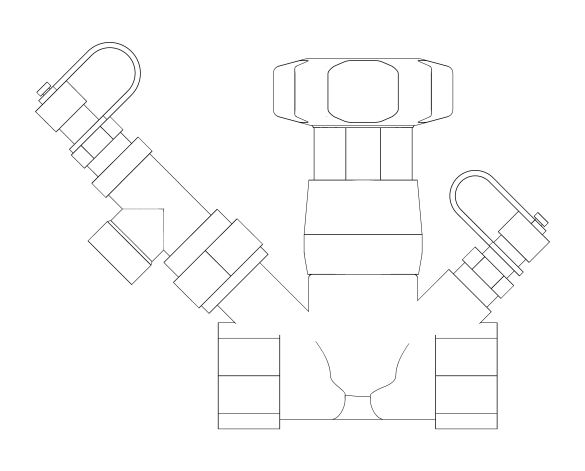

Description

Description
DZR Differential Pressure Control Partner Balancing Valve (VODRV). C/W Imp Tube Connection & Test Points. Conforms to BS 7350 / BS 5154.

Connection
BSP Parallel (ISO 7/1)

Approvals/ other
5 Year Guarantee

Pressure
25 Bar Rated

Temperature
-10°C to +120°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

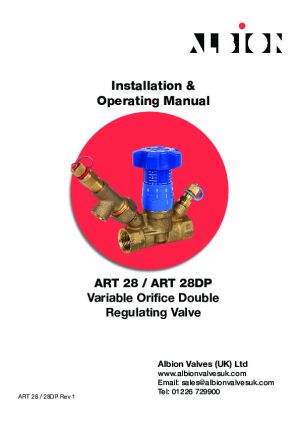

Object User Guide

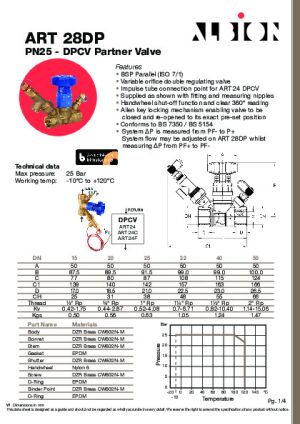

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-28dp/document/object-user-guide
128.0 mm
313.0 mm
424.0 mm
a15.0 mm
A50.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b10.0 mm
B87.5 mm
BIM Object NameAlbionValves_PipeAccessories_DifferentialPressureControlValves_ART28DP
c18.0 mm
C77.0 mm
C1106.0 mm
CH25.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_25
Code Performancen/a
ColorYellow
Connection Radius7.5 mm
Connection Size15.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
d3.9 mm
D17.0 mm
DescriptionART 28DP PN25 - DPCV Partner Valve
DN15.0 mm
DN Rad7.5 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-28dp/document/technical-data-sheet
Duration UnitYears
e12.0 mm
Expected Life0
Featuresn/a
FinishDZR Brass
Graden/a
Handwheel MaterialNylon 6 - Blue
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Kvs1.75
Left Valve Offset9.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR Brass
Max Pressure25 Bar
ModelART 28DP DPCV Partner Valve
Model NumberDN15
Model ReferenceART 28DP DPCV Partner Valve
NBS DescriptionDifferential Pressure Control Valves
NBS Object NameAlbion Valves - Differential Pressure Control Valves
NBS Office Master Tagn/a
NBS Reference90-10-90/425
Nut Depth27.0 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Right Valve Offset6.0 mm
Shapen/a
SizeDN15
Size DN15
Spare Partsn/a
Symbol Calc2.5 mm
Symbol Calc/21.3 mm
Tap Offset1.5 mm
Thread Inch1/2
Thread Millimetre12.7 mm
Type CommentsDN15
Type NameART 28DP DPCV Partner Valve
URLwww.albionvalvesuk.com/
Valve FinishBrass
Valve Vertical Offset0.0 mm
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor5
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.380kg
Working Temperature-10°C to +120°C
