ART 367 - Bronze 'Y' Strainer

by Albion Valves

Download Add to collection

Description

PN20 Bronze 'Y' Strainer. Bronze Body. Stainless Steel Strainer Basket. Tested to BS EN 12266.

Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1).

WRAS Approved.

20 Bar Rated.

-10°C to +170°C

Object Data

1 Revision

Last Updated

15/12/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

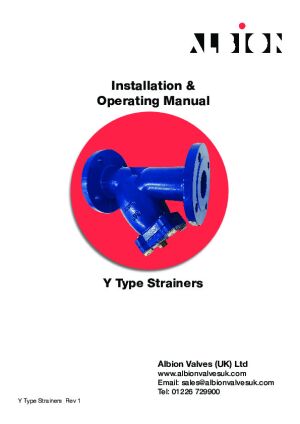

Installation Guide

Product Literature

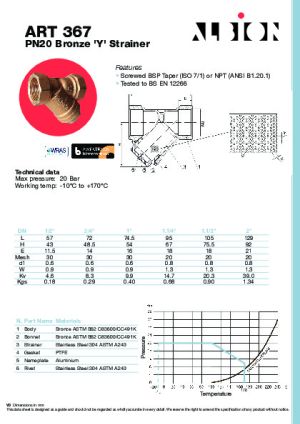

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-367-bronze-y-strainer/document/object-user-guide
a11.8 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b2.0 mm
BIM Object NameAlbionValves_PipeAccessories_Strainer_ART367
BodyBronze C83600 ASTM B62
Body Offset18.0 mm
BonnetBronze C83600 ASTM B62
c14.0 mm
Classification NameUniclass2015
Classification ValuePr_65_57_96_99
Code Performancen/a
Colorn/a
Connection Radius7.5 mm
Connection Size15.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2023-11-14 T09:00:00
d16.1 mm
Default Elevation0.0 mm
DescriptionART 367 PN20 Bronze Y-Strainer
Documentation Certificateswww.bimstore.co/products/art-367-bronze-y-strainer/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-367-bronze-y-strainer/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-367-bronze-y-strainer/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-367-bronze-y-strainer/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-367-bronze-y-strainer/document/technical-data-sheet
Duration UnitYear
e15.4 mm
E11.5 mm
Expected Life0
f32.0 mm
Features• Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1) • Tested to BS EN 12266
FinishBronze
g5.4 mm
GasketPTFE
Graden/a
h6.1 mm
H43.0 mm
Hex Width31.0 mm
i1.6 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveType
KeynoteS
L57.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBronze
Maximum Pressure20 Bar
ModelART 367
Model NumberART 367
Model ReferenceDN15 - DN50
NameplateAluminium
NBS DescriptionY-type water strainers
NBS Noten/a
NBS Object NameAlbion Valves - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/403
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Production Year2023
Referenced Standardn/a
Replacement Costn/a
RivetStainless Steel 304 ASTM A240
Shapen/a

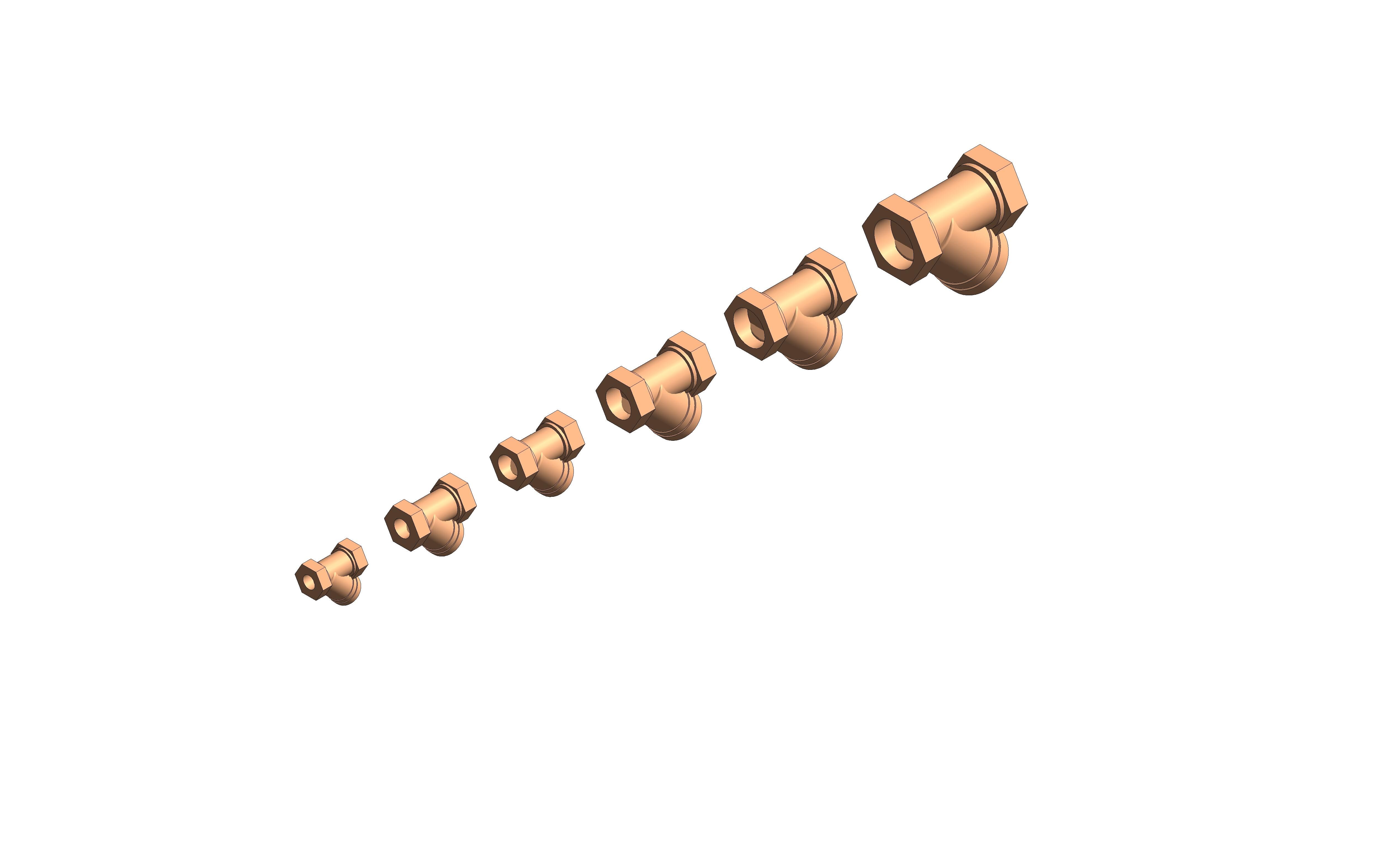

SizeDN15 - DN50
Spare Partsn/a
StrainerStainless Steel 304 ASTM A240
Top Hex Height5.4 mm
Top Hex Width19.0 mm
Type CommentsDN15 - DN50
Type NameART 367 - DN15
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Working Temperature-10°C to +170°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
