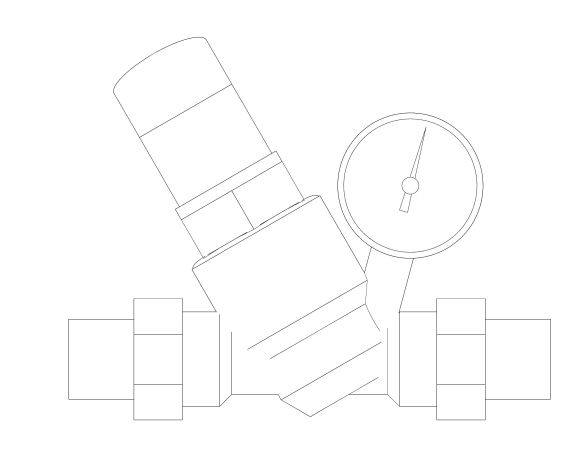

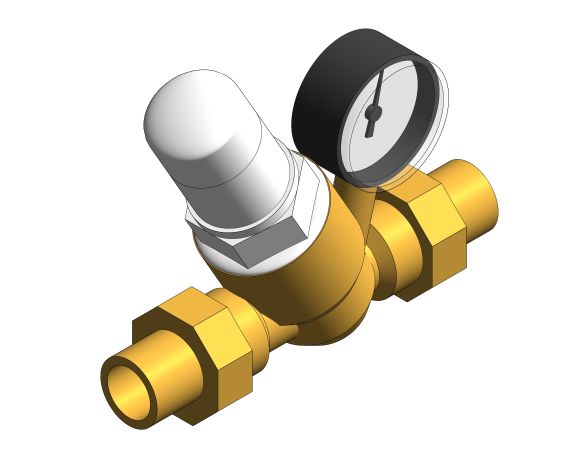

Description
Pressure Reducing Valve with gauge. Sizes available 1" - 2" BSP Parallel Male Ends. Controls static and dynamic pressure. Easy to service high temperature cartridge. AISI 304 stainless steel cartridge filter.

Connection
BSP Parallel Male Ends

Approvals/ other
WRAS Approved
Conforms to BS EN 1567

Pressure
See product datasheet.

Temperature
Max inlet temperature: 80°C

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-670f-art-670m/document/object-user-guide
116.5 mm
214.5 mm
a105.0 mm
A25.0 mm
Accessibility Performancen/a
Adjustable Pressure Range0.5 - 6 Bar
Assembly CodeD20
Asset TypeFixed
b65.0 mm
B199.0 mm
BIM Object NameAlbionValves_PipeAccessories_PressureReducingValve_ART670M
Body 1Yes
Body 2No
Body 3No
Body 4No
Body Bottom Offset17.0 mm
Body Offset8.0 mm
C134.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_66
Code Performancen/a
ColorSilver
Connection Radius12.5 mm
Connection Size25.0 mm
Constituentsn/a
Control Knob Height33.0 mm
Control MaterialPlastic - White
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D24.0 mm
DescriptionART 670 M Pressure Reducing Valve with gauge
Dial Height40.0 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/

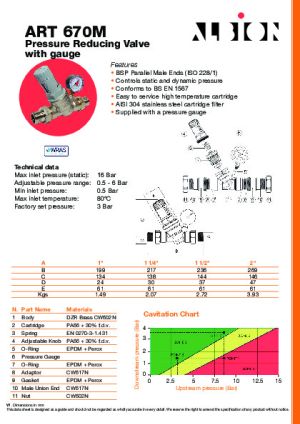

Documentation Technicalwww.bimstore.co/products/art-670f-art-670m/document/technical-data-sheet
Duration UnitYears
E61.0 mm
Expected Life0
Face MaterialPlastic - Clear
Factory Set Pressure3 Bar
Featuresn/a
FinishCw602N DBZ Brass
Gauge MaterialPlastic - Black
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCw602N DBZ Brass
Maximum Inlet Pressure(Static)16 Bar
Maximum Inlet Temperature80°C
Minimum Inlet Pressure0.5 Bar
ModelART 670 M Pressure Reducing Valve with gauge
Model NumberDN 1"
Model ReferenceART 670 M Pressure Reducing Valve with gauge
NBS DescriptionPressure Reducing Valve
NBS Object NameAlbion Valves - Pressure Reducing Valve
NBS Reference90-10-90/410
Nominal Depth24.0 mm
Nominal Height158.0 mm
Nominal Length199.0 mm
Nut Thickness20.0 mm
Nut Width50.0 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN 1"
Size DN25
Spare Partsn/a
Thread Inch1
Thread Millimetre25.4 mm
Type CommentsDN 1"
Type NameART 670 M Pressure Reducing Valve with gauge
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
