ART 675 - Pressure Reducing Valve with gauge

by Albion Valves

Download Add to collection

Description

Pressure Reducing Valve with gauge

Features

22mm with 15mm adaptors (adaptors supplied loose)
Conforms to BS EN 1567
Supplied with a loose pressure gauge
Compression ends (BS EN1254-2)
WRAS Approved

Object Data

1 Revision

Last Updated

20/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

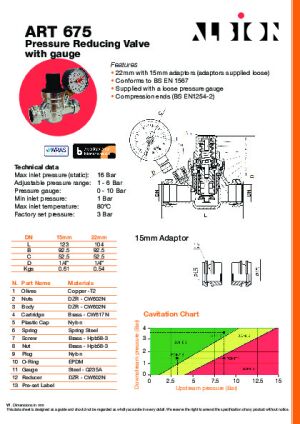

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-675-pressure-reducing-valve-with-gauge/document/object-user-guide
Accessibility Performancen/a
Adjustable Pressure Range1 - 6 Bar
Assembly CodeD20
Asset TypeFixed
B93 mm
BIM Object NameAlbionValves_PipeAccessories_PressureReducing_ART675
C53 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_66
Code Performancen/a
ColorSilver
Connection Size15 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2020-08-19T09:00:00
D6 mm
DescriptionPressure Reducing Valve with gauge
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-675-pressure-reducing-valve-with-gauge/document/technical-data-sheet
Duration UnitYears
Expected Life0
External Diameter27 mm
Factory Set Pressure3 Bar
Featuresn/a
FinishBrass
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Internal Diameter22 mm
KeynoteS
L104 mm
L189 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDZR - CW602N
Maximum Inlet Pressure(Static)16 Bar
Maximum Inlet Temperature80°C
Minimum Inlet Pressure1 Bar
ModelPressure Reducing Valve with gauge
Model NumberDN15
Model ReferencePressure Reducing Valve with gauge
N13 mm
N28 mm
NBS DescriptionPressure reducing valves
NBS Object NameAlbion Valves - Pressure reducing valves
NBS Office Master Tagn/a
NBS Reference90-10-90/410
Nominal Depth48 mm
Nominal Height93 mm
Nominal Length123 mm
Nut Size32 mm
Pressure Gauge0 - 10 Bar
Production Year2020
Reducer Length9 mm
ReducersYes
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Size DN15
Socket Depth 19 mm
Socket Depth 29 mm
Spare Partsn/a
Thread Inch1/2
Thread Millimetre15 mm
Type CommentsDN15
Type NamePressure Reducing Valve with gauge
URLwww.albionvalvesuk.com/
Valve FinishDZR Brass - Chrome Plated
Valve Finish 2Plastic - Black
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.61 kg
Working Temperature-20°C to +80°C
