ART 679 - Pressure Reducing Valve

by Albion Valves

Download Add to collection

Description

Gunmetal Pressure Reducing Valve. Outlet pressure 1.5 to 7.0 bar (other outlet pressures available on request).

BSP Taper (ISO 7/1) M/M Ends.

WRAS Approved.

Inlet Pressure: 25 Bar
Outlet Pressure: 1.5 to 7.0 bar (other outlet pressures available on request)

+5°C to +85°C

Object Data

1 Revision

Last Updated

16/11/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

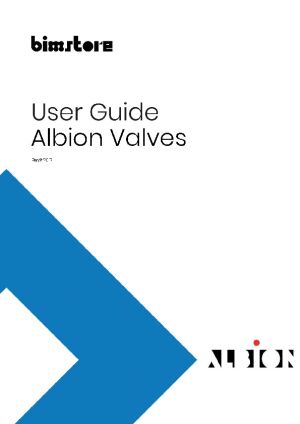

Object User Guide

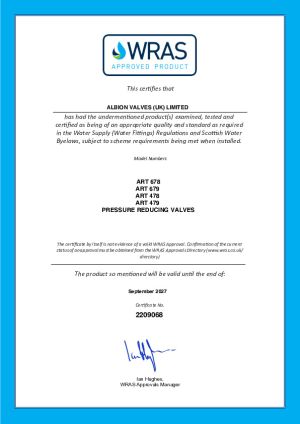

Product Certificates

Installation Guide

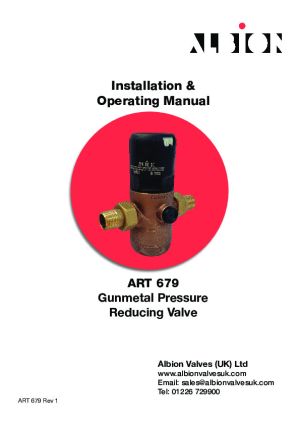

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-679-pressure-reducing-valve/document/object-user-guide
a49.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b37.5 mm
BIM Object NameAlbionValves_PipeAccessories_PressureReducingValve_ART679
BodyGunmetal
Bottom Rad20.6 mm
c15.0 mm
Cap 1No
Cap 2No
Cap 3Yes
Classification NameUniclass2015
Classification ValuePr_65_54_85_22
Code Performancen/a
ColorGunmetal
Connection Size40.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
d14.3 mm
Default Elevation0.0 mm
DescriptionGunmetal Pressure Reducing Valve
Documentation Certificateswww.bimstore.co/products/art-679-pressure-reducing-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-679-pressure-reducing-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-679-pressure-reducing-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-679-pressure-reducing-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-679-pressure-reducing-valve/document/technical-data-sheet
Duration UnitYear
e30.0 mm
Expected Life0
f2.0 mm
Features• Standard threaded connections: • Male thread BSPT (ISO 7/1) • Suitable for liquids • BS EN 1567, ISO 3822, PED 2014/68/EU, PESR 2016 • Test certificate to EN10204-3.1 available on request • Also available in Stainless Steel - ART 479
Filter CupGunmetal
Filter ScreenStainless Steel
FinishGunmetal
Graden/a
h94.0 mm
H151.0 mm
Hex Width65.0 mm
I130.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Kvs19.5 m3/h
L220.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialGunmetal
Maximum Inlet Pressure25 bar
ModelART 679
Model Number1 1/2"
Model ReferenceART 679
NBS DescriptionPressure reducing valve
NBS Noten/a
NBS Object NameAlbion Valves - Pressure reducing valve
NBS Office Master Tagn/a
NBS Reference90-20-80/355
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
O-RingsEPDM
Outlet Pressure1.5 - 7.0 bar(other outlet pressures available - Low Pressure: 0.5 - 3.0 bar; High Pressure - 3.0 - 12.0 bar)
PlugsPlastic PA Glass Fibre Reinforced
Production Year2023
Referenced StandardBS EN 1567 ISO 3822 PED 2014/68/EU, PESR 2016, EN10204-3.1
Replacement Costn/a
Shapen/a
Size1 1/2"
Size DN40
Spare Partsn/a
Spring HousingPlastic PA Glass Fibre Reinforced
SW165.0 mm
SW275.0 mm
SW375.0 mm
T150.0 mm
Thread Inch1 1/2
Top Rad9.4 mm
Type Comments1 1/2"
Type NameART 679
URLwww.albionvalvesuk.com/
Valve InsertStainless Steel + EPDM
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Weight3.9kg
Working TemperatureEPDM Seal, +5°C to +85°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
