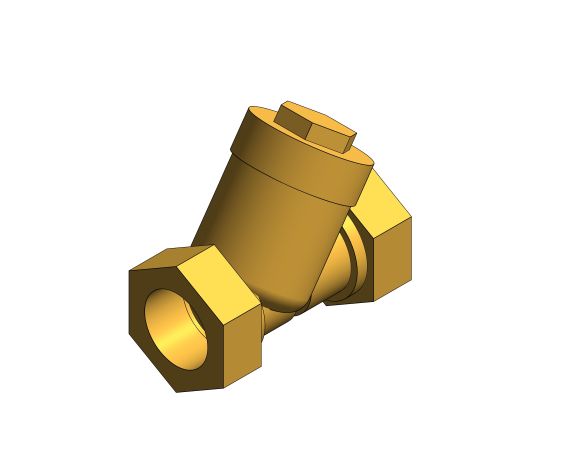

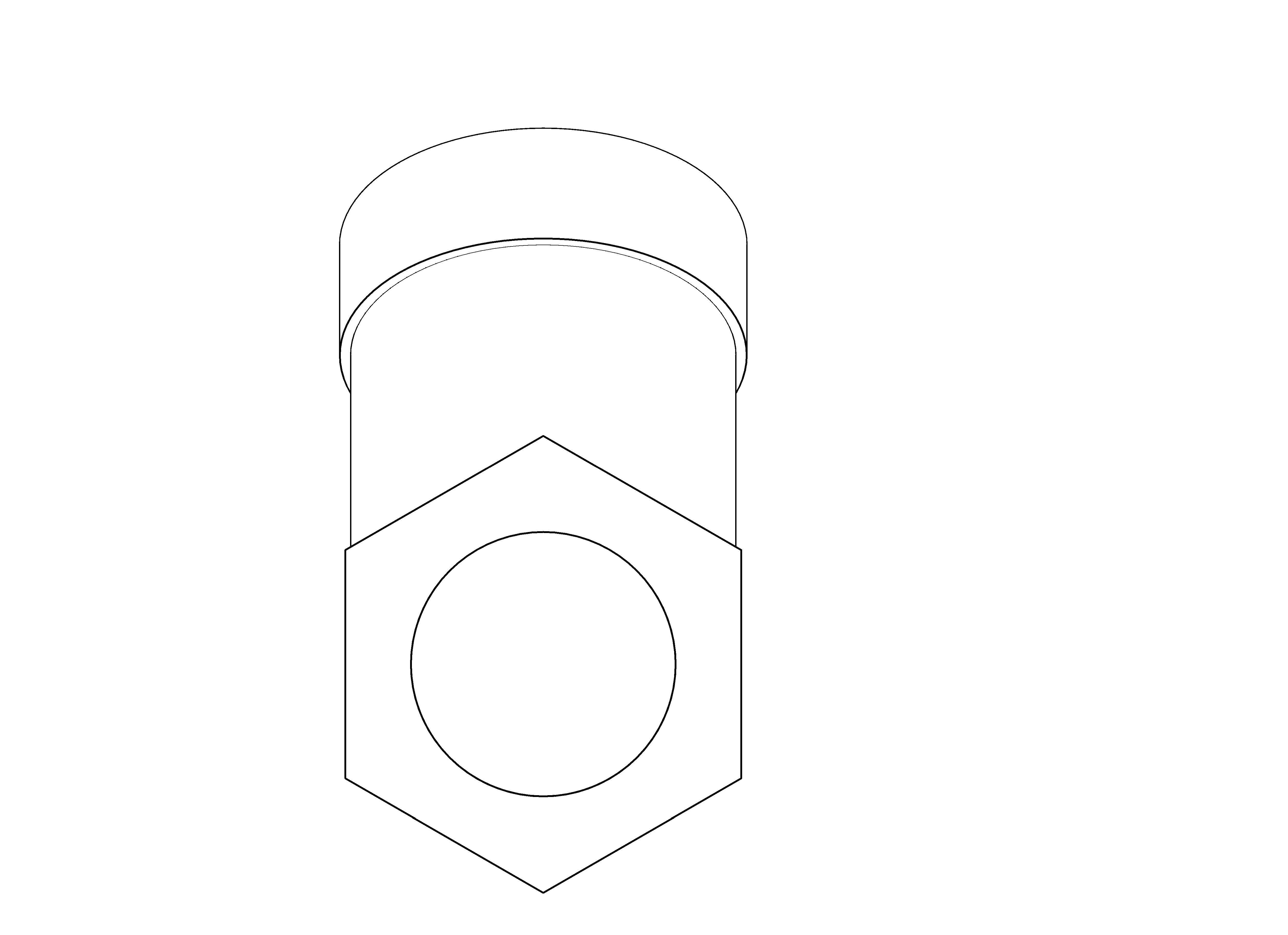

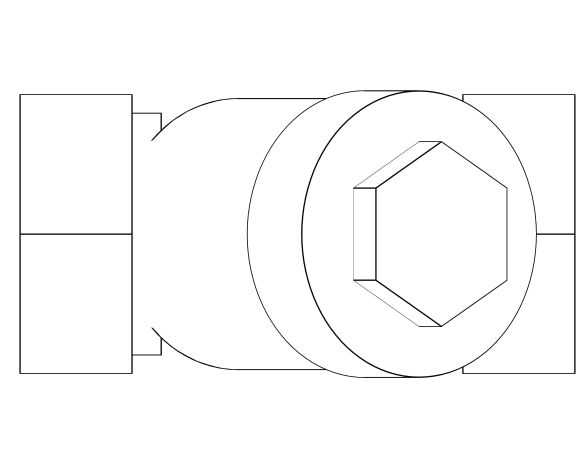

ART 68 - Check Valve

by Albion Valves

Download Add to collection

Description

Description
Brass Y Type Strainer. Stainless Steel Screen.

Connection
BSP Parallel F/F Ends (ISO 228/1)

Pressure
20 Bar Rated

Temperature
0°C to +150°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

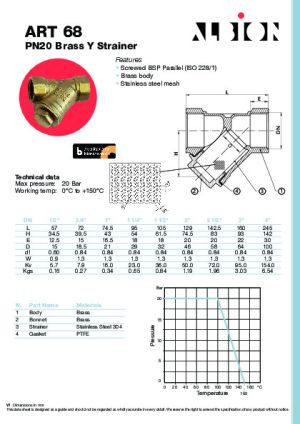

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-68/document/object-user-guide
173 mm
260 mm
356 mm
430 mm
59 mm
A62 mm
Accessibility Performancen/a
Angle55.00 °
Assembly CodeD20
Asset TypeFixed
B54 mm
Base Hex124 mm
BIM Object NameAlbionValves_PipeAccessories_YStrainer_ART68
C46 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorYellow
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D100 mm
DescriptionPN20 Brass Y Strainer
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-68/document/technical-data-sheet
Duration UnitYears
E30 mm
Expected Life0
F37 mm
Featuresn/a
FinishBrass
Graden/a
H143 mm
Height C4 mm
Hex Depth36 mm
Hex Dim130 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveType
KeynoteS
L245 mm
L/2123 mm
Length C4 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass & Metal
Max Pressure20 Bar
ModelPN20 Brass Y Strainer
Model NumberDN100 - DN4"
Model ReferencePN20 Brass Y Strainer
NBS DescriptionY-type strainers
NBS Object NameAlbion Valves - Y-type strainers
NBS Office Master Tagn/a
NBS Reference90-20-80/320
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length245 mm
Offset11 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Strainer Symbol Length147 mm
Strainer Symbol Width75 mm
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NamePN20 Brass Y Strainer
URLwww.albionvalvesuk.com/
Valve FinishBrass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight7.00 kgs
Working Temperature0°C to 150°C
