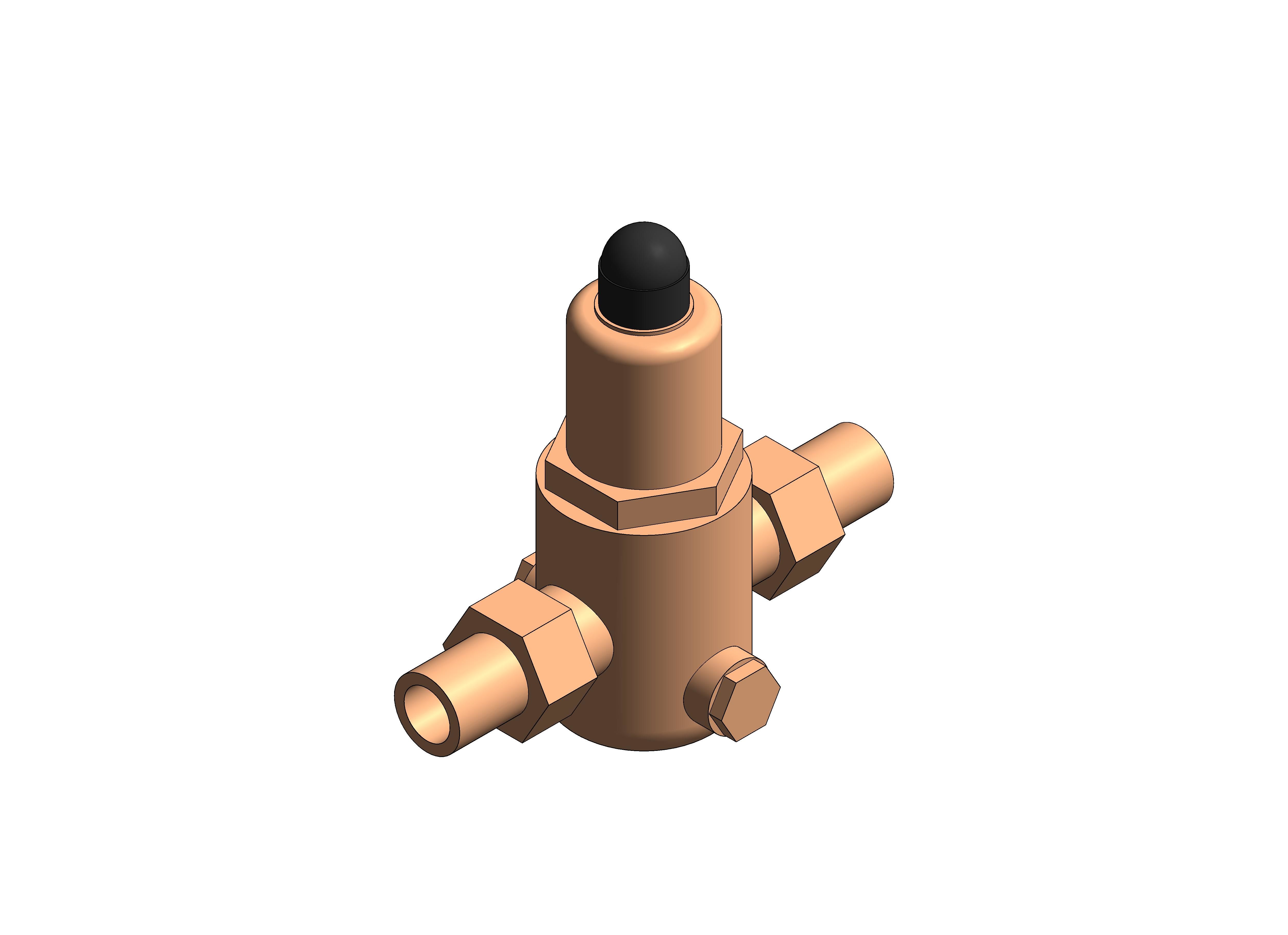

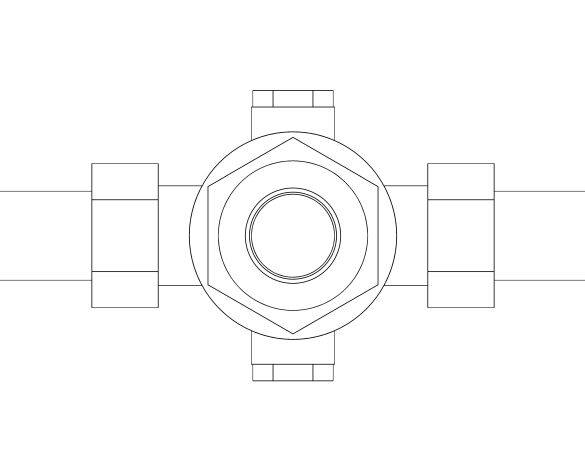

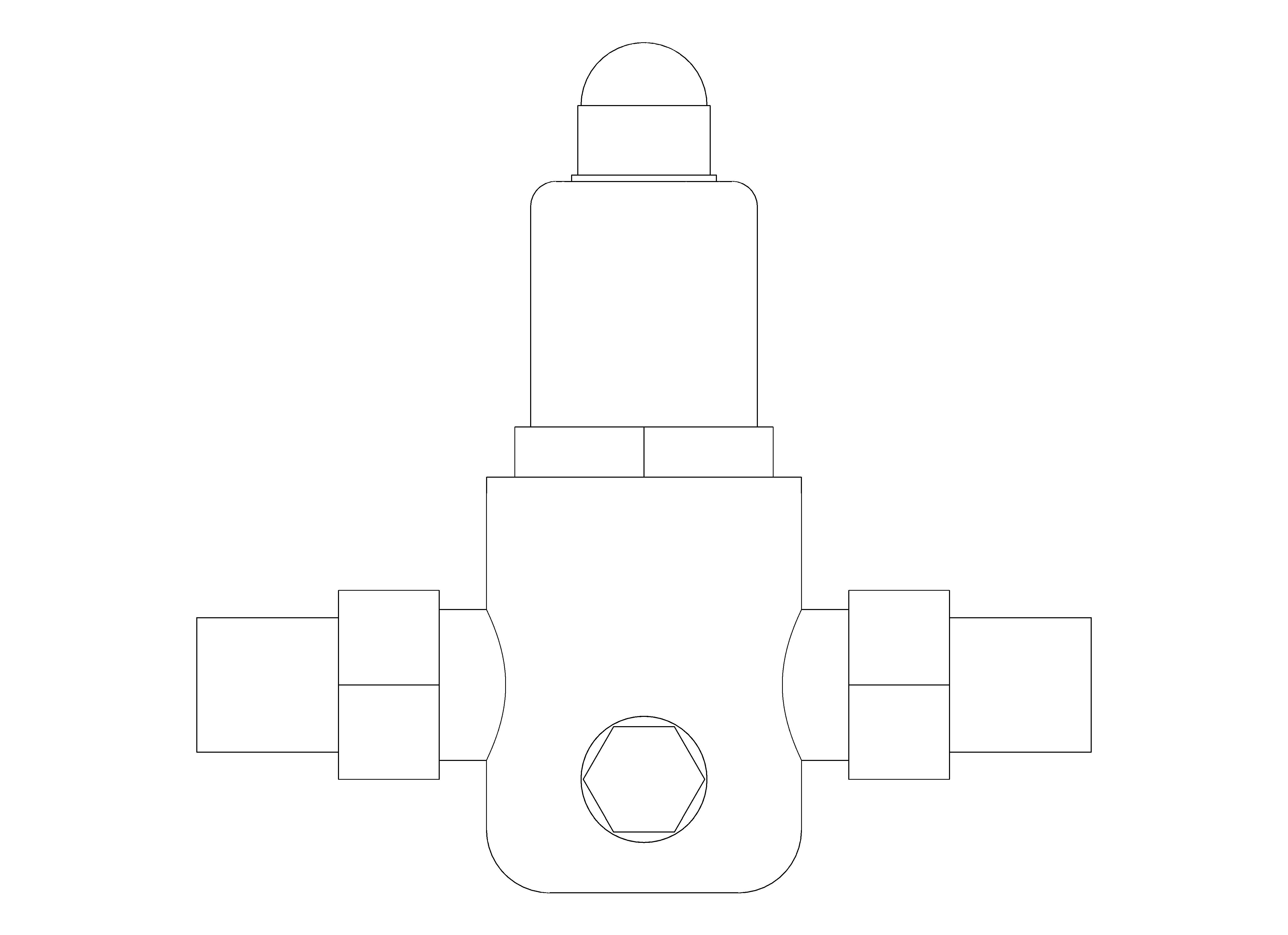

ART 681F - Pressure Reducing Valve

Object metadata

• _AuthorRL
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/art-681m-art-681f/document/object-user-guide
• 133.00 mm
• 28.00 mm
• a25.00 mm
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• b10.00 mm
• BIM Object NameAlbionValves_PipeAccessories_PressureReducingValve_ART681
• c18.00 mm
• Classification NameUniclass2015
• Classification ValuePr_65_54_95_66
• Code Performancen/a
• ColorYellow
• Connection Radius7.50 mm
• Connection Size15.00 mm
• Constituentsn/a
• Created Bysales@albionvalvesuk.com
• Created On2019-08-29 T09:00:00
• DescriptionART 681 M&F Gunmetal Pressure Reducing Valve
• DN15.00 mm
• DN Rad7.50 mm

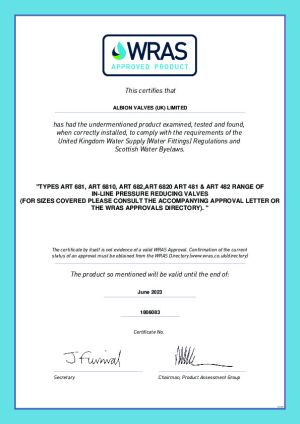

• Documentation Certificateswww.albionvalvesuk.com/
• Documentation Installation Guidewww.albionvalvesuk.com/
• Documentation Literaturewww.albionvalvesuk.com/
• Documentation Maintenancewww.albionvalvesuk.com/

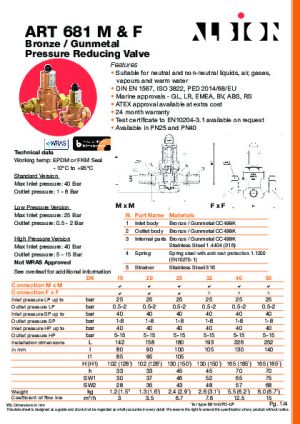

• Documentation Technicalwww.bimstore.co/products/art-681m-art-681f/document/technical-data-sheet
• Duration UnitYears
• Expected Life0
• f12.00 mm
• Featuresn/a
• FinishGunmetal CC499K
• g62.00 mm
• Graden/a
• h33.00 mm
• H102.00 mm
• H1128.00 mm
• I80.00 mm
• I185.00 mm
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.CHECK
• Inlet PressureUp to 40 bar
• KeynoteS
• Kvs3
• ManufacturerAlbion Valves
• Manufacturer NameAlbion Valves
• MaterialGunmetal CC499K
• ModelART 681 Pressure Reducing Valve
• Model NumberDN 1/2"
• Model ReferenceART 681 Pressure Reducing Valve
• NBS DescriptionPressure reducing valves
• NBS Object NameAlbion Valves - Pressure reducing valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/410
• Nominal Depth70.00 mm
• Nominal Height135.00 mm
• Nut Radius Inner10.70 mm
• Nut Width30.00 mm
• Outlet Pressure0.5 to 15 bar
• Production Year2019
• Referenced Standardn/a
• Replacement Costn/a
• Seat Seal MaterialEDPM/FKM
• Shapen/a
• SizeDN 1/2"
• Size DN15
• Spare Partsn/a
• SW130.00 mm
• SW228.00 mm
• Thread Inch1/2
• Thread Millimetre12.70 mm
• Top Nut Width41.00 mm
• Type CommentsDN 1/2"
• Type NameART 681 Pressure Reducing Valve
• URLwww.albionvalvesuk.com/
• Valve FinishGunmetal
• Warranty DescriptionAgainst manufacturing defects.
• Warranty Duration Labor5
• Warranty Duration Parts5
• Warranty Duration UnitYears
• Warranty Guarantor Laborsales@albionvalvesuk.com
• Warranty Guarantor Partssales@albionvalvesuk.com
• Weight1.2kg
• Working TemperatureEPDM or FKM Seal -10°C to +95°C
