Brass Full Bore – FIG 967SRL and 967SBL WRAS [Ball Valves]

Download Add to collection

Description

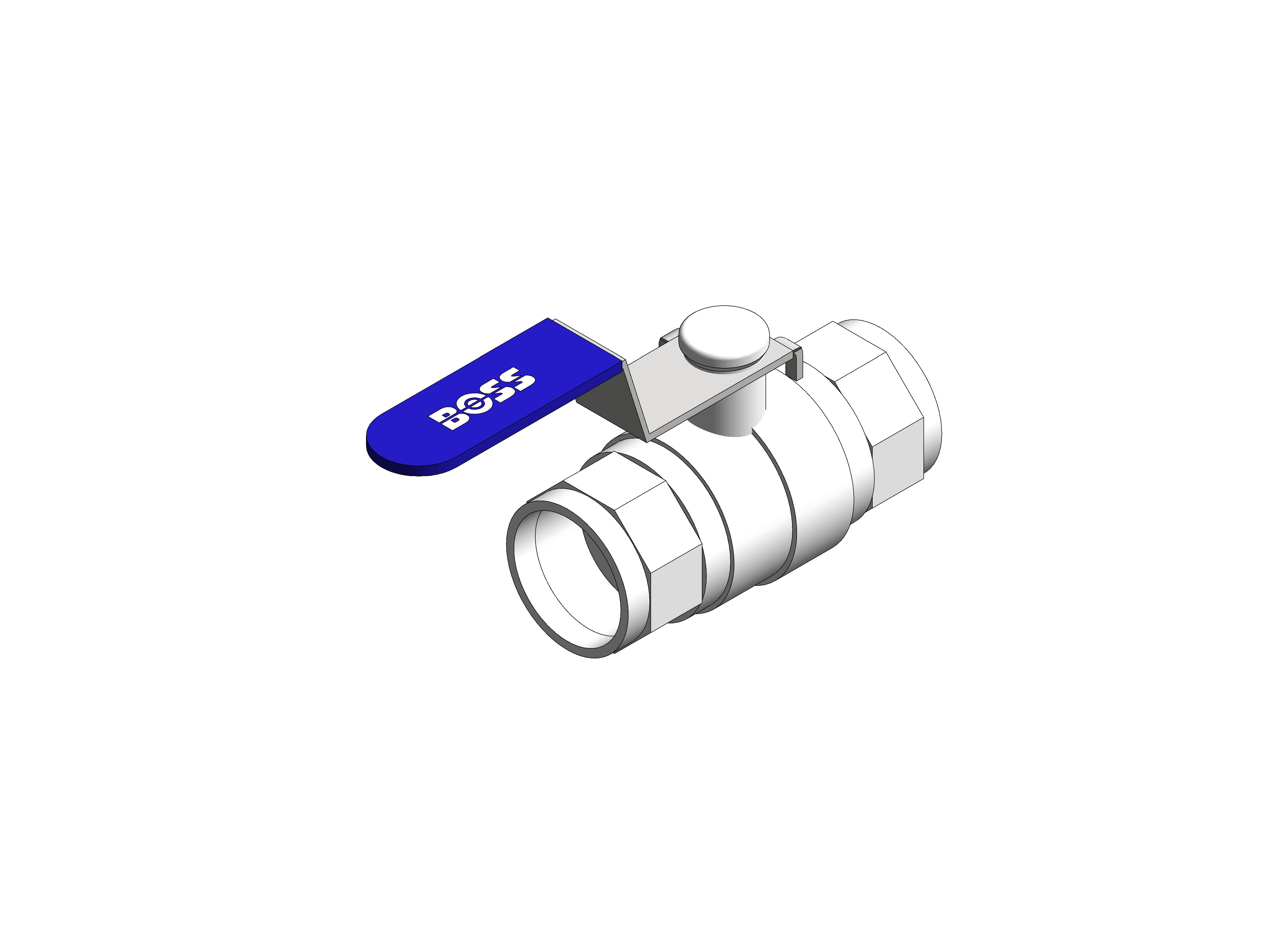

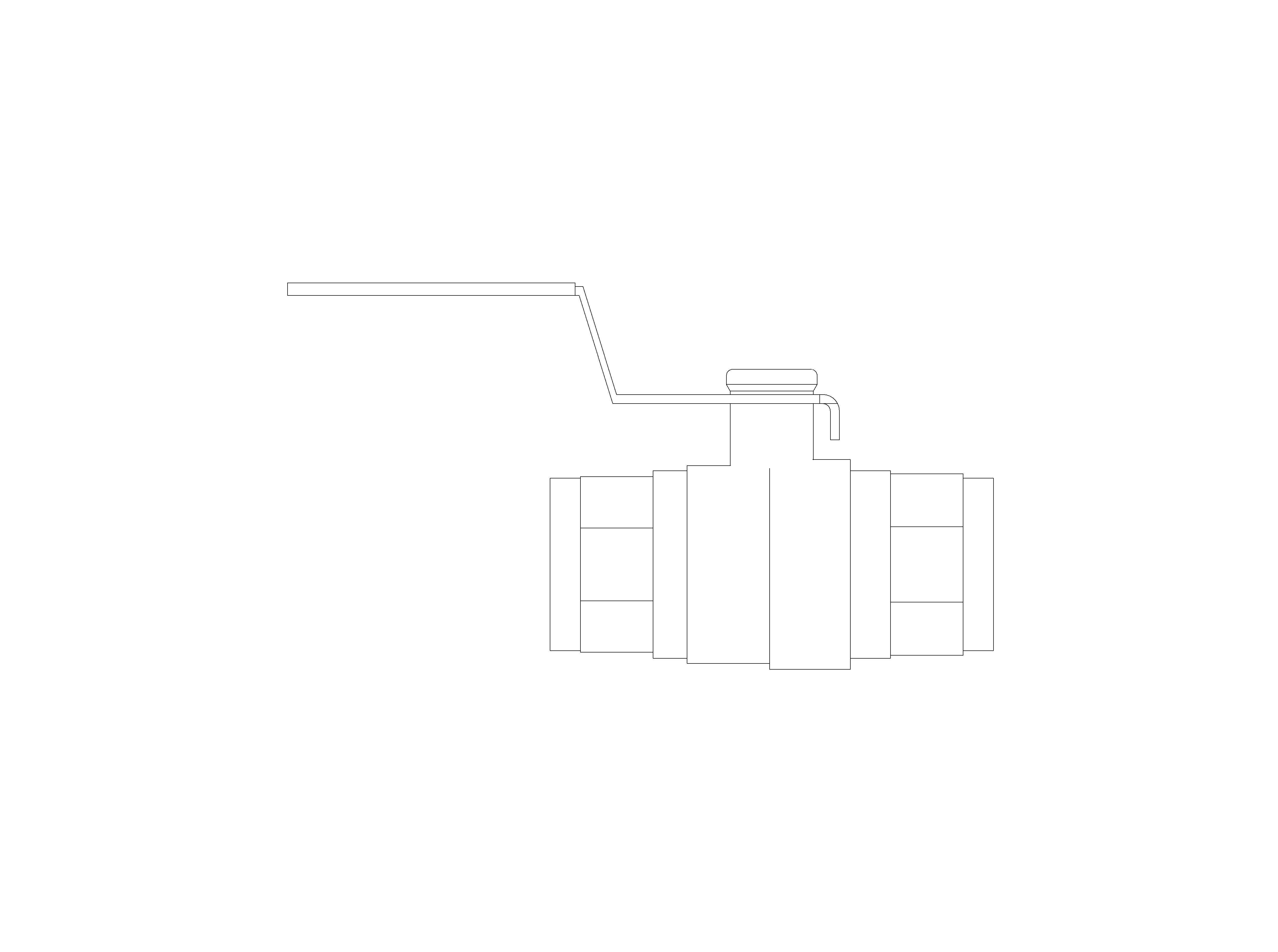

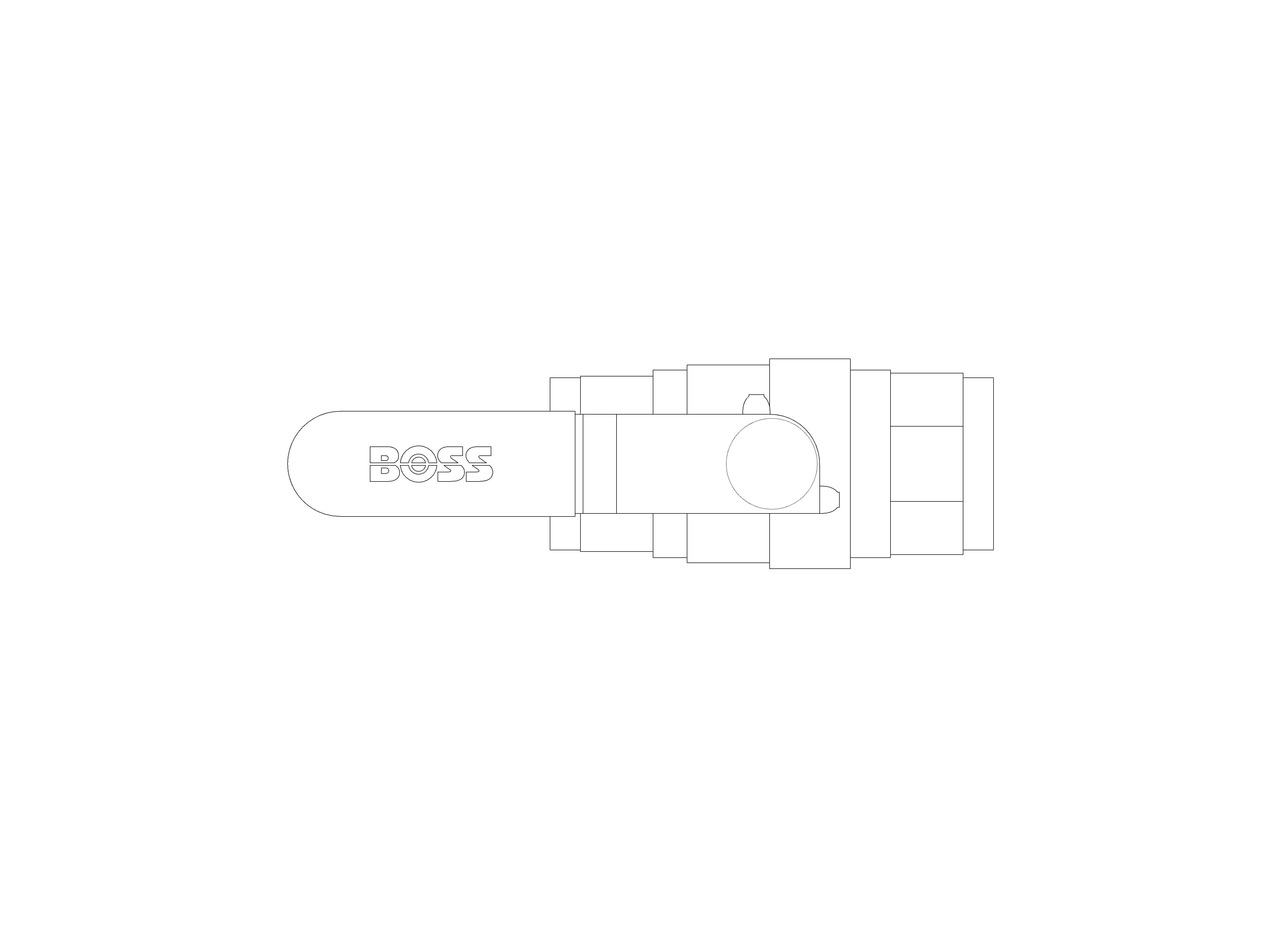

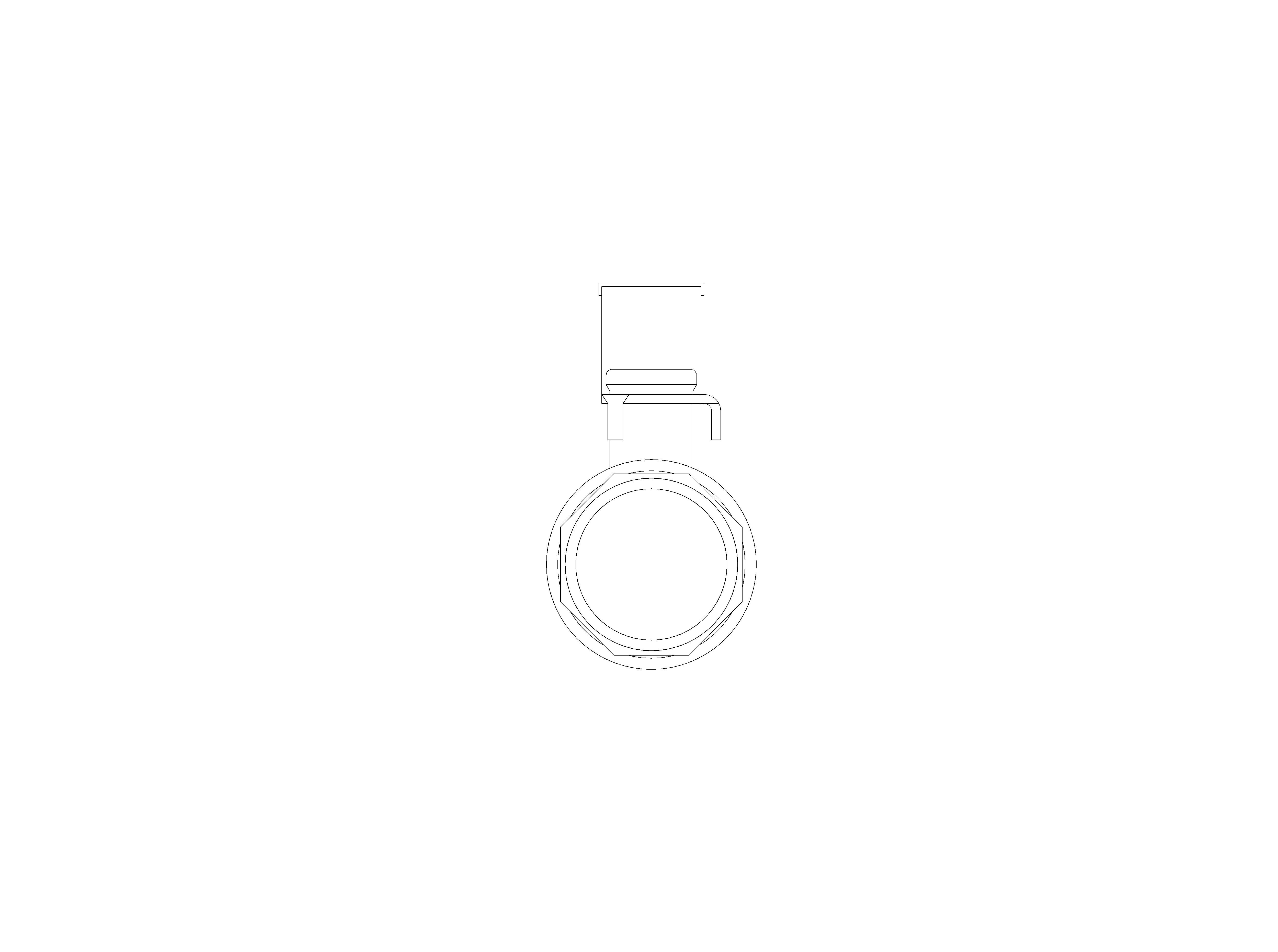

Ball Valve - 967SBL

This download is for the Ball Valve - 967SBL from BOSS Valves. A BSS Company.

The download includes 1no Revit Pipe Accessory family (.rfa file), 1no Type Catalogue (.txt file) containing 3no SKUs and 1no Userguide (.pdf file). Ensure the Userguide is read and understood prior to loading the Pipe Accessory family to an MEP System.

Object Data

1 Revision

Last Updated

09/03/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_Authorbimstore
_Authorized ByKA
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
A_mm149.000000000000 mm
Accessibility Performancen/a
Anti Blow Out StemBrass BS EN 12164 CW614N
Assembly CodeD30
Asset TypeFixed
B_mm122.000000000000 mm
BallBrass (Chrome Plated) BC EN 12420 CW617N
BIM Object NamePipeAccessory_BallValve_BOSS_967SBL
BodyBrass (Nickel Plated) BS EN12420 CW617N
bodyoffset 120.000000000000 mm
bodyoffset 20.700694719253 mm
bodyoffset 322.040366134142 mm
bodyradius 137.500000000000 mm
bodyradius 232.687500000000 mm
bodyradius 340.500000000000 mm
Brake Downstand15.000000000000 mm
C_mm230.000000000000 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorBrass
ConnectionsScrewed BSPT Female to BS EN 10226-2:ISO 7-1 Rc
Connection Size65.000000000000 mm
Constituentsn/a
Created Byenquiries@bssgroup.com
Created On1900-12-31T23:59:59
DescriptionBrass Full Bore - 967SBL Blue Handle Ball Valve
Dim X8.000000000000 mm
Dim XX10.000000000000 mm
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2079
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
End ConnectorBrass (Nickel Plated) BS EN12420 CW617N
Expected Life0
FeaturesBlue Handle Ball Valve
FinishBrass
Flow0.000000000000 L/s
Glad O RingPTFE
Graden/a
Handle Calc17.393777800726 mm
Handle Collar Length45.000000000000 mm
Handle Downstand45.000000000000 mm
Handle Length150.000000000000 mm
Handle MaterialBOSS_Blue
Handle Width34.787555601453 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.STOPCOCK
K Coefficient160
KeynoteS
L1 mm26.500000000000 mm
LeverSteel (Zinc Plated) Red / Blue PVC Sleeve
Loss Method2
ManufacturerBOSS
Manufacturer NameBOSS
MaterialBrass
ModelBrass Full Bore - 967SBL
Model Number37184643
Model ReferenceBrass Full Bore - 967SBL Blue Handle Ball Valve
NBS DescriptionBall stop valves
NBS Noten/a
NBS Object NameBOSS - Ball stop valves
NBS Office Master Tagn/a
NBS Reference90-20-80/325
Nominal Depth0.000000000000 mm
Nominal Height122.000000000000 mm
Nominal Length149.000000000000 mm
Pressure Rating1/4inch to 1inch = 40bar / 1 1/4inch to 2inch = 32bar
Product Code37184643
Production Year2017
Referenced Standardn/a
Replacement Costn/a
SeatsPTFE
Shapen/a
Size65mm
Size mm32.500000000000 mm
Spare Partsn/a
Stem Height83.000000000000 mm
Stem MaterialBOSS_StainlessSteel
Stem Rad13.736137380363 mm
Stem Top Rad15.000000000000 mm
Swing ZoneBOSS-SWINGZONE
Type Comments65mm
Type NameBrass Full Bore - 967SBL
URLwww.bssindustrial.co.uk/Product-Centre/Valves-Filtration
Valve Hax Calc 275.000000000000 mm
Valve Hex Calc73.000000000000 mm
Valve MaterialBOSS_Brass
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Weight_Kg3.70

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
