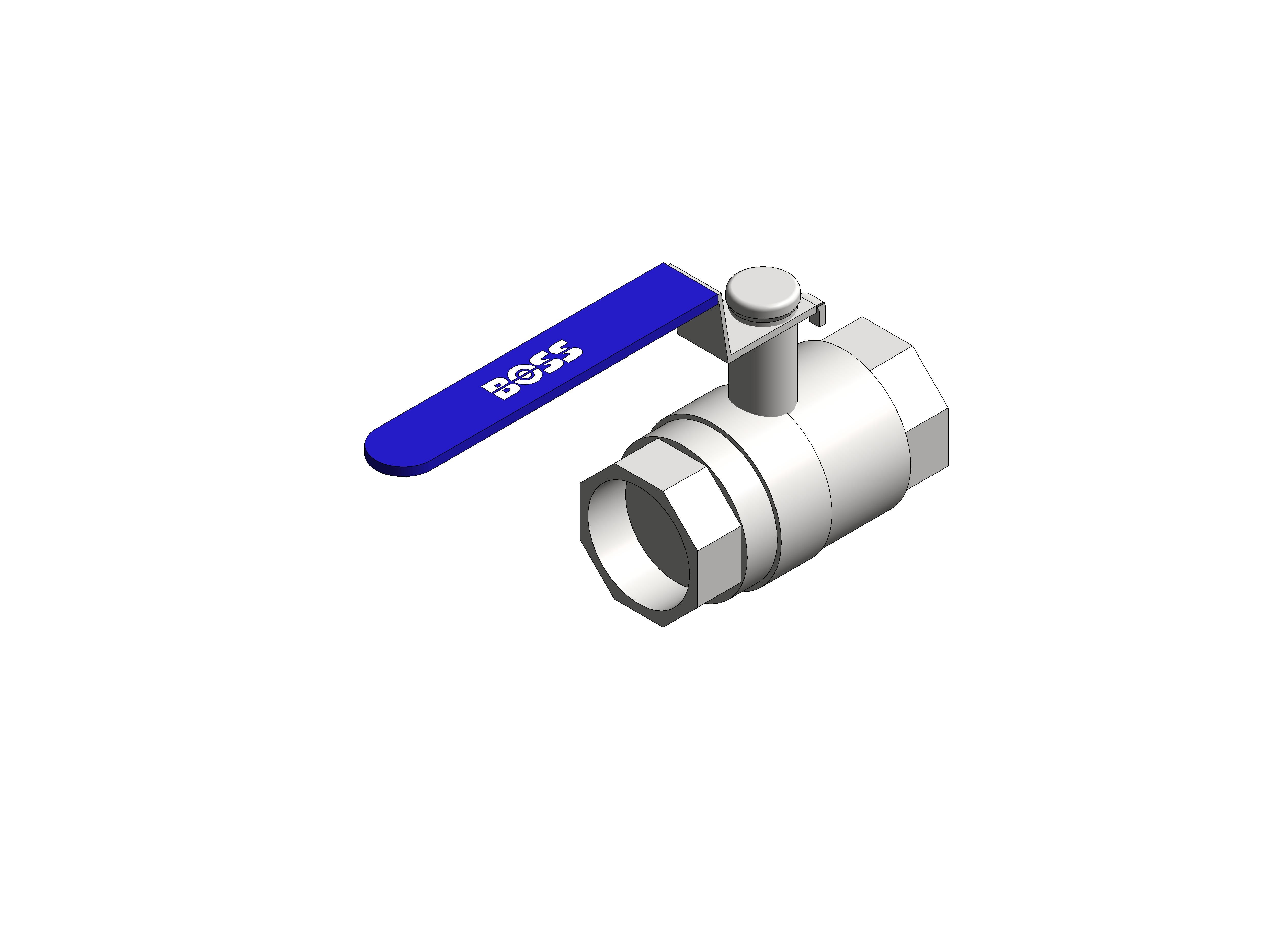

Reduced Bore – FIG LN240 2 pce 1000WO [Ball Valves]

Download Add to collection

Description

Stainless Steel Ball Valve - LN240

This download is for the Stainless Steel Ball Valve - LN240 from BOSS Valves. A BSS Company.

The download includes 1no Revit Pipe Accessory family (.rfa file), 1no Type Catalogue (.txt file) containing 8no SKUs and 1no Userguide (.pdf file). Ensure the Userguide is read and understood prior to loading the Pipe Accessory family to an MEP System.

Object Data

1 Revision

Last Updated

09/03/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_Authorbimstore
_Authorized ByKA
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
A_mm108.600000000000 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
B_mm92.500000000000 mm
BallASTM A351-CF8/304
Belleville WasherAISI301
BIM Object NameBOSS_PipeAccessory_BallValve_LN240
BodyASTMA216-WCB
bodyoffset 125.000000000000 mm
bodyoffset 20.000000000000 mm
bodyoffset 316.000000000000 mm
bodyradius 126.000000000000 mm
bodyradius 228.000000000000 mm
bodyradius 327.000000000000 mm
Brake Downstand12.000000000000 mm
C_mm149.900000000000 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorStainless Steel - Silver
ConnectionsScrewed BSPT Female
Connection Size40.000000000000 mm
Constituentsn/a
Created Byenquiries@bssgroup.com
Created On1900-12-31T23:59:59
DescriptionStainless Steel Full Bore - LN240 Ball Valve
Dim X8.000000000000 mm
Dim XX10.000000000000 mm
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2079
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYears
Expected Life0
FeaturesStainless Steel Full Bore - LN240 Ball Valve
FinishSilver
Flow0.000000000000 L/s
GasketPTFE
Graden/a
HandleAISI304
Handle Calc13.500000000000 mm
Handle Collar Length30.000000000000 mm
Handle CoverPVC
Handle Downstand28.900000000000 mm
Handle Length120.000000000000 mm
Handle MaterialBOSS_Blue
Handle NutZinc Plated Steel
Handle WasherAISI304
Handle Width27.000000000000 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.STOPCOCK
K Coefficient96
KeynoteS
L1 mm21.500000000000 mm
Loss Method2
ManufacturerBOSS
Manufacturer NameBOSS
MaterialStainless Steel
Model36420067
Model Number36420067
Model ReferenceStainless Steel Full Bore - LN240 Ball Valve
NBS DescriptionBall stop valves
NBS Noten/a
NBS Object NameBOSS - Ball stop valves
NBS Office Master Tagn/a
NBS Reference90-20-80/325
Nominal Depth0.000000000000 mm
Nominal Height92.500000000000 mm
Nominal Length108.600000000000 mm
Pressure Rating10.5bar @ 180
Product Code36420067
Production Year2017
Referenced Standardn/a
Replacement Costn/a
SeatsPTFE
Shapen/a
Size42mm
Size mm20.000000000000 mm
Spare Partsn/a
StemASTM A276-304
Stem Height70.000000000000 mm
Stem MaterialBOSS_StainlessSteel
Stem PackingPTFE
Stem Rad12.000000000000 mm
Stem Top Rad13.000000000000 mm
Swing ZoneBOSS-SWINGZONE
Thrust WasherPTFE
Type Comments42mm
Type NameStainless Steel Full Bore - LN240 Ball Valve
URLwww.bssindustrial.co.uk/Product-Centre/Valves-Filtration
Valve Hax Calc 250.000000000000 mm
Valve Hex Calc48.000000000000 mm
Valve MaterialBOSS_StainlessSteel
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Weight_Kg2.15
