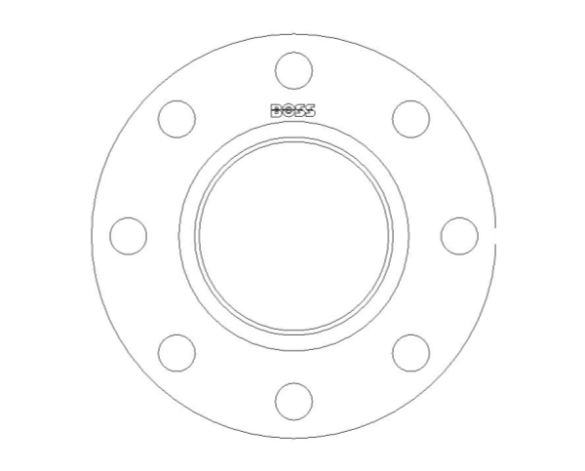

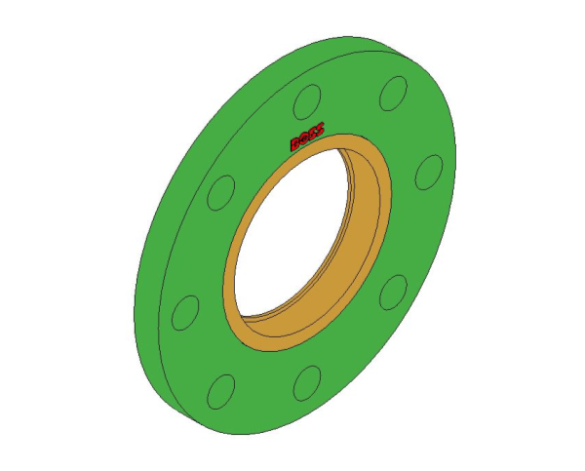

Bi-Metallic Flanges Table 16/23

Object metadata

• _Authorwww.alusservices.co.uk
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Bywww.alusservices.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• 8 Hole FlangeYes
• 8 Hole Off10 mm
• 8 Hole On18 mm
• Accessibility PerformanceN/A
• AirNo
• ApplicationBi-Metallic Flange
• ApprovalN/A
• Assembly CodeD2090800
• Asset TypeFixed
• BIM Object NameBOSS_PipeFittings_BiMetallicFlanges_Table1623
• BodyLG2
• Classification NameUniclass2015
• Classification ValuePr_65_52_63_18
• Code PerformanceN/A
• ColorGunmetal
• ConnectionFlange BS 4504 2 Table 16/23
• ConstituentsN/A
• Created Byenquiries@bssgroup.com
• Created On23-11-2019 T09:00:00
• D1220 mm
• D2155 mm
• D3125 mm
• D4103 mm
• D5180 mm
• D620 mm
• D7127 mm
• DescriptionBOSS Bi-Metallic Flanges Table 16/23 108mm
• Documentation CertificatesN/A
• Documentation Installation GuideN/A
• Documentation LiteratureN/A
• Documentation MaintenanceN/A
• Documentation TechnicalN/A
• Duration Unityears
• EAN CodeN/A
• Expected Life0
• FeaturesCarbon steel outer flange conforming to BS4360 Grade 40A,Cast gunmetal inner flange conforming to BS1400 LG2, Outer flange is machined all over with a green (RAL6011) epoxy coating, Inner flange is machined all over and supplied with a tube stop.Bolting Requirements:-Studs to comply to BS4439 Grade 4.8.Stud bolts to comply to BS4882 carbon steel.Hexagon headed bolts to comply to BS3692 or BS4190 Grade 4.6. Nuts to comply to BS3692, BS4190 Grade 4, ot BS4882 Grade 2H/M as appropriate.Where washers are used, they should conform to BS4320 (1968) Table 3.
• FinishMachined
• Flange Dn100 mm
• Flange MaterialBS4360 Grade 40A.
• Gas CombustibleNo
• Gas CorrosiveNo
• Gas InertNo
• Gas OxygenNo
• GPID CodeN/A
• GradeN/A
• Ifc Export AsIfcPipeFittingType.CONNECTOR
• Ifc Export TypeIfcPipeFittingType
• K Coefficient0
• K Coefficient TableReducer/Coupling/Union/Increaser
• KeynoteS
• L118 mm
• L219 mm
• L32 mm
• L419 mm
• Loss MethodNot Defined
• ManufacturerBSS BOSS Products
• Manufacturer NameBSS BOSS Products
• MaterialLG2
• Maximum Working Pressure16 Bar
• Maximum Working Temperature260°C
• ModelBOSS Bi-Metallic Flanges Table 16/23 108mm
• Model Number86127004
• Model ReferenceBOSS Bi-Metallic Flanges Table 16/23 108mm
• NBS DescriptionCopper pipeline fittings
• NBS Object NameBSS BOSS Products -Copper pipeline fittings
• NBS Office Master TagN/A
• NBS Reference90-10-65/315
• Nominal Depth220 mm
• Nominal Dia108 mm
• Nominal Height220 mm
• Nominal Length21 mm
• Nominal Width21 mm
• OilYes
• Pressure DropN/A
• Production Year2019
• Referenced StandardN/A
• Replacement CostN/A
• ShapeCylindrical
• Size108mm
• Spare PartsBOSS Technical Team Tel 0116 245 5940
• SteamYes
• Symbol Pos5 mm
• Tubing OptionsCopper
• Type CommentsBOSS Bi-Metallic Flanges Table 16/23
• Type NameBOSS Bi-Metallic Flanges Table 16/23
• URLwww.bssindustrial.co.uk/products/boss
• Warranty DescriptionN/A
• Warranty Duration Labor0
• Warranty Duration Parts1
• Warranty Duration Unityears
• Warranty Guarantor Laborenquiries@bssgroup.com
• Warranty Guarantor Partsenquiries@bssgroup.com
• WaterYes
• WeightN/A
