End Feed Fitting - Straight Tap Connector

Download Add to collection

Description

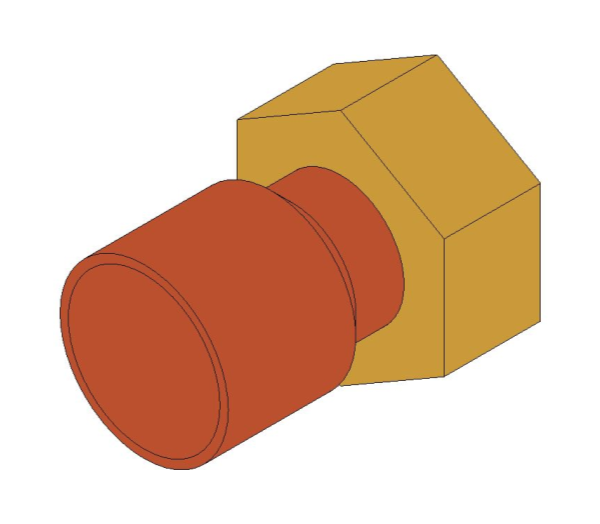

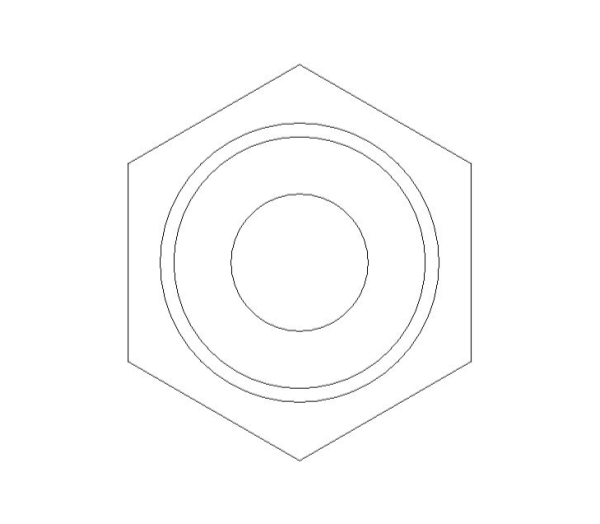

BOSS End Feed Straight Tap Connector

Object Data

1 Revision

Last Updated

30/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_Authorwww.alusservices.co.uk
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.alusservices.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility PerformanceN/A
AirNo
ApplicationCopper Capillary Fittings
ApprovalWRAS approved.
Assembly CodeD2090800
Asset TypeFixed
BIM Object NameBOSS_PipeFittings_EndFeedFittings_StraightTapConnector
BodyDZR brass
Classification NameUniclass2015
Classification ValuePr_65_52_63_18
Code PerformanceN/A
ColorCopper
ConnectionCapillary
ConstituentsN/A
Created Byenquiries@bssgroup.com
Created On2019-12-15 T09:00:00
D117 mm
D214 mm
D314 mm
D412 mm
DescriptionBOSS End Feed Straight Tap Connector 15x1/2"
Documentation CertificatesN/A
Documentation Installation GuideN/A
Documentation LiteratureN/A
Documentation MaintenanceN/A
Documentation TechnicalN/A
Duration Unityears
EAN CodeN/A
Expected Life0
FeaturesFittings are manufactured to EN 1254. Available on sizes 6-54 mm. Quality assured in accordance with ISO9001:2008 from BSI. Copper fittings has been engineered for performance and backed by independent kitemark certification and WRAS approvals.
FinishCopper
Gas CombustibleNo
Gas CorrosiveNo
Gas InertNo
Gas OxygenNo
GPID CodeN/A
GradeN/A
Ifc Export AsIfcPipeFittingType.CONNECTOR
Ifc Export TypeIfcPipeFittingType
K Coefficient0
K Coefficient TableReducer/Coupling/Union/Increaser
KeynoteS
L124 mm
L210 mm
L38 mm
Loss MethodNot Defined
ManufacturerBSS BOSS Products
Manufacturer NameBSS BOSS Products
MaterialCopper
Maximum Working Pressure25 Bar
Maximum Working Temperature110°C
ModelBOSS End Feed Straight Tap Connector 15x1/2"
Model Number62250222
Model ReferenceBOSS End Feed Straight Tap Connector 15x1/2"
NBS DescriptionCopper pipeline fittings
NBS Object NameBSS BOSS Products -Copper pipeline fittings
NBS Office Master TagN/A
NBS Reference90-10-65/315
Nominal Depth27 mm
Nominal Dia15 mm
Nominal Height27 mm
Nominal Length32 mm
Nominal Width32 mm
Nut AF24 mm
OilNo
Pressure DropN/A
Production Year2019
Referenced StandardEN1254-1
Replacement CostN/A
ShapeCylindrical
Size15x1/2"
Spare PartsBOSS Technical Team Tel 0116 245 5940
SteamNo
Thread Dia20 mm
Tubing OptionsN/A
Type CommentsBOSS End Feed Straight Tap Connector
Type NameBOSS End Feed Straight Tap Connector
URLwww.bssindustrial.co.uk/products/boss
Warranty DescriptionN/A
Warranty Duration Labor0
Warranty Duration Parts1
Warranty Duration Unityears
Warranty Guarantor Laborenquiries@bssgroup.com
Warranty Guarantor Partsenquiries@bssgroup.com
WaterYes
WeightN/A
Z113 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
