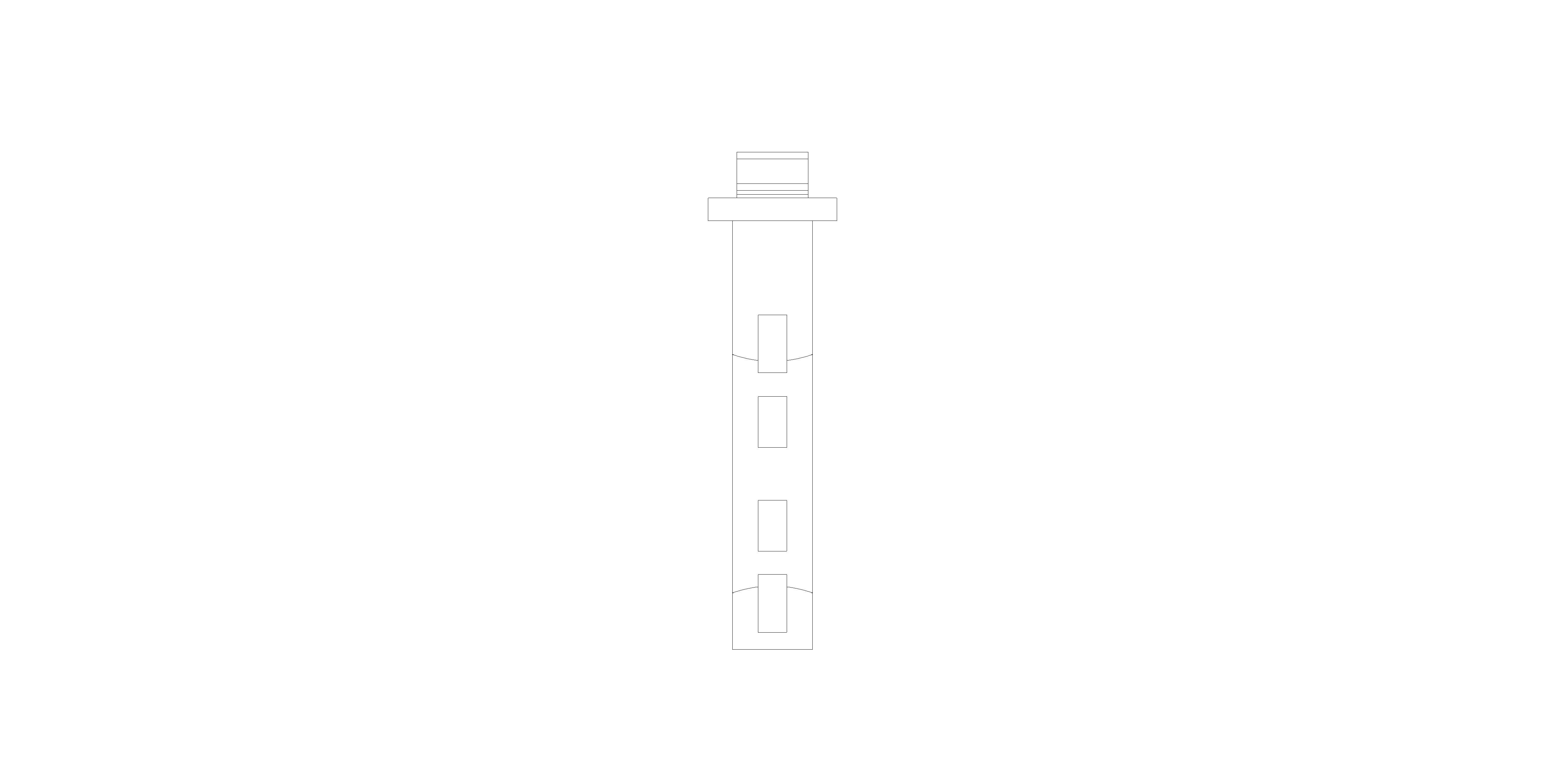

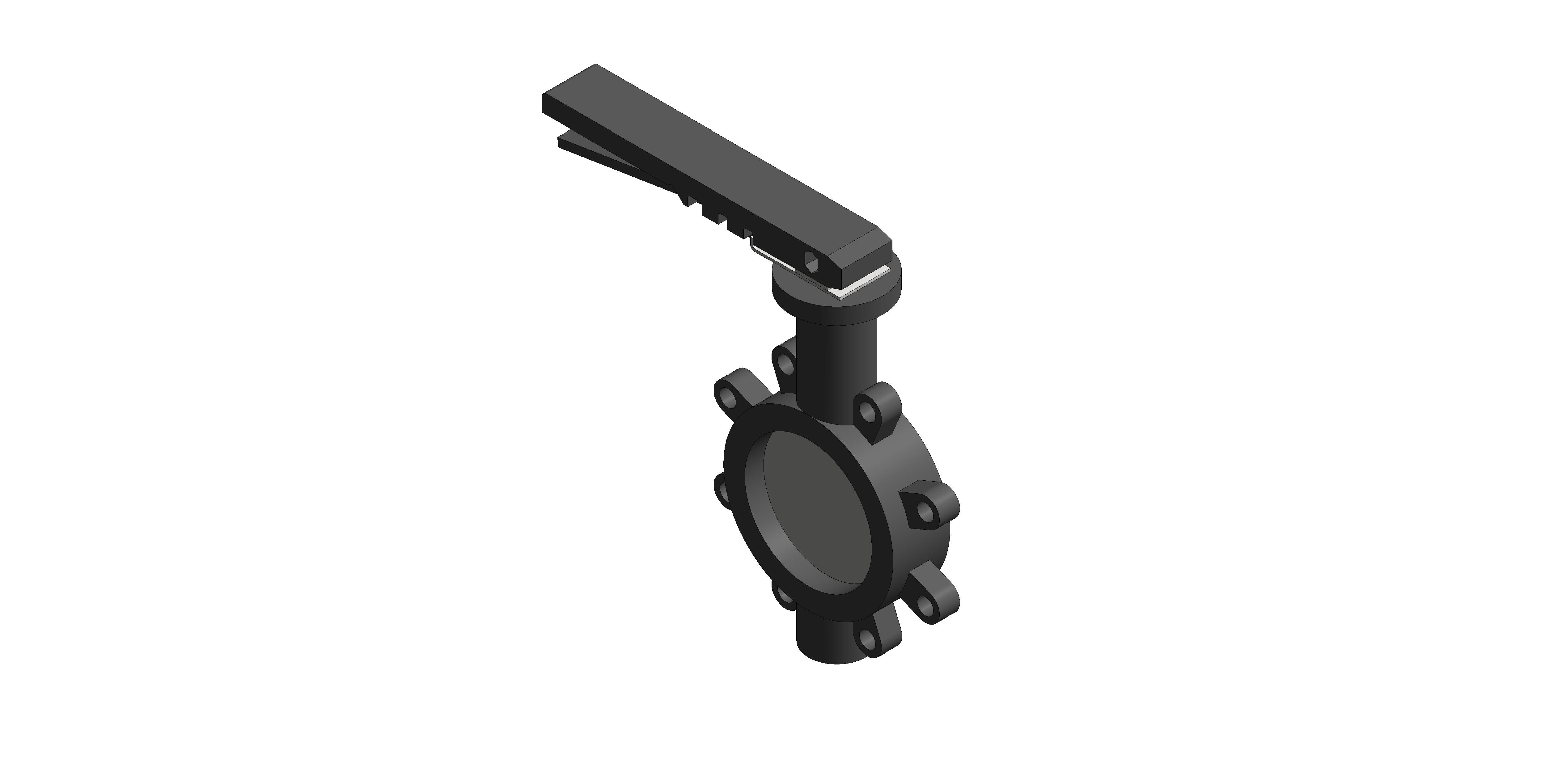

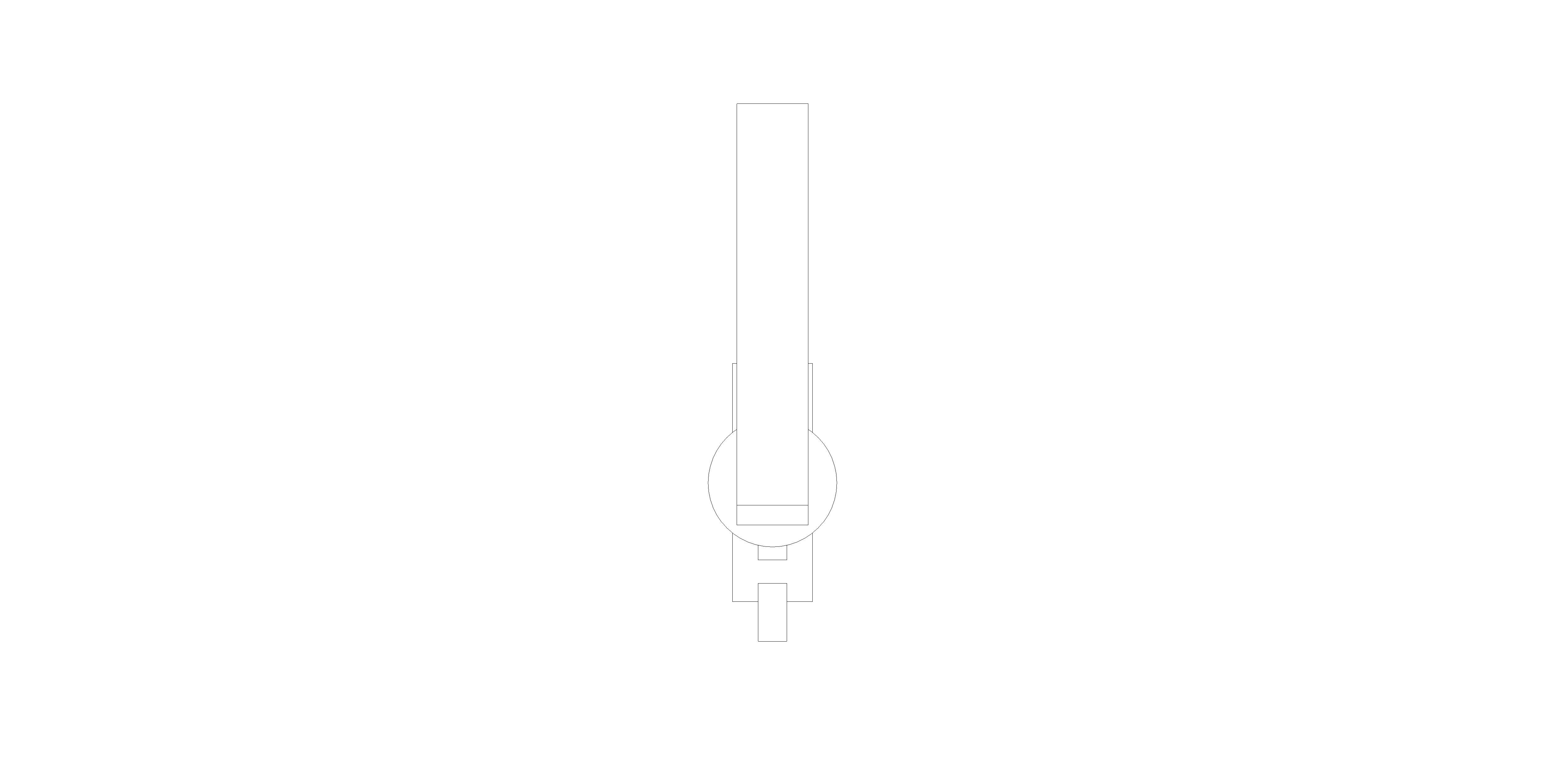

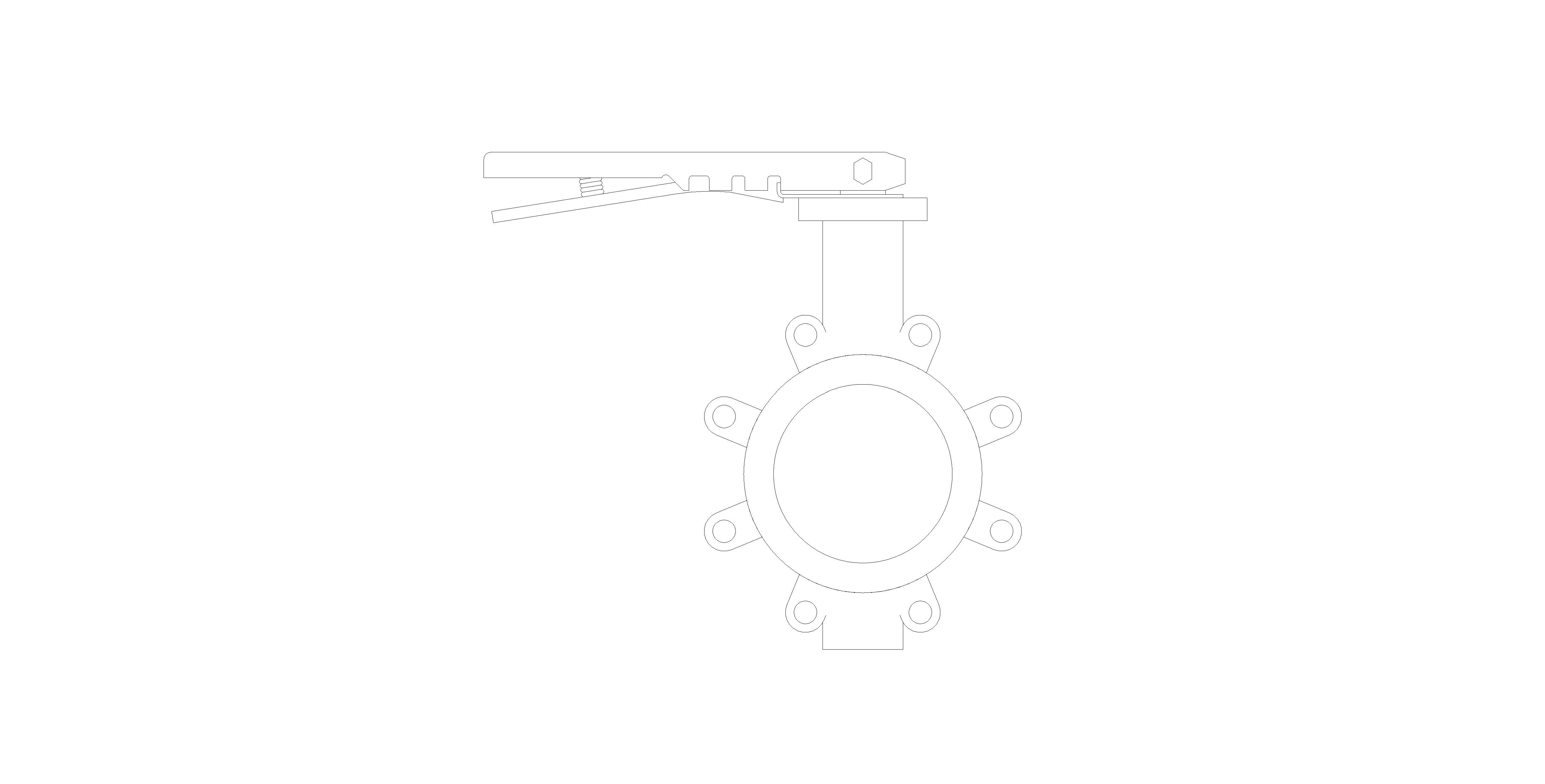

F631 - Butterfly Valve Ductile Iron Fully Lugged Lever Operated

by Crane Fluid Systems

Download Add to collection

Description

Features & Benefits:

Stainless steel disc for improved strength and a wide range of applications
Robust, ductile iron valve bodies for long service life
The anti-blow out stem design provides a safe and secure operation
Valve body fully-lugged for secure installation
Fully bonded epoxy paint system for superior corrosion resistance
Suitable for applications where Level 3 C3 (Medium) corrosion protection is required
Maintenance free valve design, reducing downtime
Suitable for wide temperature range -10°C to 120°C

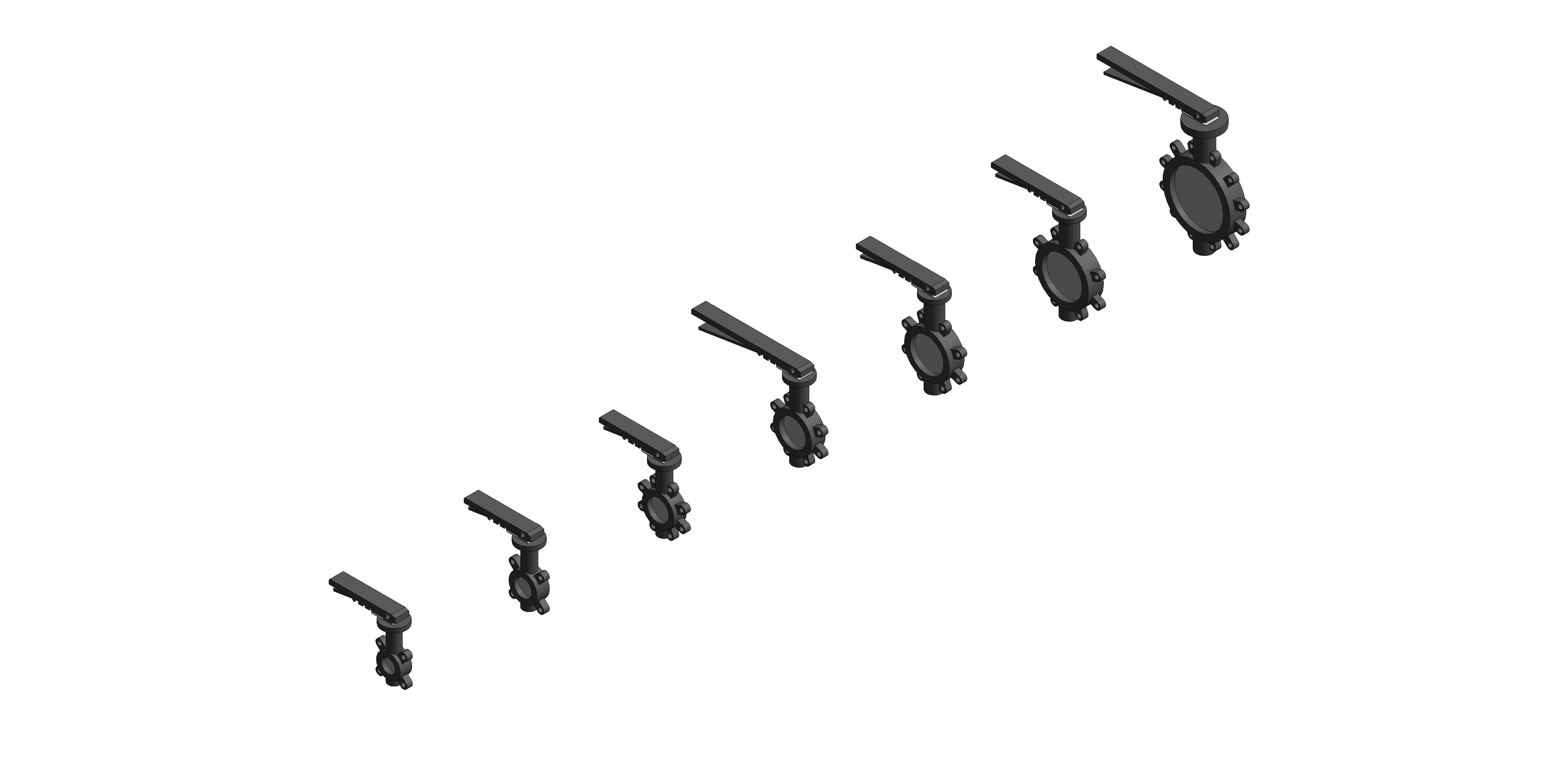

F631 lever operated valves available in sizes DN50 to DN200
F632 gear operated valves available in sizes DN50 to DN600
F631B bareshaft valves available in sizes DN50 to DN600, for actuation requirements

Object Data

3 Revision

Last Updated

31/05/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

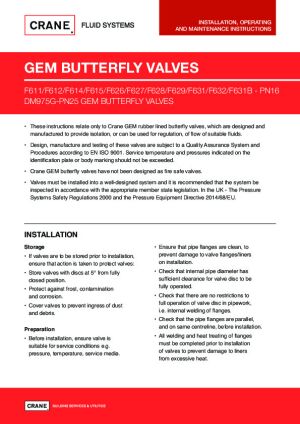

Installation Guide

Product Literature

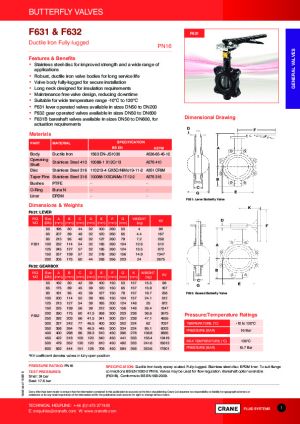

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co
_Current Revision3
_Distributed Bywww.bimstore.co
12 HoleNo
16 HoleNo
20 HoleNo
260mm LeverYes
356mm LeverNo
4 HoleNo
8 HoleYes
A232 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
B114 mm
BIM Object NameCrane_PipeAccessories_ButterflyValve_DuctileIronFullyLugged_LeverOperated_F631
BSYes
C54 mm
Casing MaterialIron, Ductile Epoxy Paint
Casing Thickness33 mm
ChromeSteel, Chrome Plated
Classification NameUniclass2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlue
Connection Size100 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2018-11-01T09:00:00
D32 mm
DescriptionGenerally conforms to BS EN 593, Ductile Iron body epoxy coated, Fully Lugged, Stainless steel disk, EPDM liner, To suit flange connections BS EN 1092-2 PN16, Valves may be used for flow regulation, Valves DN250 and larger supplied as standard with fully enclosed gear operator.
Disc Dia Calc50 mm
Disc MaterialAluminum
Disc Shaft Calc48 mm
Disc Shaft Cover Calc14 mm
Disc Thickness10 mm
Disc Vertical Calc98 mm
Documentation Certificatesn/a
Documentation Installation Guidewww.bimstore.co/product/3c34b238-c98e-40ec-8f6b-7020edf72cb3/document/dbc91170-98cd-4689-9415-d33ff493fefa/download
Documentation Literaturewww.bimstore.co/product/3c34b238-c98e-40ec-8f6b-7020edf72cb3/document/e489cf17-6e90-41d9-a50b-0db382deb6de/download
Documentation Maintenancen/a
Documentation Technicalwww.bimstore.co/product/3c34b238-c98e-40ec-8f6b-7020edf72cb3/document/e489cf17-6e90-41d9-a50b-0db382deb6de/download
Duration UnitYears
E165 mm
Expected Life0
F260 mm
FeaturesRobust, ductile Iron valve bodies for long service life. Stainless steel disc for improved strength and a wide range of applications. Valve body fully-lugged for secure installation. Long neck designed for insulation requirements. Maintenance free valve design, reducing downtime. External epoxy coating for improved durability. Suitable for wide temperature range -10°C to 120°C. Fig. 4970 lever operated valves available in sizes DN50 to DN200. Fig. 4970G gear operated valves available in sizes DN50 to DN600.
Finishn/a
Flange Length17 mm
G104 mm
Graden/a
Handle4
Handle Base Offset50 mm
Handle Turn Calc260 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
Inner Casing Dia Calc80 mm
K Coefficient512
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane Fluid Systems
Manufacturer NameCrane Fluid Systems
MaterialDuctile Iron
Middle Casing Dia Calc65 mm
ModelDuctile Iron Fully-lugged
Model NumberF631
Model ReferenceDuctile Iron Fully-lugged
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameCrane - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth33 mm
Nominal Height346 mm
Nominal Length343 mm
Outer Casing Dia Calc83 mm
Production Year2018
Referenced Standardn/a
Replacement Costn/a
Shaft Dia9 mm
Shapen/a
Size100mm
Spare Partsn/a
Type CommentsDN100 - F631 - Lever
Type NameDN100 - F631 - Lever
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@cranefs.com
Weight12.60 kg
