D162 - Gate Valve - Bronze

by Crane Fluid Systems

Download Add to collection

Description

D162 - 3/4" to 3"

Gate Valve - Bronze

Class 150 ANSI Flanged Bronze Gate Valve

Features & Benefits

Crane gate valves offer the ultimate in dependable service wherever minimum pressure drop is important

Size	3/4" to 3"
Pressure Rating	Class 150
End Connections	ANSI B16.24 Class 150
Material	Bronze

Object Data

1 Revision

Last Updated

06/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

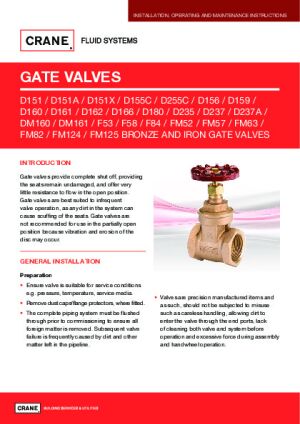

Installation Guide

Maintenance Information

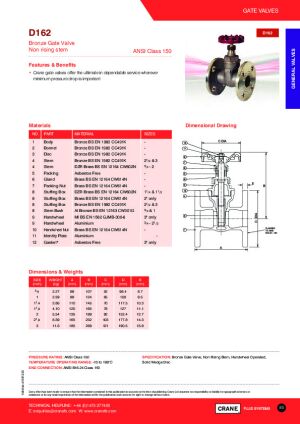

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/crane-fs-d162/document/object-user-guide
4 HolesYes
8 HolesNo
Accessibility Performancen/a
Amm120 mm
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_GateValve_D162
Bmm165 mm
Body Radius28 mm
Body Width98 mm
Bonnet Lower Radius37 mm
Bonnet Lower Thickness19 mm
Bonnet Upper Radius38 mm
Bonnet Upper Thickness6 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_96
Cmm78 mm
Code Performancen/a
Colorn/a
Connection Size42 mm
Connection Size Radius21 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2021-08-31T:09:00:00
DescriptionD162 - Gate Valve - Bronze
Dmm140 mm
Documentation Certificateswww.bimstore.co/products/crane-fs-d162/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/crane-fs-d162/document/installation-guide
Documentation Literaturewww.bimstore.co/products/crane-fs-d162/document/product-literature
Documentation Maintenancewww.bimstore.co/products/crane-fs-d162/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/crane-fs-d162/document/technical-data-sheet
Duration UnitYear
Emm11 mm
End Flange Hole Centres105 mm
End Flange Hole Diameter17 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Handwheel MaterialPVC, Maroon
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient161.93
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD162 - Gate Valve - Bronze
Model NumberD162
Model ReferenceD162 - Gate Valve - Bronze
NBS DescriptionWaterworks gate valves
NBS Noten/a
NBS Object NameCrane FS - Waterworks gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/312
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Packing Nut Diameter31 mm
Packing Nut Height17 mm
Packing Ring Diameter46 mm
Packing Ring Height13 mm
Packing Ring Neck Height22 mm
Packing Ring Neck Radius12 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Stem Corner Radius19 mm
Stem Height22 mm
Stem Loop59 mm
Stem Loop Depth66 mm
Stem Lower Circle Radius33 mm
Stem Radius6 mm
Top Of Stem51 mm
Type CommentsD162 - Gate Valve - Bronze
Type NameD162 - Gate Valve - Bronze
URLwww.cranefs.com/
Valve MaterialBronze
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
