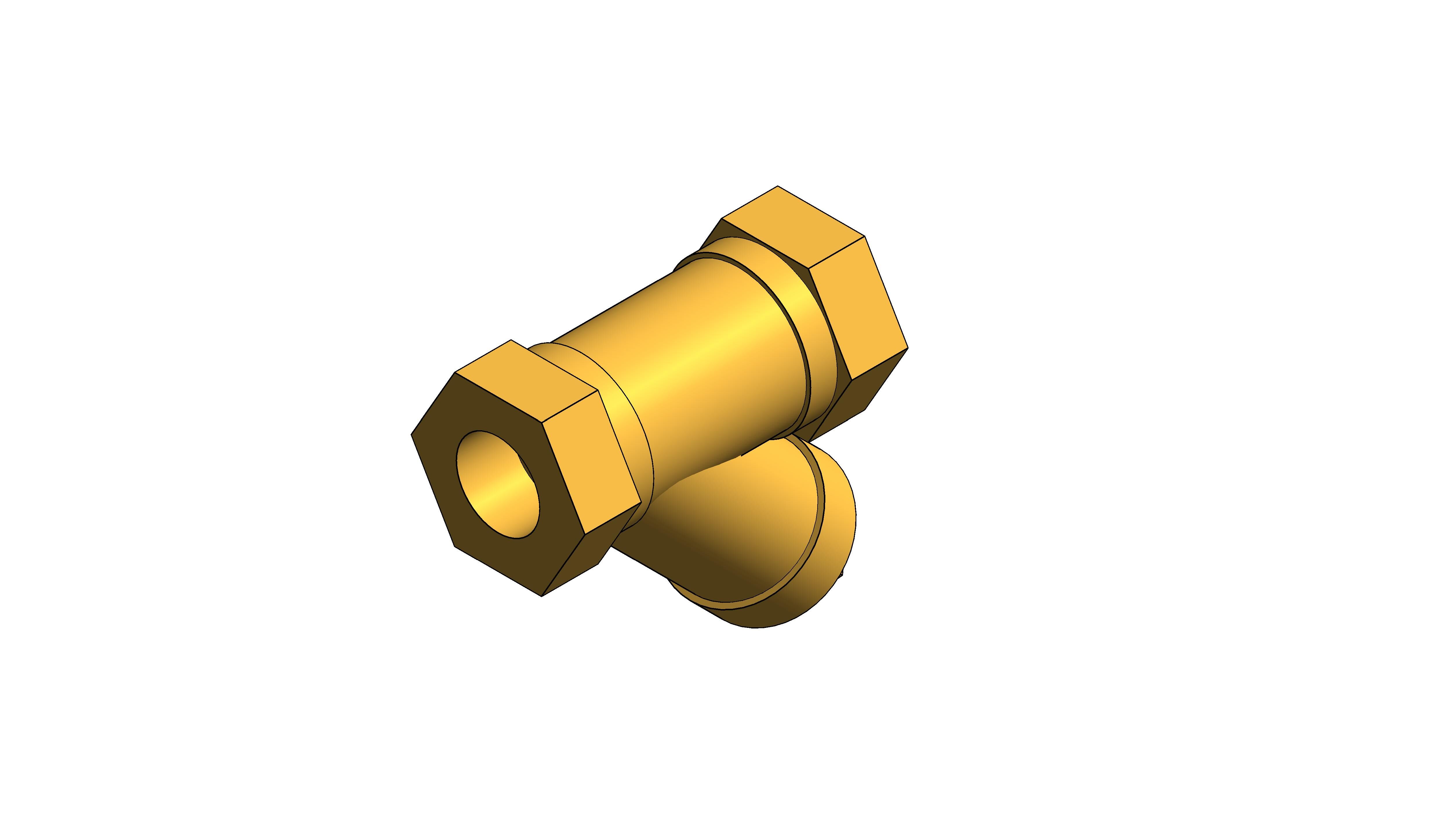

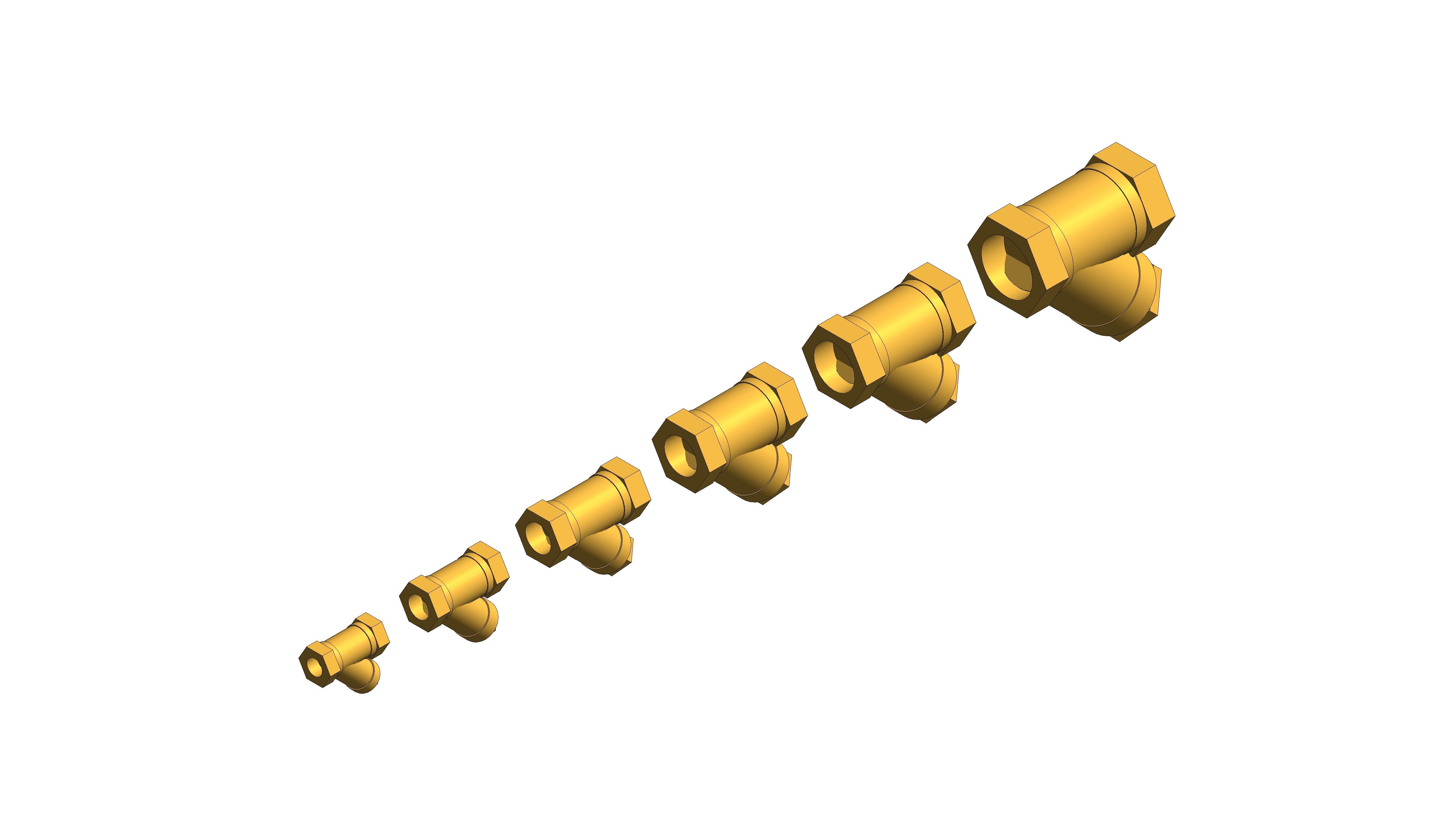

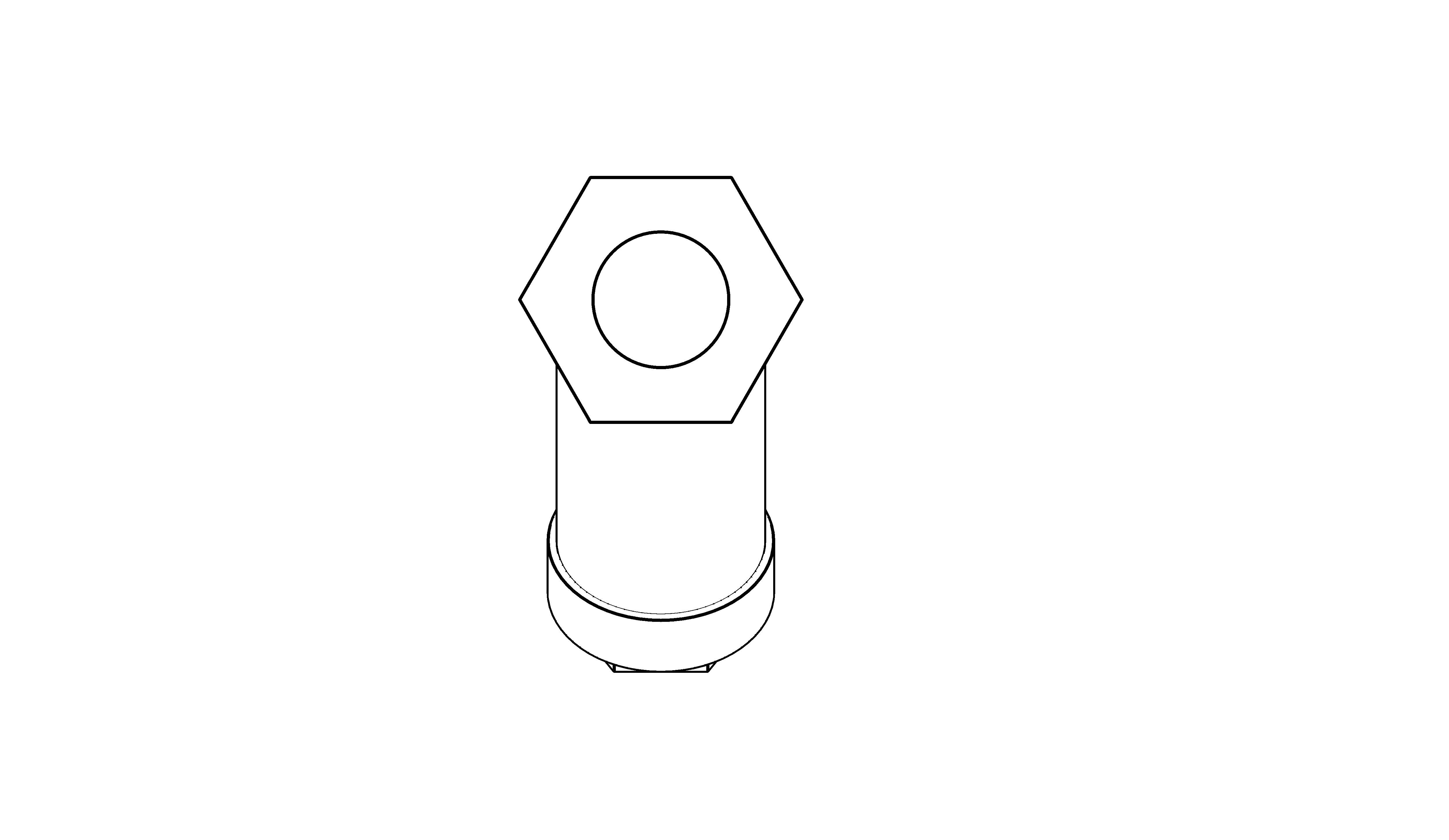

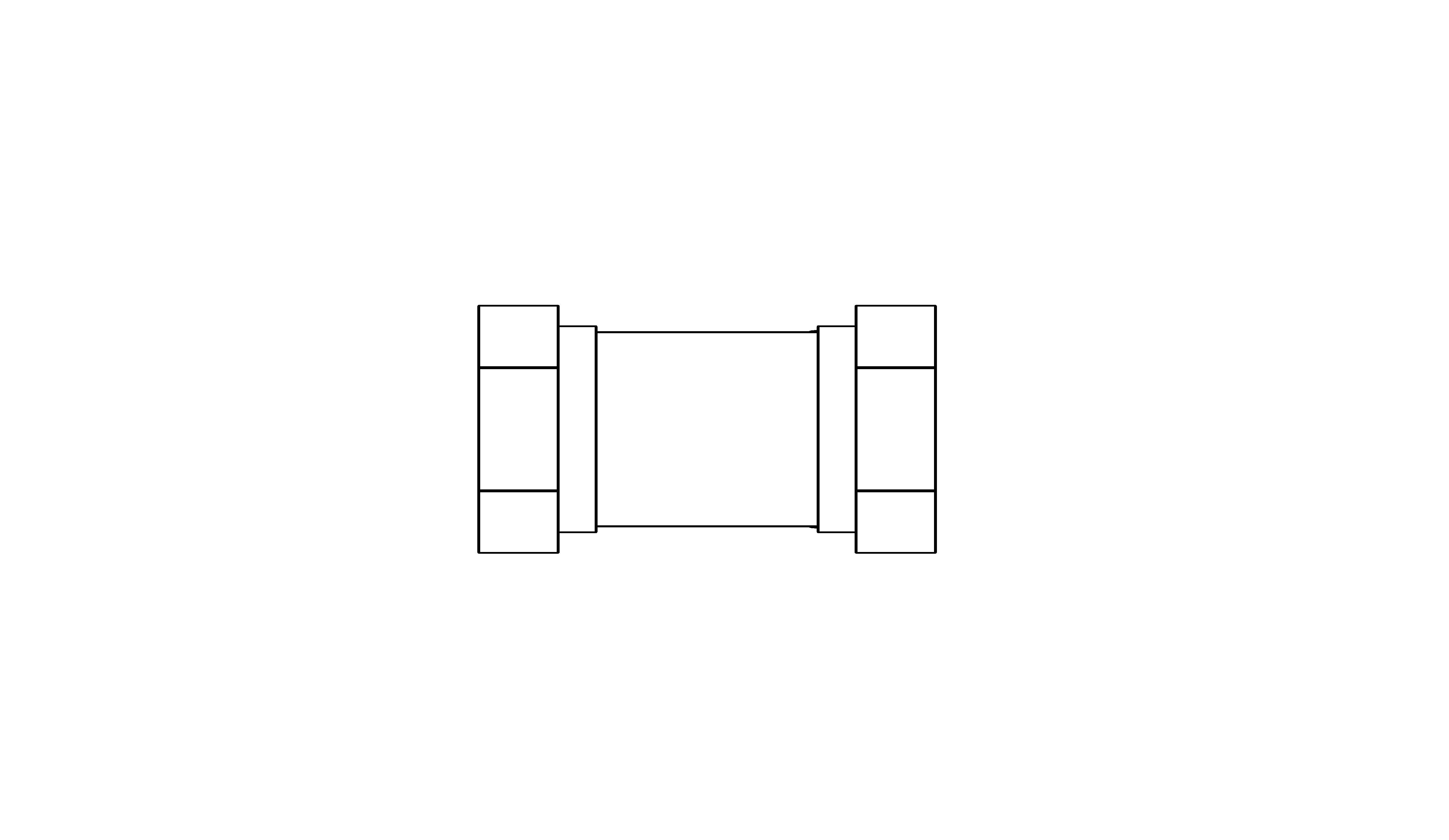

D295 - Strainer | Bimstore

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d295-strainer/document/object-user-guide
A58 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B33 mm
Base Hex Thickness4 mm
BIM Object NameCraneFS_Strainer_D295
BodyBronze 1982 CC491K
Body Calc12 mm
BSYes
C40 mm
CapBronze 1982 CC491K
Cap Dia8 mm
Cap SealPTFE
Cap Thickness1 mm
Classification NameUniclass 2015
Classification ValuePr_65_55_86_99
Code Performancen/a
ColorBronze
Connection Size15 mm
Connection Size Calc8 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2023-09-25 T:09:00:00
D55 mm
Default Elevation0 mm
DescriptionPN20 Y-Type Strainer - Bronze
Documentation Certificateswww.bimstore.co/products/d295-strainer/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d295-strainer/document/installation-guide

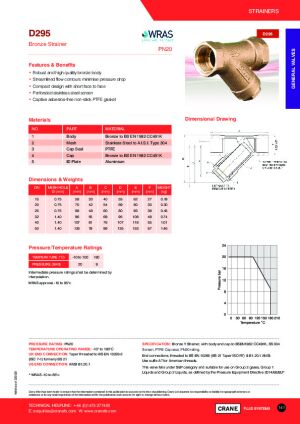

Documentation Literaturewww.bimstore.co/products/d295-strainer/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d295-strainer/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d295-strainer/document/technical-data-sheet
Downstand Body Dia11 mm
Downstand Hex Dia18 mm
Downstand Hex Dia Calc9 mm
Downstand Length38 mm
Downstand Offset12 mm
Downstand Round Dia12 mm
Downstand Round Width8 mm
Duration UnitYear
E62 mm
End Connection(UK)Taper threaded to BS EN 10226-2 (ISO 7-1) formerly BS 21
End Connection(US)ANSI B1.20.1
End Round Dia13 mm
End Round Thickness5 mm
Expected Life0
F27 mm
Features- Robust and high quality bronze body - Streamlined flow contours minimise pressure drop - Compact design with short face to face - Perforated stainless steel screen - Captive asbestos-free non-stick PTFE gasket
Finishn/a
Graden/a
Hex Dia Calc27 mm
Hex Thickness10 mm
Identity PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcFilterTypeEnum.STRAINER
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
MaterialBronze
MeshStainless Steel 304
ModelD295
Model NumberD295
Model ReferenceD295 - Strainer - Bronze
NBS DescriptionY-type strainers
NBS Noten/a
NBS Object NameCrane FS - Y-type strainers
NBS Office Master Tagn/a
NBS Reference90-20-80/320
Nominal Depth31 mm
Nominal Height55 mm
Nominal Length58 mm
Pressure RatingPN20
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partsn/a
Specification NotesBronze Y Strainer, with body and cap to BSEN1982 CC491K, SS 304 Screen, PTFE Cap seal, PN20 rating. End connections threaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI. Use suffix AT for American threads. This valve falls under SEP category and suitable for use on Group 2 gases, Group 1 Liquids and Group 2 Liquids, as defined by the Pressure Equipment Directive 2014/68/EU
Temperature Operating Range-10° to 180°C
Type CommentsDN15
Type NameD295 - Strainer - Bronze
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@cranefs.com
