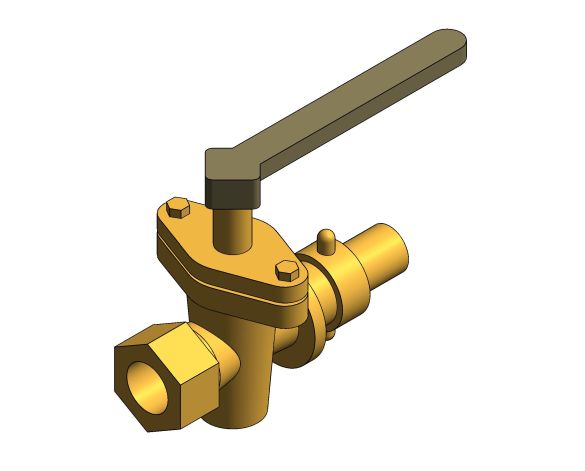

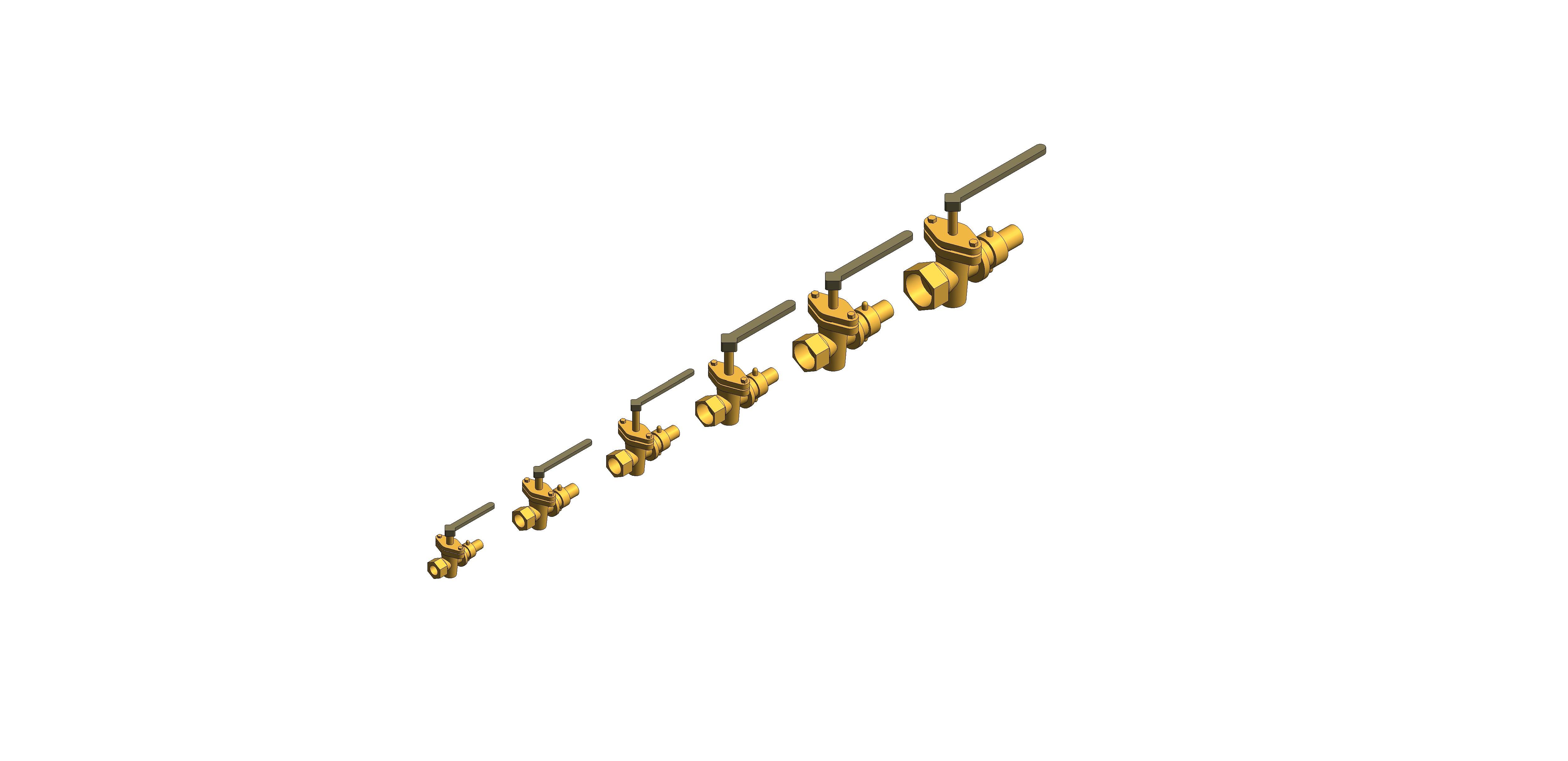

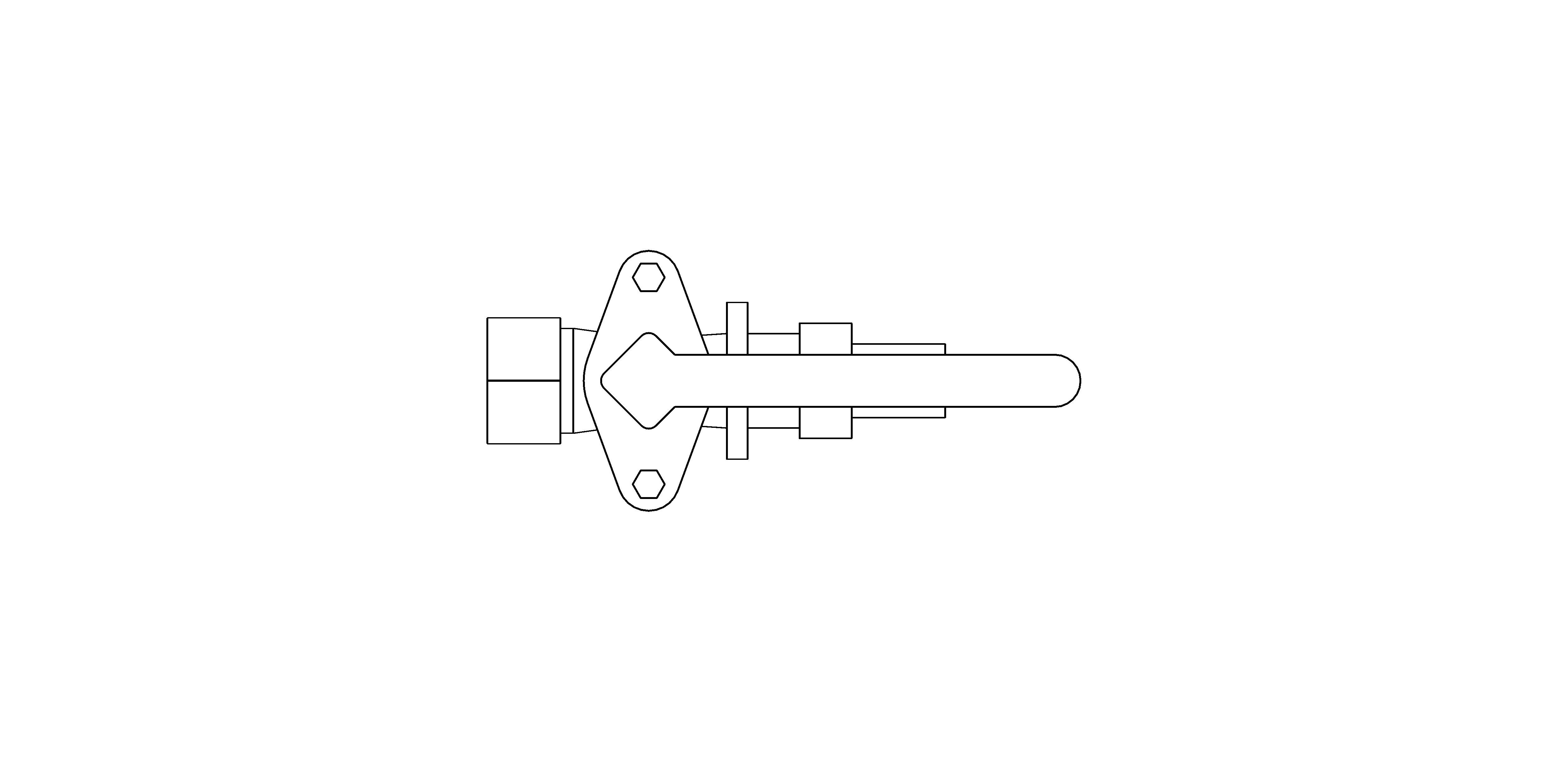

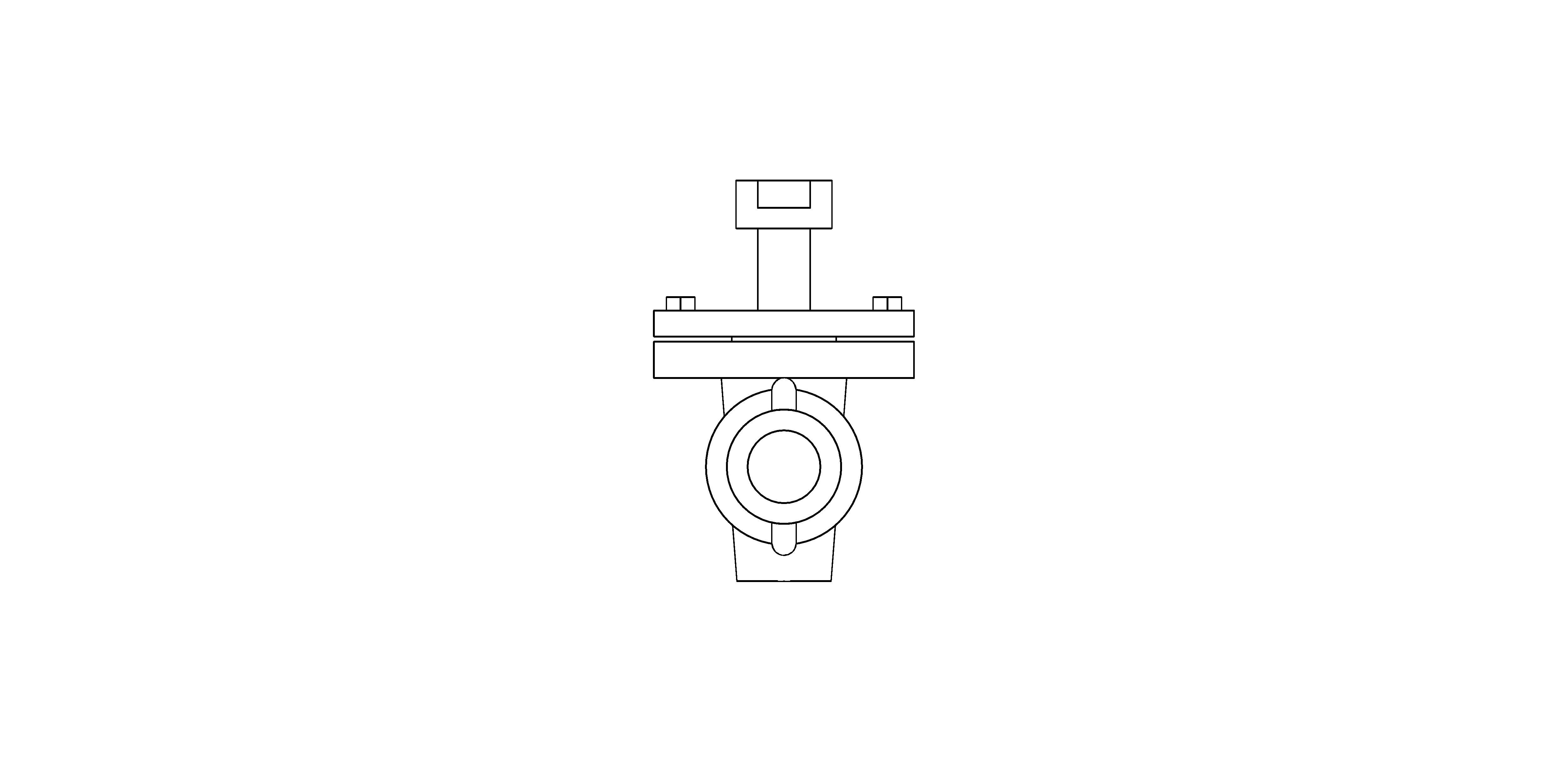

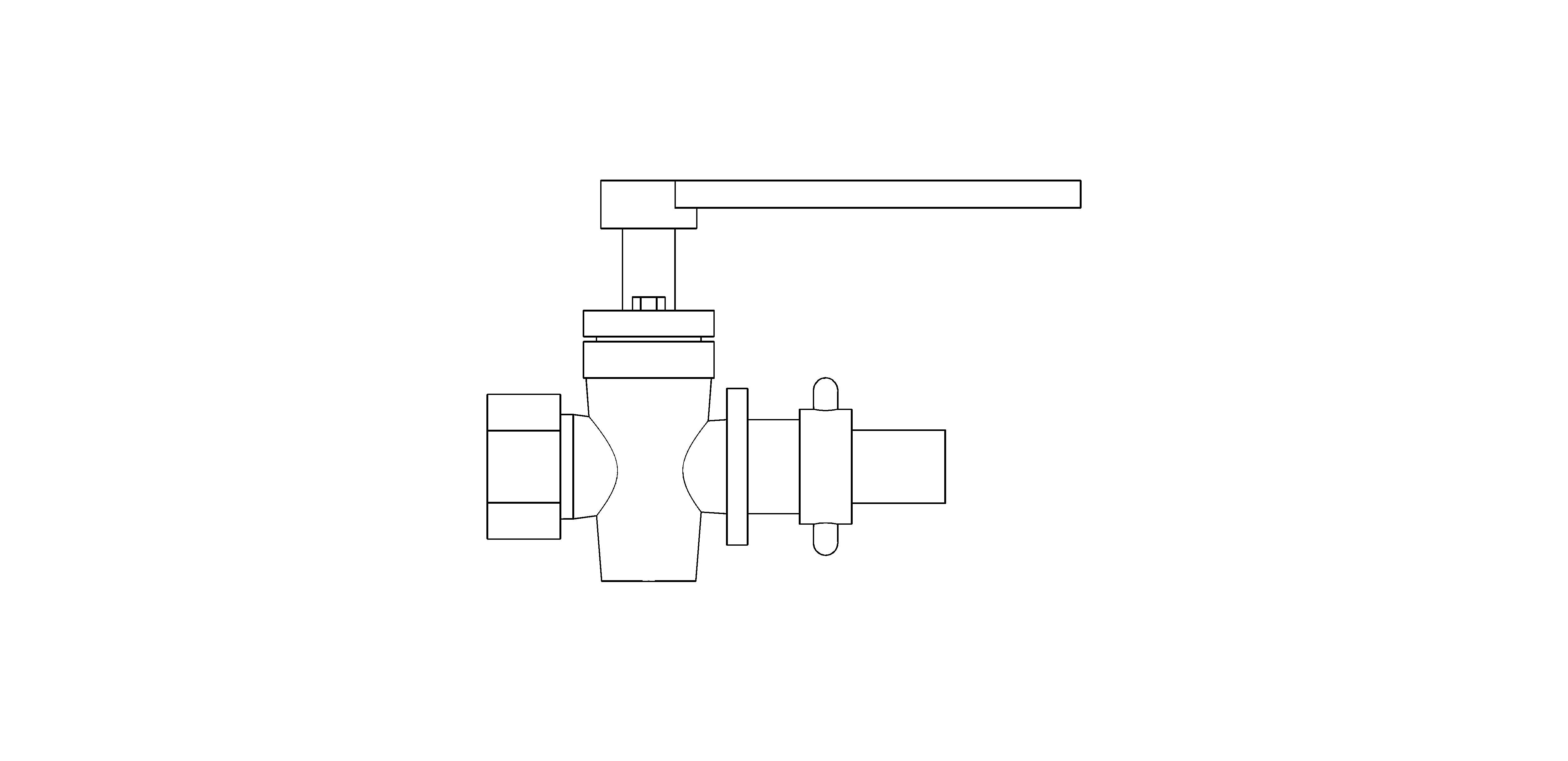

D344 - Bronze Gland Pattern Draw-Off Cock

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/d344-bronze-gland-pattern-draw-off-cock/document/object-user-guide
• 1"No
• 1-1/2"Yes
• 1-1/4"No
• 1/2"No
• 2"No
• 3/4"No
• a46.0 mm
• A204.0 mm
• Accessibility Performancen/a
• Assembly CodeD30
• Asset TypeFixed
• b33.0 mm
• B146.0 mm
• BIM Object NameCrane_GlandPatternDrawOffCock_D344
• BodyBronze BS EN 1982 CC491K
• c19.0 mm
• Classification NameUniclass2015
• Classification ValuePr_65_54_95_27
• Code Performancen/a
• Colorn/a
• Connection Radius20.0 mm
• Connection Size40.0 mm
• Constituentsn/a
• Created Byenquiries@cranefs.com
• Created On2023-09-11 T09:00:00
• d13.0 mm
• Default Elevation0.0 mm
• DescriptionGland Pattern Draw-Off Cock - Bronze
• Documentation Certificateswww.bimstore.co/products/d344-bronze-gland-pattern-draw-off-cock/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/d344-bronze-gland-pattern-draw-off-cock/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/d344-bronze-gland-pattern-draw-off-cock/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/d344-bronze-gland-pattern-draw-off-cock/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/d344-bronze-gland-pattern-draw-off-cock/document/technical-data-sheet
• Duration UnitYear
• e8.0 mm
• End Connection(UK)Not Specified
• Expected Life0
• f25.0 mm
• Features- Straight type, gland pattern - The D344 is suitable for use on pressure up to 8.6 bar and at temperatures up to 110°C
• Finishn/a
• g26.0 mm
• GlandBronze BS EN 1982 CC491K
• Graden/a
• h13.0 mm
• Hex Width 145.0 mm
• Hose UnionsBrass
• i8.0 mm
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.REGULATING
• j55.0 mm
• k31.0 mm
• K Coefficient0
• KeynoteS
• l41.0 mm
• LeverMalleable Iron
• Loss MethodK Coefficient
• m16.0 mm
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• MaterialBronze
• ModelD344
• Model NumberD344
• Model ReferenceD344 - Gland Pattern Draw-Off Cock - Bronze
• n21.0 mm
• NBS DescriptionDraining taps
• NBS Noten/a
• NBS Object NameCrane - Draining taps
• NBS Office Master Tagn/a
• NBS Reference90-10-90/374
• Nominal Depth0.0 mm
• Nominal Height0.0 mm
• Nominal Length0.0 mm
• o17.5 mm
• OperatorLever Operated
• p15.0 mm
• PlugBronze BS EN 1982 CC491K
• Pressure RatingPN10
• Production Year2023
• q20.0 mm
• r11.0 mm
• Referenced Standardn/a
• Replacement Costn/a
• s15.0 mm
• Shapen/a
• Size1-1/2"
• Spare Partsn/a
• Specification Notes- Sizes 1/2" and 3/4", gland pattern, inlet threaded female BS 21 (ISO 7), outlet threaded male BS 2779 (ISO 228) parallel with hose union - Fixed key - Each draw-off cock is hydraulically tested at 20 bar - This valve is excluded from the requirements - NOTE: All sizes come with a handle except 1/2 inch where a handle is not available
• t24.0 mm
• Temperature Operating Range-10 to 110°C
• Type Comments1-1/2"
• Type Name1-1/2"
• u33.0 mm
• URLwww.cranefs.com/
• v4.0 mm
• w65.0 mm
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsenquiries@cranefs.com
• Weight2.61 kg
