DE40BFP - Dominator Eco with BSRIA Flushing Drains & 4-Port
5.8k
0
- / 5Rate this product
Available for:
Features & Benefits
- Innovative design – Unique differential pressure mechanism, ensuring accurate flow control and allowing the valve to be back flushed if required.
- Patent Pending
- Reduced embodied carbon and simple installation by combining a PICV, H-body and FMD together, making the Dominator Eco 36% lighter and 28% shorter than our current 40mm Dominator alternative
- Reliable flow measurement through the integral FMD in accordance to BS 7350
- Easily indentifiable chilled and heating applications via the colour coded tags that also display the fan coil reference

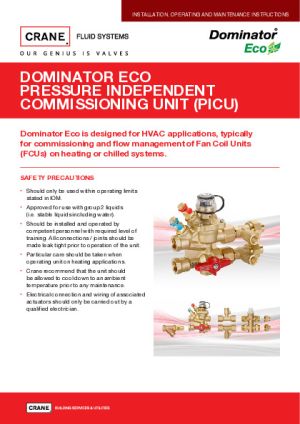

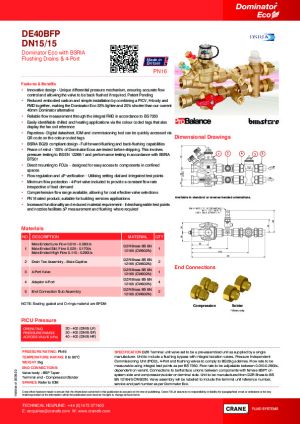

- Paperless – Digital datasheet, IOM and commissioning tool can be quickly accessed via QR code on the colour coded tags
- BSRIA BG29 compliant design – Full forward-flushing and back-flushing capabilities
- Peace of mind – 100% of Dominator Ecos are tested before shipping
- This involves pressure testing to BS EN 12266-1 and performance testing in accordance with BSRIA BTS01
- Direct mounting to FCUs – Designed for easy access to components in confined spaces
- Flow regulation and ∆P verification – Utilising setting dial and integrated test points
- Comprehensive flow range available, allowing for cost effective valve selections
- PN16 rated product, suitable for building services applications
- Increased functionality and reduced material requirement – Interchangeable test points and nozzles facilitate ∆P measurement and flushing where required
To find out the system flow rate through a Dominator Eco visit our Flow Rate Calculator
