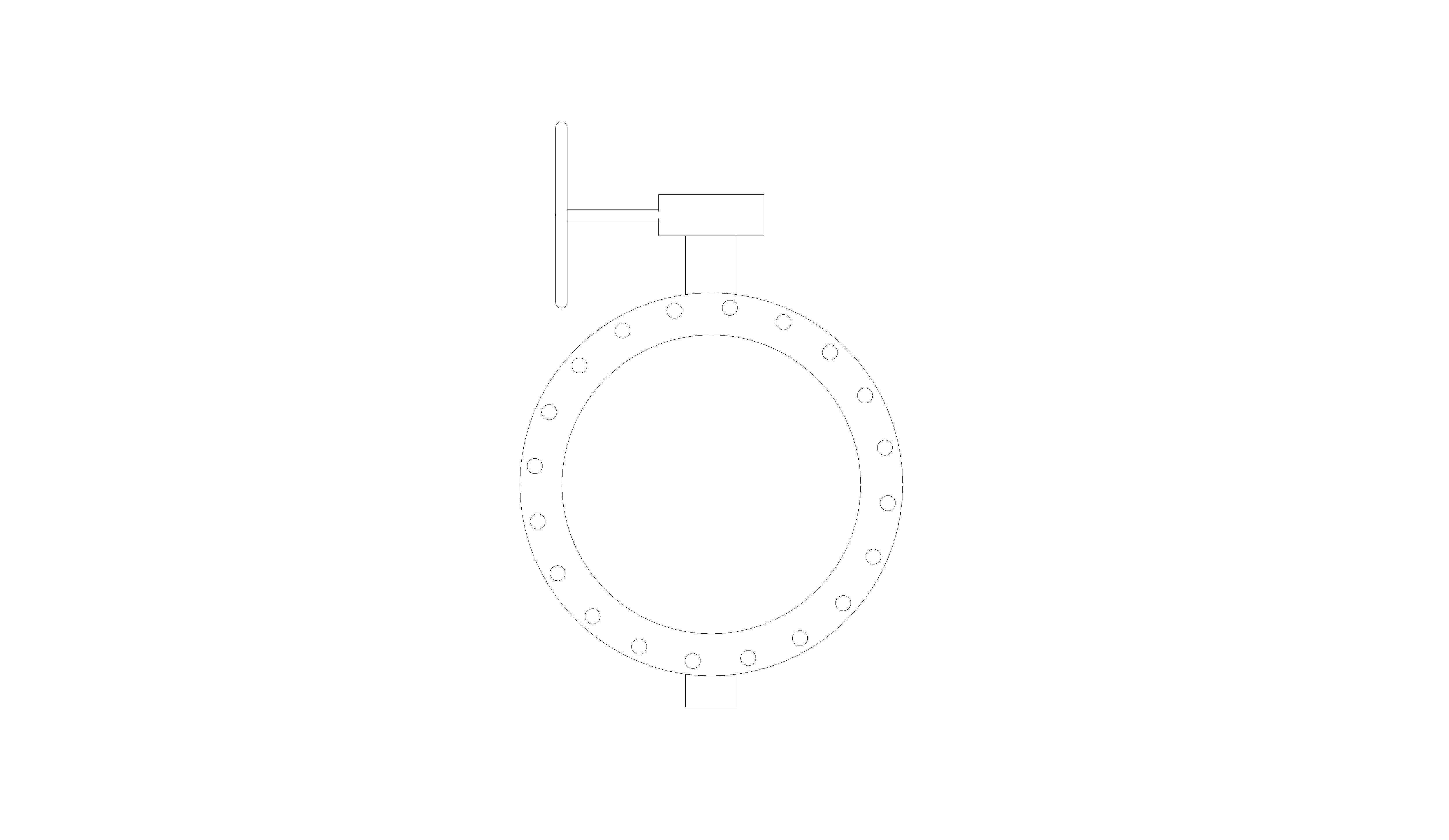

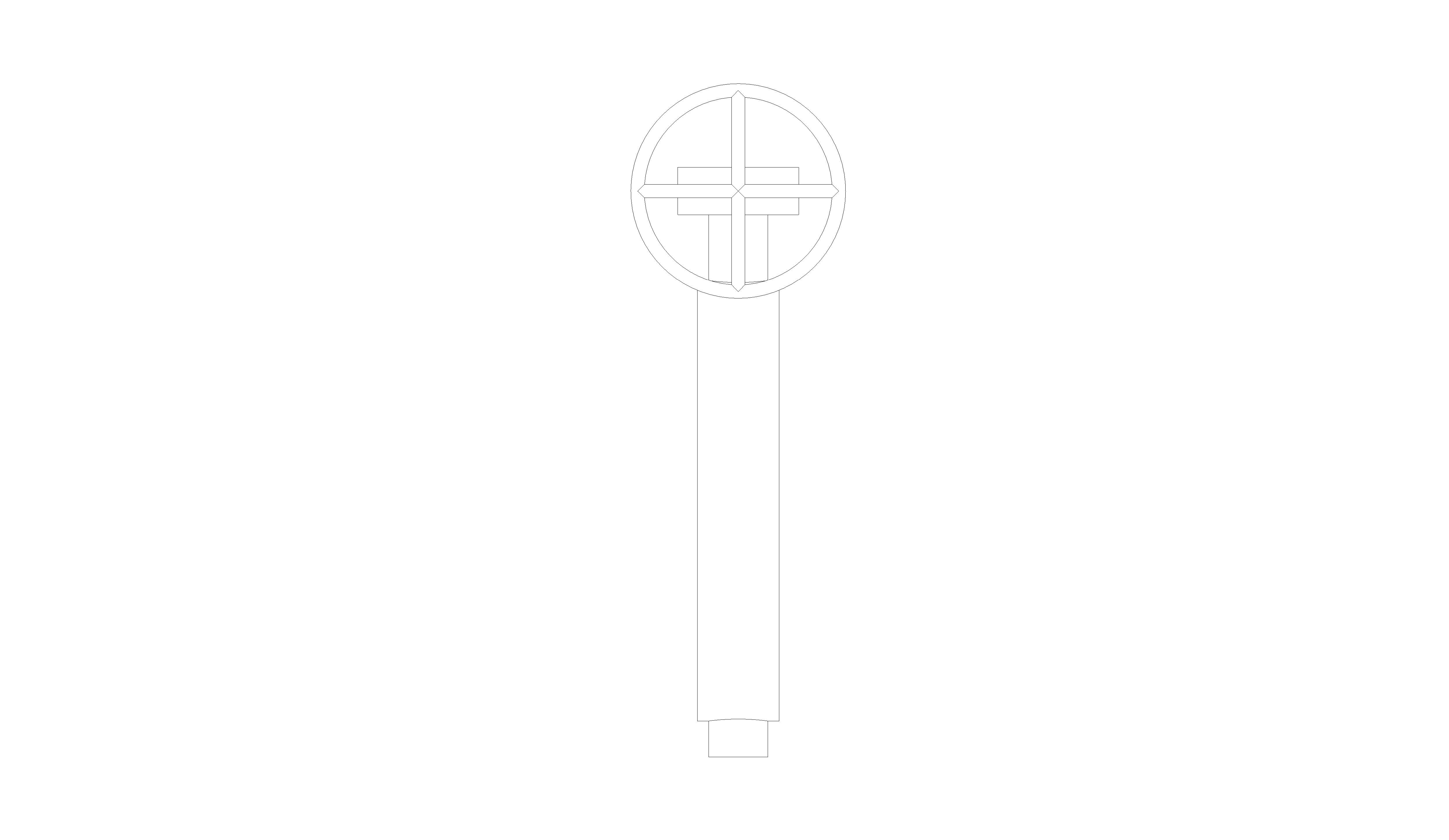

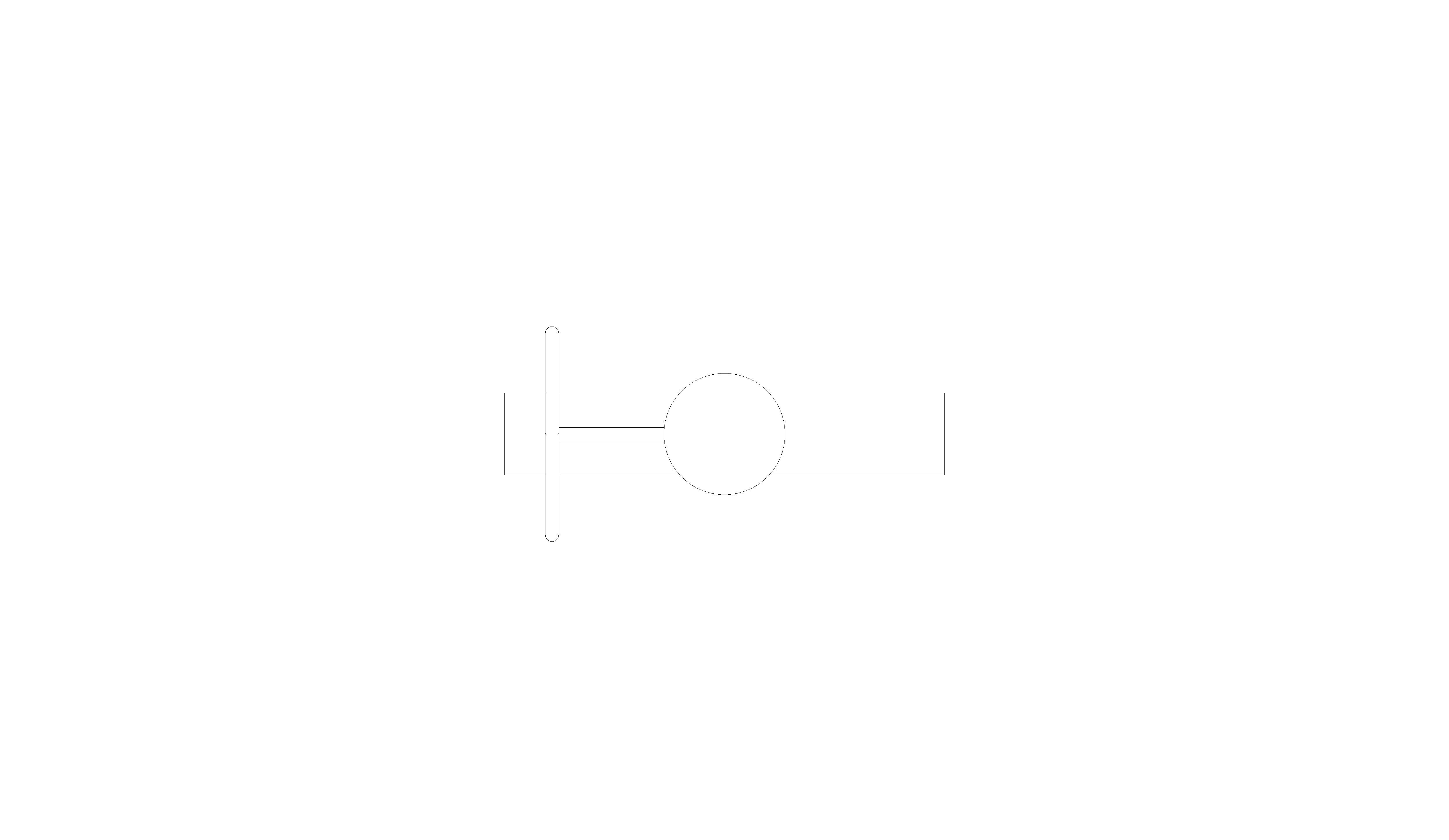

Fig. 4930G/5930G/4930BS - Butterfly Valve - Ductile Iron

Download Add to collection

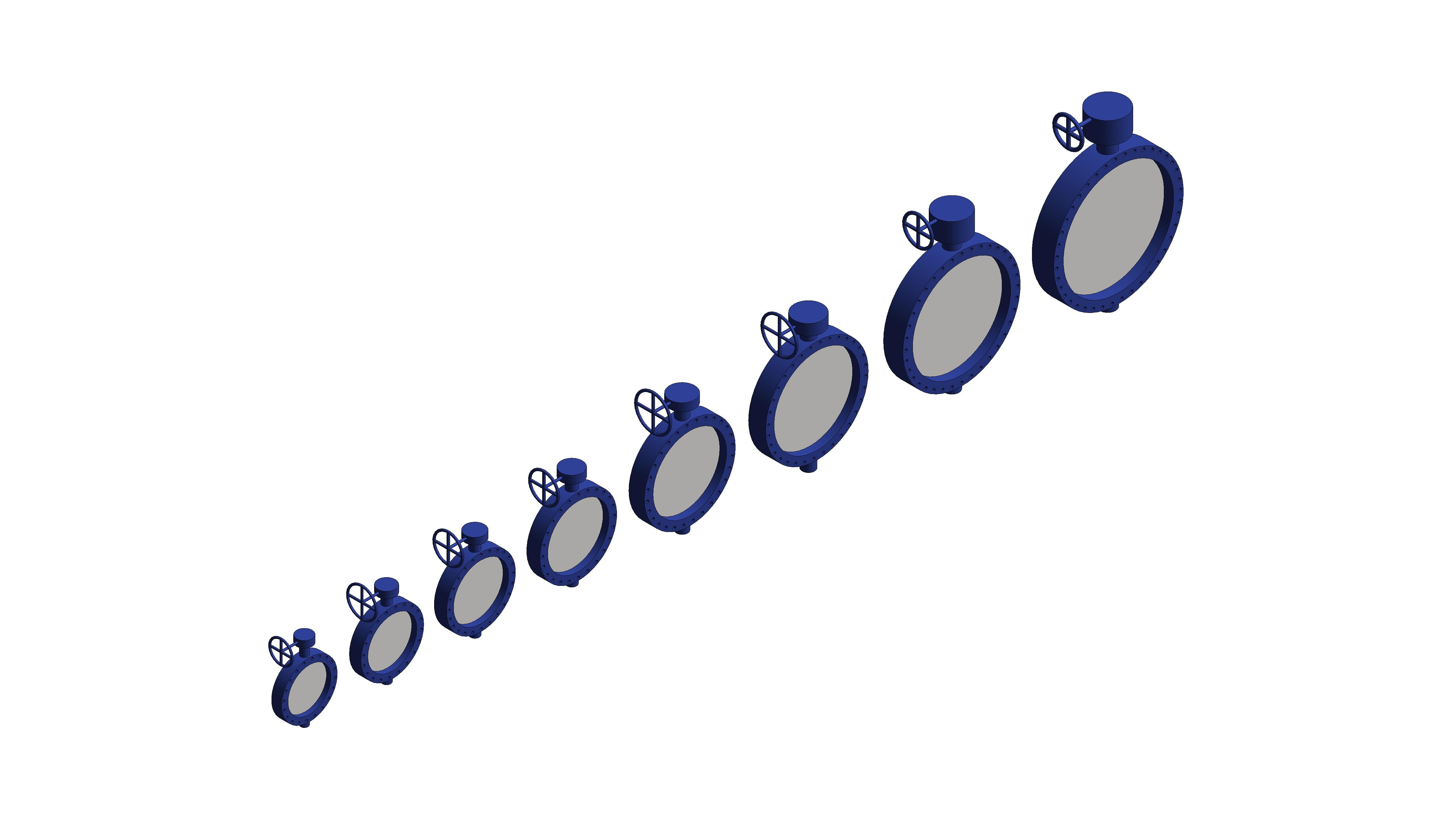

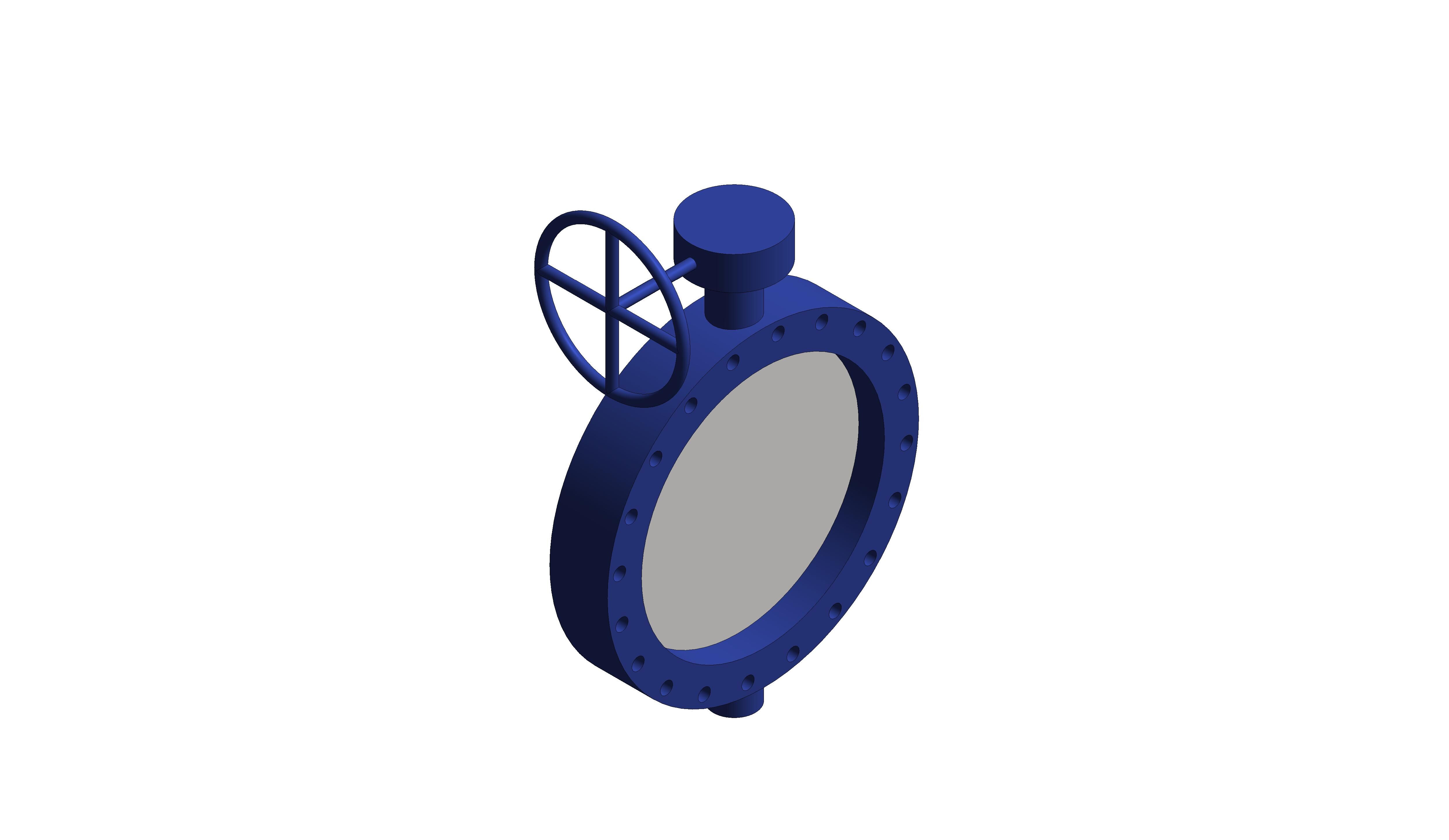

Description

PN16/PN10 Butterfly Valve - Ductile Iron

Manufactured to BS EN 593: 2009
Complies with Pressure Equipment Directive 97/23/EC
Suitable for Gearbox or Actuator operation
Rugged construction: Ductile Iron Body for all sizes
Stainless Steel disc as standard
Epoxy paint coated as standard
Low operating torques

Object Data

1 Revision

Last Updated

30/10/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

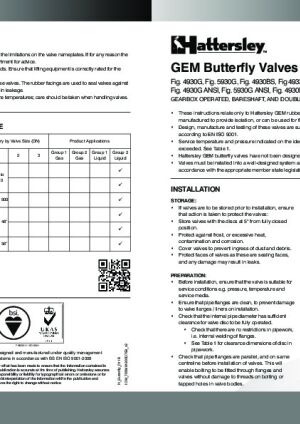

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fig-4930g-5930g-4930bs/document/object-user-guide
a156.60 mm
Accessibility Performancen/a
Actuator Mounting FlangesISO 5211: 2001
Assembly CodeD2090800
Asset TypeFixed
b345.13 mm
Bareshaft Valve OptionsFM700B
BearingHigh Carbon Steel ASTM A295 52100
BIM Object NameHattersley_ButterflyValve_Fig4930G-5930G-4930BS
BodyDuctile Iron EN-GJS-500-7U
c258.84 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlue
Connection Size1000.00 mm
Connection Size Radius500.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2023-09-11 T09:00:00
D1170.00 mm
Default Elevation0.00 mm
DescriptionPN16 Butterfly Valve - Cast Iron
Documentation Certificateswww.bimstore.co/products/fig-4930g-5930g-4930bs/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-4930g-5930g-4930bs/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-4930g-5930g-4930bs/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-4930g-5930g-4930bs/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-4930g-5930g-4930bs/document/technical-data-sheet
Duration UnitYear
End ConnectionFlanges to BS EN 1092 PN10 and PN16
Expected Life0
F720.00 mm
Face To Face DimensionsBS EN 558: 2011 Series 20
Features- Manufactured to BS EN 593: 2009 - Complies with Pressure Equipment Directive PED 2014/68/EU - Suitable for Gearbox or Actuator operation - Rugged construction: Ductile Iron Body for all sizes - Stainless Steel disc as standard - Epoxy paint coated as standard - Low operating torques
Finishn/a
g35.25 mm
G800.00 mm
GearboxDuctile Iron EN-GJS-400-15
Graden/a
h585.00 mm
H22.00 mm
Hole Diameter(B)44.00 mm
Hole Radius22.00 mm
I130.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
J216.00 mm
k30.00 mm
K Coefficient0
KeyCarbon Steel ASTM A29 1045
KeynoteS
l313.75 mm
L1255.00 mm
Long BushingPTFE
Loss MethodK Coefficient
Lower GlandCarbon Steel EN-GJS-500-7U
Lower ShaftStainless Steel ASTM A276 420
M500.00 mm
ManufacturerHattersley
Manufacturer NameHattersley
MaterialCast Iron
MediumManufactured to BS EN 593: 2009. Complies with Pressure Equipment Directive 2014/68/EU.
ModelFig. 4930G - 5930G - 4930BS
Model NumberFig. 4930G - 5930G - 4930BS
Model ReferenceFig. 4930G - 5930G - 4930BS
N470.00 mm
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth500.00 mm
Nominal Height1829.00 mm
Nominal Length1255.00 mm
Number Of Holes24
O-RingNBR
OperatorGearbox - FM700 (Disc SS 316) / FM701 (Disc SS 304)
P1109.00 mm
PinStainless Steel ASTM A276 431
Pressure RatingPN16
Production Year2023
R130.00 mm
Referenced StandardManufactured to BS EN 593: 2009. Complies with Pressure Equipment Directive 2014/68/EU.
Replacement Costn/a
ScrewCarbon Steel ASTM A194 Gr.2H
Seat With Backing RingEPDM + Aluminium
Shapen/a
Short BushingPTFE
SizeDN1000
Spare Partsn/a
Split Retaining RingCarbon Steel ASTM A29-1045
Symbol Length600.00 mm
Temperature Rating-20°C to 120°C
Type CommentsDN1000
Type NameDN1000
Upper ShaftStainless Steel ASTM A276 420
URLwww.hattersley.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
