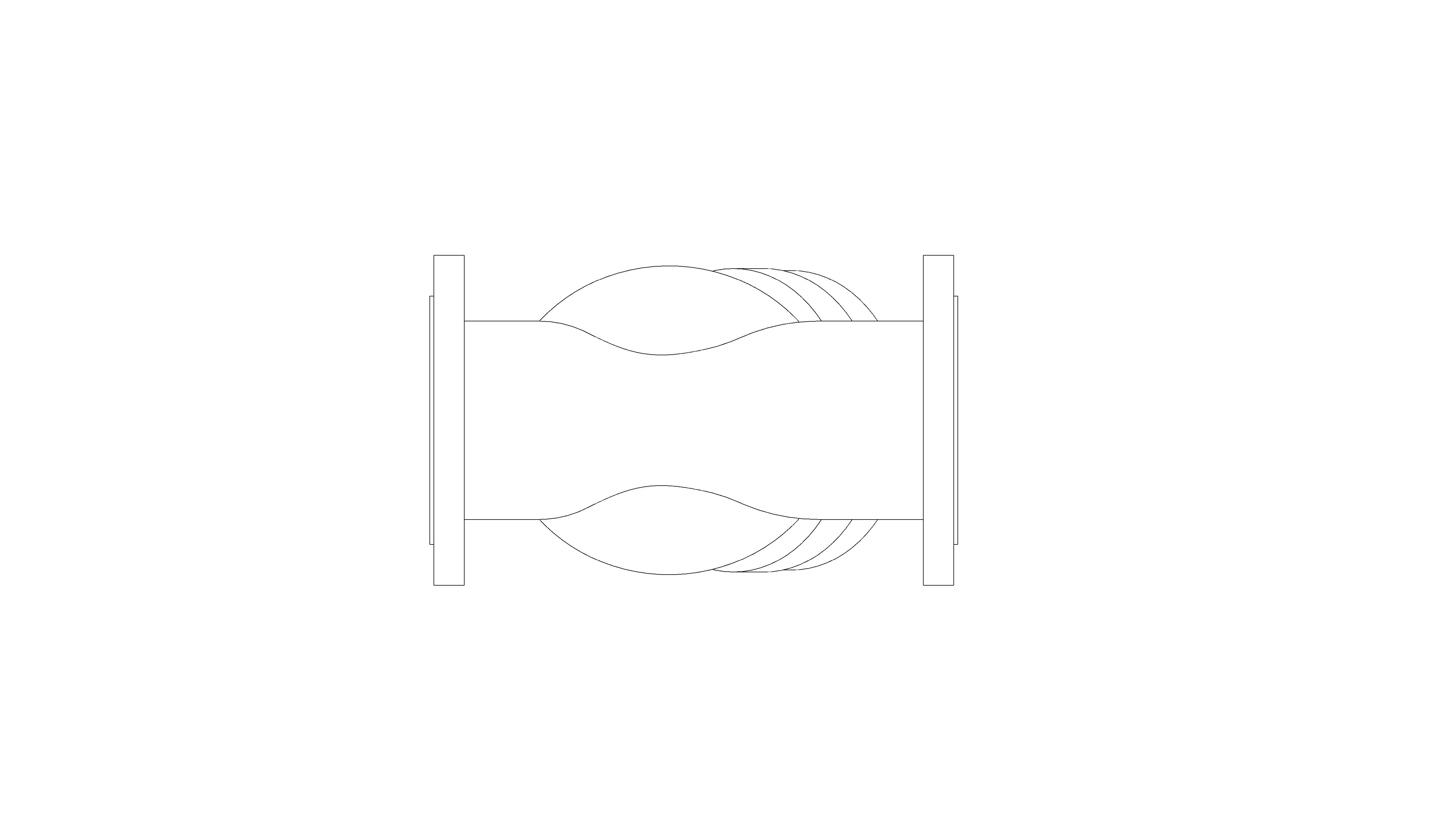

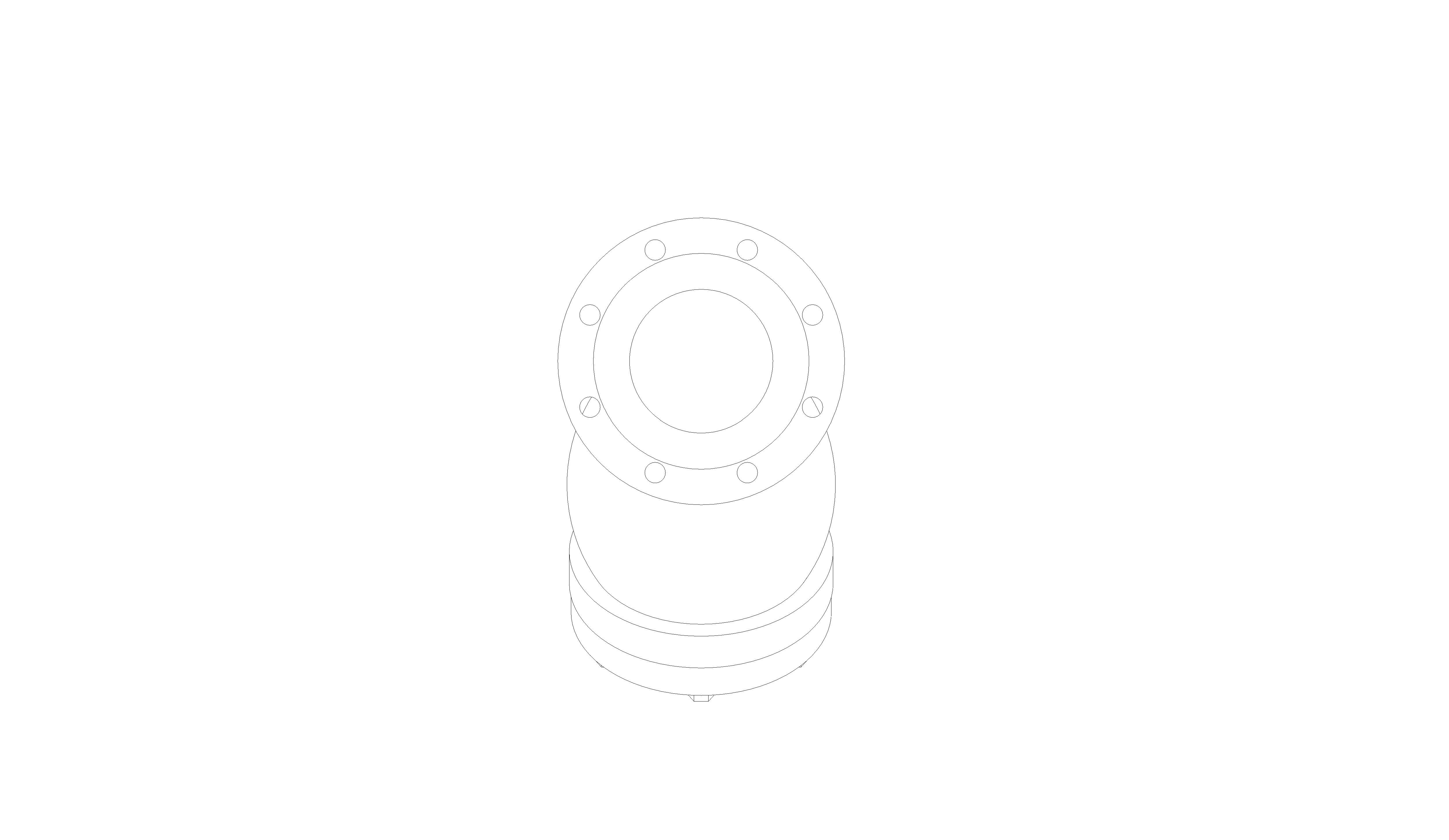

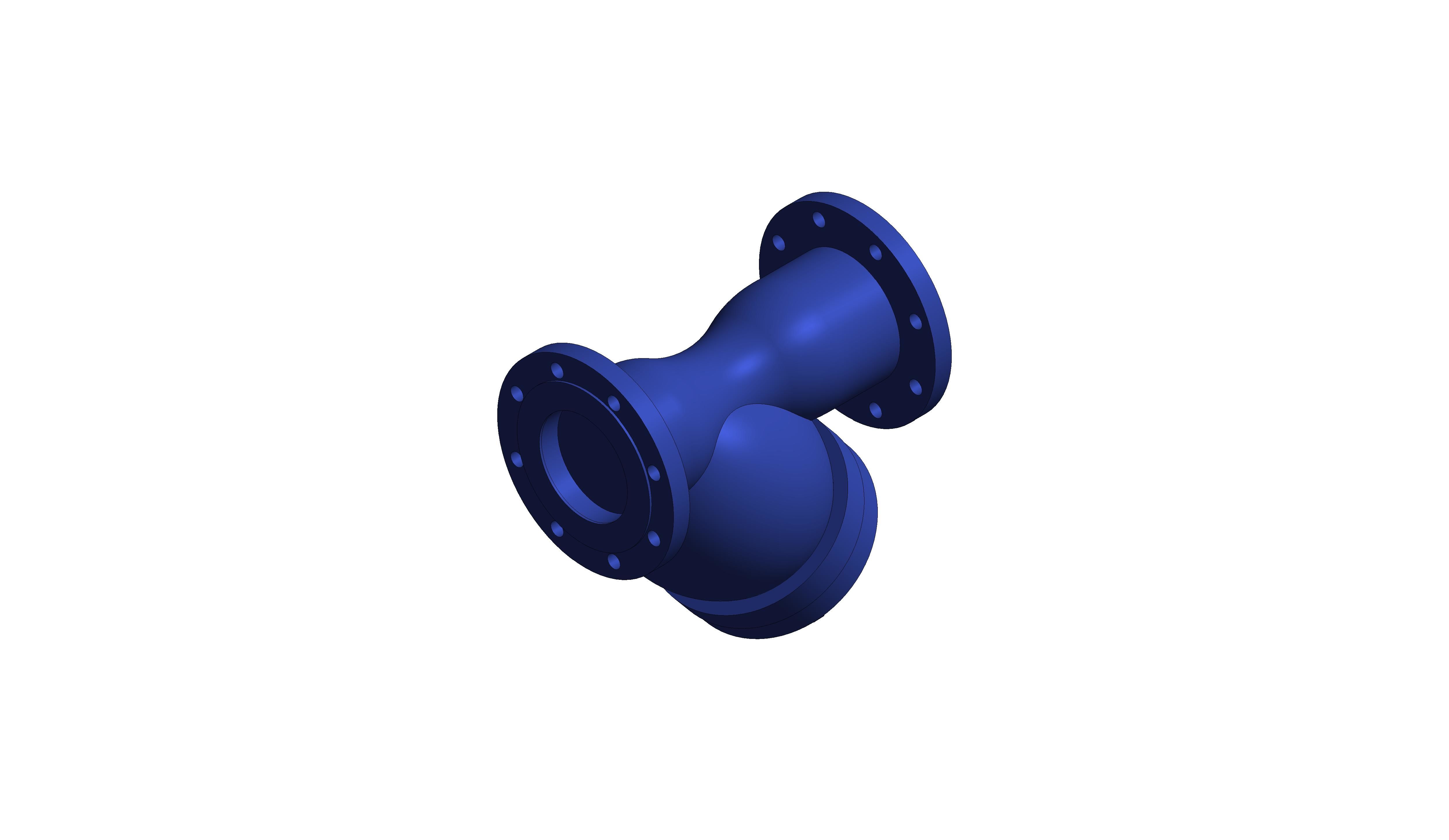

Fig. 816W - Strainer - Cast Iron

Download Add to collection

Description

PN16 Strianer - Cast Iron

Hattersley Strainers will help eliminate the problems caused by foreign matter within piping systems

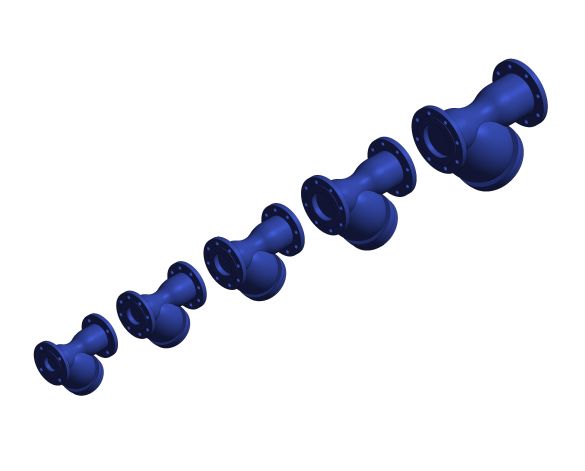

WRAS approved range from DN65 to DN150
WRAS approved for use with wholesome (potable) water
WRAS approved internal epoxy powder coating

Object Data

1 Revision

Last Updated

30/10/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Installation Guide

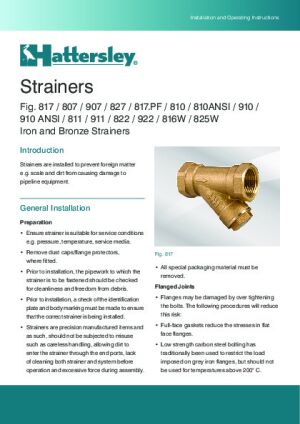

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/fig-816w-strainer-cast-iron-2/document/object-user-guide
A220.0 mm
a21.6 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
b80.2 mm
B24.0 mm
BIM Object NameHattersley_Strainer_Fig816W
BodyCast Iron BSEN 1561 EN-GJL-250
c230.9 mm
C158.0 mm
CapCast Iron BSEN 1561 EN-GJL-250
Classification NameUniclass2015
Classification ValuePr_65_57_96_99
Code Performancen/a
Colorn/a
Connection Radius50.0 mm
Connection Size100.0 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2023-09-11 T09:00:00
D3.0 mm
Default Elevation0.0 mm
DescriptionPN16 Cast Iron Strainer
DN100Yes
DN125No
DN150No
DN65No
DN80No
Documentation Certificateswww.bimstore.co/products/fig-816w-strainer-cast-iron-2/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-816w-strainer-cast-iron-2/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-816w-strainer-cast-iron-2/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-816w-strainer-cast-iron-2/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-816w-strainer-cast-iron-2/document/technical-data-sheet
Duration UnitYear
E350.0 mm
End ConnectionFlanged to BS EN 1092-2 PN16
Expected Life0
F245.0 mm
Features- Hattersley Strainers will help eliminate the problems caused by foreign matter within piping systems - WRAS approved range from DN65 to DN150 - WRAS approved for use with wholesome (potable) water - WRAS approved internal epoxy powder coating
Finishn/a
G350.0 mm
GasketAsbestos Free (WRAS)
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
MaterialCast Iron
ModelFig816W
Model NumberFig816W
Model ReferenceFig816W
NBS DescriptionY-type water strainers
NBS Noten/a
NBS Object NameHattersley - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/403
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
NutSteel BS 3692 GRADE 8
PlugMalleable Iron
Plug(Rc 1/4)Malleable Iron
Pressure RatingPN16
Production Year2023
Referenced Standardn/a
Replacement Costn/a
ScreenStainless Steel ASTM A182 F304
Screen Area575 cm²
Shapen/a
Sizen/a
Spare Partsn/a
StudSteel BS 4439 GRADE 8.8
Temperature Rating-10 to 85°C
Type CommentsDN100
Type NameDN100
URLwww.hattersley.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
Weight43.00 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
