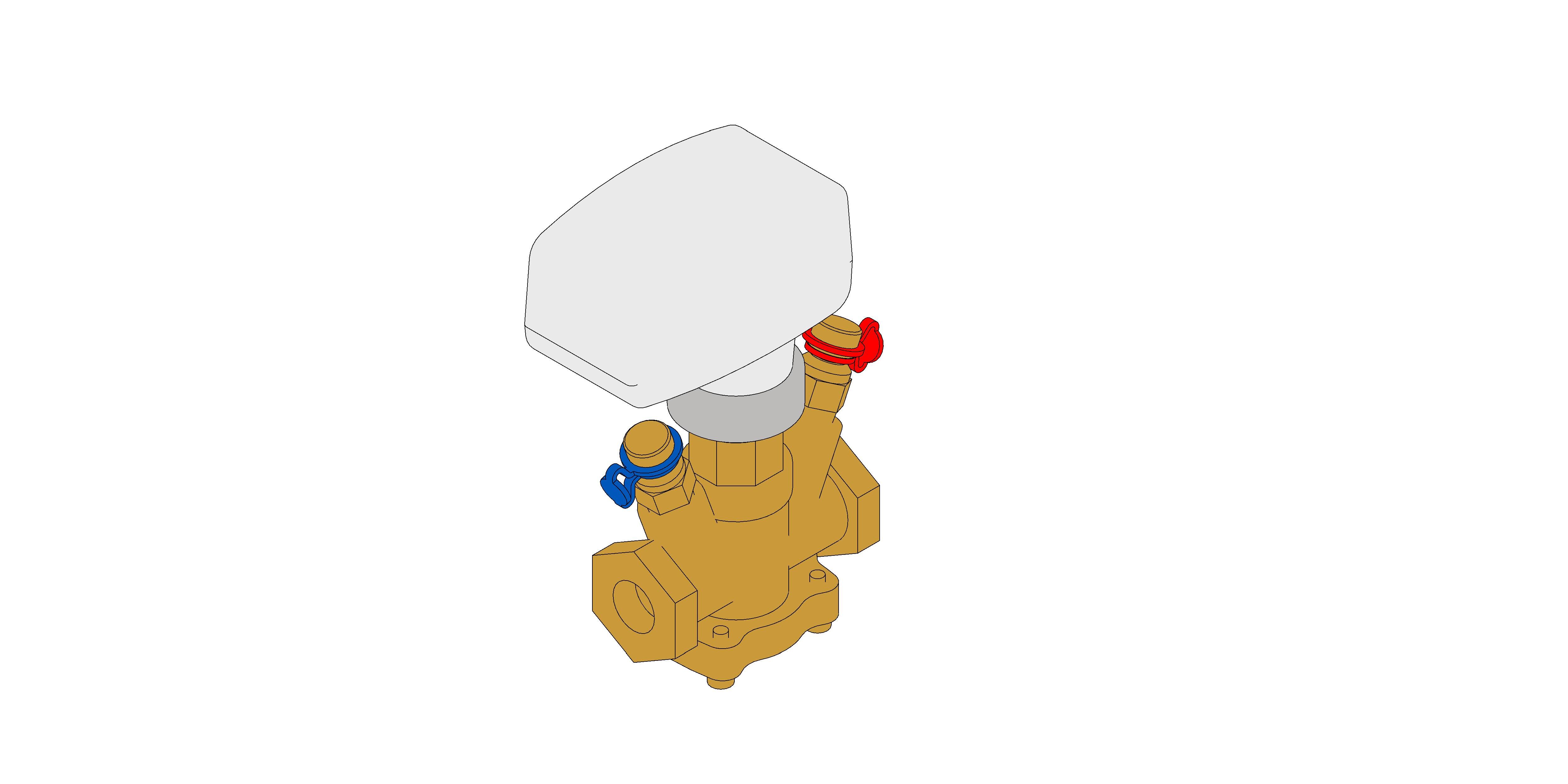

Fig. 1934 - Elite Prime PICV - DZR Brass
7.8k
4
4 / 5Rate this product
Available for:
Elite Prime PICV - DZR Brass
Fig. 1934
Features & Benefits
- Comprehensive flow range available, allowing for cost-effective valve selections. The PICV Elite Prime has up to 70% higher max flow compared to the previous model
- Accurate over a wide ΔP range - available in both 400 and 800kPa variants
- Class IV leakage
- PN16 (DN32) & PN25 (DN15, DN20 & DN25) rated products, suitable for high pressure applications
- Comprehensive testing undertaken for each valve - pressure tested to BS EN 12266-1 and performance tested in accordance with BSRIA BTS01 (10,000 cycles test which is equal to a design life of 15 years)
- Integral test points for verification of ΔP and valve performance
- Built in convoluted integral diaphragm
- Smaller and lighter design suits applications with a small footprint

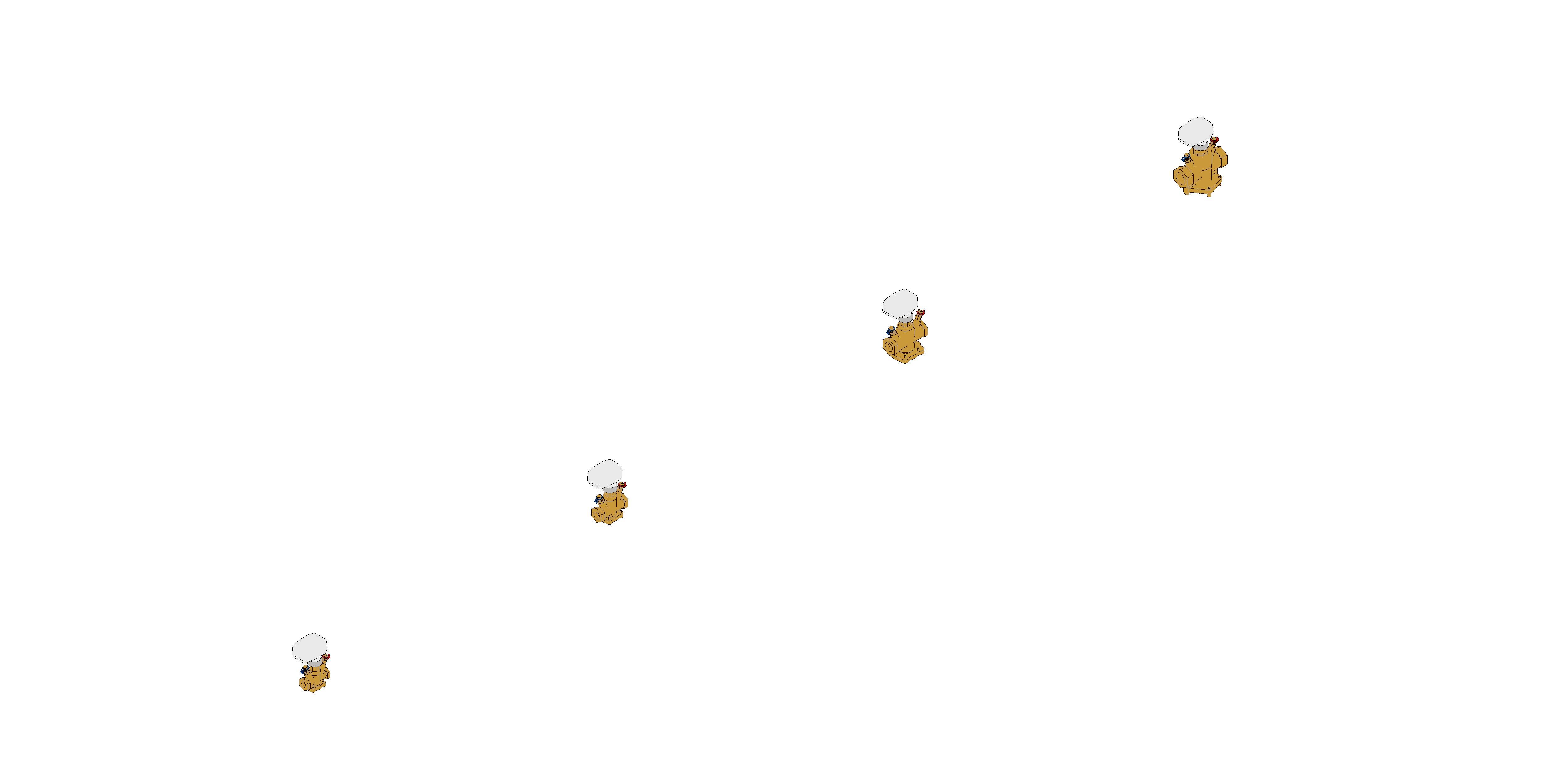

Size | DN15, 20, 25 & 32 |
Pressure Rating | DN15 to DN25: PN25 |
Temperature Rating | 0°C to 90°C |
Centre Size | 40mm |
Product Material | DZR Brass |
Flow Rate | DN15: 0.008 - 0.370l/s |
End Connections | BSP Female Taper to BS EN 10226-2 |
Read more
You must log in to write a comment
Login or Join
Ian Holmes on 29 October 2024
Hi Mark,
The Fig. 1934 is available in DN15, 20, 25 & 32.
I can't find reference to 40mm or 50mm, are you able to provide more information so I can investigate further?
Cheers
Mark Silcock on 23 October 2024
only seems to be size 40mm and 50mm in the download, where are the rest?
Ian Holmes on 15 August 2022
Hi Darrell,
There is a ‘Technical Data Sheet’ located under the 'Accompanying literature' section. Further documentation may also be available on Hattersley website: https://www.hattersley.com/product/picv/fig-1934
Darrell Gregory on 01 August 2022
Do you have a data sheet on the actuators for these PICV ??
